DMC:V2500-A1-72-32-18-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72321801 | ENGINE-FAN SPEED/TRIM BALANCE PROBES, PRE SBE70-0325 | aa | ||
| SBE0325-01 | ENGINE-FAN SPEED/TRIM BALANCE PROBES, PRE SBE72-0508 | ab | ||
| SBE0508-01 | ENGINE-FAN SPEED/TRIM BALANCE PROBES | ac | ||
| SBE0553-01 | ENGINE-FAN SPEED/TRIM BALANCE PROBES | ad | ||
| 100 | 788-1-12 | • PROBE - LP SPEED 0ABG5 REF No. 5L0010 PRE SBE70-0325 | aa-ad | 1 |
| 100A | 788-1-13 | • PROBE - FAN SPEED REF No. 5L0052 POST SBE70-0325 PRE SBE72-0508 | aa-ad | 1 |
| 100B | 1020-2-12 | • PROBE - SPEED POST SBE72-0508 | aa-ac | 1 |
| 200 | 788-1-12 | • PROBE - LP SPEED 0ABG5 REF No. 5L0010 PRE SBE70-0325 | aa-ad | 1 |
| 200A | 788-1-13 | • PROBE - FAN SPEED REF No. 5L0052 POST SBE70-0325 PRE SBE72-0508 | aa-ad | 1 |
| 200B | 1020-2-12 | • PROBE - SPEED POST SBE72-0508 | aa-ac | 1 |
| 300 | 789-1-12 | • PROBE - TRIM BALANCE 0ABG5 REF No. 5L0011 PRE SBE70-0325 | aa-ab | 1 |
| 300A | 789-1-13 | • PROBE - TRIM BALANCE REF No. 5L0053 POST SBE70-0325 PRE SBE72-0508 | aa-ab | 1 |
| 300B | 1021-2-12 | • PROBE - TRIM BALANCE POST SBE72-0508 | aa-ac | 1 |
| 300C | 1021-3-13 | • PROBE - TRIM BALANCE POST SBE72-0553 | ad | 1 |
| 400 | 788-1-12 | • PROBE - LP SPEED 0ABG5 PRE SBE70-0325 | aa-ac | 1 |
| 400A | 788-1-13 | • PROBE - FAN SPEED POST SBE70-0325 PRE SBE72-0508 | aa-ad | 1 |
| 400B | 1020-2-12 | • PROBE - SPEED POST SBE72-0508 | aa-ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

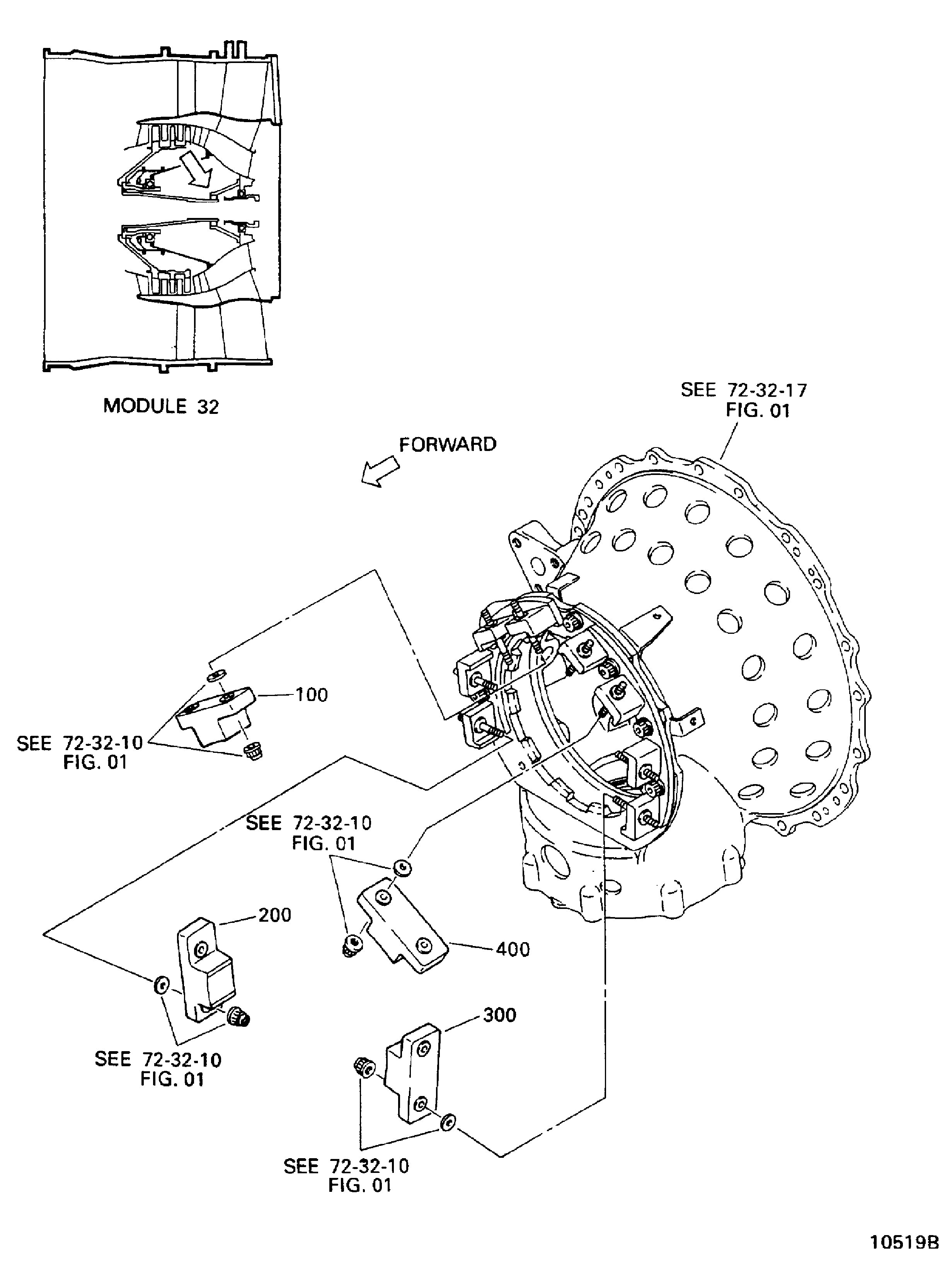

Figure: ENGINE-FAN SPEED/TRIM BALANCE PROBES
FAN SPEED/TRIM BALANCE PROBES
