DMC:V2500-A1-72-32-23-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72322301 | ENGINE-NO.3 BEARING ROTOR CENTRE, PRE SBE72-0026 | aa | ||
| SBE0026-01 | ENGINE-NO.3 BEARING ROTOR CENTRE, PRE SBE70-0827 | ab | ||
| SBE0827-01 | ENGINE-NO.3 BEARING ROTOR CENTRE | ac | ||
| 700 | 6A3898 | • SHAFT - & SEAL ASSY PRE SBE72-0026 | aa | 1 |
| 700A | 6A3915 | • SHAFT - & SEAL ASSY FRONT HPC POST SBE72-0026 | ab-ac | 1 |
| 712 | AS21013 | • • BOLT - BIHEX HD, .250 DIA X .812 U1653 | aa-ac | 18 |
| 713 | K8833 | • • WASHER - FLAT | aa-ac | 18 |
| 715 | 6A3901 | • • PLATE | aa-ac | 1 |
| 718 | 4W0002 | • • NUT - .250 DIA Optional Part 4W0002 | aa-ac | 18 |
| 720 | 6A3902 | • • CARRIER - ASSY PRE SBE72-0026 | aa-ac | 1 |
| 720A | 6A3916 | • • CARRIER - ASSY RING-SEAL POST SBE72-0026 | aa-ac | 1 |
| 724 | 6A1450 | • • • RETAINER - RING SEAL,(VRS6113) | ***** | 1 |
| 724A | 6A1450 | • • • RETAINER POST SBE70-0827 | ac | 1 |
| 726 | UP10892 | • • • RING - SEAL,(VRS6113) | ***** | 1 |
| 726A | 5A1879 | • • • RING - SEAL POST SBE70-0827 | ac | 1 |
| 728 | 6A3917 | • • • CARRIER - RING-SEAL POST SBE72-0026 | ab-ac | 1 |
| 745 | 6A3899 | • • SHAFT - ASSY | aa-ac | 1 |
| 748 | 4W0002 | • • • NUT - .250 DIA Optional Part 4W0002 | aa-ac | 4 |
| 749 | UP11050 | • • • WASHER PRE SBE70-0827 | aa-ab | 4 |
| 749A | 5A1876 | • • • WASHER POST SBE70-0827 | ac | 4 |
| 750 | UP10762 | • • • BOLT - LOCATING PRE SBE70-0827 | aa-ab | 4 |
| 750A | 5A1878 | • • • BOLT - LOCATING POST SBE70-0827 | ac | 4 |
| 760 | UP11051 | • • • SPACER | aa-ac | 20 |
| 760A | UP11051 | • • • SPACER PRE SBE70-0827 | aa-ab | 20 |
| 760B | 5A1877 | • • • SPACER POST SBE70-0827 | ac | 20 |
| 762 | 6A4372 | • • • SPACER | aa-ac | 20 |
| 763 | 6A4373 | • • • SPACER | aa-ac | 20 |
| -770 | 6A3900 | • • • SHAFT | aa-ac | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

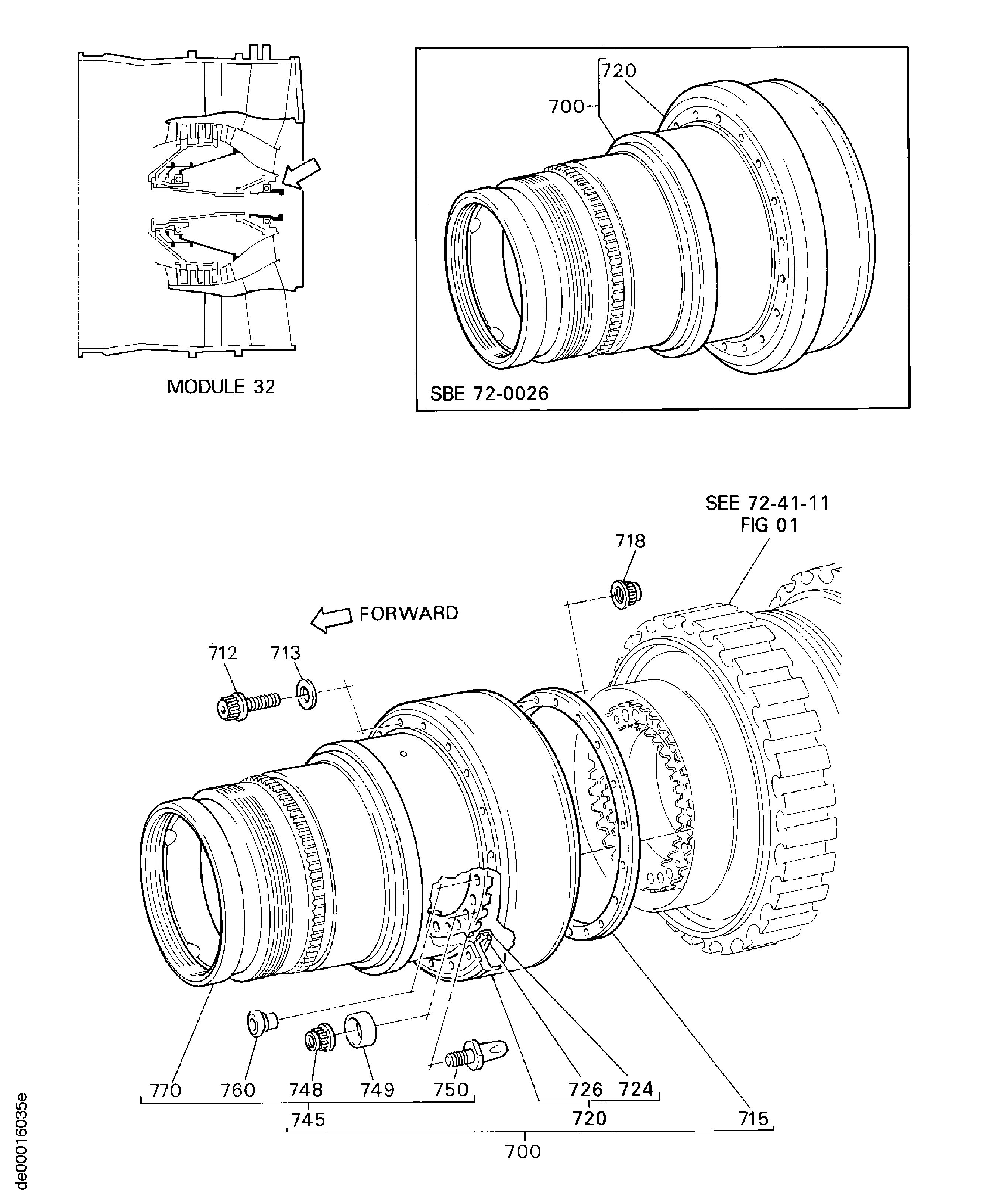

Figure: ENGINE-NO.3 BEARING ROTOR CENTRE
ROTOR CENTRE NO.3 BEARING
