DMC:V2500-A1-72-32-35-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72323501 | ENGINE-BEARING COMPARTMENT REAR AIR SEAL, PRE SBE72-0132 | aa | ||
| SBE0132-01 | ENGINE-BEARING COMPARTMENT REAR AIR SEAL, PRE SBE72-0353 | ab | ||
| SBE0353-01 | ENGINE-BEARING COMPARTMENT REAR AIR SEAL | ac | ||
| 090 | 5R0056 | • RING - RETAINING SPIRAL PRE SBE72-0353 | aa-ab | 1 |
| 090A | 5R0287 | • RING - RETAINING, SPIRAL POST SBE72-0353 | aa-ac | 1 |
| 090B | 5R0287 | • RING - RETAINING, SPIRAL POST SBE72-0353 | ac | 1 |
| 100 | 5R0057 | • SEAL - A/O AIR FBC REAR PRE SBE72-0132 | aa | 1 |
| 100A | 5R0176 | • SEAL - A/O AIR FBC REAR POST SBE72-0132 | ab-ac | 1 |
| 140 | 5R0255 | • • SEALING - STRIP | aa-ac | 1 |
| 160 | 6A2054 | • • SEAL - A/O BRUSH | aa-ac | 1 |
| 205 | 5R0178 | • • PIN - LOCATION POST SBE72-0132 | ab-ac | 1 |
| -220 | 5R0058 | • • HOLDER - BRUSH SEAL REAR PRE SBE72-0132 | aa | REF |
| -220A | 5R0177 | • • HOLDER - BRUSH SEAL REAR POST SBE72-0132 | ab-ac | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

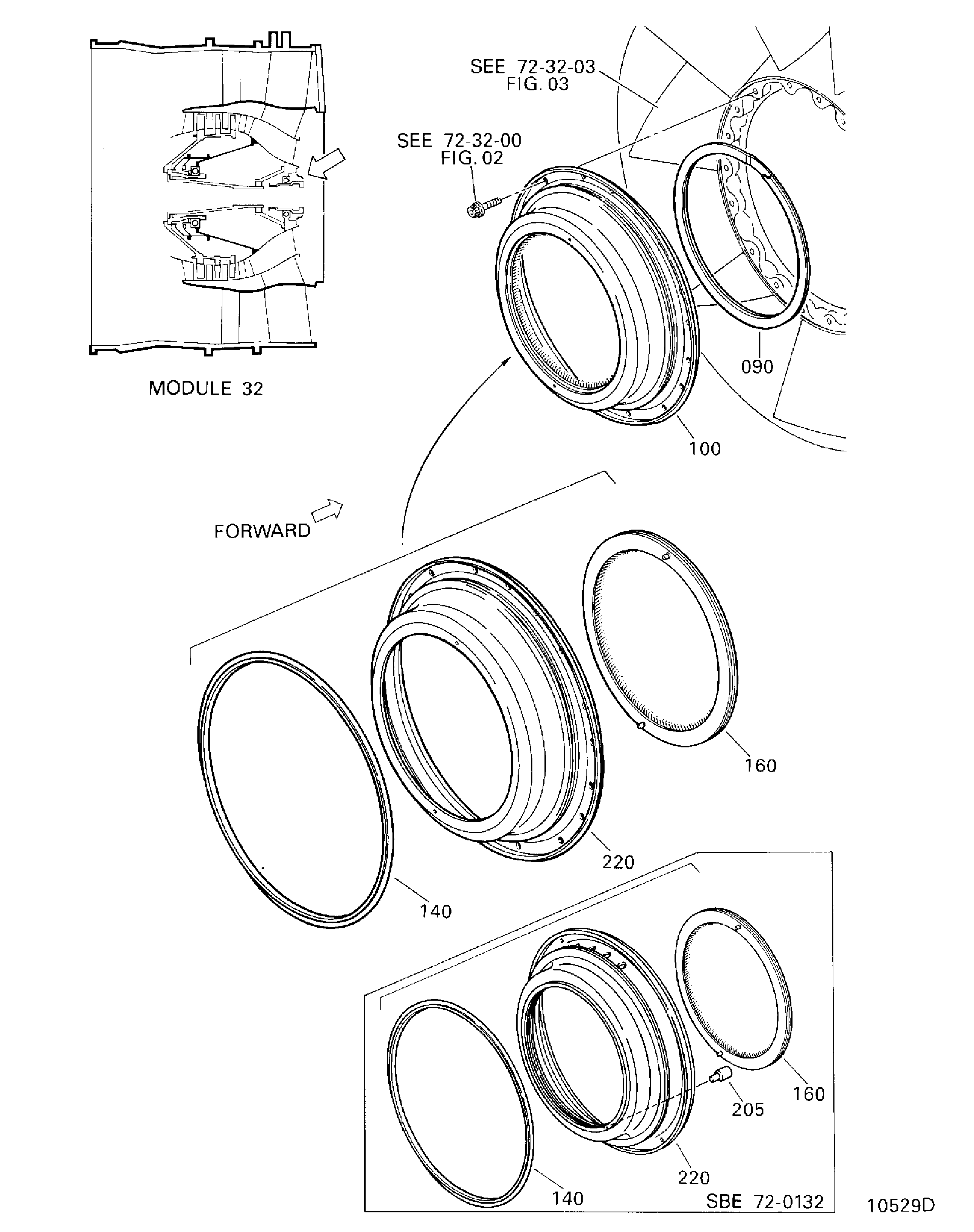

Figure: ENGINE-BEARING COMPARTMENT REAR AIR SEAL
FRONT BEARING COMPARTMENT REAR AIR SEAL
