V2500-A1
Common Information
TASK 72-32-35-300-005 Front Bearing Compartment Rear Air Seal Assembly - Blend Repair, Repair-005 (VRS1871)
General
This repair gives the procedure for blending the seals
Price and availability
Refer to IAE for any of these items:
Tools
Repair parts
The practices and processes referred to in the procedure by the TASK numbers are in the SPM
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Fluorescent Penetrant Inspection Equipment | LOCAL | Fluorescent penetrant inspection equipment | ||
| Portablegrinding equipment | LOCAL | Portable grinding equipment |
Consumables, Materials and Expendables
NONESpares
NONESafety Requirements
NONEProcedure
Dress until all the damage is removed. The maximum blend limit is 0.005 in. (0.13mm).
Refer to the SPM TASK 70-35-03-300-501 and Figure.
CAUTION
TITANIUM COMPONENTS.SILICON CARBIDE TYPE WHEELS. STONES AND ABRASIVE PAPERS, ARE TO BE USED FOR THIS REPAIR.ALUMINUM OXIDE TYPES MUST NOT BE USED.THE MATERIAL WILL OXIDIZE AND CRACK IF MECHANICAL CUTTERS ARE USED HEAVILY.THIS HAS OCCURED IF THE COMPONENT SHOWS DARK STRAW TO BLUE DISCOLORATION.IF AT ANY TIME THIS COLORATION OCCURS, THE SEAL MUST BE REJECTED.Dress to remove the damage at all locations.
SUBTASK 72-32-35-350-057 Dress to Remove Damage
Refer to the SPM TASK 70-23-01-230-501.
Do a penetrant crack test for the repaired area.
SUBTASK 72-32-35-220-061 Examine the Seal Holder for Cracks
Refer to TASK 72-32-35-200-000.
Do a visual inspection.
SUBTASK 72-32-35-220-062 Examine the Seal Holder

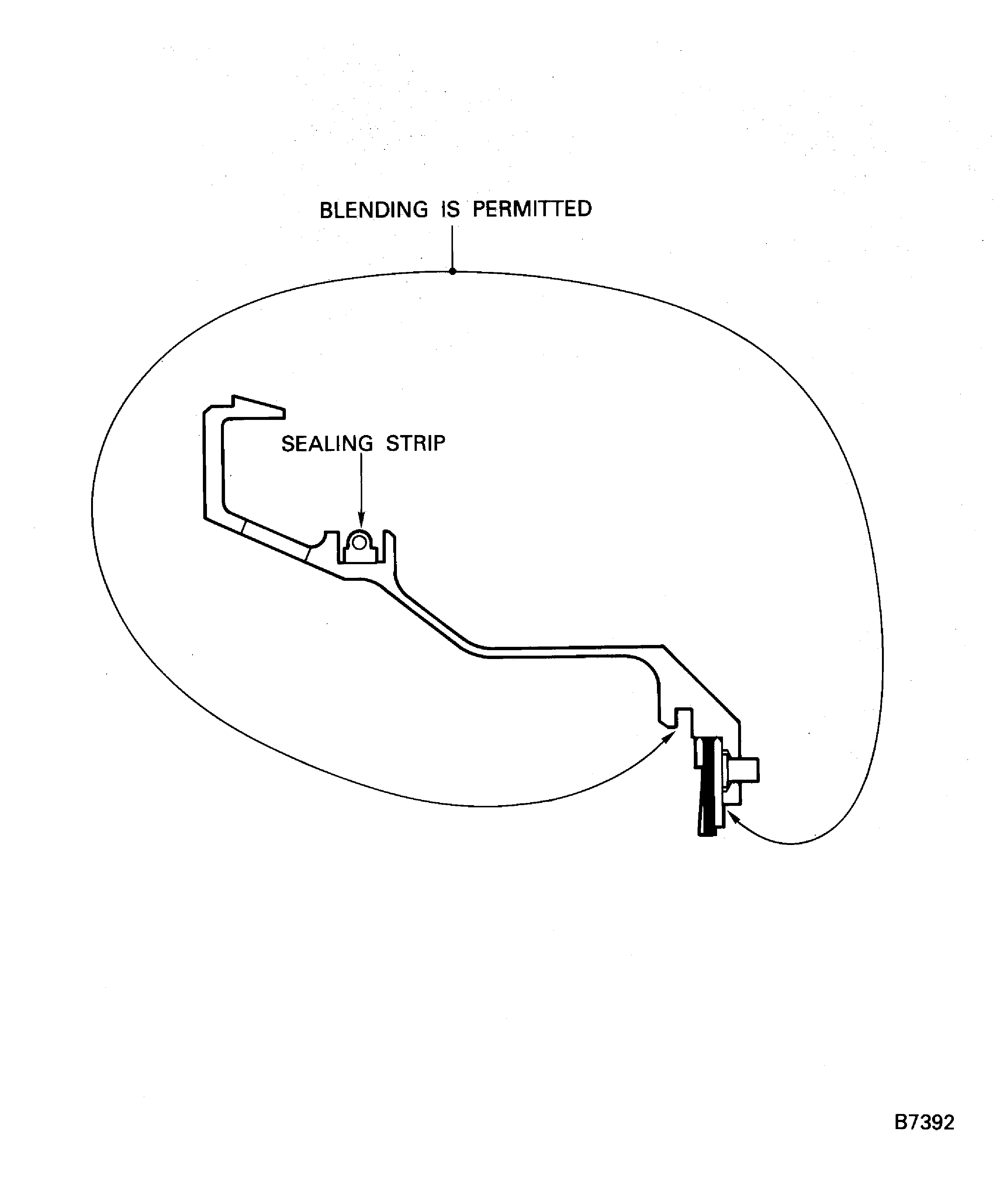

Figure: FBC rear air seal
FBC rear air seal
