DMC:V2500-A1-72-32-3502-00A-933A-CIssue No:001.00Issue Date:2013-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
V2500-A1
Common Information
TASK 72-32-35-840-001 Front Bearing Compartment Rear Air Seal Retaining Ring - Rework The Ring, Rework-001 - SBE 72-0353
General
The practices and processes referred to in the procedure by the TASK numbers are in the SPM.
NOTE
To identify the consumable materials, refer to the PCI.
Preliminary Requirements
Pre-Conditions
NONESupport Equipment
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| Drilling machine | LOCAL | Drilling machine | ||
| Standard workshop equipment | LOCAL | Standard workshop equipment | ||
| Penetrant Crack Test Equipment | LOCAL | Penetrant crack test equipment | ||
| Vibrating marking pencil | LOCAL | Vibrating marking pencil |
Consumables, Materials and Expendables
| Name | Manufacturer | Part Number / Identification | Quantity | Remark |
|---|---|---|---|---|
| CoMat 06-022 FLUORESCENT PENETRANT (POST-EMULSIFIED ULTRA HIGH SENSITIVITY) | LOCAL | CoMat 06-022 |
Spares
NONESafety Requirements
NONEProcedure
Refer to Figure.
Use Standard workshop equipment, take care not to damage other surface.
NOTE
This step is only applicable to P/N 5R0268.Cut the edges from the Retaining Spiral Ring.
SUBTASK 72-32-35-350-051 Cut the Edges from the Retaining Spiral Ring
Refer to Figure.
Use Drilling machine with Standard workshop equipment.
Drill the two holes in both edges.
SUBTASK 72-32-35-350-052 Drill the Holes in the edges of the Retaining Spiral Ring
Refer to the SPM TASK 70-23-05-230-501.
Do a penetrant crack test.
SUBTASK 72-32-35-230-058 Do a crack Test

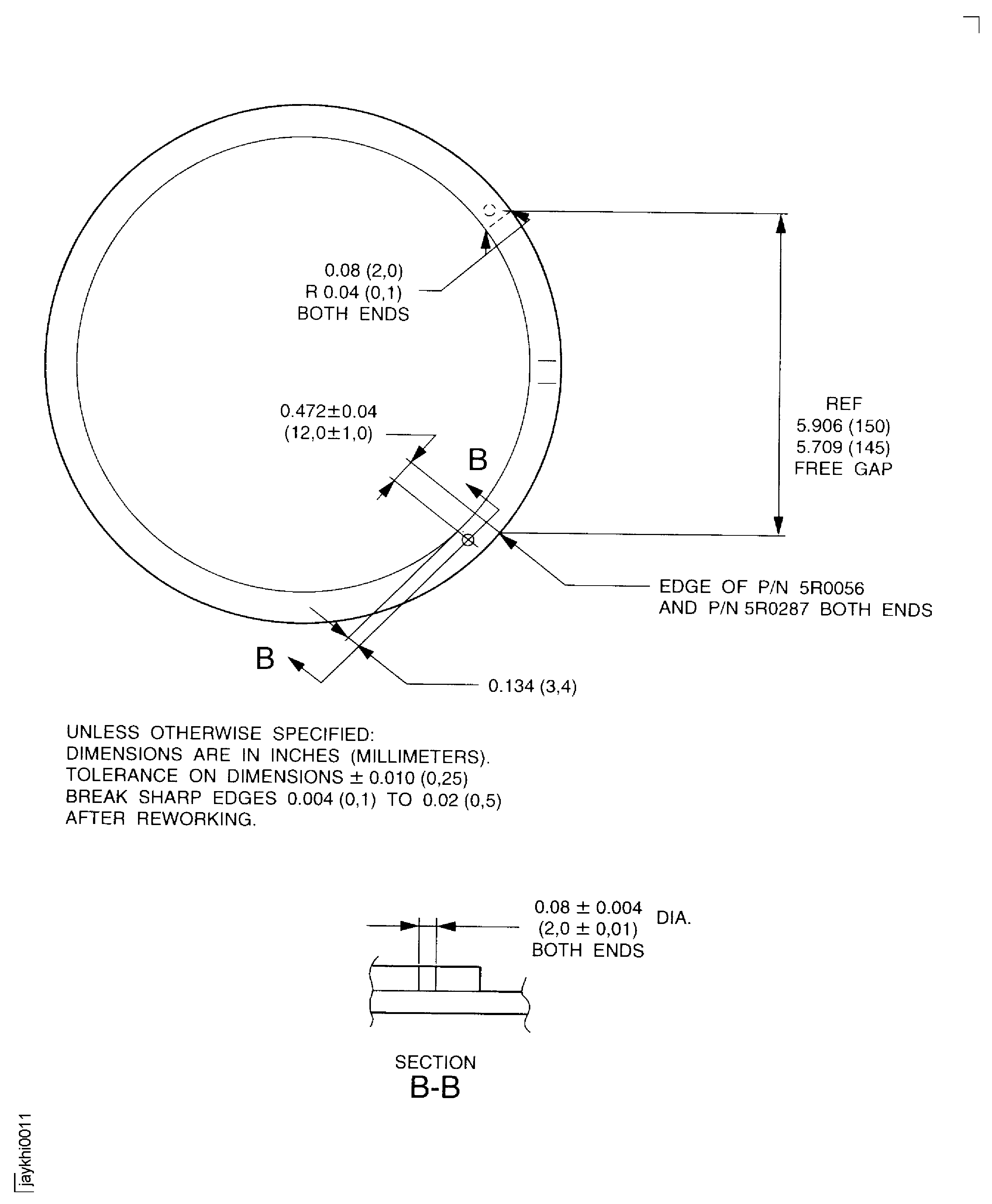

Figure: Rework of the Retaining Spiral Ring
Rework of the Retaining Spiral Ring

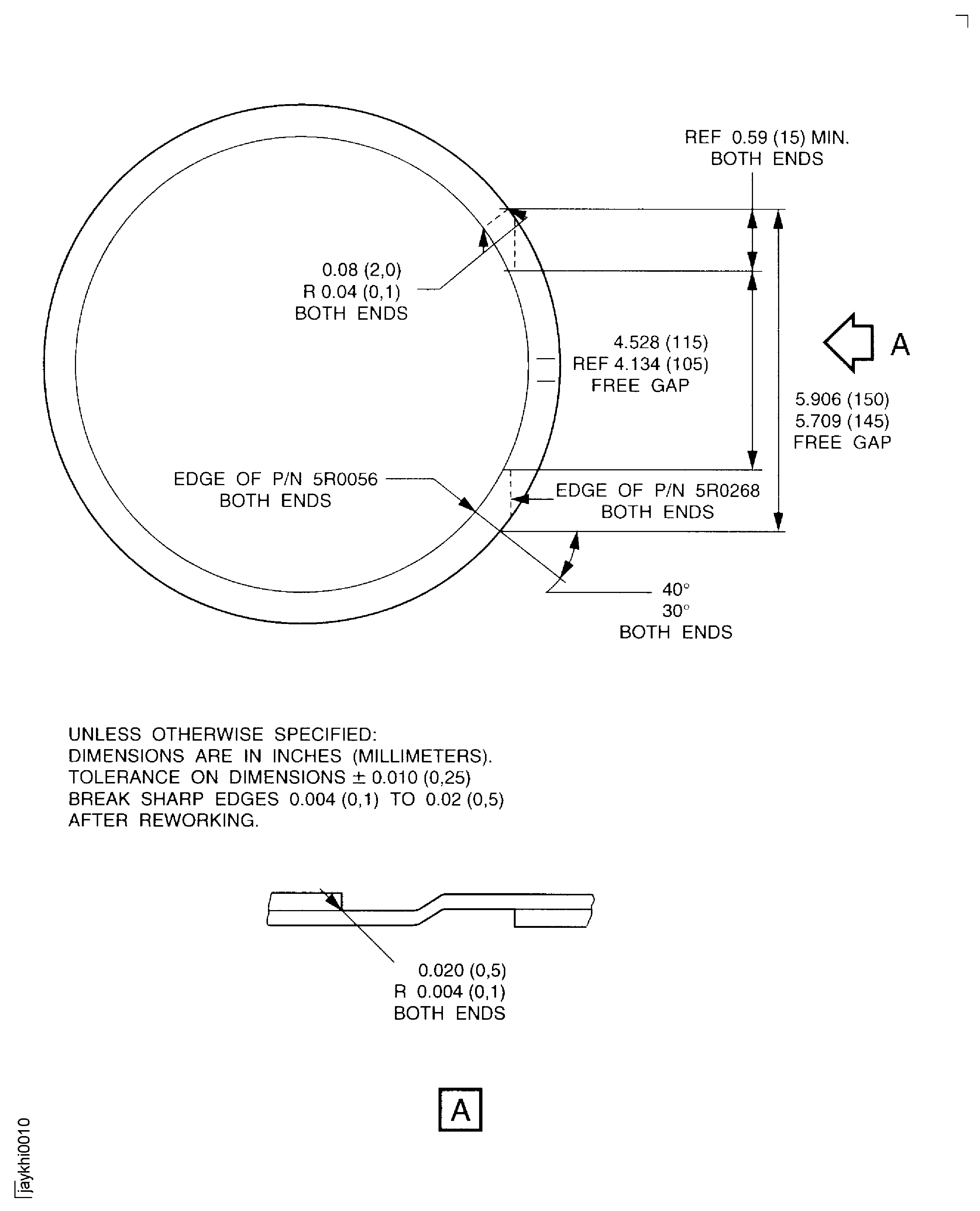

Figure: Rework of the Retaining Spiral Ring
Rework of the Retaining Spiral Ring
