DMC:V2500-A1-72-32-50-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72325001 | ENGINE-LP SHAFT NO.1 AND NO.2 BEARING ASSEMBLY, PRE SBE72-0066 | aa | ||
| SBE0066-01 | ENGINE-LP SHAFT NO.1 AND NO.2 BEARING ASSEMBLY | ab | ||
| 001 | 5W0098 | LP - STB SHFT & 1,2 BRG ASSEMBLY POST SBE72-0066 | ab | 1 |
| -100 | SEAL | • SEAL - FRONT BEARING NO1(72-32-53) | aa-ab | REF |
| -130 | BEARINGS | • IP - BEARING NO1(72-32-54) | aa-ab | REF |
| -150 | BEARINGS | • IP - BEARING NO2(72-32-52) | aa-ab | REF |
| -190 | SHAFT | • SHAFT - ,LP STUB/ROTOR CENTER(72-32-51) | aa-ab | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

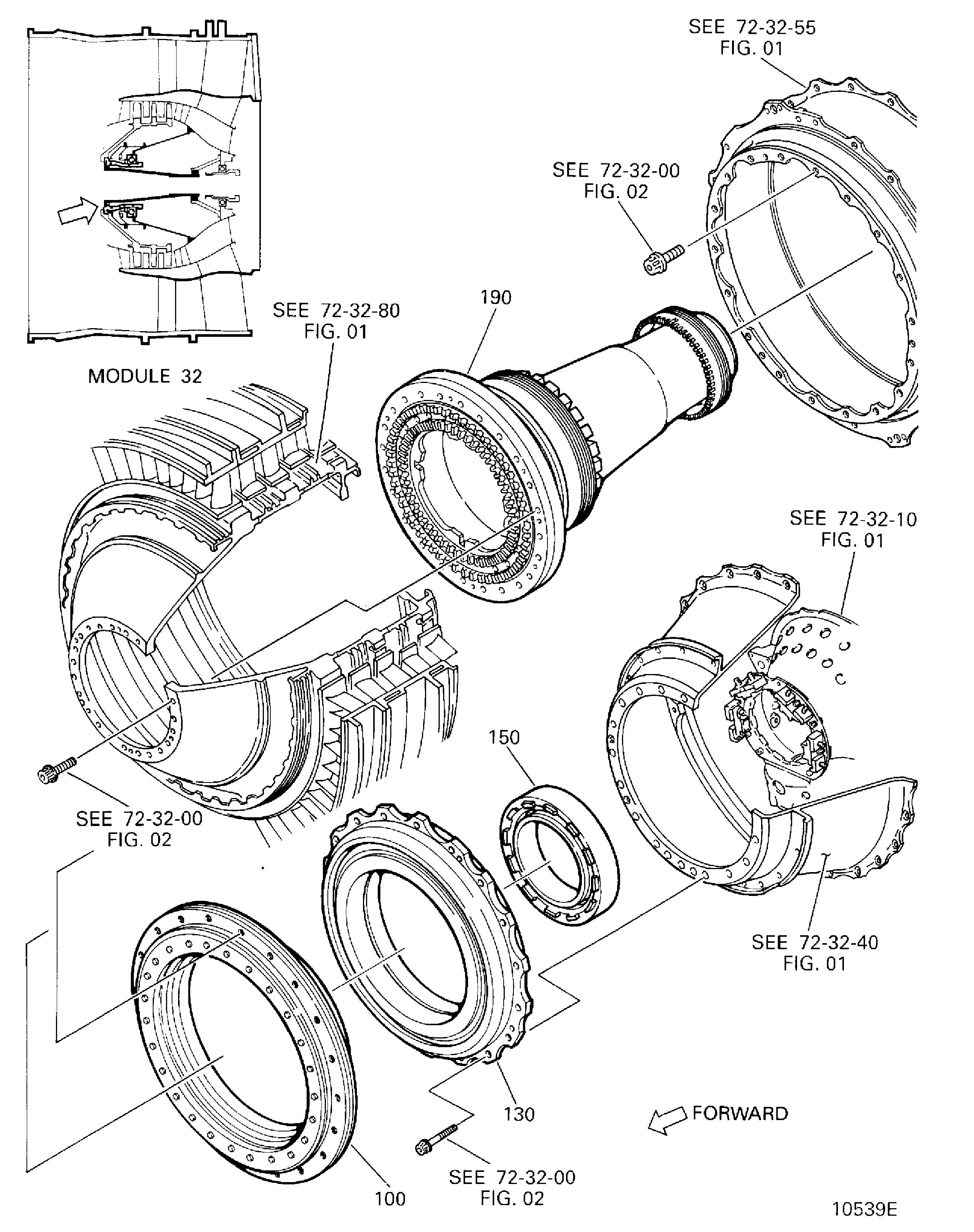

Figure: ENGINE-LP SHAFT NO.1 AND NO.2 BEARING ASSEMBLY
LP SHAFT NO.1 AND NO.2 BEARING ASSEMBLY
