DMC:V2500-A1-72-32-55-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72325501 | ENGINE-NO.1 BEARING COMPARTMENT FRONT OIL SEAL, PRE SBE72-0132 | aa | ||
| SBE0132-01 | ENGINE-NO.1 BEARING COMPARTMENT FRONT OIL SEAL | ab | ||
| 100 | 5W2050 | • SUPPORT - ASSY SEAL PRE SBE72-0132 | aa | 1 |
| 100A | 5W2078 | • SUPPORT - A/O, SEAL POST SBE72-0132 | ab | 1 |
| 110 | AGS3732 | • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-ab | 3 |
| 115 | RPNF250-28SM | • • NUT 83324 POST SBE72-0132 | ab | 3 |
| 118 | RPNF250-28SM | • • NUT 83324 POST SBE72-0132 | ab | 4 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

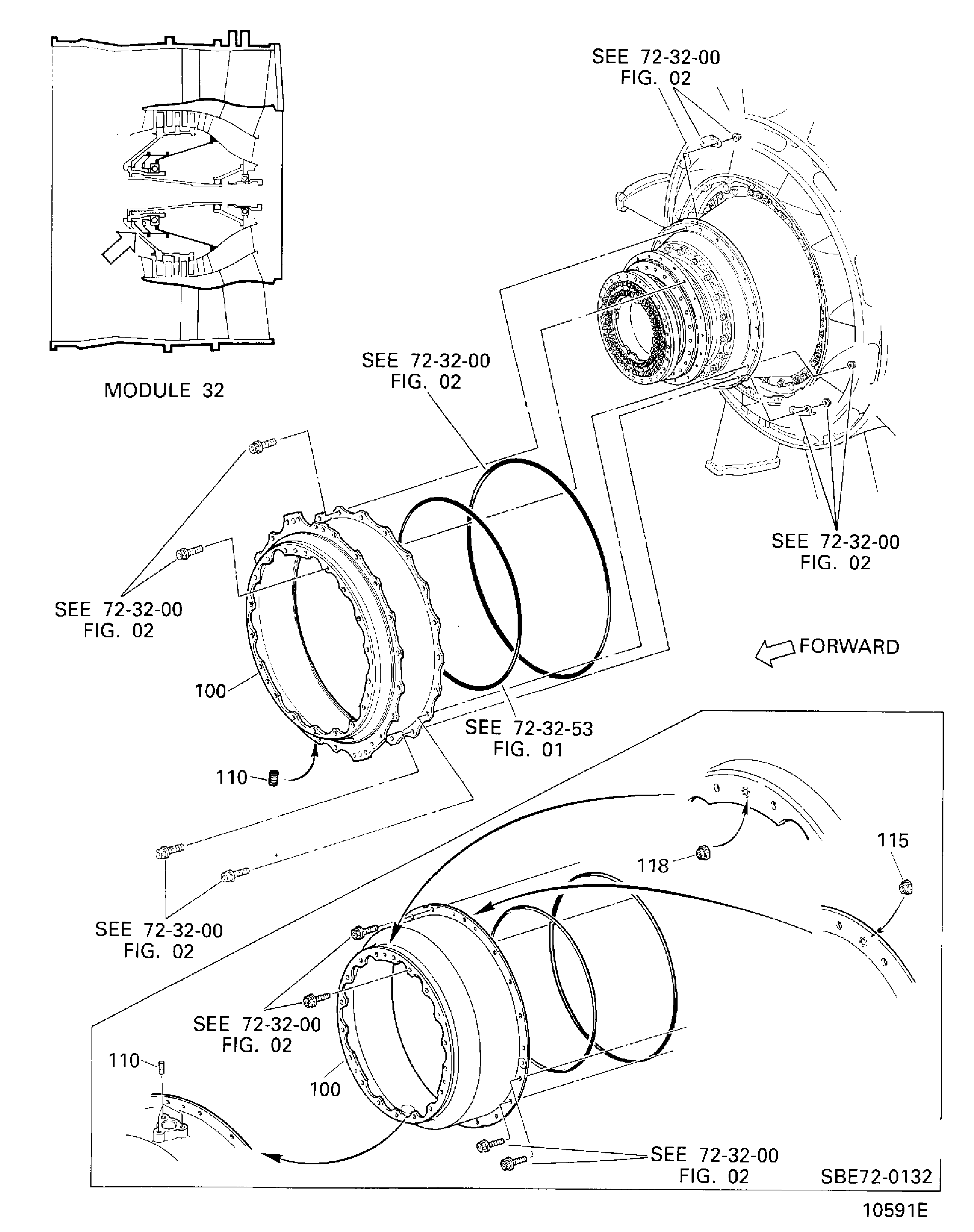

Figure: ENGINE-NO.1 BEARING COMPARTMENT FRONT OIL SEAL
NO.1 BEARING FRONT SEAL SUPPORT
