DMC:V2500-A1-72-32-56-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72325601 | ENGINE-NO.1 BEARING COMPARTMENT FRONT AIR SEAL | aa | ||
| 100 | 5R6130 | • RING - RETAIN SPIRAL PRE SBE72-0132 | ***** | 1 |
| 150 | 5R6131 | • SEAL - ASSY AIR FBC FRONT PRE SBE72-0132 | ***** | 1 |
| 160 | 6A2053 | • • SEAL - A/O BRUSH PRE SBE72-0132 | ***** | 1 |
| -250 | 5R6132 | • • SEAL - OUTER FBC FRONT | aa | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

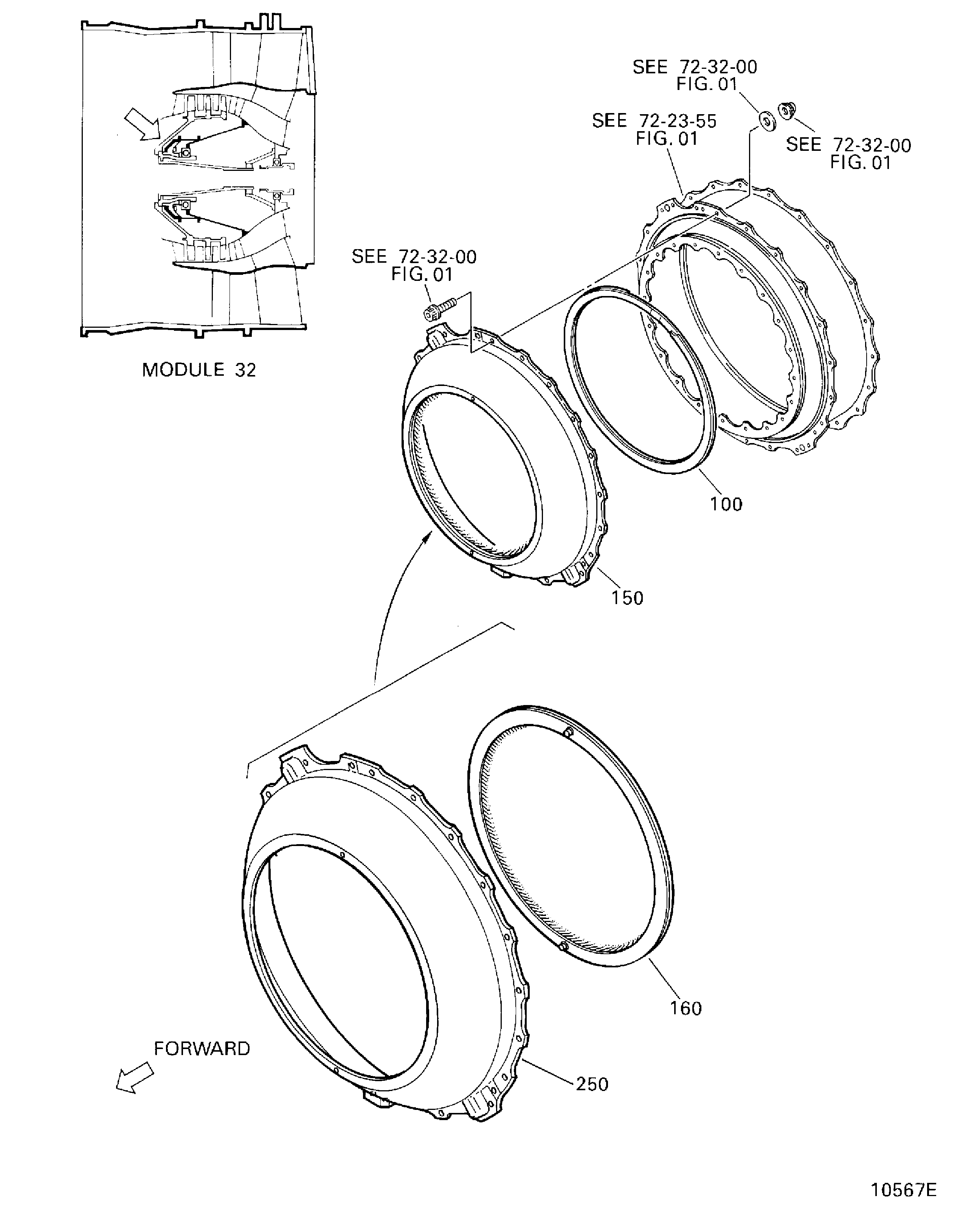

Figure: ENGINE-NO.1 BEARING COMPARTMENT FRONT AIR SEAL
FRONT BEARING COMPARTMENT FRONT AIR SEAL
