ENGINE-BOOSTER STAGE BLEED VALVE OUTLET CASE

DMC:V2500-A1-72-32-60-01A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B72326001ENGINE-BOOSTER STAGE BLEED VALVE OUTLET CASE, PRE SBE72-0081aa
000SBE0081-01ENGINE-BOOSTER STAGE BLEED VALVE OUTLET CASE, PRE SBE72-0044ab
000SBE0044-01ENGINE-BOOSTER STAGE BLEED VALVE OUTLET CASE, PRE SBE72-0188ac
000SBE0188-01ENGINE-BOOSTER STAGE BLEED VALVE OUTLET CASE, PRE SBE70-0983ad
000SBE0983-01ENGINE-BOOSTER STAGE BLEED VALVE OUTLET CASEae
1001005W2115• RETAINER - SEALaa-ae2
1101105W2106• SEALaa-ae2
1201204W0163• BOLT - .250 DIA X .562aa-ae4
130130AN960C416• WASHER
81352
PRE SBE72-0081		aa-ae4
130130AMS9321-10• WASHER
96906
POST SBE72-0081		aa-ae4
2502505W2038• DUCT - A/O LP COMP BLEED
PRE SBE72-0044		aa-ab1
250250A5W2080• DUCT - A/O LPC BLEED
POST SBE72-0044		ac-ae1
258258NAS1394-4L• • INSERT
80205
PRE SBE70-0983		aa-ae10
258258AMS51830-202L• • INSERT
96906
POST SBE70-0983		aa-ae10
260260NAS1394-4L• • INSERT
80205
PRE SBE70-0983		aa-ae4
260260AMS51830-202L• • INSERT
96906
POST SBE70-0983		aa-ae4
2702705W2112• • PINaa-ae20
2802805W2041• • DUCT - LP COMP BLEED
PRE SBE72-0044		aa-ab1
-280280A5W2081• • DUCT - LPC BLEED
POST SBE72-0044		ac-aeREF
3303305W2063• SCREEN - A/O
PRE SBE72-0188		aa-ae5
330330A5W2250• WINDOW - SCREEN,A/O
POST SBE72-0188		aa-ae5
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

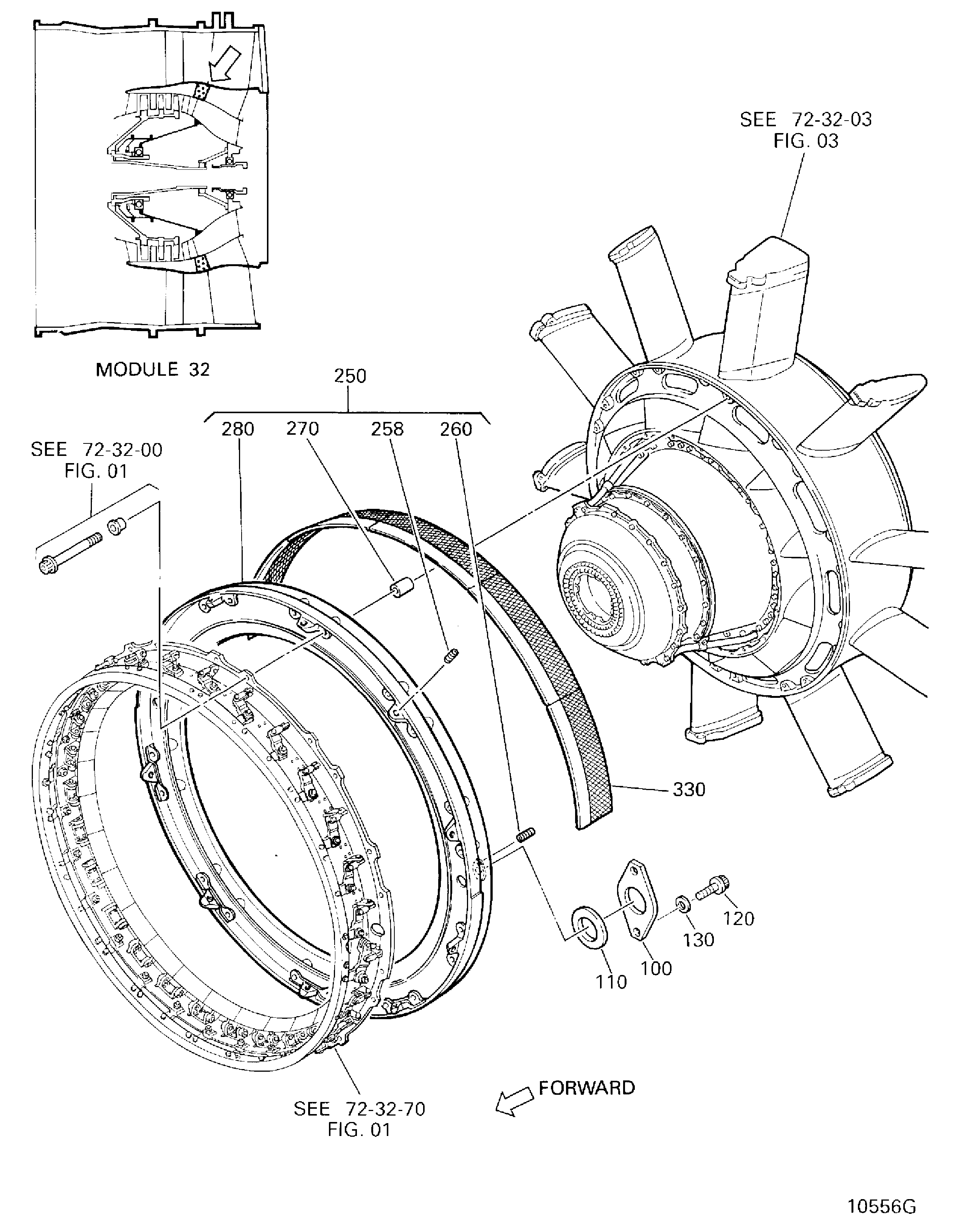

Figure: ENGINE-BOOSTER STAGE BLEED VALVE OUTLET CASE

BOOSTER STAGE BLEED VALVE OUTLET CASE

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:80205
Enterprise Name:NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
BU Name:NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Part Number:4W0163
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .562
Manufacturer Code:0AM53
Part Number:5W2038
Part Name:DUCT - LPC BLEED, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W2041
Part Name:DUCT - LPC BLEED, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W2063
Part Name:SCREEN - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W2080
Part Name:DUCT - LPC BLEED, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W2081
Part Name:DUCT - LPC BLEED, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W2106
Part Name:SEAL
Manufacturer Code:0AM53
Part Number:5W2112
Part Name:PIN
Manufacturer Code:0AM53
Part Number:5W2115
Part Name:RETAINER - SEAL
Manufacturer Code:0AM53
Part Number:5W2250
Part Name:WINDOW - SCREEN, ASSEMBLY OF
Manufacturer Code:0AM53
Link not Found
Part Number:MS51830-202L
Part Name:INSERT
Manufacturer Code:96906
Part Number:MS9321-10
Part Name:WASHER - FLAT, 0.500 X 0.276 X 0.062
Manufacturer Code:96906
Part Number:NAS1394-4L
Part Name:INSERT
Manufacturer Code:80205
