| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72327001 | BOOSTER STAGE BLEED VALVE ACTUATING MECHANISM, PRE SBE72-0133 | aa | ||
| SBE0133-01 | BOOSTER STAGE BLEED VALVE ACTUATING MECHANISM, PRE SBE72-0306 | ab | ||
| SBE0306-01 | BOOSTER STAGE BLEED VALVE ACTUATING MECHANISM | ac | ||
| 120 | MS3215-2015 | • RING 96906 | aa-ac | 25 |
| 140 | 5A3710 | • PIN PRE SBE72-0133 | aa | 25 |
| 140A | 5A0959 | • PIN POST SBE72-0133 | ab-ac | 25 |
| 140B | 5A0959 | • PIN POST SBE72-0306 | ac | 25 |
| 145 | 5A0960 | • BUSH POST SBE72-0133 PRE SBE72-0306 | ab | 50 |
| 145A | 5A0960 | • BUSH POST SBE72-0306 | ac | 50 |
| 147 | 5A1816 | • BUSH POST SBE72-0306 | ac | 1 |
| 149 | 5A1817 | • BUSH POST SBE72-0306 | ac | 1 |
| 160 | MS3215-2025 | • RING - RETAINING 96906 | aa-ac | 2 |
| 180 | 5A3709 | • PIN PRE SBE72-0133 | aa | 2 |
| 180A | 5A0795 | • PIN POST SBE72-0133 | ab-ac | 2 |
| 180B | 5A0795 | • PIN POST SBE72-0306 | ac | 2 |
| -200 | VALVE | • VALVE - BLEED(72-32-72) | aa-ac | REF |
| 220 | MS3215-2015 | • RING 96906 PRE SBE72-0133 | aa | 27 |
| 220A | MS9358-08 | • NUT 96906 POST SBE72-0133 | ab-ac | 27 |
| 240 | 5A3711 | • PIN PRE SBE72-0133 | aa | 27 |
| 240A | 5A0953 | • PIN POST SBE72-0133 | ab-ac | 27 |
| 260 | MS3215-2018 | • RING 96906 | aa-ac | 54 |
| 280 | 5A3708 | • PIN PRE SBE72-0133 | aa | 54 |
| 280A | 5A1128 | • PIN POST SBE72-0133 | ab-ac | 54 |
| -300 | SUPP0RT | • SUPPORT - BLEED VALVE & ARMS(72-32-71) | aa-ac | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

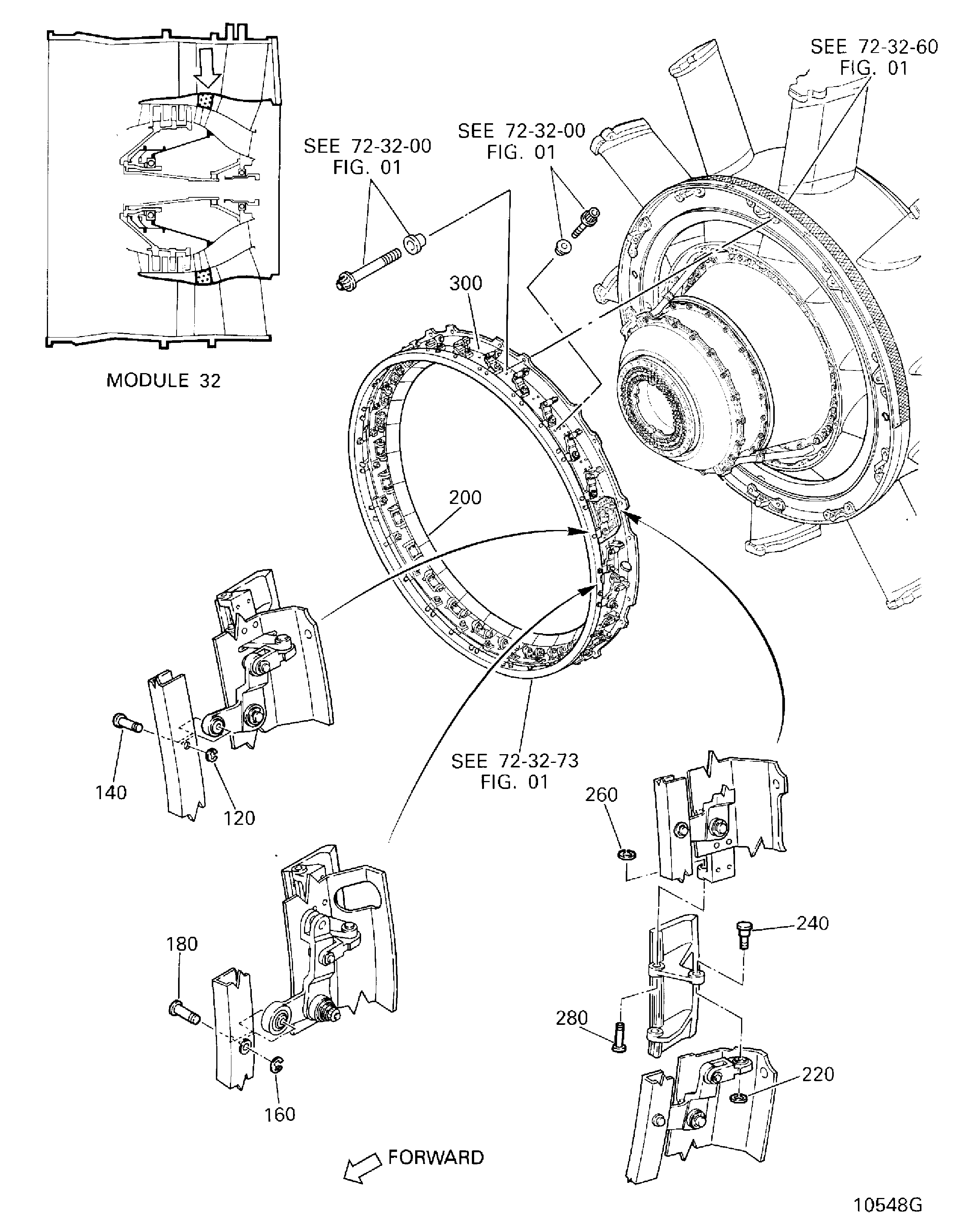

Figure: BOOSTER STAGE BLEED VALVE ACTUATING MECHANISM

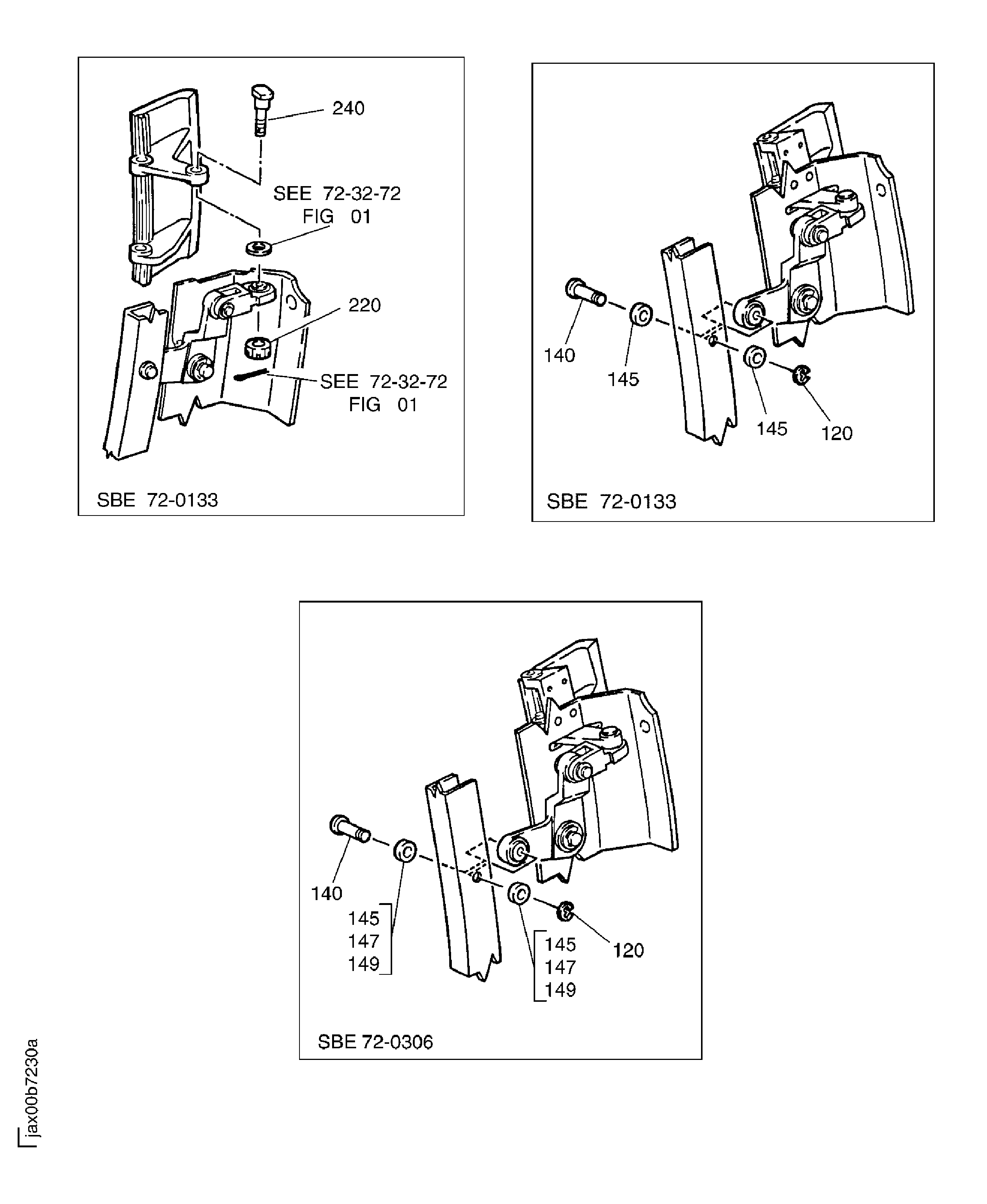

BOOSTER STAGE BLEED VALVE AND ACTUATING MECHANISM
BOOSTER STAGE BLEED VALVE AND ACTUATING MECHANISM
