DMC:V2500-A1-72-32-72-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72327201 | ENGINE-BLEED VALVE, PRE SBE72-0031 | aa | ||
| SBE0031-01 | ENGINE-BLEED VALVE, PRE SBE72-0133 | ab | ||
| SBE0133-01 | ENGINE-BLEED VALVE | ac | ||
| 100 | 5A3705 | • VALVE PRE SBE72-0031 | aa | 27 |
| 100A | 5A3734 | • VALVE - A/O POST SBE72-0031 | ab-ac | 27 |
| 120 | 5A3733 | • • SEAL POST SBE72-0031 | ab-ac | 1 |
| 215 | MS24665-153 | • PIN - COTTER SPLIT 96906 ALT MS24665-191 POST SBE72-0133 | ac | 27 |
| -215A | MS24665-191 | • PIN - COTTER 96906 ALT MS24665-153 POST SBE72-0133 | ac | REF |
| 230 | MS15795-856 | • WASHER 96906 POST SBE72-0133 | ac | 27 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

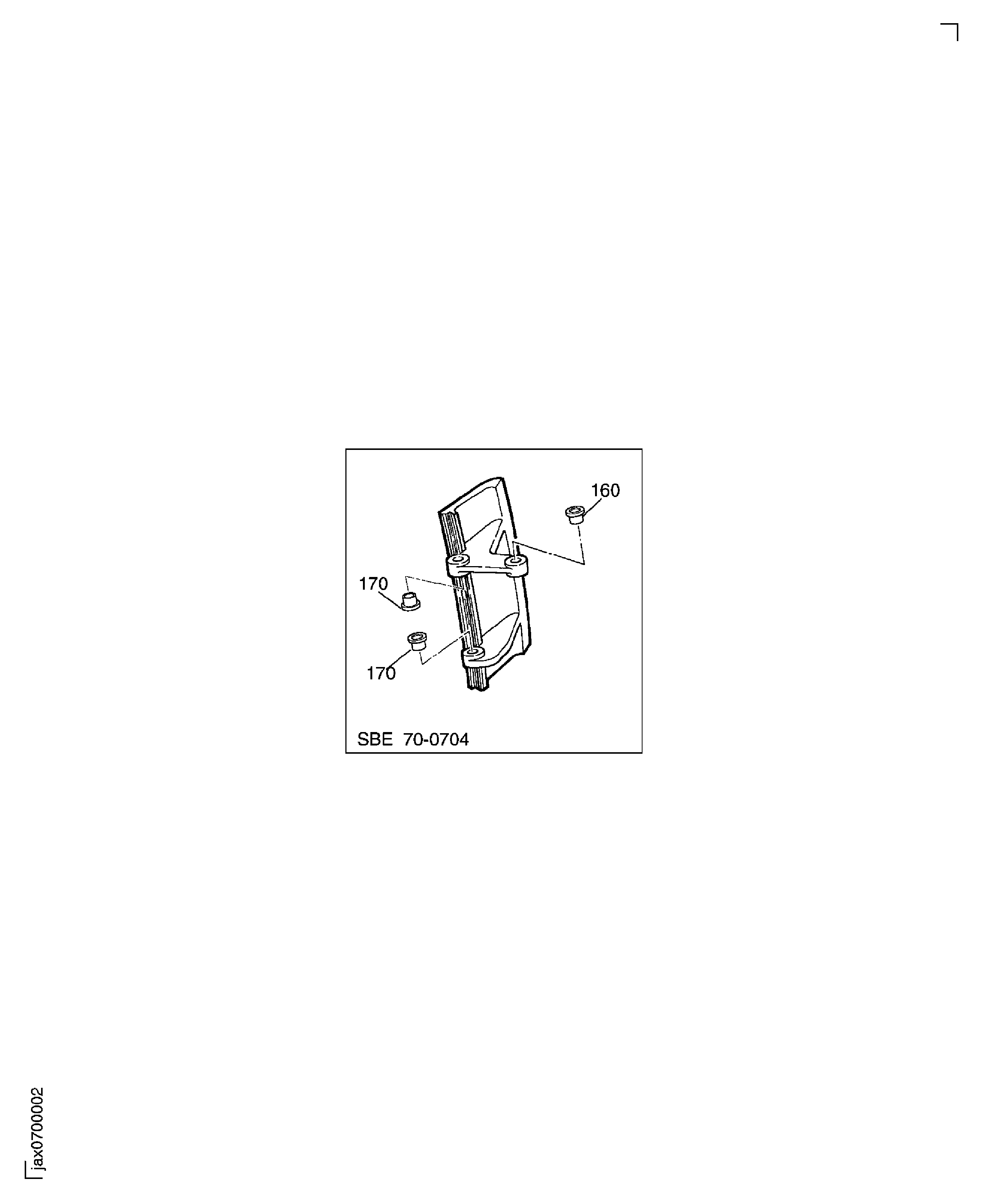

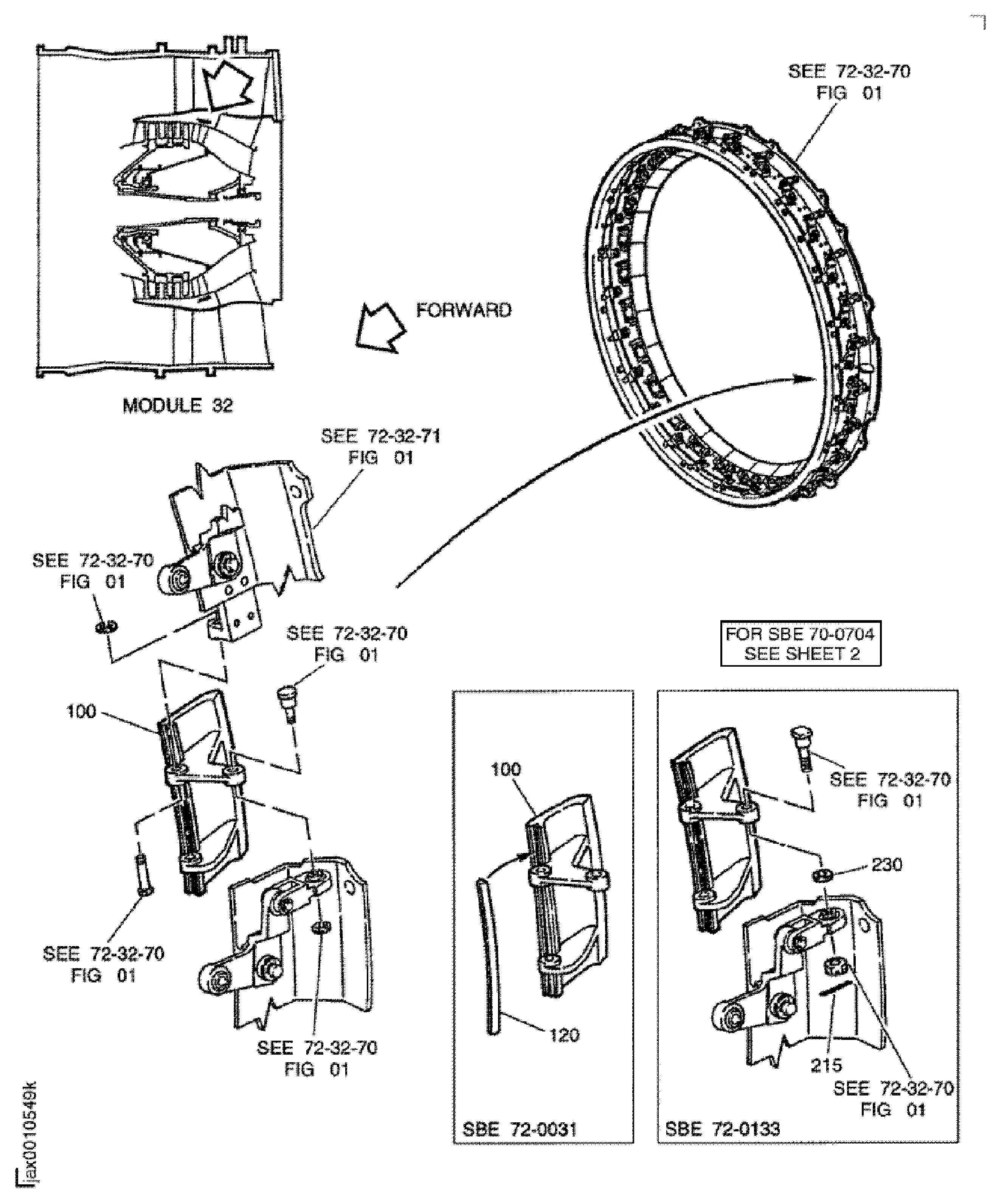

Figure: ENGINE-BLEED VALVE
BLEED VALVES
BLEED VALVES
