DMC:V2500-A1-72-32-73-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72327301 | ENGINE-BLEED VALVE ACTUATING RING, PRE SBE72-0133 | aa | ||
| SBE0133-01 | ENGINE-BLEED VALVE ACTUATING RING, PRE SBE72-0306 | ab | ||
| SBE0306-01 | ENGINE-BLEED VALVE ACTUATING RING | ac | ||
| 100 | 5A3714 | • BUSH PRE SBE72-0306 | aa-ab | 4 |
| 100A | 5A3714 | • BUSH POST SBE72-0306 | ac | 4 |
| 102 | 5A1818 | • BUSH POST SBE72-0306 | ac | 1 |
| 104 | 5A1819 | • BUSH POST SBE72-0306 | ac | 1 |
| 150 | 5A3724 | • RING - A/O SYNCHRONIZE PRE SBE72-0133 | aa | 1 |
| 150A | 5A0954 | • RING - A/O SYNCHRONIZED POST SBE72-0133 | ab-ac | 1 |
| 150B | 5A0954 | • RING POST SBE72-0306 | ac | 1 |
| 160 | MS15795-809 | • • WASHER - FLAT 96906 | aa-ac | 18 |
| 180 | 5A3699 | • • GUIDE - A/O PRE SBE72-0133 | aa | 18 |
| 180A | 5A0956 | • • GUIDE - A/O POST SBE72-0133 | ab-ac | 18 |
| 180B | 5A0956 | • • GUIDE POST SBE72-0306 | ac | 18 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

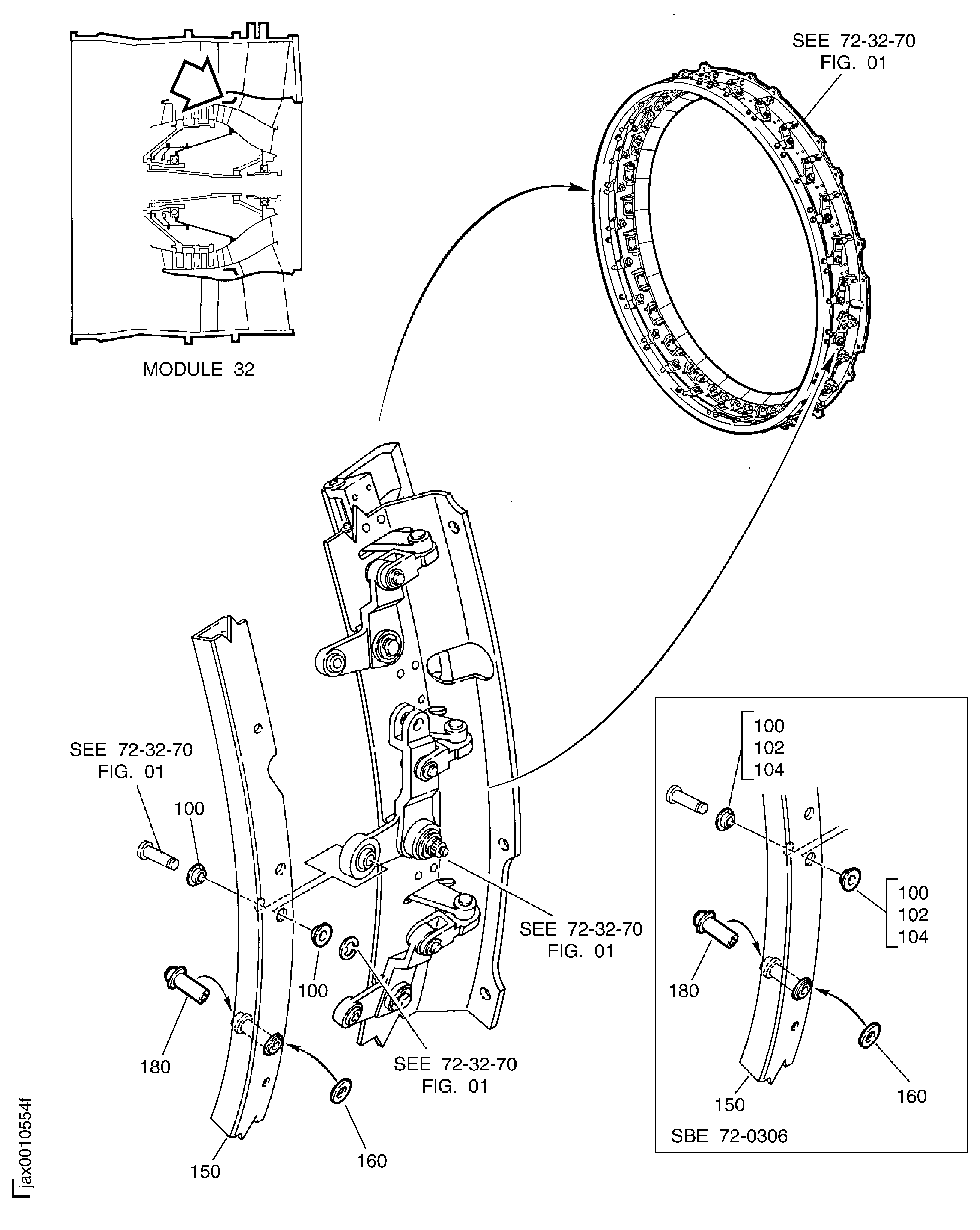

Figure: ENGINE-BLEED VALVE ACTUATING RING
BLEED VALVE ACTUATING RING
