| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72327501 | ENGINE-BLEED VALVE ACTUATING ROD ASSEMBLY, PRE SBE70-0166 | aa | ||
| SBE0166-01 | ENGINE-BLEED VALVE ACTUATING ROD ASSEMBLY, PRE SBE72-0233 | ab | ||
| SBE0233-01 | ENGINE-BLEED VALVE ACTUATING ROD ASSEMBLY | ac | ||
| 120 | 5A3666 | • ADAPTOR - ROD END PRE SBE72-0233 | aa-ab | 1 |
| 120A | 5A1715 | • BEARING - ROD END FORWARD POST SBE72-0233 | ac | 1 |
| 140 | 5A3674 | • NUT | aa-ac | 1 |
| 160 | 5A3675 | • WASHER PRE SBE72-0233 | aa-ab | 1 |
| 160A | 5A1718 | • WASHER POST SBE72-0233 | ac | 1 |
| 170 | 5A1719 | • WASHER - TAB REAR POST SBE72-0233 | ac | 1 |
| 180 | 5A3674 | • NUT - JAM POST SBE72-0233 | ac | 1 |
| 190 | 5A0498 | • ROD - END POST SBE72-0233 | ac | 1 |
| 200 | 5A3721 | • ROD - A/O RIGHT PRE SBE72-0233 | aa-ab | 1 |
| 200A | 5A1717 | • ROD - RIGHT AR POST SBE72-0233 | ac | 1 |
| 250 | MS14101-4 | • • BEARING 96906 PRE SBE72-0233 | aa-ab | 1 |
| 260 | 5A3726 | • • RIVET PRE SBE70-0166 | aa-ab | 2 |
| 260A | AN123496 | • • RIVET 81352 POST SBE70-0166 PRE SBE72-0233 | aa-ab | 2 |
| 265 | 5A3725 | • • KEY PRE SBE72-0233 | aa-ab | 2 |
| 420 | 5A3666 | • ADAPTOR - ROD END PRE SBE72-0233 | aa-ab | 1 |
| 420A | 5A1715 | • BEARING - ROD END FORWARD POST SBE72-0233 | ac | 1 |
| 440 | 5A3674 | • NUT | aa-ac | 1 |
| 460 | 5A3675 | • WASHER PRE SBE72-0233 | aa-ab | 1 |
| 460A | 5A1718 | • WASHER POST SBE72-0233 | ac | 1 |
| 470 | 5A1719 | • WASHER - TAB REAR POST SBE72-0233 | ac | 1 |
| 480 | 5A3674 | • NUT - JAM POST SBE72-0233 | ac | 1 |
| 490 | 5A0498 | • ROD - END POST SBE72-0233 | ac | 1 |
| 500 | 5A3717 | • ROD - A/O LEFT PRE SBE72-0233 | aa-ab | 1 |
| 500A | 5A1714 | • ROD - LEFT A/O POST SBE72-0233 | ac | 1 |
| 550 | MS14101-4 | • • BEARING 96906 PRE SBE72-0233 | aa-ab | 1 |
| 560 | 5A3726 | • • RIVET PRE SBE70-0166 | aa-ab | 2 |
| 560A | AN123496 | • • RIVET 81352 POST SBE70-0166 PRE SBE72-0233 | aa-ab | 2 |
| 565 | 5A3725 | • • KEY PRE SBE72-0233 | aa-ab | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

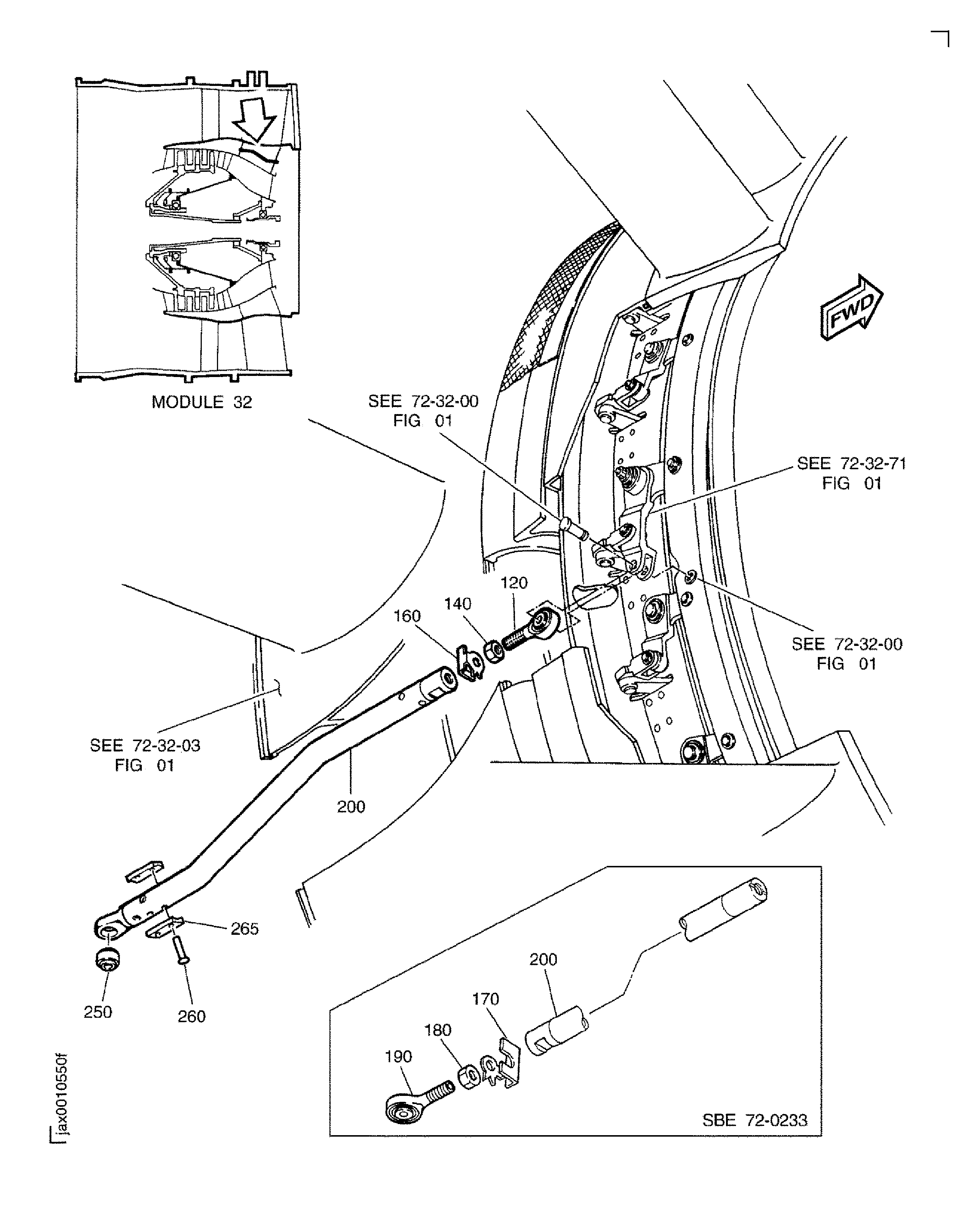

Figure: ENGINE-BLEED VALVE ACTUATING ROD ASSEMBLY

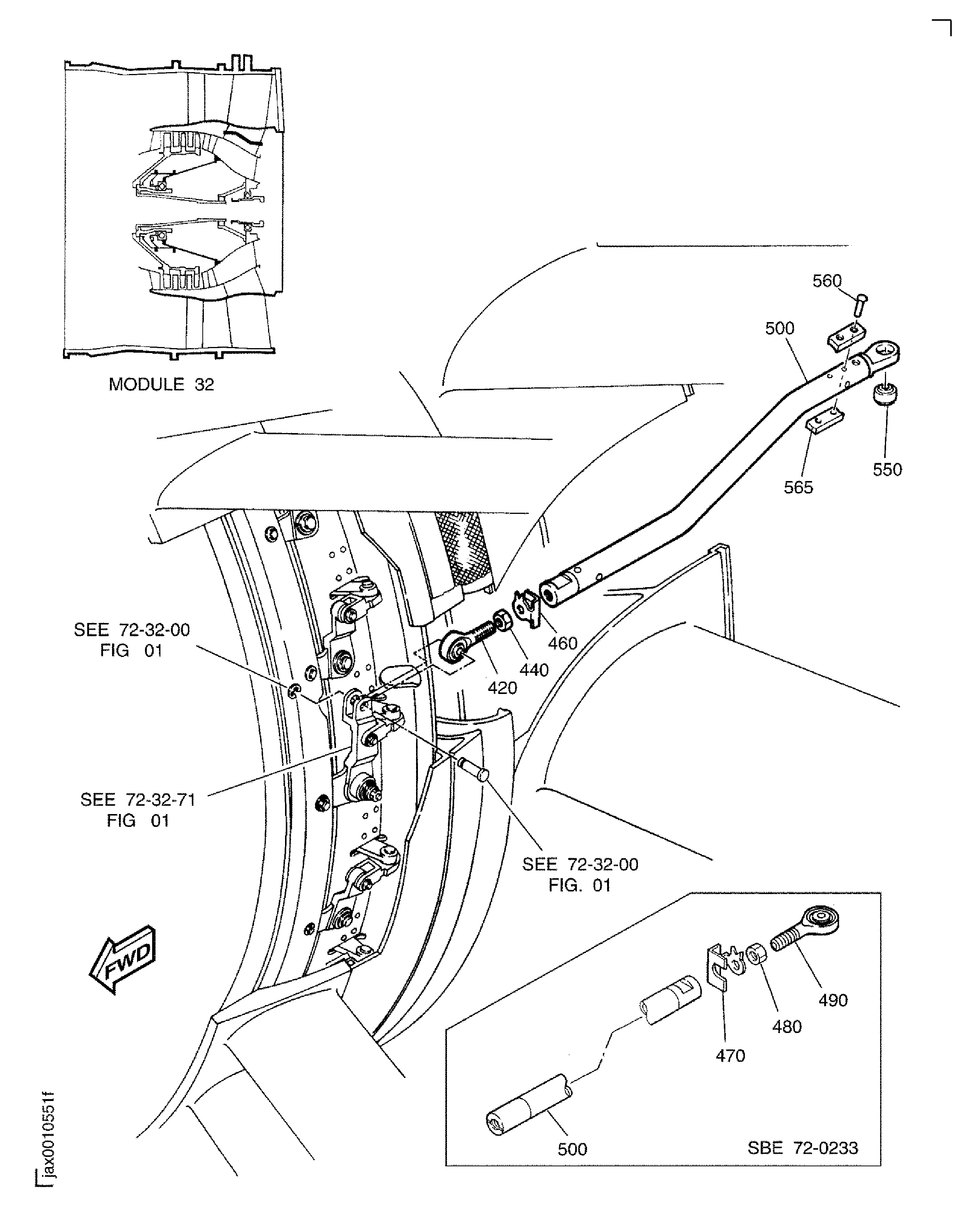

BLEED VALVE ACTUATING ROD ASSEMBLY
BLEED VALVE ACTUATING ROD ASSEMBLY
