DMC:V2500-A1-72-32-76-01A-941A-DIssue No:002.00Issue Date:2021-02-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72327601 | ENGINE - STAGE 2.5 LP COMPRESSOR VANES, PRE SBE70-0013 | aa | ||
| SBE0013-01 | ENGINE - STAGE 2.5 LP COMPRESSOR VANES | ab | ||
| 300 | DELETED | • THIS ITEM IS DELETED 77445 | NA | |
| 400 | 5R6088 | • VANE - LPC STAGE 2.5, ASSEMBLY OF PRE SBE70-0013 | aa-ab | 1 |
| 400A | 5R0029 | • STATOR - LPC STAGE 2.5, ASSEMBLY OF POST SBE70-0013 | aa-ab | 1 |
| 435 | M81934-1-05C014 | • • SLEEVE 81349 | aa-ab | 40 |
| 440 | CCR264CS3-4 | • • RIVET - BLIND, COUNTERSUNK, HEAD 81349 PRE SBE70-0013 | aa | 98 |
| 440A | CCR264CS3-3 | • • RIVET 11815 POST SBE70-0013 | ab | 98 |
| 449 | MS21060L4 | • • NUT - ANCHOR 96906 | aa-ab | 25 |
| 490 | 5R0121 | • • RING - INNER, ASSEMBLY OF PRE SBE70-0013 | aa | 1 |
| 490A | 5R0031 | • • RING - INNER, ASSEMBLY OF POST SBE70-0013 | ab | 1 |
| 492 | 4W2621 | • • WASHER | aa-ab | 110 |
| 493 | 4W1184 | • • BOLT - 0.190 DIA X 0.562 | aa-ab | 110 |
| 520 | RPNF250-28SM | • • NUT 83324 | aa-ab | 3 |
| 550 | 5R0122 | • • VANE - STAGE 2.5 (O/C), ASSEMBLY OF PRE SBE70-0013 | aa | 30 |
| 550A | 5R0032 | • • VANE - STAGE 2.5 (O/C), ASSEMBLY OF POST SBE70-0013 | ab | 30 |
| 565 | 5R0123 | • • VANE - NOMINAL, STAGE 2.5, ASSEMBLY OF PRE SBE70-0013 | aa | 40 |
| 565A | 5R0034 | • • VANE - STAGE 2.5, ASSEMBLY OF POST SBE70-0013 | ab | 40 |
| 580 | 5R0124 | • • VANE - STAGE 2.5 (U/C), ASSEMBLY OF PRE SBE70-0013 | aa | 40 |
| 580A | 5R0036 | • • VANE - STAGE 2.5 (U/C), ASSEMBLY OF POST SBE70-0013 | ab | 40 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||
Figure: ENGINE-STAGE 2.5 LP COMPRESSOR VANES

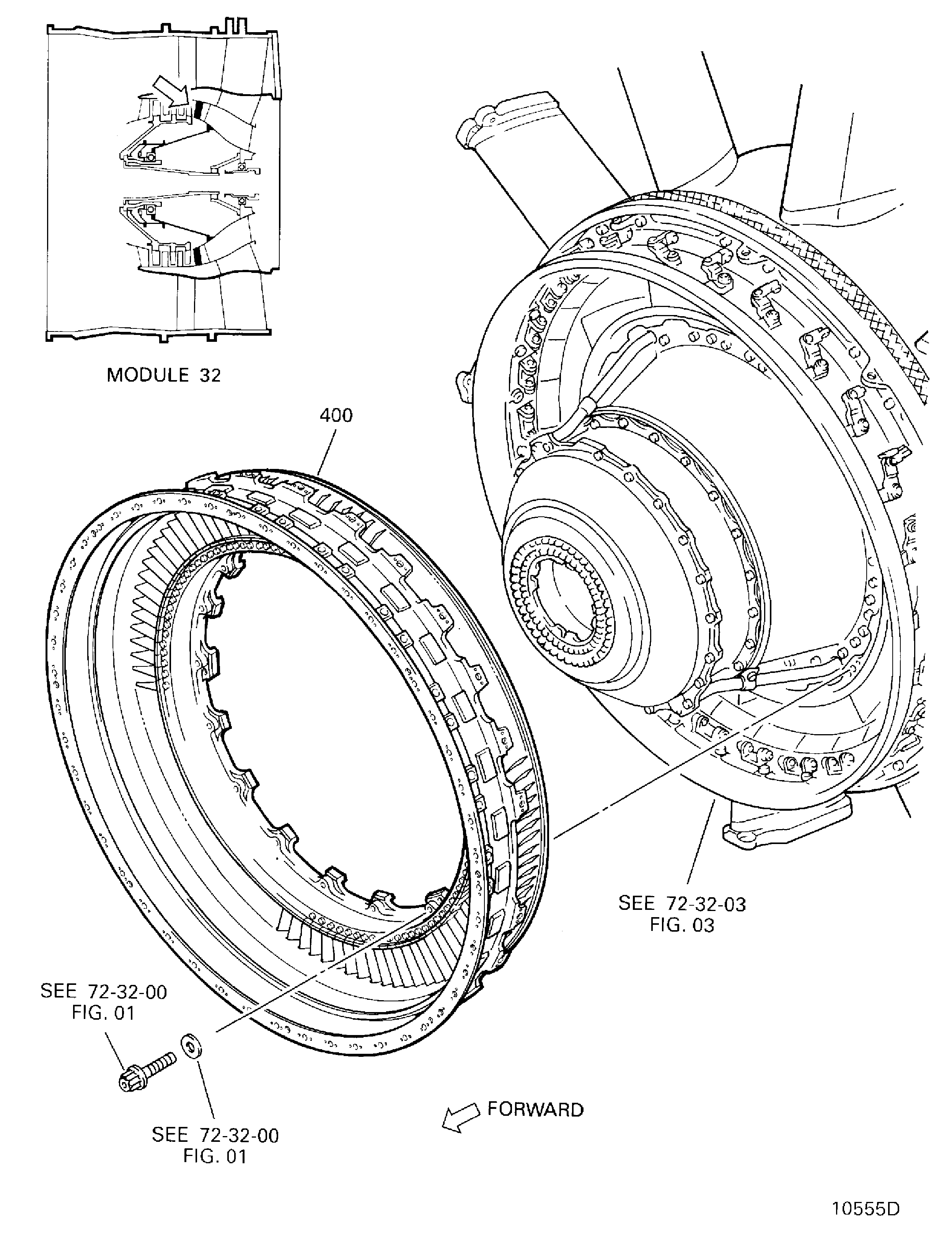

LP COMPRESSOR STAGE 2.5 VANES

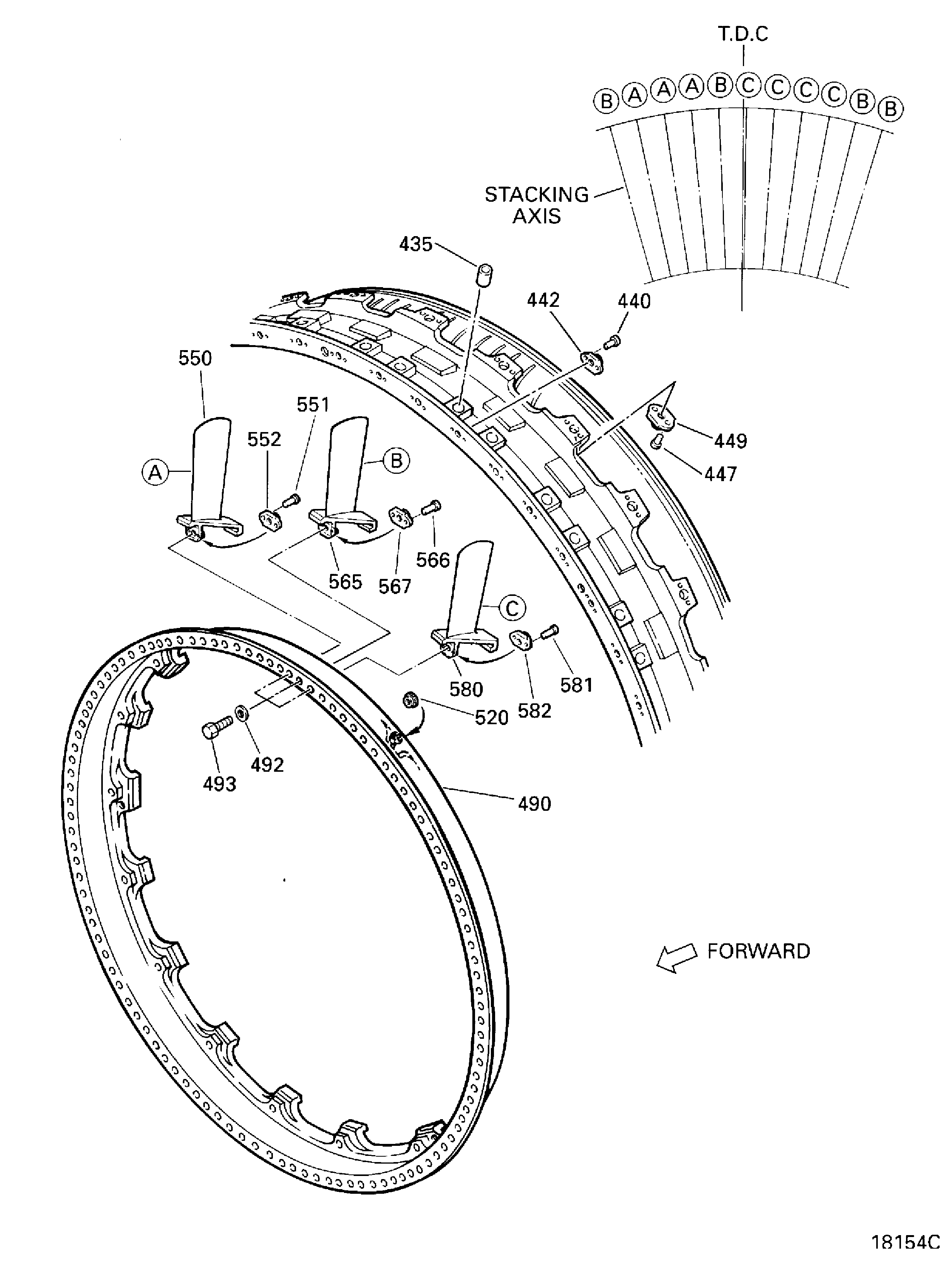

LP COMPRESSOR STAGE 2.5 VANES
