DMC:V2500-A1-72-32-80-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72328001 | ENGINE-LP COMPRESSOR STAGE 1.5,2 AND 2.5 ASSY, PRE SBE72-0066 | aa | ||
| SBE0066-01 | ENGINE-LP COMPRESSOR STAGE 1.5,2 AND 2.5 ASSY | ab | ||
| 001 | 5W0097 | LPC - ROTOR-ASSY POST SBE72-0066 | ab | 1 |
| -100 | R0T0R | • ROTOR - BLADES,LP COMP STG 2(72-32-84) | aa-ab | REF |
| -200 | R0T0R | • ROTOR - BLADE,LP COMP STG 2.5(72-32-82) | aa-ab | REF |
| -300 | R0T0R | • ROTOR - DISK,LP COMP STG 2 & 2.5(72-32-81) | aa-ab | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

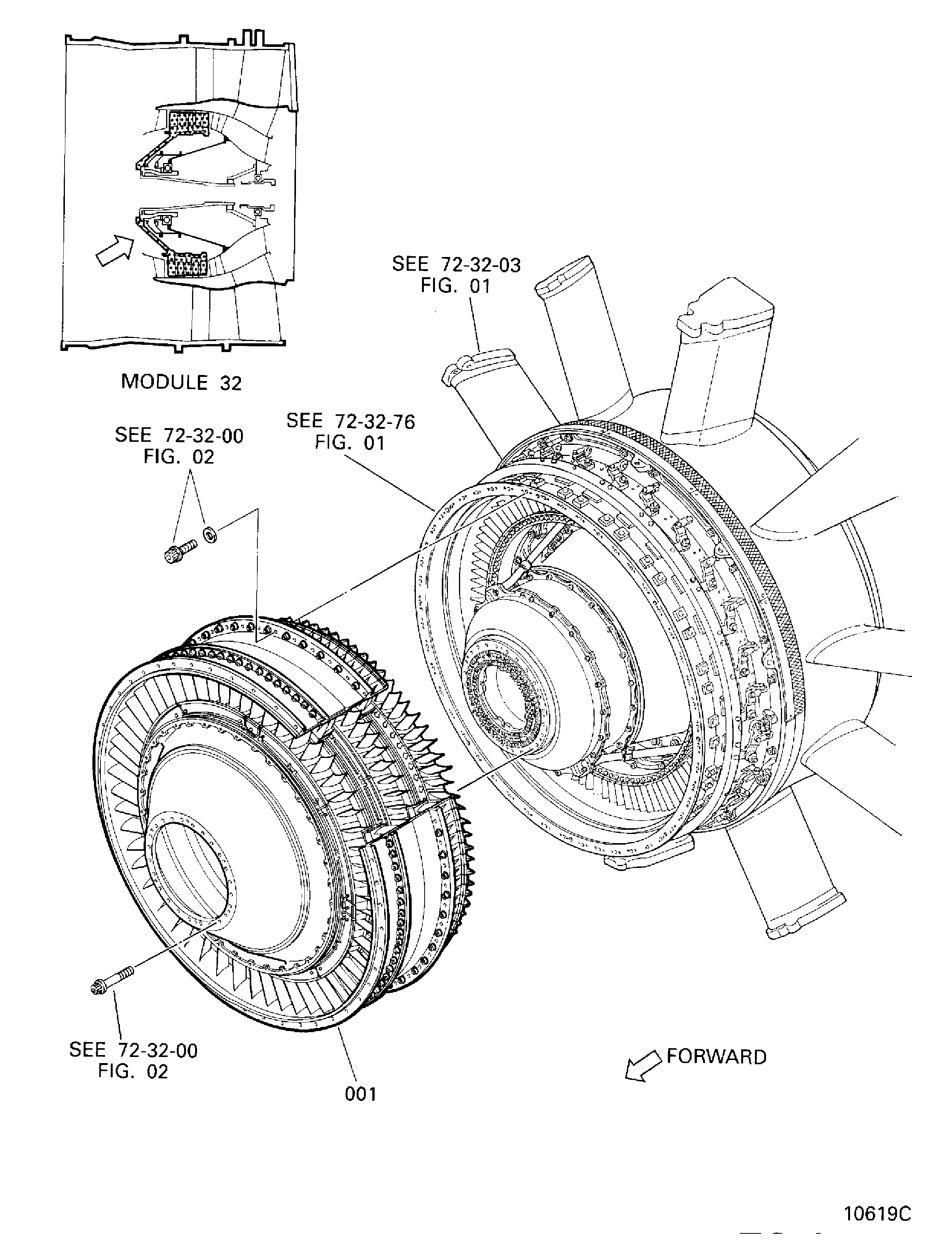

Figure: "ENGINE-LP COMPRESSOR STAGE 1.5,2 AND 2.5 ASSY
"LP COMPRESSOR STAGE 1.5, 2 AND 2.5 ASSEMBLY"
