DMC:V2500-A1-72-32-80-02A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B72328002 | ENGINE-LP COMPRESSOR STAGE 1.5,2 AND 2.5 ASSY | aa | ||
| 210 | 5R0392 | • PLATE - ADJST 1 SPN STG 1.5 | aa | 1 |
| 215 | 5R0391 | • PLATE - SINGLE SPN STG 1.5 | aa | 3 |
| 220 | 5R0390 | • PLATE - 6 SPN STG 1.5 | aa | 8 |
| 225 | 5R0395 | • PLATE - ADJST 1 SPN STG 2.0 | aa | 1 |
| 230 | 5R0394 | • PLATE - SINGLE SPN STG 2.0 | aa | 3 |
| 235 | 5R0393 | • PLATE - 8 SPN STG 2.0 | aa | 8 |
| 240 | 5R0399 | • PLATE - ADJST 1 SPN STG 2.5 | aa | 1 |
| 245 | 5R0398 | • PLATE - SINGLE SPN STG 2.5 | aa | 3 |
| 250 | 5R0396 | • PLATE - 8 SPN STG 2.5 | aa | 8 |
| 500 | 5R0350 | • RIVET - TUBULAR | aa | 1 |
| 510 | 5R0351 | • WEIGHT - COUNTER BALANCE, .023 OZ | aa | 1 |
| 512 | 5R0363 | • WEIGHT - COUNTER BALANCE, .058 OZ | aa | 1 |
| 514 | 5R0364 | • WEIGHT - COUNTER BALANCE, .093 OZ | aa | 1 |
| 516 | 5R0365 | • WEIGHT - COUNTER BALANCE, .128 OZ | aa | 1 |
| 550 | 5R0350 | • RIVET - TUBULAR | aa | 1 |
| 560 | 5R0351 | • WEIGHT - COUNTER BALANCE, .023 OZ | aa | 1 |
| 562 | 5R0363 | • WEIGHT - COUNTER BALANCE, .058 OZ | aa | 1 |
| 564 | 5R0364 | • WEIGHT - COUNTER BALANCE, .093 OZ | aa | 1 |
| 566 | 5R0365 | • WEIGHT - COUNTER BALANCE, .128 OZ | aa | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

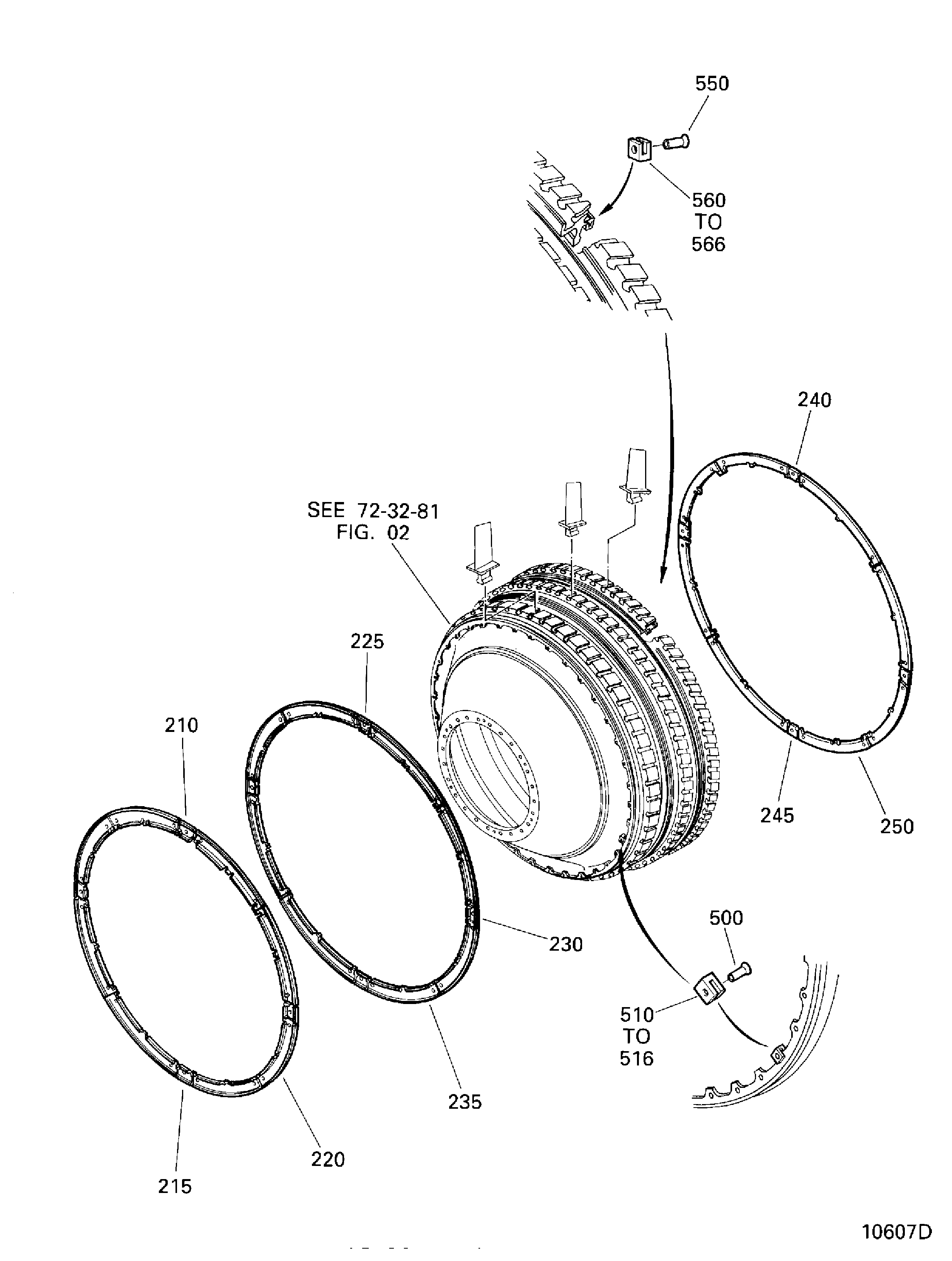

Figure: "ENGINE-LP COMPRESSOR STAGE 1.5,2 AND 2.5 ASSY
"LP COMPRESSOR STAGE 1.5, 2 AND 2.5 ASSEMBLY"
