TASK 72-32-81-300-009 LPC Stage 1.5 - 2.5 Drum Disk - Replace The Jacking Pad Bush, Repair-009 (VRS1367)

DMC:V2500-A1-72-32-8100-00A-920A-C|Issue No:001.00|Issue Date:2013-11-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

V2500-A1

Common Information

TASK 72-32-81-300-009 LPC Stage 1.5 - 2.5 Drum Disk - Replace The Jacking Pad Bush, Repair-009 (VRS1367)

Effectivity

FIG/ITEM

PART NO.

01-200

5R7021

Material of component

PART IDENT

SYMBOL

MATERIAL

Disk

Titanium alloy

Jacking pad bush

Corrosion and heat resistance steel

General

Price and availability - refer to IAE

This Repair scheme gives the procedure for replacing the jacking pad bush.

The practices and processes referred to in the procedure by the TASK numbers are in the SPM.

NOTE

To identify the consumable materials, refer to the PCI.

Preliminary Requirements

Pre-Conditions

NONE

Support Equipment

NameManufacturerPart Number / IdentificationQuantityRemark
Bore gageLOCALBore gage
IAE 3J13172 Pusher, hand0AM53IAE 3J131721
IAE 3J13173 Press, hand0AM53IAE 3J131731

Consumables, Materials and Expendables

NameManufacturerPart Number / IdentificationQuantityRemark
CoMat 01-076 METHYL ETHYL KETONELOCALCoMat 01-076
CoMat 02-099 LINT-FREE CLOTHLOCALCoMat 02-099
CoMat 02-149 DRY ICELOCALCoMat 02-149
CoMat 03-026 LIQUID NITROGENLOCALCoMat 03-026

Spares

NameManufacturerPart Number / IdentificationQuantityRemark
Jacking pad bush5R0404A/R

Safety Requirements

NONE

Procedure

    1. SUBTASK 72-32-81-350-063 Remove the Worn Jacking Pad Bush (01-204)

      1. Remove the bush.

      2. Do not damage the flange of the disk.

    2. SUBTASK 72-32-81-230-062 Examine the Flange of the Disk (01-200) for Cracks

      1. Do the test for cracks.

      1. Refer to the SPM TASK 70-23-04-230-501.

      2. No cracks are permitted.

    3. SUBTASK 72-32-81-220-079 Examine the Flange of the Disk for Damage

      1. Examine the inner diameter of the hole for damage.

      1. Fine scratches are permitted.

      2. Use needle files and stones to remove raised material.

      3. Use bore gage.

      4. Refer to Figure.

    4. SUBTASK 72-32-81-110-054 Clean the Holes

      1. WARNING

        ALWAYS MAKE SURE THAT THERE IS SUFFICIENT VENTILATION IN THE WORK AREA.

        WARNING

        PROTECTIVE CLOTHING, FACE MASKS AND EYE PROTECTION MUST ALWAYS BE USED.

        WARNING

        DO NOT LET SOLVENT CLEANER OR ITS VAPOURS TOUCH YOUR EYES OR SKIN.

        WARNING

        ALWAYS KEEP OPEN FLAMES AWAY FROM THE WORK AREA.

        WARNING

        IT IS THE RESPONSIBILITY OF THE OPERATOR TO OBTAIN AND OBSERVE THE MANUFACTURERS MATERIAL SAFETY DATA SHEETS FOR CONSUMABLE MATERIALS INFORMATION SUCH AS, HAZARDOUS INGREDIENTS, PHYSICAL/CHEMICAL CHARACTERISTICS, FIRE, EXPLOSION, REACTIVITY, HEALTH HAZARD DATA, PRECAUTIONS FOR SAFE HANDLING, USE AND CONTROL MEASURES AND ALSO TO TAKE LOCAL REGULATIONS IN TO CONSIDERATION.

        Clean the repair area.

      2. Rub the surface dry before the cleaning fluid evaporates.

    5. SUBTASK 72-32-81-450-051 Install the New Jacking Pad Bush (01-204)

      1. Freeze the new jacking pad bush.

      2. Install the new jacking pad bush in to the hole of the disk.

      1. The jacking pad bush must not come out of the flange surface.

      3. Refer to Figure.

    6. SUBTASK 72-32-81-220-080 Examine the Repair Area

      1. Examine the installed jacking pad bush for correct installation.

      1. Make sure that the jacking pad bush is installed tightly in position.

      2. If necessary, do this TASK again.

      3. Refer to Figure.

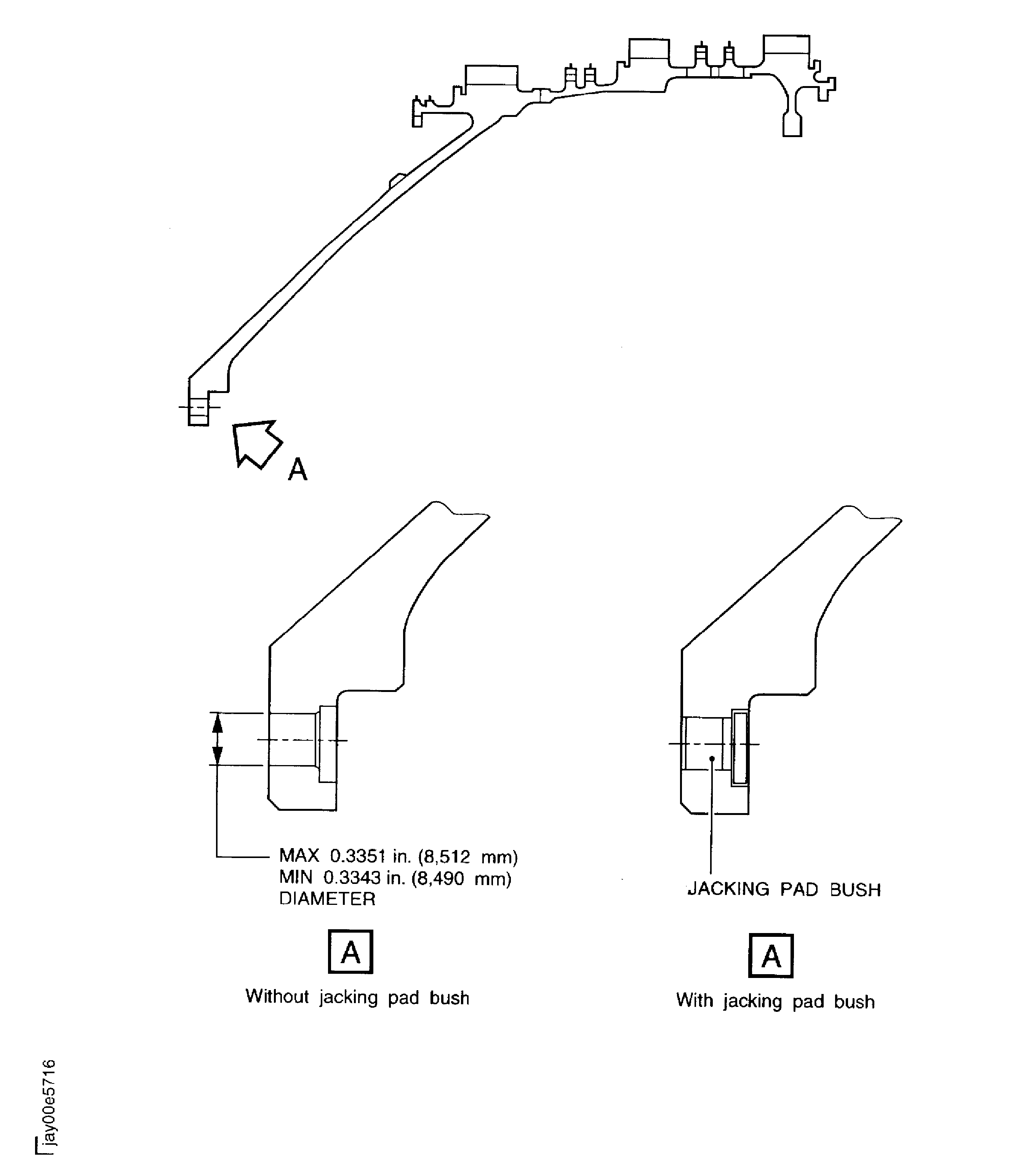

    7. Figure: Replace The Jacking Pad Bush (01-204) Of The Disk

    Replace The Jacking Pad Bush (01-204) Of The Disk

Requirements After Job Completion

Follow-On Conditions

NONE
