DMC:V2500-A1-72-32-82-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72328201 | ENGINE-LP COMPRESSOR STAGE 1.5,2 AND 2.5 BLADES, PRE SBE72-0001 | aa | ||
| SBE0001-01 | ENGINE-LP COMPRESSOR STAGE 1.5,2 AND 2.5 BLADES, PRE SBE72-0017 | ab | ||
| SBE0017-01 | ENGINE-LP COMPRESSOR STAGE 1.5,2 AND 2.5 BLADES, PRE SBE70-0233 | ac | ||
| SBE0233-01 | ENGINE-LP COMPRESSOR STAGE 1.5,2 AND 2.5 BLADES | ad | ||
| 100 | 5R7104 | • BLADE - STAGE 2.5 LP COMP PRE SBE72-0017 | aa-ab | 70 |
| 100A | 5R0045 | • BLADE - A/O STG. 2.5 LPC POST SBE72-0017 | ac-ad | 70 |
| 110 | 5R0046 | • • SEALING - STRIP POST SBE72-0017 | ac-ad | 1 |
| 250 | 5R7105 | • BLADE - STAGE 2.0 LP COMP PRE SBE72-0001 | aa | 68 |
| 250A | 5R0023 | • BLADE - A/O STG, 2.0 LPC POST SBE72-0001 PRE SBE72-0017 | ab | 68 |
| 250B | 5R0043 | • BLADE - A/O STG. 2.0 LPC POST SBE72-0017 | ac-ad | 68 |
| 260 | 5R0044 | • • SEALING - STRIP POST SBE72-0017 | ac-ad | 1 |
| 400 | 5A0173 | • BLADE - STG 1.5 LPC PRE SBE72-0017 | aa-ab | 52 |
| 400A | 5A0162 | • BLADE - A/O STG 1.5 LPC POST SBE72-0017 PRE SBE70-0233 | ac-ad | 52 |
| 400B | 5A1507 | • BLADE - A/O STG 1.5 LPC POST SBE70-0233 | ac-ad | 52 |
| 415 | 5A0163 | • • SEALING - STRIP POST SBE72-0017 PRE SBE70-0233 | ac | 1 |
| 415A | 5A0163 | • • SEALING - STRIP POST SBE70-0233 | ad | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

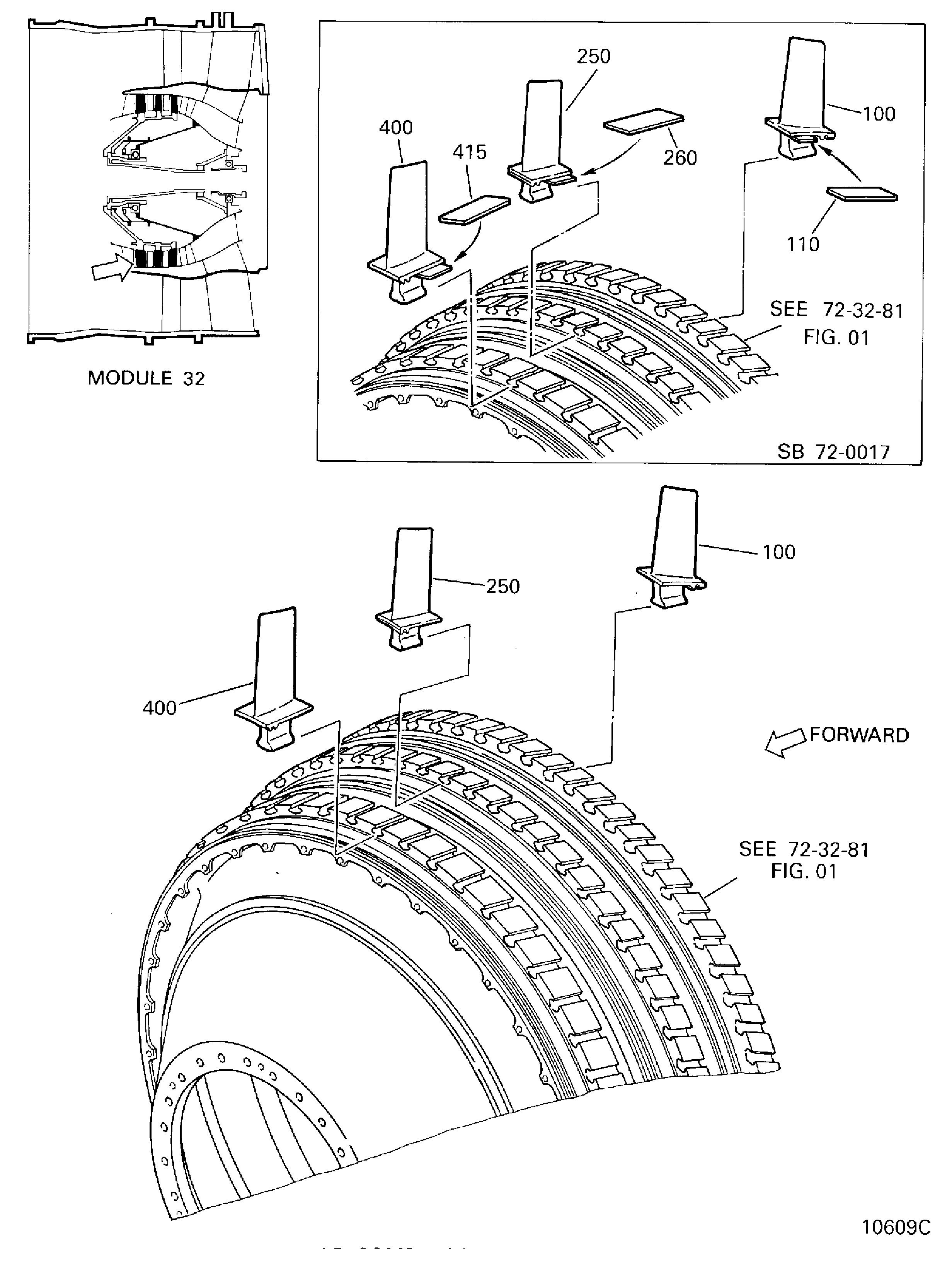

Figure: "ENGINE-LP COMPRESSOR STAGE 1.5,2 AND 2.5 BLADES
"LP COMPRESSOR STAGE 1.5, 2 AND 2.5 BLADES"
