DMC:V2500-A1-72-32-86-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72328601 | ENGINE-INTERMEDIATE STRUCTURE REAR FAIRING, PRE SBE72-0105 | aa | ||
| SBE0105-01 | ENGINE-INTERMEDIATE STRUCTURE REAR FAIRING, PRE SBE70-0786 | ab | ||
| SBE0786-01 | ENGINE-INTERMEDIATE STRUCTURE REAR FAIRING | ac | ||
| 100 | 5A4123 | • FAIRING - A/O REAR PRE SBE72-0105 | aa | 1 |
| 100A | 5A0833 | • FAIRING - A/O REAR POST SBE72-0105 | ab-ac | 5 |
| 124 | MS9318-057 | • • RIVET 96906 POST SBE72-0105 | ab-ac | 2 |
| 125 | MS9318-054 | • • RIVET 96906 POST SBE72-0105 | ab-ac | 2 |
| 126 | MS21060L3 | • • NUT - SELF-LOCKING,2 LUG 96906 POST SBE72-0105 | ab-ac | 2 |
| 130 | 5A1255 | • • SEAL - STRIP PRE SBE70-0786 | aa-ac | 1 |
| 130A | 5A1837 | • • SEAL - STRIP POST SBE70-0786 | aa-ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

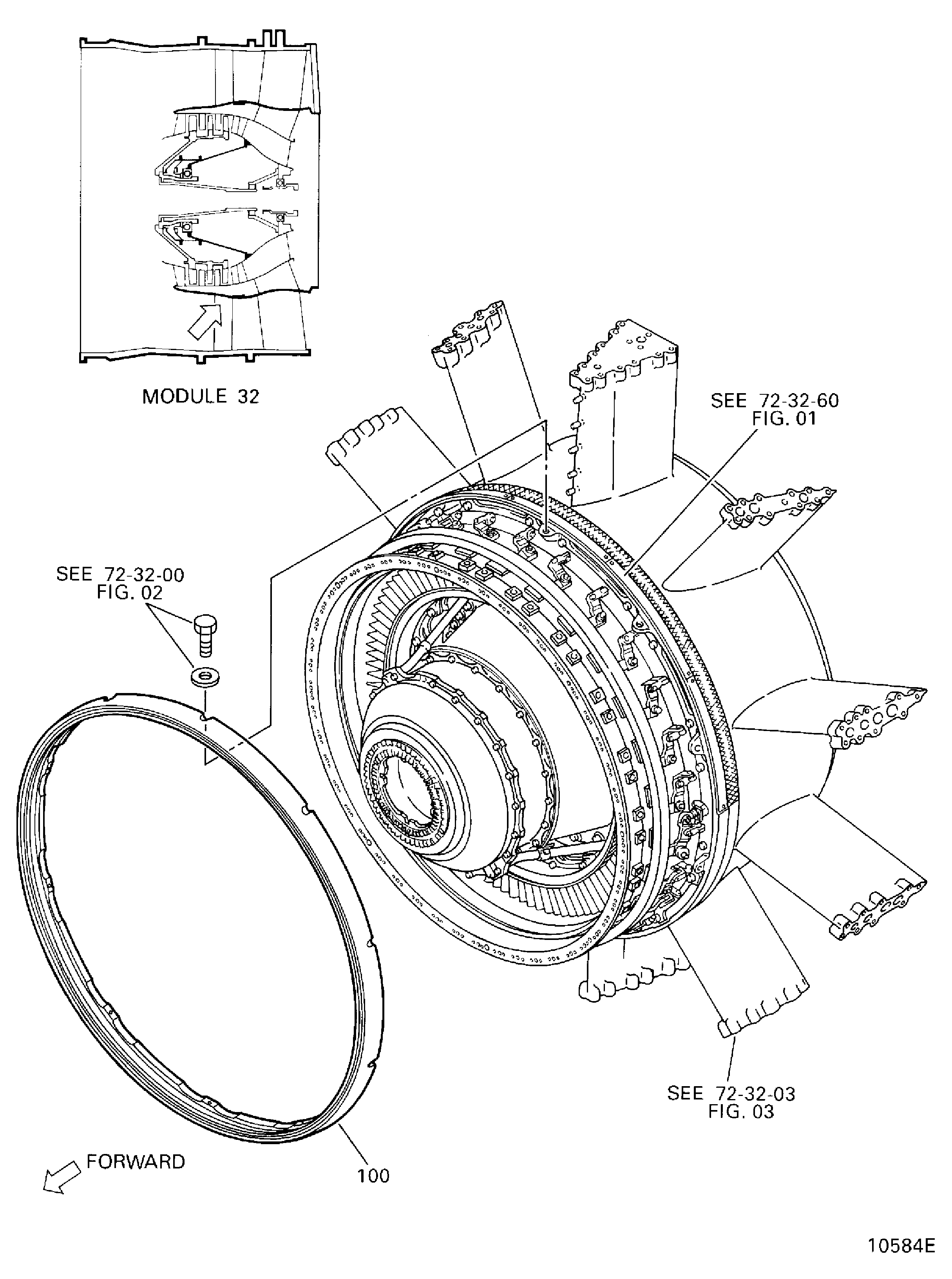

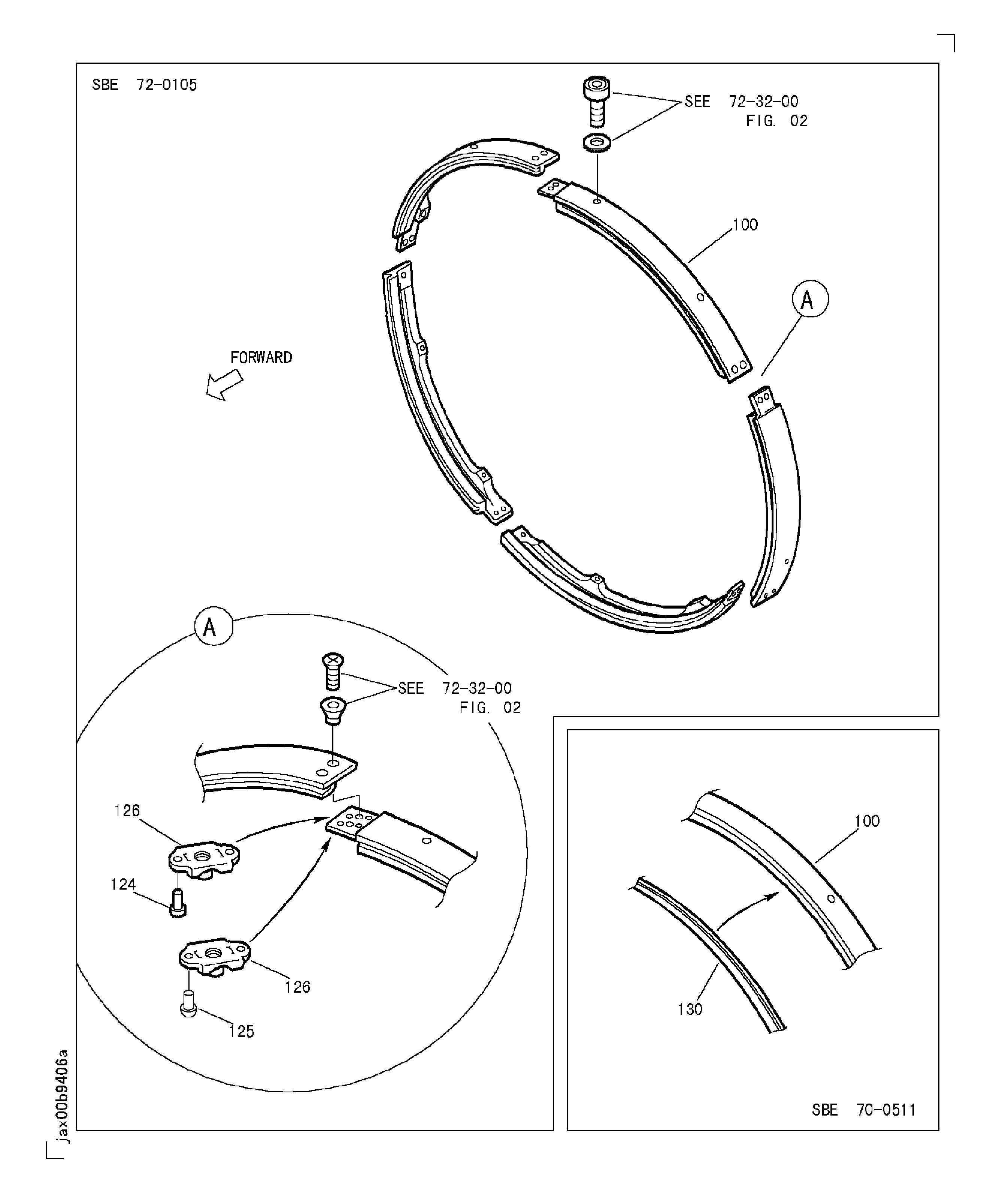

Figure: ENGINE-INTERMEDIATE STRUCTURE REAR FAIRING
INTERMEDIATE STRUCTURE REAR FAIRING
INTERMEDIATE STRUCTURE REAR FAIRING
