DMC:V2500-A1-72-32-89-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72328901 | ENGINE-FAN CASE FRONT PANEL FAIRINGS, PRE SBE72-0103 | aa | ||
| SBE0103-01 | ENGINE-FAN CASE FRONT PANEL FAIRINGS, PRE SBE72-0579 | ab | ||
| SBE0579-01 | ENGINE-FAN CASE FRONT PANEL FAIRINGS | ac | ||
| 100 | 5R0012 | • LINING - A/O ACOUSTIC PRE SBE72-0103 | aa | 5 |
| 100A | 5R0174 | • PANEL - TRANSITION POST SBE72-0103 | ab-ac | 5 |
| 100B | 5R0313 | • LINER - A/O ACOUSTIC POST SBE72-0579 | ac | 5 |
| 200 | MS20426AD3-4 | • • RIVET - SOLID CSK HEAD 96906 PRE SBE72-0103 | aa | 4 |
| 200A | MS20426AD3-4 | • • RIVET - SOLID CSK HEAD 96906 POST SBE72-0579 | ac | 4 |
| 210 | MS21060L4 | • • NUT - ANCHOR 96906 PRE SBE72-0103 | aa | 2 |
| 210A | MS21060L4 | • • NUT - ANCHOR 96906 POST SBE72-0579 | ac | 1 |
| 220 | NNA6242 | • • PLATE - SKIN ACOUSTIC POST SBE72-0579 | ac | 1 |
| 230 | NNA6243 | • • DOUBLER POST SBE72-0579 | ac | 1 |
| 240 | NNA6244 | • • DOUBLER POST SBE72-0579 | ac | 1 |
| 250 | NNA6245 | DOUBLER POST SBE72-0579 | ac | 1 |
| 260 | NNA6240 | • • PLATE - SKIN BACKING POST SBE72-0579 | ac | 1 |
| 270 | NNA6434 | • • LINER - ACOUISTIC HONEYCOMB POST SBE72-0579 | ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

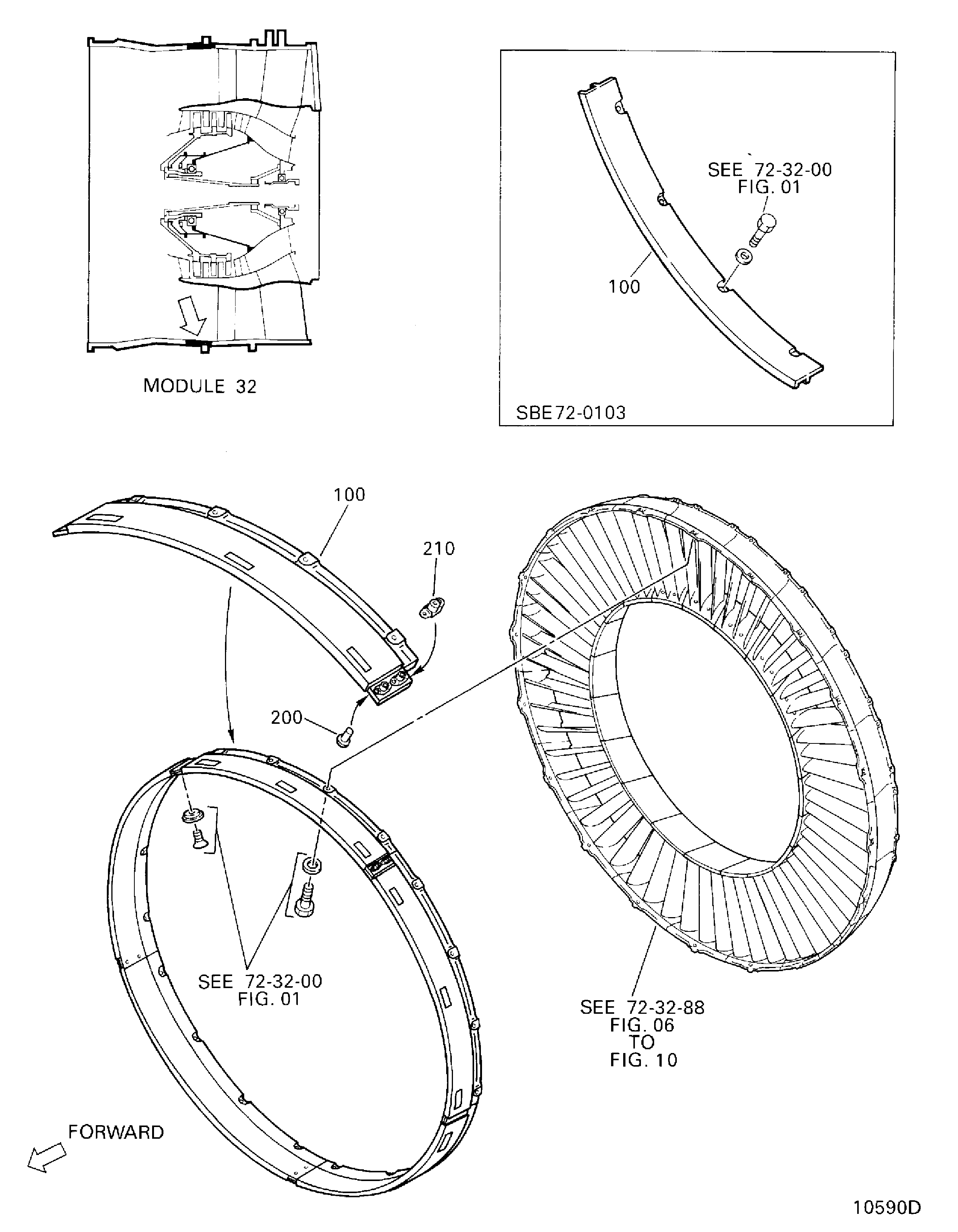

Figure: ENGINE-FAN CASE FRONT PANEL FAIRINGS
FAN CASE FRONT PANEL FAIRINGS
