DMC:V2500-A1-72-32-91-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72329101 | ENGINE-FAN OUTLET INNER VANE ASSEMBLY, PRE SBE72-0018 | aa | ||
| SBE0018-01 | ENGINE-FAN OUTLET INNER VANE ASSEMBLY, PRE SBE72-0031 | ab | ||
| SBE0031-01 | ENGINE-FAN OUTLET INNER VANE ASSEMBLY, PRE SBE70-0252 | ac | ||
| SBE0252-01 | ENGINE-FAN OUTLET INNER VANE ASSEMBLY | ad | ||
| 300 | 5A3446 | • FAIRING - A/O SPLITTER | aa-ad | 1 |
| 310 | 4W2326 | • SCREW - .190 DIA X .625 | aa-ad | 46 |
| 330 | MS20426A3-5 | • • RIVET 96906 | aa-ad | 184 |
| 335 | MS21060L3 | • • NUT - SELF-LOCKING,2 LUG 96906 | aa-ad | 92 |
| 400 | 5A7381 | • VANE - A/O GUIDE LPC INLET PRE SBE72-0018 | aa-ab | 1 |
| 400A | 5A0060 | • OGV - A/O INNER FAN POST SBE72-0018 PRE SBE72-0031 | aa-ab | 1 |
| 400B | 5A0179 | • VANE - A/O GUIDE LPC INLET POST SBE72-0031 PRE SBE70-0252 | ac-ad | 1 |
| 400C | 5A1494 | • VANE - A/O GUIDE LPC INLET POST SBE70-0252 | ac-ad | 1 |
| 500 | 5A7382 | • • VANE - GUIDE LP COMP INLET A PRE SBE72-0018 | aa | 46 |
| 500A | 5A0061 | • • VANE - STG. 1.0 LPC A POST SBE72-0018 PRE SBE72-0031 | ab | 46 |
| 500B | 5A0180 | • • VANE - STG 1.0 LPC A POST SBE72-0031 | ac-ad | 46 |
| 510 | 5A7385 | • • VANE - GUIDE LP COMP INLET B PRE SBE72-0018 | aa | 46 |
| 510A | 5A0064 | • • VANE - STG. 1.0 LPC B POST SBE72-0018 PRE SBE72-0031 | ab | 46 |
| 510B | 5A0181 | • • VANE - STG 1.0 LPC B POST SBE72-0031 | ac-ad | 46 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

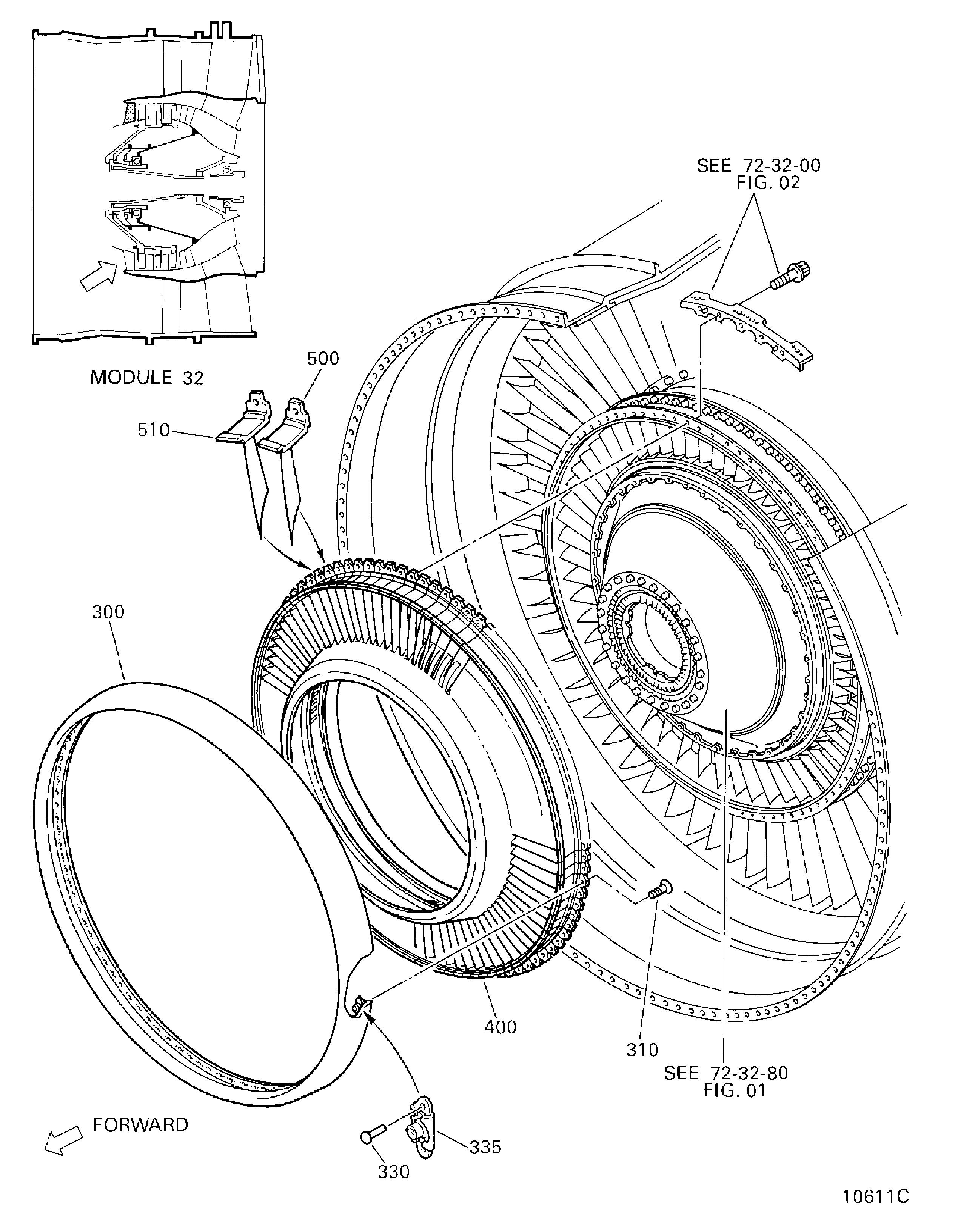

Figure: ENGINE-FAN OUTLET INNER VANE ASSEMBLY
FAN OUTLET INNER VANE ASSEMBLY
