ENGINE-INTERMEDIATE STRUCTURE FRONT FAIRING

DMC:V2500-A1-72-32-93-01A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B72329301ENGINE-INTERMEDIATE STRUCTURE FRONT FAIRING, PRE SBE72-0136aa
000SBE0136-01ENGINE-INTERMEDIATE STRUCTURE FRONT FAIRING, PRE SBE70-0202ab
000SBE0202-01ENGINE-INTERMEDIATE STRUCTURE FRONT FAIRING, PRE SBE70-0788ac
000SBE0788-01ENGINE-INTERMEDIATE STRUCTURE FRONT FAIRING, PRE SBE70-0786ad
000SBE0786-01ENGINE-INTERMEDIATE STRUCTURE FRONT FAIRINGae
2002005A3447• FAIRING - A/O FRONT
PRE SBE72-0136		aa4
200200A5A0836• FAIRING - A/O FRONT
POST SBE72-0136
PRE SBE70-0788		ab-ae4
200200B5A1444• FAIRING - A/O FRONT
POST SBE72-0136
PRE SBE72-0136		*****4
200200C5A1830• FAIRING - A/O FRONT
POST SBE70-0788		ab-ae4
205205NAS1169C416L• • WASHER - DIMPLED
80205
POST SBE72-0136		ab-ae10
2102105A3455• • SEAL - RUBBERaa-ae1
2202205A3448• • CUSHION - RUBBER
PRE SBE70-0786		aa-ae3
220220A5A1837• • SEAL - STRIP
POST SBE70-0786		aa-ae1
5005005A3466• BRACKET - A/O A
POST SBE70-0202		ac-ae2
502502AS16446• • RIVET - SOLID CSK HEAD, 2.4 MM(.094) DIA
U1653
POST SBE70-0202		ac-ae1
504504MS21060L4• • NUT - ANCHOR
96906
POST SBE70-0202		ac-ae1
506506AS44800• • PIN - SHOULDER,HEADLESS
U1653
POST SBE70-0202		ac-ae1
5155155A3467• BRACKET - A/O B
POST SBE70-0202		ac-ae2
517517AS16446• • RIVET - SOLID CSK HEAD, 2.4 MM(.094) DIA
U1653
POST SBE70-0202		ac-ae1
519519MS21060L4• • NUT - ANCHOR
96906
POST SBE70-0202		ac-ae1
521521AS44800• • PIN - SHOULDER,HEADLESS
U1653
POST SBE70-0202		ac-ae1
5305305A3468• BRACKET - A/O C
POST SBE70-0202		ac-ae2
532532AS16446• • RIVET - SOLID CSK HEAD, 2.4 MM(.094) DIA
U1653
POST SBE70-0202		ac-ae4
534534MS21060L4• • NUT - ANCHOR
96906
POST SBE70-0202		ac-ae2
536536AS44800• • PIN - SHOULDER,HEADLESS
U1653
POST SBE70-0202		ac-ae1
5455455A3469• BRACKET - A/O D
POST SBE70-0202		ac-ae2
547547AS16446• • RIVET - SOLID CSK HEAD, 2.4 MM(.094) DIA
U1653
POST SBE70-0202		ac-ae4
549549MS21060L4• • NUT - ANCHOR
96906
POST SBE70-0202		ac-ae2
551551AS44800• • PIN - SHOULDER,HEADLESS
U1653
POST SBE70-0202		ac-ae1
5705704W0108• BOLT - .190 DIA X .812
Optional Part
4W0108
POST SBE70-0202		ac-ae34
6006005A0025• BRACKET - A/O A
POST SBE70-0202		ac-ae1
6026025A5437• • PIN
POST SBE70-0202		ac-ae2
604604AN124971• • RIVET - 100 DEGREE C/S
81352
POST SBE70-0202		ac-ae8
606606MS21060L4• • NUT - ANCHOR
96906
POST SBE70-0202		ac-ae4
6156155A0030• BRACKET - A/O F
POST SBE70-0202		ac-ae1
6176175A5437• • PIN
POST SBE70-0202		ac-ae2
619619AN124971• • RIVET - 100 DEGREE C/S
81352
POST SBE70-0202		ac-ae2
621621MS21060L4• • NUT - ANCHOR
96906
POST SBE70-0202		ac-ae1
6306305A0028• BRACKET - A/O D
POST SBE70-0202		ac-ae1
6326325A5437• • PIN
POST SBE70-0202		ac-ae2
634634AN124971• • RIVET - 100 DEGREE C/S
81352
POST SBE70-0202		ac-ae8
636636MS21060L4• • NUT - ANCHOR
96906
POST SBE70-0202		ac-ae4
6456455A0027• BRACKET - A/O C
POST SBE70-0202		ac-ae1
6476475A5437• • PIN
POST SBE70-0202		ac-ae2
649649AN124971• • RIVET - 100 DEGREE C/S
81352
POST SBE70-0202		ac-ae8
651651MS21060L4• • NUT - ANCHOR
96906
POST SBE70-0202		ac-ae4
6606605A0032• BRACKET - A/O H
POST SBE70-0202		ac-ae1
6626625A5437• • PIN
POST SBE70-0202		ac-ae2
664664AN124971• • RIVET - 100 DEGREE C/S
81352
POST SBE70-0202		ac-ae2
666666MS21060L4• • NUT - ANCHOR
96906
POST SBE70-0202		ac-ae1
6756755A0026• BRACKET - A/O B
POST SBE70-0202		ac-ae1
6776775A5437• • PIN
POST SBE70-0202		ac-ae2
679679AN124971• • RIVET - 100 DEGREE C/S
81352
POST SBE70-0202		ac-ae8
681681MS21060L4• • NUT - ANCHOR
96906
POST SBE70-0202		ac-ae4
6906905A0031• BRACKET - A/O G
POST SBE70-0202		ac-ae1
6926925A5437• • PIN
POST SBE70-0202		ac-ae2
694694AN124971• • RIVET - 100 DEGREE C/S
81352
POST SBE70-0202		ac-ae2
696696MS21060L4• • NUT - ANCHOR
96906
POST SBE70-0202		ac-ae1
7057055A0029• BRACKET - A/O E
POST SBE70-0202		ac-ae1
7077075A5437• • PIN
POST SBE70-0202		ac-ae2
709709AN124971• • RIVET - 100 DEGREE C/S
81352
POST SBE70-0202		ac-ae2
711711MS21060L4• • NUT - ANCHOR
96906
POST SBE70-0202		ac-ae1
7207204W0108• BOLT - .190 DIA X .812
Optional Part
4W0108
POST SBE70-0202		ac-ae23
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

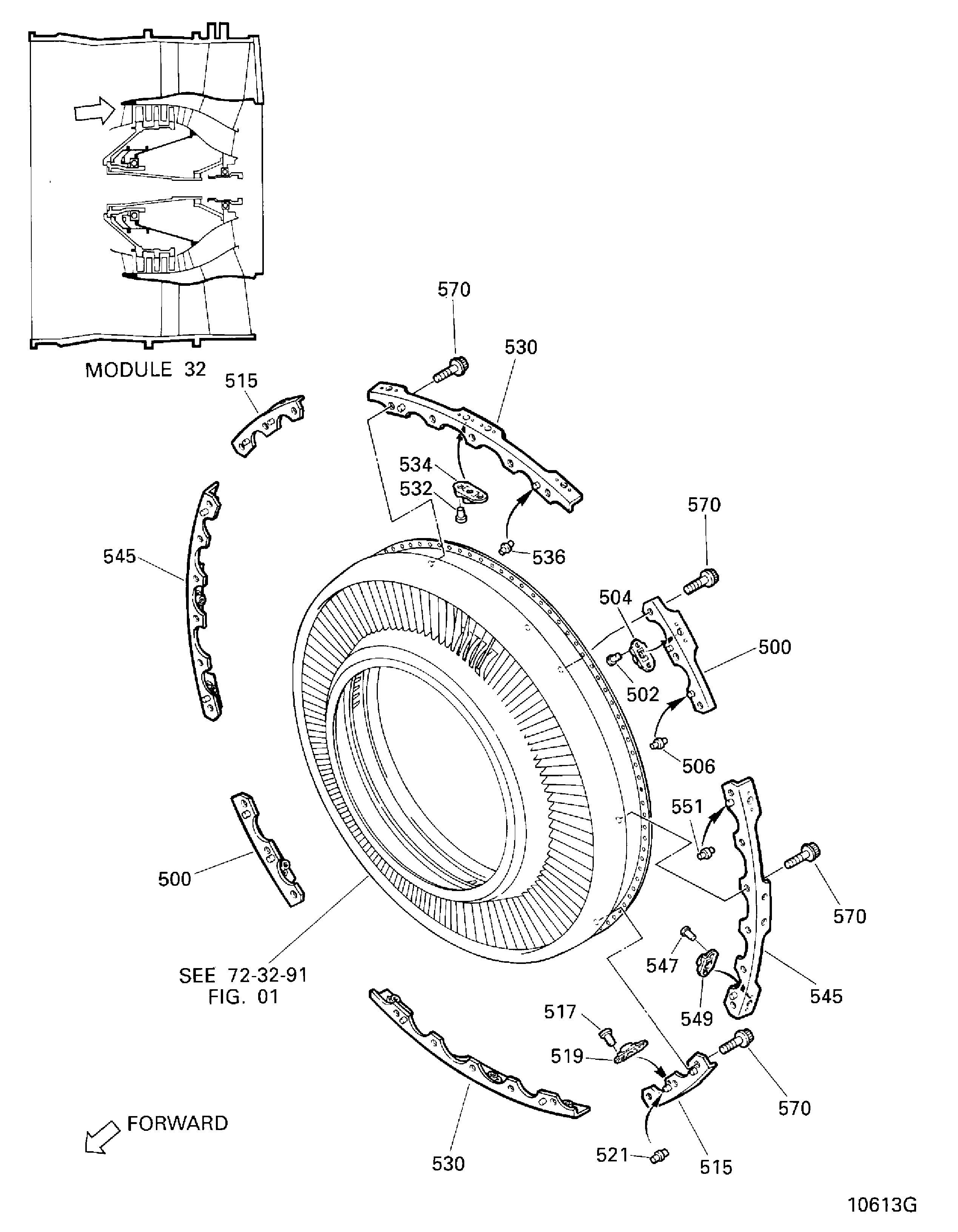

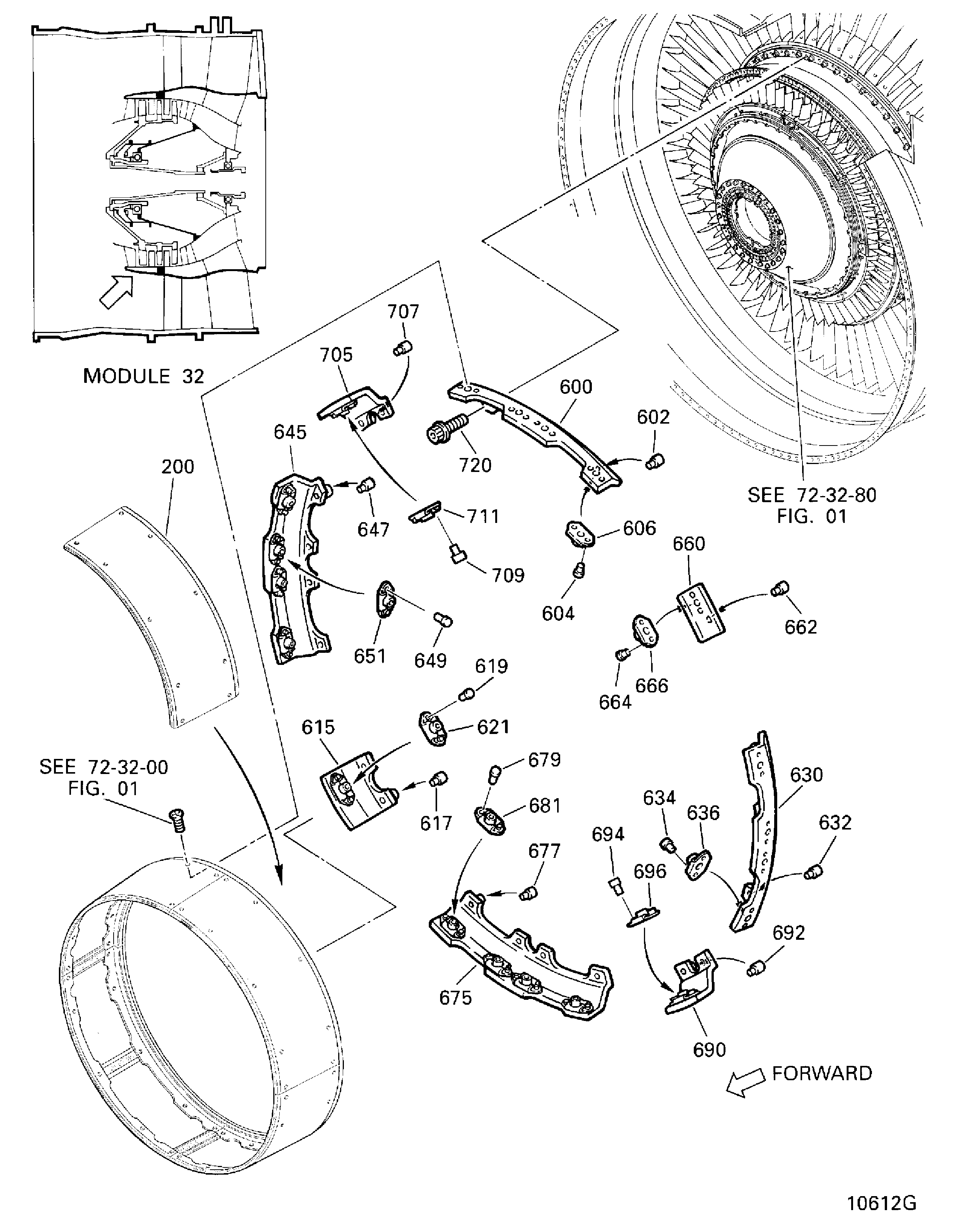

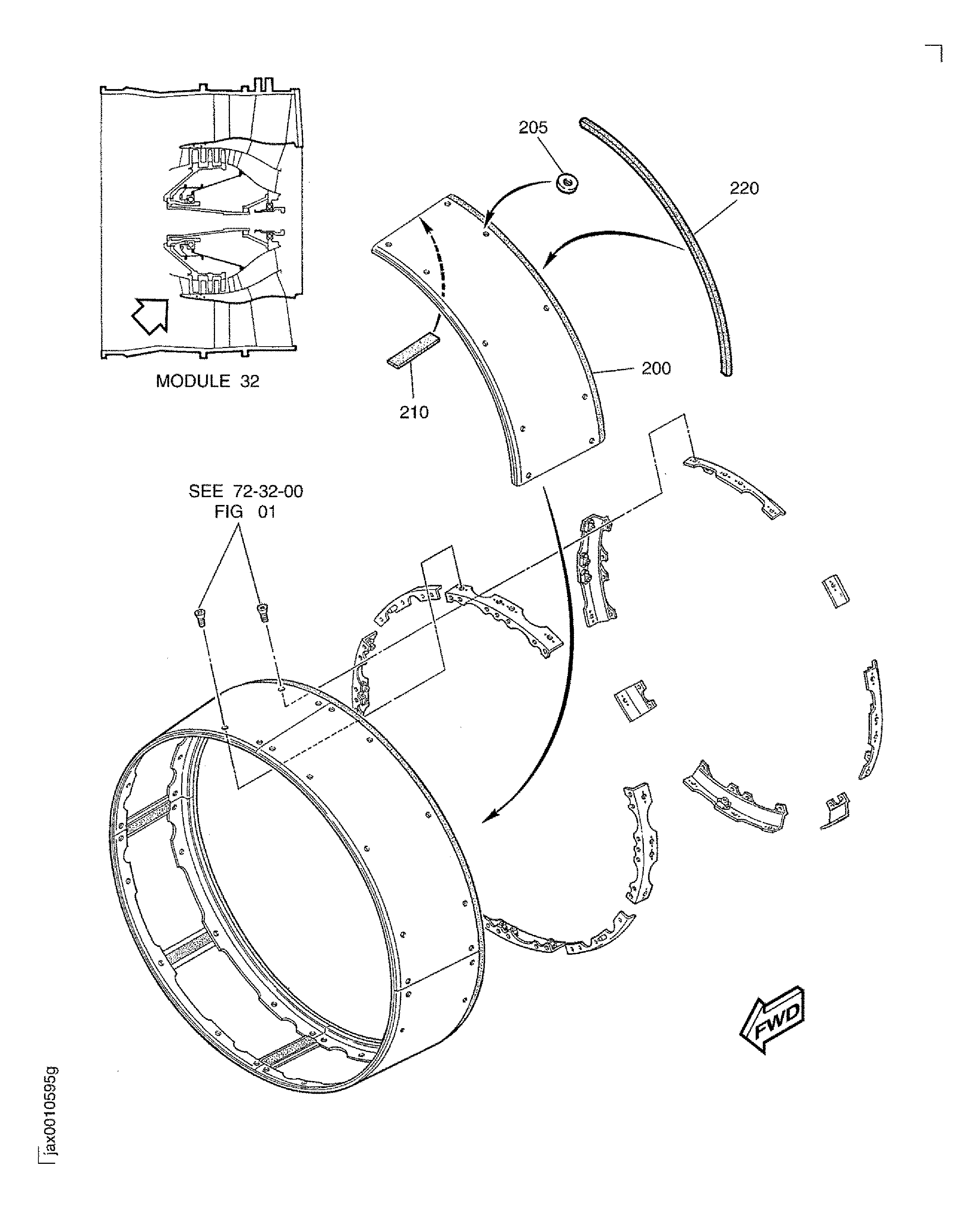

Figure: ENGINE-INTERMEDIATE STRUCTURE FRONT FAIRING

INTERMEDIATE STRUCTURE FRONT FAIRING

INTERMEDIATE STRUCTURE FRONT FAIRING

INTERMEDIATE STRUCTURE FRONT FAIRING

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:80205
Enterprise Name:NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
BU Name:NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:4W0108
Part Name:BOLT - .190 DIA X .812
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21413BOLT - 0.190 DIA X 0.812U1653
Part Number:5A0025
Part Name:BRACKET - A, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0026
Part Name:BRACKET - B, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0027
Part Name:BRACKET - C, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0028
Part Name:BRACKET - D, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0029
Part Name:BRACKET - E, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0030
Part Name:BRACKET - F, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0031
Part Name:BRACKET - G, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0032
Part Name:BRACKET - H, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A0836
Part Name:FAIRING - FRONT, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A1444
Part Name:FAIRING - FRONT, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A1830
Part Name:FAIRING - FRONT, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A1837
Part Name:SEAL - STRIP
Manufacturer Code:0AM53
Part Number:5A3447
Part Name:FAIRING - FRONT, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A3448
Part Name:CUSHION - RUBBER
Manufacturer Code:0AM53
Part Number:5A3455
Part Name:SEAL - RUBBER
Manufacturer Code:0AM53
Part Number:5A3466
Part Name:BRACKET - A, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A3467
Part Name:BRACKET - B, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A3468
Part Name:BRACKET - D, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A3469
Part Name:BRACKET - D, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A5437
Part Name:PIN
Manufacturer Code:0AM53
Link not Found
Part Number:AS16446
Part Name:RIVET, SOLID CSK HEAD, 2.4MM (.094) DIA
Manufacturer Code:U1653
Part Number:AS21413
Part Name:BOLT - 0.190 DIA X 0.812
Manufacturer Code:U1653
Part Number:AS44800
Part Name:PIN - SHOULDER, HEADLESS
Manufacturer Code:U1653
Part Number:MS21060L4
Part Name:NUT - ANCHOR
Manufacturer Code:96906
Part Number:NAS1169C416L
Part Name:WASHER - DIMPLE
Manufacturer Code:80205
