| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72381101 | ENGINE-LP COMPRESSOR INTAKE ROTATING FAIRING, PRE SBE70-0168 | aa | ||
| SBE0168-01 | ENGINE-LP COMPRESSOR INTAKE ROTATING FAIRING, PRE SBE70-0293 | ab | ||
| SBE0293-01 | ENGINE-LP COMPRESSOR INTAKE ROTATING FAIRING, PRE SBE70-0484 | ac | ||
| SBE0484-01 | ENGINE-LP COMPRESSOR INTAKE ROTATING FAIRING, PRE SBE70-0505 | ad | ||
| SBE0505-01 | ENGINE-LP COMPRESSOR INTAKE ROTATING FAIRING, PRE SBE72-0318 | ae | ||
| SBE0318-01 | ENGINE-LP COMPRESSOR INTAKE ROTATING FAIRING, PRE SBE70-0786 | af | ||
| SBE0786-01 | ENGINE-LP COMPRESSOR INTAKE ROTATING FAIRING, PRE SBE70-0787 | ag | ||
| SBE0787-01 | ENGINE-LP COMPRESSOR INTAKE ROTATING FAIRING | ah | ||
| 001 | 5A0010 | CONE - NOSE FABRICATION ASSY | aa-ah | 1 |
| 100 | 5A0017 | • FAIRING - INLET CONE PRE SBE72-0318 | aa-ah | 1 |
| 100A | 5A1833 | • FAIRING - ASSY INLET CONE POST SBE72-0318 PRE SBE70-0787 | aa-ah | 1 |
| 100B | 5A1834 | • FAIRING - ASSY INLET CONE POST SBE70-0787 | aa-ah | 1 |
| 110 | 5A1255 | • • SEAL - STRIP POST SBE72-0318 PRE SBE70-0786 | af-ah | 1 |
| 110A | 5A1837 | • • SEAL - STRIP POST SBE70-0786 | af-ah | 1 |
| 130 | AS24120 | • BOLT - .3125 DIA X 1.250 U1653 PRE SBE70-0505 | aa-ah | 6 |
| 130A | AS21120 | • BOLT - .3125 DIA X 1.250 U1653 POST SBE70-0505 | aa-ah | 6 |
| 200 | 5A0015 | • CONE - ASSY INLET PRE SBE70-0293 | aa-ah | 1 |
| 200A | 5A1452 | • CONE - ASSY INLET POST SBE70-0293 PRE SBE70-0484 | aa-ah | 1 |
| 200B | 5A1733 | • CONE - ASSY POST SBE70-0484 | aa-ah | 1 |
| 215 | 4W2623 | • WASHER | aa-ah | 18 |
| 220 | AS24120 | • BOLT - .3125 DIA X 1.250 U1653 PRE SBE70-0505 | aa-ah | 18 |
| 220A | AS21120 | • BOLT - .3125 DIA X 1.250 U1653 POST SBE70-0505 | aa-ah | 18 |
| 230 | 5A0005 | • • HOLDER - TIP INLET CONE | aa-ah | 1 |
| 240 | 5A0016 | • • TIP - INLET CONE | aa-ah | 1 |
| -270 | 5A0011 | • • CONE - A/O INLET PRE SBE70-0293 | aa-ac | REF |
| -270A | 5A1453 | • • CONE - A/O INLET POST SBE70-0293 PRE SBE70-0484 | aa-ac | REF |
| -270B | 5A1734 | • • CONE - A/O INLET POST SBE70-0484 | ad-ah | REF |
| 280 | 5A0013 | • • • PIN - DOWEL | aa-ah | 6 |
| 290 | AS20763 | • • • RING - RETAINING U1653 | aa-ah | 6 |
| -300 | 5A1415 | • • • SEGMENT - LOCATING POST SBE70-0168 PRE SBE70-0293 | ab | 6 |
| -300A | 5A1416 | • • • SEGMENT - LOCATING POST SBE70-0293 | ac-ah | 6 |
| 400 | 5A0018 | • WEIGHT - BALANCING TRIM 2.5, .088 OZ | aa-ah | 1 |
| 405 | 5A0019 | • WEIGHT - BALANCING TRIM 5, .176 OZ | aa-ah | 1 |
| 410 | 5A0020 | • WEIGHT - BALANCING TRIM 7.5, .265 OZ | aa-ah | 1 |
| 415 | 5A0021 | • WEIGHT - BALANCING TRIM 10, .353 OZ | aa-ah | 1 |
| 420 | 5A0014 | • WEIGHT - BALANCING TRIM 12.5, .441 OZ | aa-ah | 1 |
| 440 | 5A0018 | • WEIGHT - BALANCING TRIM 2.5, .088 OZ | aa-ah | 1 |
| 445 | 5A0019 | • WEIGHT - BALANCING TRIM 5, .176 OZ | aa-ah | 1 |
| 450 | 5A0020 | • WEIGHT - BALANCING TRIM 7.5, .265 OZ | aa-ah | 1 |
| 455 | 5A0021 | • WEIGHT - BALANCING TRIM 10, .353 OZ | aa-ah | 1 |
| 460 | 5A0014 | • WEIGHT - BALANCING TRIM 12.5, .441 OZ | aa-ah | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

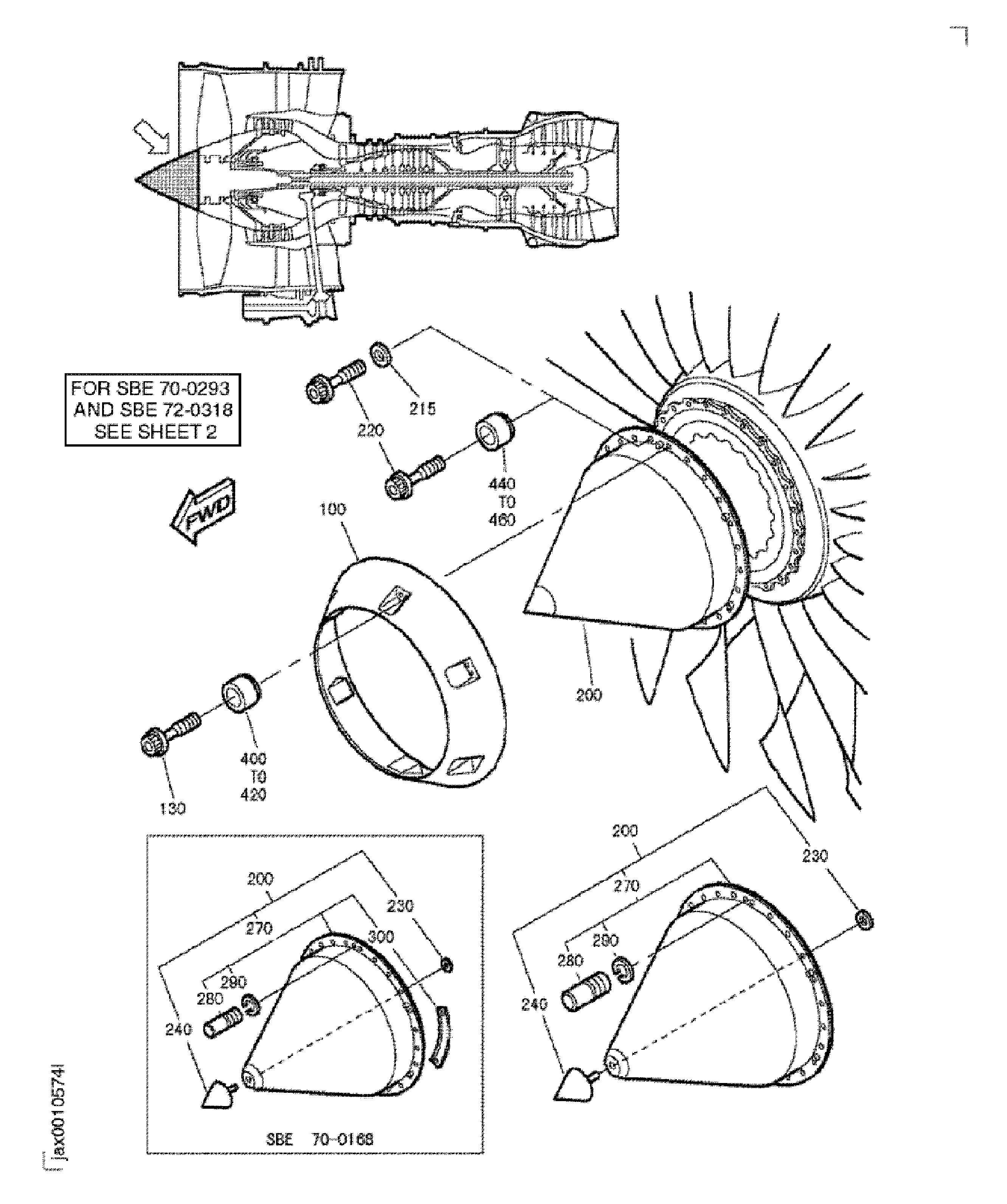

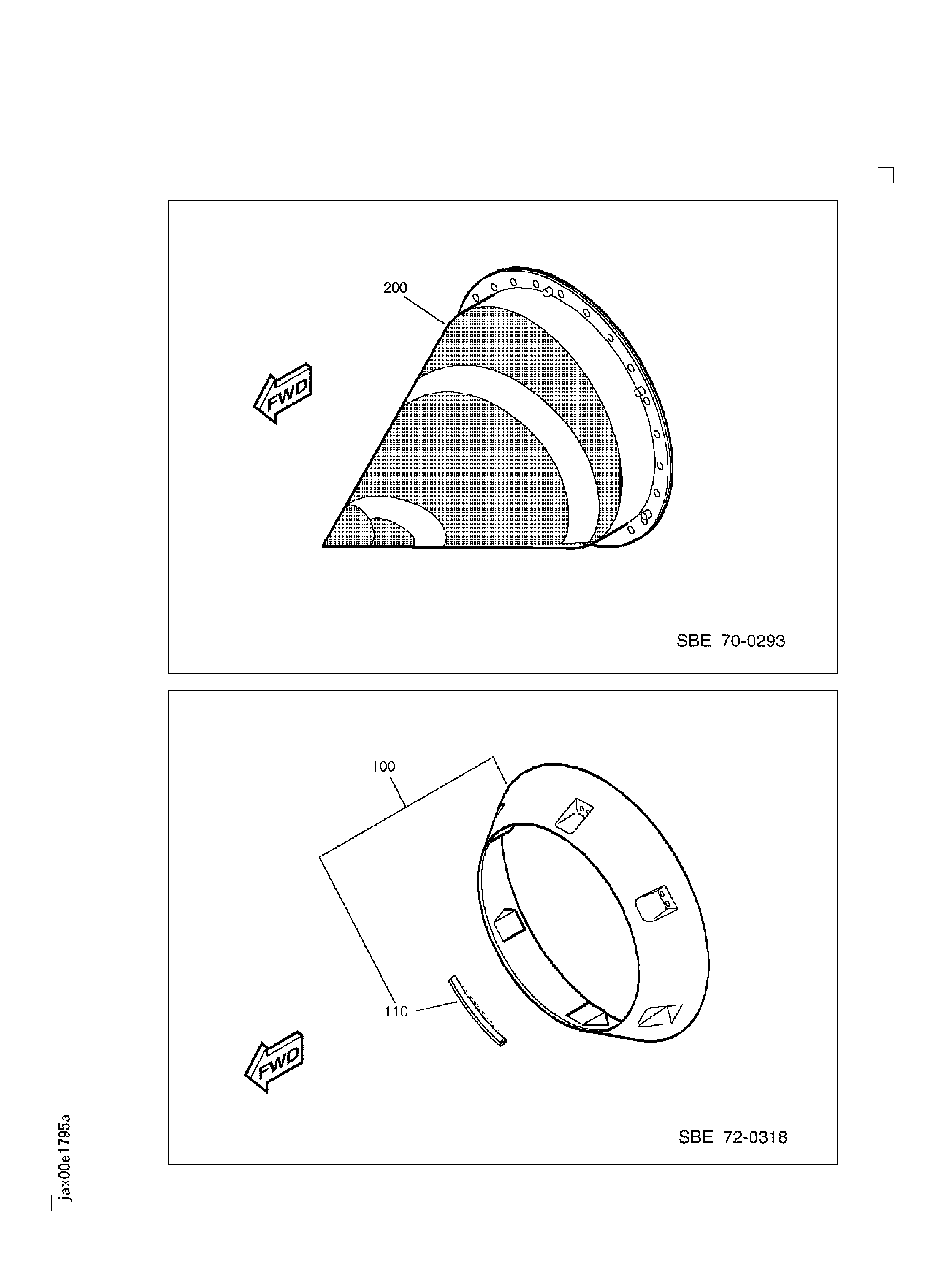

Figure: ENGINE-LP COMPRESSOR INTAKE ROTATING FAIRING
INLET CONE
INLET CONE
