DMC:V2500-A1-72-38-25-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72382501 | ENGINE-BIFURCATION PANEL AND SERVICES DISCONNECT, PRE SBE72-0088 | aa | ||
| SBE0088-01 | ENGINE-BIFURCATION PANEL AND SERVICES DISCONNECT, PRE SBE79-0087 | ab | ||
| SBE0087-01 | ENGINE-BIFURCATION PANEL AND SERVICES DISCONNECT | ac | ||
| 270 | 6A8165 | • BRACKET POST SBE79-0087 | ac | 1 |
| 280 | UP10842 | • PLATE PRE SBE72-0088 | aa | 1 |
| 282 | AS21009 | • BOLT - .250 DIA X .562 U1653 PRE SBE72-0088 | aa | 2 |
| 284 | 4W0002 | • NUT - .250 DIA PRE SBE72-0088 | aa | 2 |
| 300 | 6A3361 | • PANEL - ASSY OF PRE SBE72-0088 | aa | 1 |
| 300A | 6A4624 | • PANEL - CORE TO FAN POST SBE72-0088 PRE SBE79-0087 | aa-ab | 1 |
| 300B | 6A7930 | • PANEL - WHOLE ASSEMBLY BIFURCATION POST SBE79-0087 | ac | 1 |
| 310 | AS21010 | • BOLT - .250 DIA X .625 U1653 | aa-ac | 2 |
| 312 | 4W2622 | • WASHER PRE SBE79-0087 | aa-ab | 2 |
| 406 | ARM1317 | • • SEAL - BIFURCATION,(VRS6669) K7766 | ***** | 1 |
| 432 | AS16087 | • • RIVET - SOLID UNIVERSAL HD U1653 POST SBE72-0088 PRE SBE79-0087 | ab | 11 |
| 444 | AS16487 | • • RIVET - SOLID CSK HEAD U1653 POST SBE72-0088 PRE SBE79-0087 | ab | 6 |
| 462 | 6A7934 | • • CLIP - U SHAPE,(VRS6669) | ***** | 1 |
| 604 | 6A4657 | • • PLATE - STIFFENER-LH POST SBE72-0088 | ab-ac | 1 |
| 606 | 6A4658 | • • PLATE - STIFFENER-RH POST SBE72-0088 | ab-ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

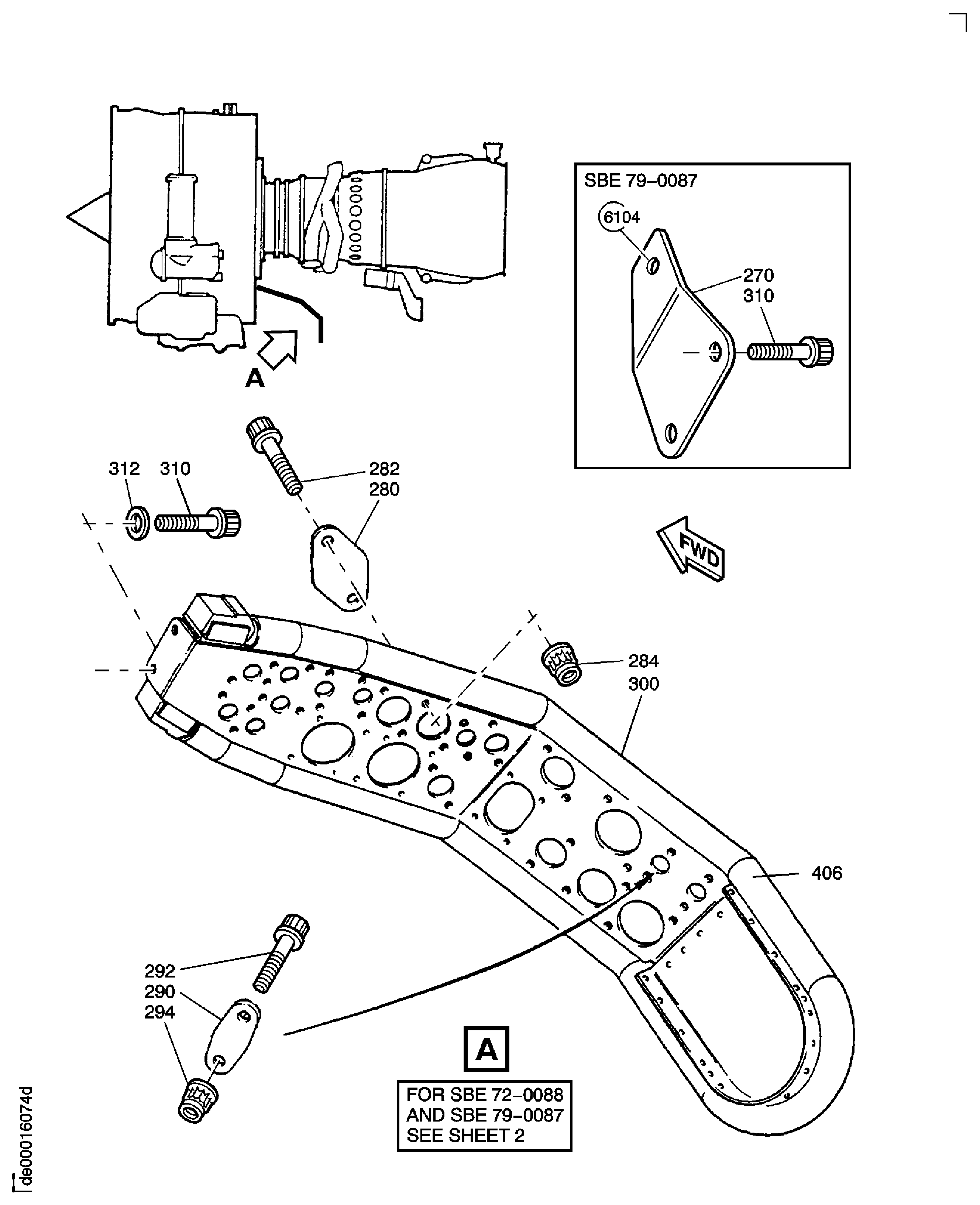

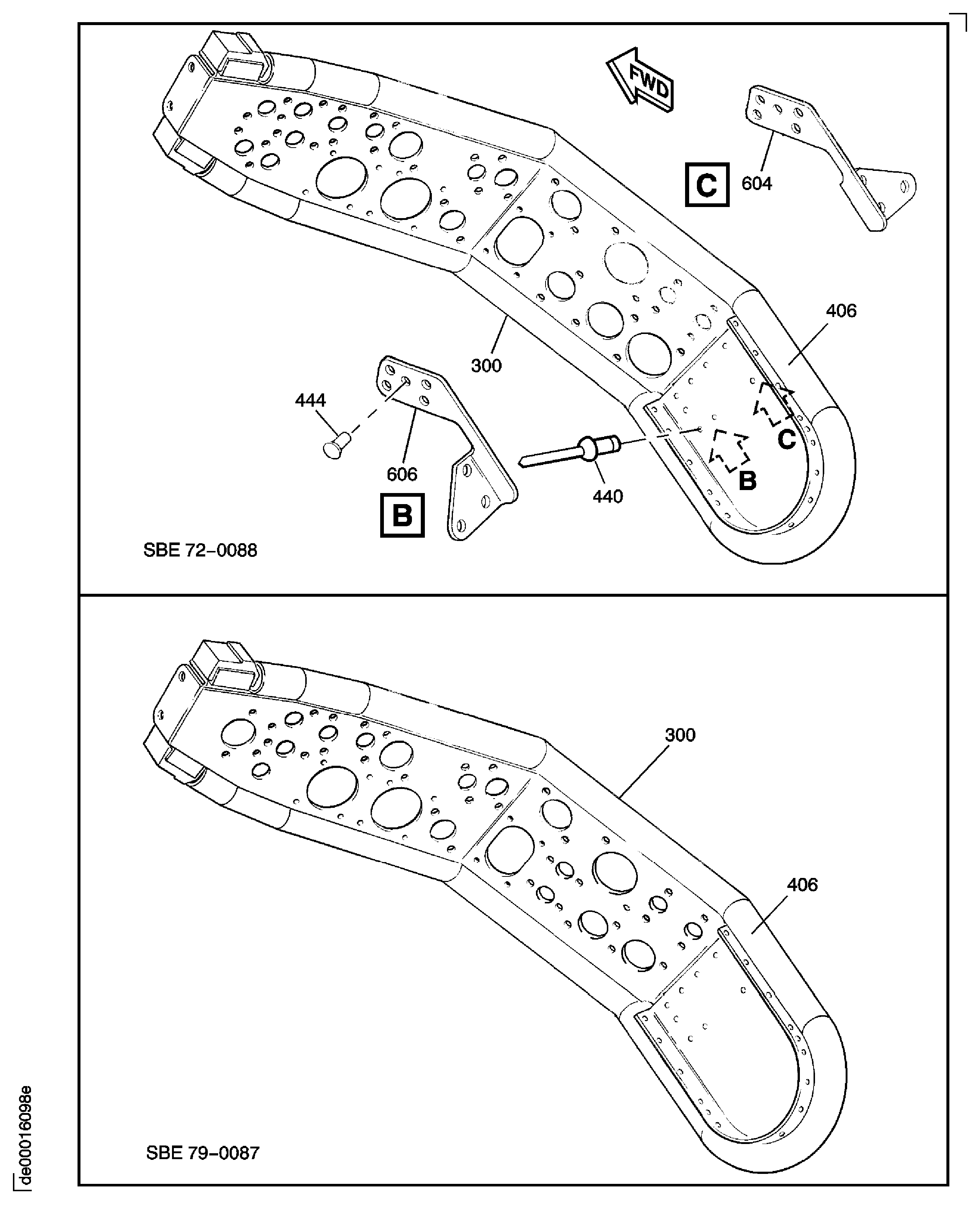

Figure: ENGINE-BIFURCATION PANEL AND SERVICES DISCONNECT
BIFICURATION PANEL

BIFICURATION PANEL
