| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B72400002 | ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM | aa | ||
| 020 | 2A0826 | • BOLT - MACH, | aa | 30 |
| 040 | 4W0175 | • BOLT - .250 DIA X 1.312 Optional Part 4W0175 | aa | 1 |
| 061 | 2A0354CL1 | • SPACER - CC CLAMP, 0.060INS (1.50 MM) | aa | 1 |
| 062 | 2A0354CL2 | • SPACER - CC CLAMP, 0.070INS (1.76 MM) | aa | 1 |
| 063 | 2A0354CL3 | • SPACER - CC CLAMP, 0.080INS (2.01 MM) | aa | 1 |
| 064 | 2A0354CL4 | • SPACER - CC CLAMP, 0.090INS (2.26 MM) | aa | 1 |
| 065 | 2A0354CL5 | • SPACER - CC CLAMP, 0.100INS (2.51 MM) | aa | 1 |
| 066 | 2A0354CL6 | • SPACER - CC CLAMP, 0.110INS (2.77 MM) | aa | 1 |
| 067 | 2A0354CL7 | • SPACER - CC CLAMP, 0.120INS (3.02 MM) | aa | 1 |
| 068 | 2A0354CL8 | • SPACER - CC CLAMP, 0.130INS(3.27 MM) | aa | 1 |
| 069 | 2A0354CL9 | • SPACER - CC CLAMP, 0.140INS (3.52 MM) | aa | 1 |
| 070 | 2A0354CL10 | • SPACER - CC CLAMP, 0.150INS (3.77 MM) | aa | 1 |
| 071 | 2A0354CL11 | • SPACER - CC CLAMP, 0.160INS (4.02 MM) | aa | 1 |
| 072 | 2A0354CL12 | • SPACER - CC CLAMP, 0.170INS (4.27 MM) | aa | 1 |
| 073 | 2A0354CL13 | • SPACER - CC CLAMP, 0.180INS (4.53 MM) | aa | 1 |
| 074 | 2A0354CL14 | • SPACER - CC CLAMP, 0.0190INS (4.78 MM) | aa | 1 |
| 075 | 2A0354CL15 | • SPACER - CC CLAMP, 0.200INS (5.03 MM) | aa | 1 |
| 076 | 2A0354CL16 | • SPACER - CC CLAMP, 0.210INS (5.28 MM) | aa | 1 |
| 077 | 2A0354CL17 | • SPACER - CC CLAMP, 0.220INS (5.53 MM) | aa | 1 |
| 078 | 2A0354CL18 | • SPACER - CC CLAMP, 0.230INS (5.78 MM) | aa | 1 |
| 080 | 4W0002 | • NUT - .250 DIA Optional Part 4W0002 | aa | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

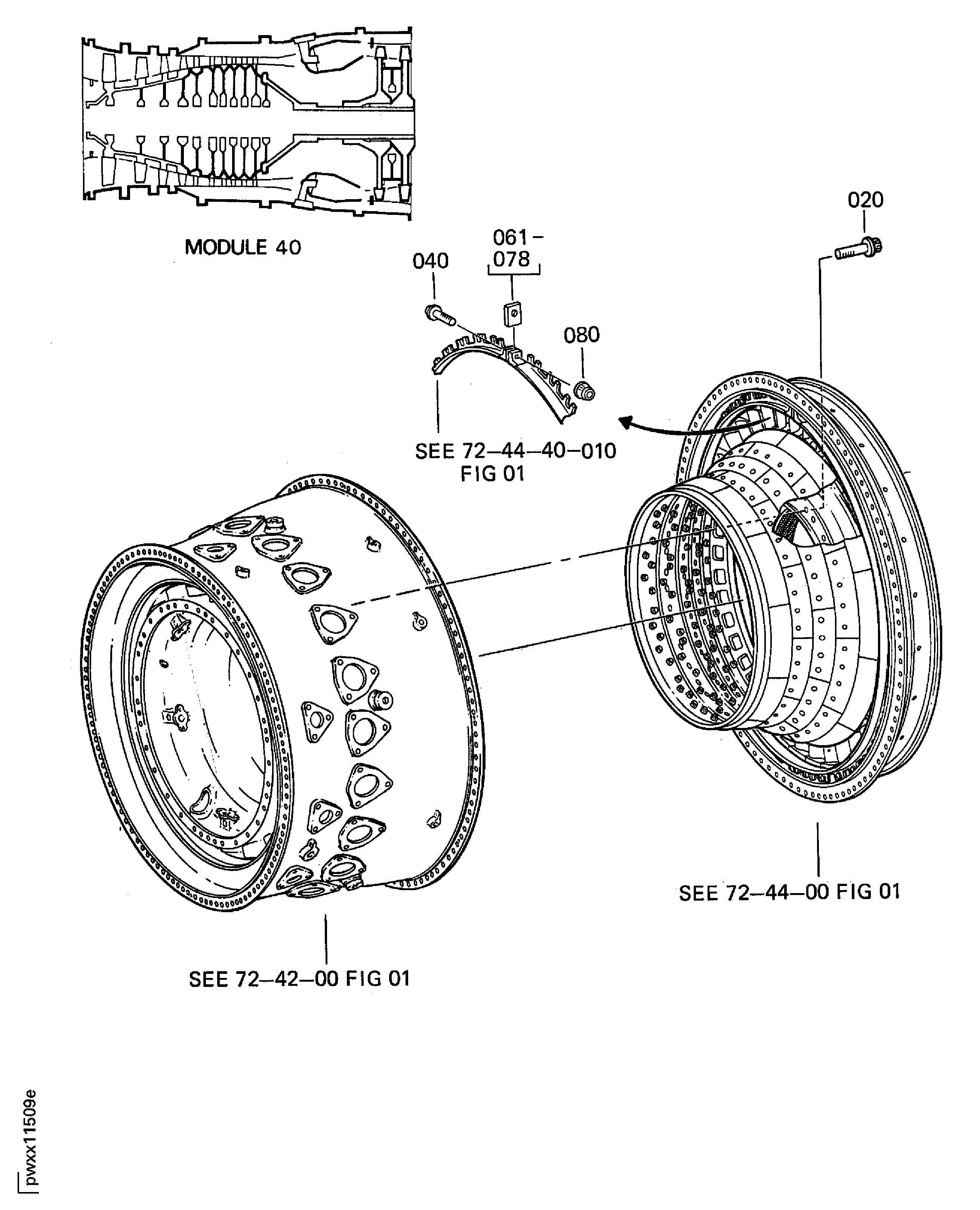

Figure: ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM
HIGH PRESSURE SYSTEM MODULE CONTINUED
