DMC:V2500-A1-72-40-00-03A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| B72400003 | ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM | aa | ||
| 003 | 2A1282CL1 | • SPACER - NO. 4 BRG, 0.199INS (5.05 MM) | aa | 1 |
| 005 | 2A1282CL2 | • SPACER - NO.4 BRG, 0.207INS (5.20 MM) | aa | 1 |
| 007 | 2A1282CL3 | • SPACER - NO.4 BRG, 0.215INS (5.41 MM) | aa | 1 |
| 009 | 2A1282CL4 | • SPACER - NO.4 BRG, 0.223INS (5.61 MM) | aa | 1 |
| 011 | 2A1282CL5 | • SPACER - NO.4 BRG, 0.231INS (5.81 MM) | aa | 1 |
| 013 | 2A1282CL6 | • SPACER - NO.4 BRG, 0.239INS (6.01 MM) | aa | 1 |
| 015 | 2A1282CL7 | • SPACER - NO.4 BRG, 0.247INS (6.21 MM) | aa | 1 |
| 017 | 2A1282CL8 | • SPACER - NO.4 BRG, 0.255INS (6.41 MM) | aa | 1 |
| 019 | 2A1282CL9 | • SPACER - NO.4 BRG, 0.263INS (6.61 MM) | aa | 1 |
| 021 | 2A1282CL10 | • SPACER - NO.4 BRG, 0.271INS (6.81 MM) | aa | 1 |
| 023 | 2A1282CL11 | • SPACER - NO.4 BRG, 0.279INS (7.01 MM) | aa | 1 |
| 025 | 2A1282CL12 | • SPACER - NO.4 BRG, 0.287INS (7.22 MM) | aa | 1 |
| 027 | 2A1282CL13 | • SPACER - NO.4 BRG, 0.295INS (7.42 MM) | aa | 1 |
| 029 | 2A1282CL14 | • SPACER - NO.4 BRG, 0.303INS (7.62 MM) | aa | 1 |
| 031 | 2A1282CL15 | • SPACER - NO.4 BRG, 0.311INS (7.82 MM) | aa | 1 |
| 033 | 2A1282CL16 | • SPACER - NO.4 BRG, 0.319INS (8.02 MM) | aa | 1 |
| 035 | 2A1282CL17 | • SPACER - NO.4 BRG, 0.327INS (8.22 MM) | aa | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

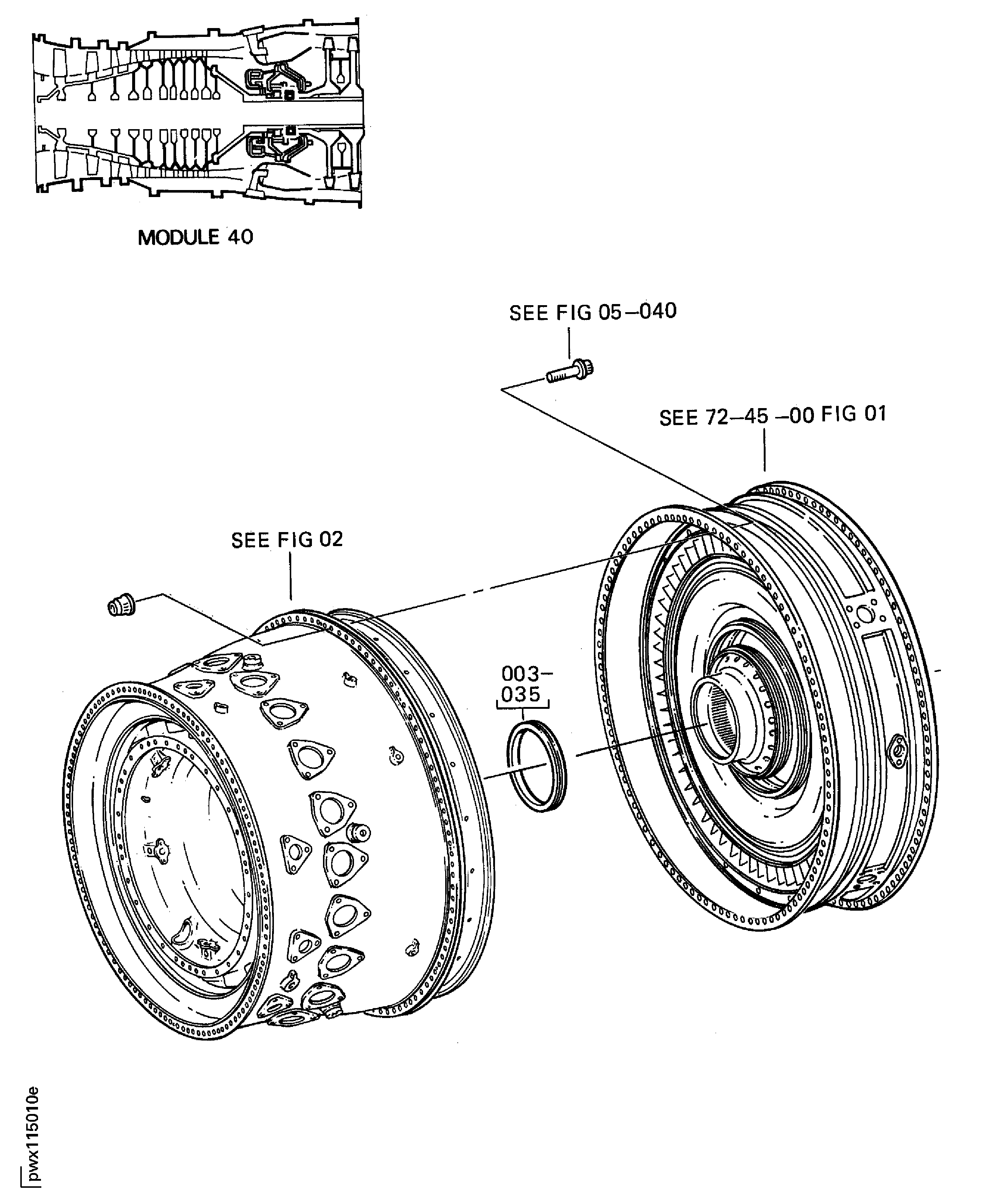

Figure: ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM
HIGH PRESSURE SYSTEM MODULE CONTINUED
