DMC:V2500-A1-72-40-00-04A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 04 | ||||
| - | B72400004 | ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM, PRE SBE72-0095 | aa | |
| - | SBE0095-01 | ENGINE-ATTACH PARTS & FITTINGS-HP SYSTEM | ab | |
| 020 | 2A0145 | • NUT - BEARING RETAINING, INTERNALLY PRE SBE72–0095 | aa-ab | 1 |
| 020A | 2A2247 | • NUT - BEARING RETAINING, INTERNALLY POST SBE72–0095 | aa-ab | 1 |
| 025 | 2A2248 | • NUT - BEARING RETAINING, INTERNALLY POST SBE72–0095 | ab | 8 |
| 040 | 2A0146 | • RING - RETAINING | aa-ab | 1 |
| 060 | 2A0147 | • LOCK - NO. 4 BEARING | aa-ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

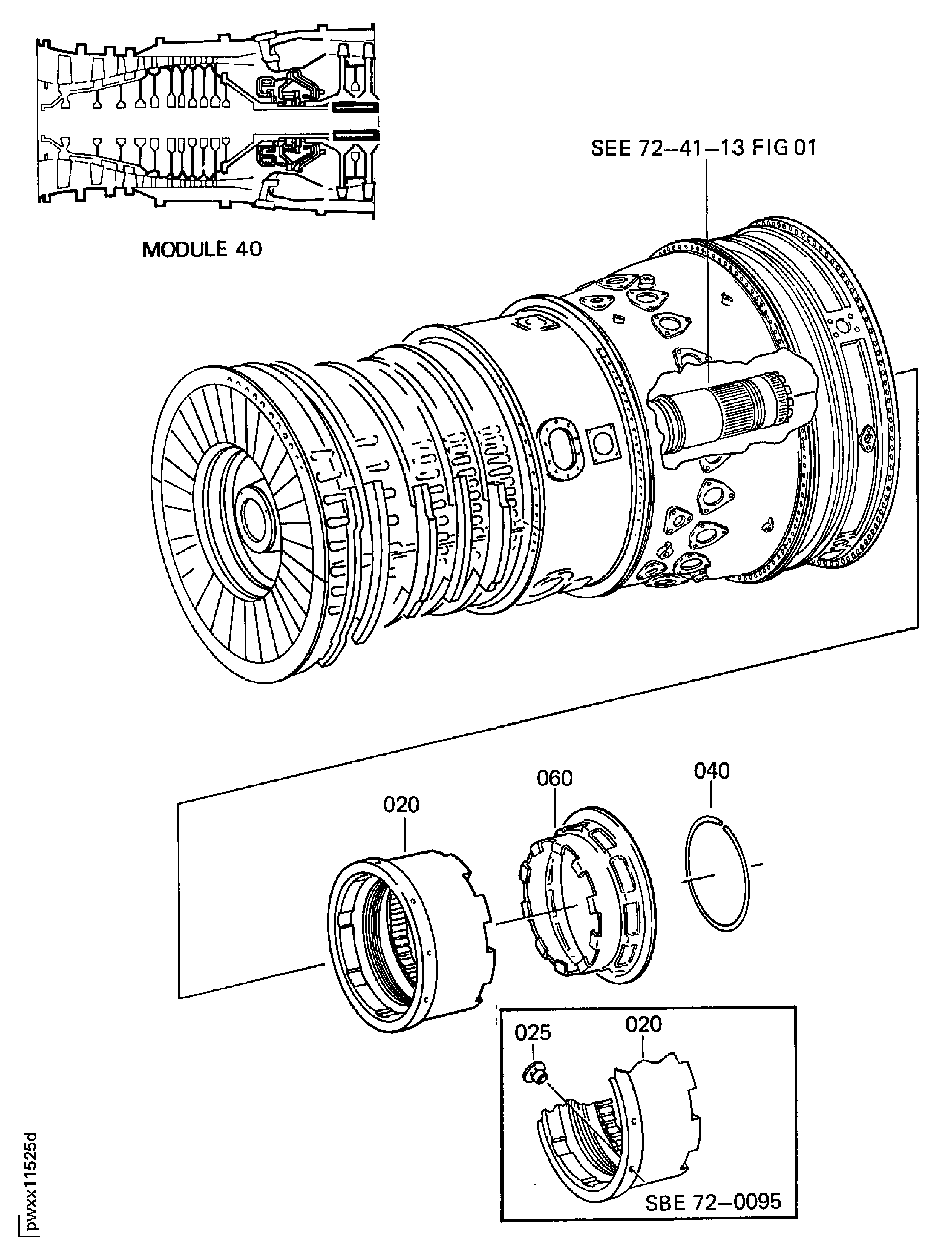

Figure: HPC Module - Attaching Parts
HPC Module - Attaching Parts
