DMC:V2500-A1-72-41-00-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72410001 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES, PRE SBE72-0038 | aa | ||
| SBE0038-01 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES, PRE SBE72-0119 | ab | ||
| SBE0119-01 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES, PRE SBE72-0223 | ac | ||
| SBE0223-01 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES, PRE SBE72-0263 | ad | ||
| SBE0263-01 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES, PRE SBE70-0991 | ae | ||
| SBE0991-01 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES | af | ||
| -001 | 4W6193 | DRAWING - HP COMPRESSOR ASSY POST SBE70-0991 | af | REF |
| -001A | 4W6407 | DRAWING - HP COMPRESSOR ASSY POST SBE70-0991 | af | REF |
| 010 | 6A3076 | • PLATE - MODULE IDENTIFICATION | aa-af | 1 |
| 012 | 4W0001 | • NUT - .190 DIA | aa-af | 2 |
| 014 | K8831 | • WASHER - .190 DIA X 0,51 THK | aa-af | 4 |
| 016 | 4W0104 | • BOLT - .190 DIA X .562 | aa-af | 2 |
| 101 | U128445 | • NUT - .312 DIA | aa-af | 2 |
| 102 | 4W0003 | • NUT - .3125 DIA Optional Part 4W0003 | aa-af | 30 |
| 104 | LK69059 | • SPACER | aa-af | 30 |
| 108 | AS22614 | • BOLT - CLOSE TOL,BIHEX HD U1653 | aa-af | 30 |
| 112 | AS21119 | • BOLT - BIHEX HD, .3125 DIA X 1.188 U1653 | aa-af | 2 |
| 302 | 4W0003 | • NUT - .3125 DIA Optional Part 4W0003 PRE SBE72-0119 | aa-ab | 53 |
| 302A | 4W0003 | • NUT - .3125 DIA Optional Part 4W0003 POST SBE72-0119 | ac-af | 54 |
| 308 | AS21114 | • BOLT - BIHEX HD, .3125 DIA X .875 U1653 PRE SBE72-0119 | aa-ab | 49 |
| 308A | AS21114 | • BOLT - BIHEX HD, .3125 DIA X .875 U1653 POST SBE72-0119 PRE SBE72-0223 | ac | 50 |
| 308B | AS21114 | • BOLT - BIHEX HD, .3125 DIA X .875 U1653 POST SBE72-0223 | ad-af | 49 |
| 314 | AS21117 | • BOLT - BIHEX HD, .3125 DIA X 1.062 U1653 PRE SBE72-0119 | aa-ab | 5 |
| 314A | AS21117 | • BOLT - BIHEX HD, .3125 DIA X 1.062 U1653 POST SBE72-0119 PRE SBE72-0223 | ac | 4 |
| 314B | AS21117 | • BOLT - BIHEX HD, .3125 DIA X 1.062 U1653 POST SBE72-0223 | ad-af | 5 |
| 320 | UP10750 | • PLATE - LOCK | aa-af | 10 |
| 322 | KB23752 | • PIN | aa-af | 10 |
| 364 | BLT5292 | • BOLT - BIHEX HD., .250 DIA X .898 PRE SBE72-0038 | aa | 60 |
| 364A | BLT5292 | • BOLT - .250 DIA X .898 POST SBE72-0038 PRE SBE72-0263 | ab-ad | 72 |
| 364B | BLT5292 | • BOLT - .250 DIA X .898 POST SBE72-0263 | ae-af | 30 |
| 366 | LK35703 | • WASHER - FLAT PRE SBE72-0263 | aa-ad | 60 |
| 366A | LK35703 | • WASHER POST SBE72-0263 | ae-af | 30 |
| 367 | EU55204 | • SPACER POST SBE72-0038 PRE SBE72-0263 | ab-ad | 12 |
| 384 | BLT5288 | • BOLT - BIHEX HD, .250 DIA X .689 PRE SBE72-0038 | aa | 12 |
| 484 | AS21013 | • BOLT - BIHEX HD, .250 DIA X .812 U1653 | aa-af | 60 |
| 540 | 4W0001 | • NUT - .190 DIA | aa-af | 10 |
| 544 | BLT5375 | • BOLT - & SPACER ASSY | aa-af | 10 |
| 550 | 4W0001 | • NUT - .190 DIA | aa-af | 37 |
| 552 | BLT5378 | • BOLT | aa-af | 37 |
| 564 | BLT5374 | • BOLT - & SPACER ASSY | aa-af | 10 |
| 570 | AS27822 | • NUT - SELF LOCKING, .190 DIA U1653 | aa-af | 28 |
| 572 | BLT5373 | • BOLT - D-HEAD | aa-af | 28 |
| 584 | BLT5374 | • BOLT - & SPACER ASSY | aa-af | 10 |
| 590 | AS27822 | • NUT - SELF LOCKING, .190 DIA U1653 | aa-af | 37 |
| 592 | BLT5373 | • BOLT - D-HEAD | aa-af | 37 |
| 600 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 | aa-af | 10 |
| 604 | BLT5377 | • BOLT | aa-af | 10 |
| 606 | 4W2621 | • WASHER Optional Part 4W2621 | aa-af | 10 |
| 610 | AS27822 | • NUT - SELF LOCKING, .190 DIA U1653 | aa-af | 37 |
| 612 | BLT5373 | • BOLT - D-HEAD | aa-af | 37 |
| 624 | BLT5374 | • BOLT - & SPACER ASSY | aa-af | 10 |
| 630 | AS27822 | • NUT - SELF LOCKING, .190 DIA U1653 | aa-af | 37 |
| 632 | BLT5373 | • BOLT - D-HEAD | aa-af | 37 |
| 644 | BLT5360 | • BOLT - & SPACER ASSY | aa-af | 47 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

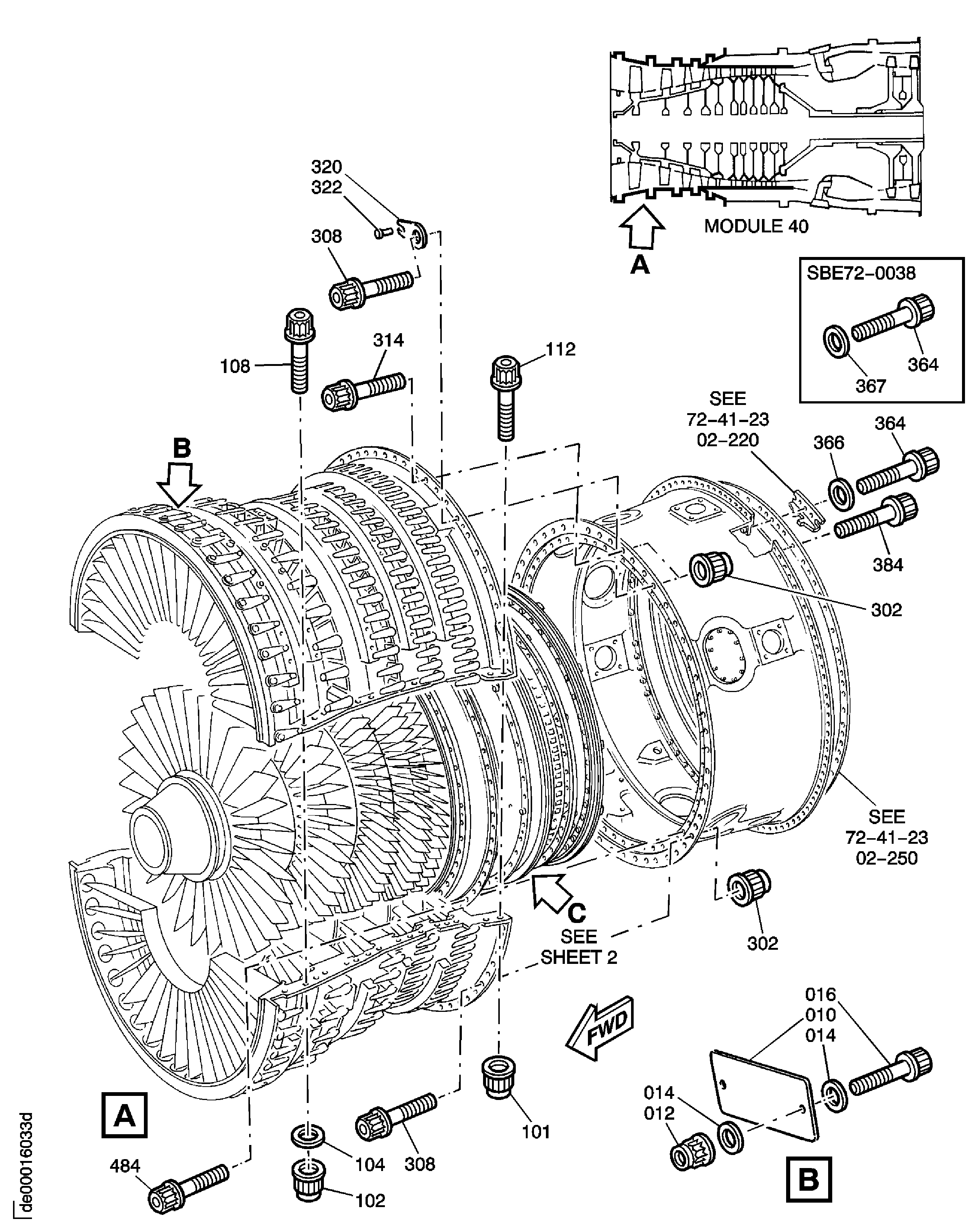

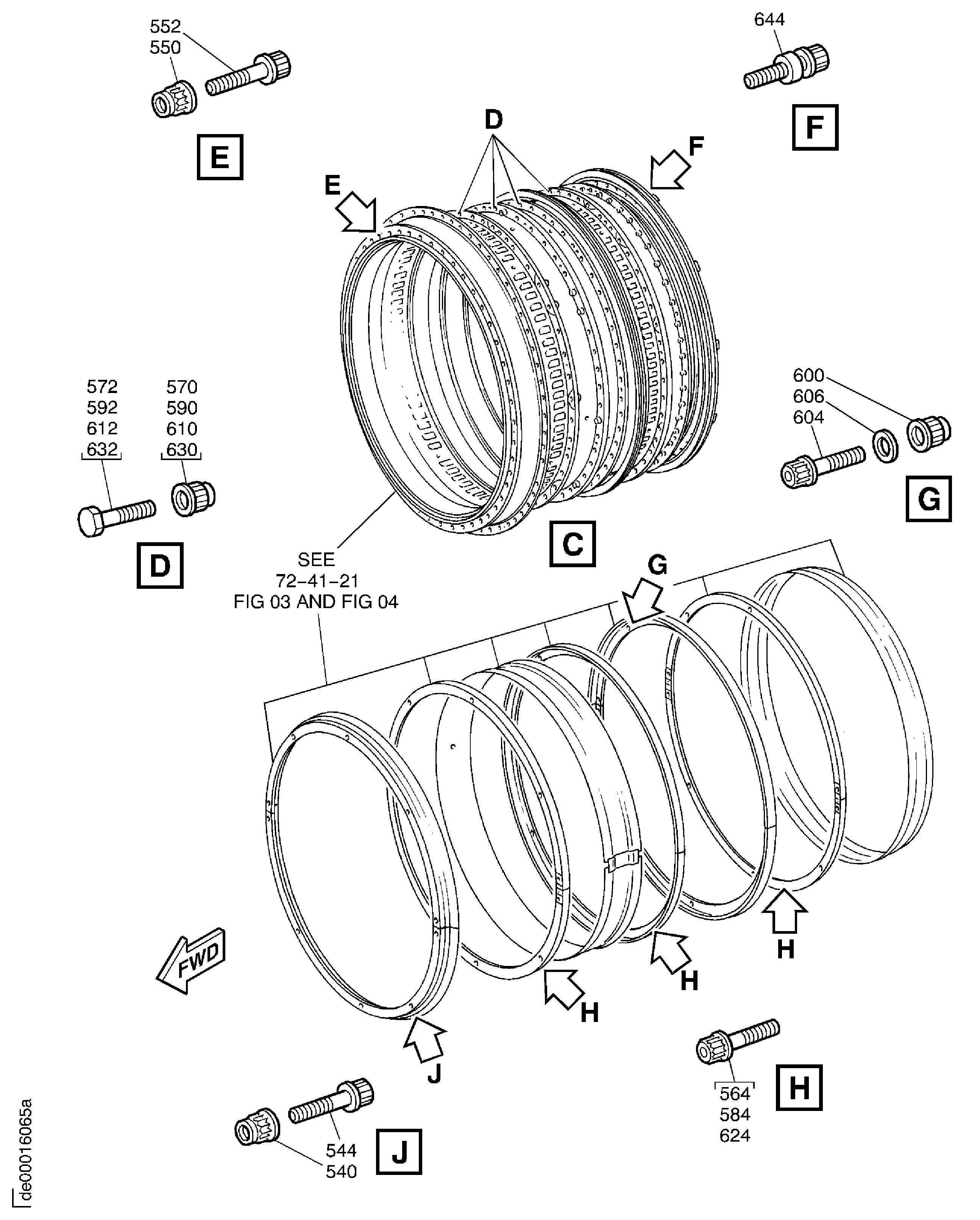

Figure: ENGINE-SECURING FEATURES-HP COMPRESSOR CASES
SECURING FEATURES - HP COMPRESSOR CASES
SECURING FEATURES - HP COMPRESSOR CASES
