| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B72410002 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES, PRE SBE72-0005 | aa | ||
| SBE0005-01 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES, PRE SBE72-0100 | ab | ||
| SBE0100-01 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES, PRE SBE70-0368 | ac | ||
| SBE0368-01 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES | ad | ||
| 100 | 6A3515 | • COVER - ASSY OF BLANK B/SCOPE PRE SBE72-0005 | aa | 3 |
| 100A | 6A3507 | • COVER - ASSY OF,BLANK,B/SCOPE POST SBE72-0005 PRE SBE72-0100 | ab | 3 |
| 100B | 6A4137 | • COVER - ASSY OF,BLANK,B/SCOPE POST SBE72-0100 | ac-ad | 3 |
| 102 | BLT5297 | • BOLT - .250 DIA X 1.275 PRE SBE72-0005 | aa | 9 |
| 102A | AS21511 | • BOLT - .250 DIA X .688 U1653 POST SBE72-0005 PRE SBE70-0368 | ab-ac | 9 |
| 102B | 4W0166 | • BOLT - .250 DIA X .750 POST SBE70-0368 | ad | 9 |
| 108 | 6A4139 | • GASKET - CORRUJOINT POST SBE72-0100 | ac-ad | 3 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

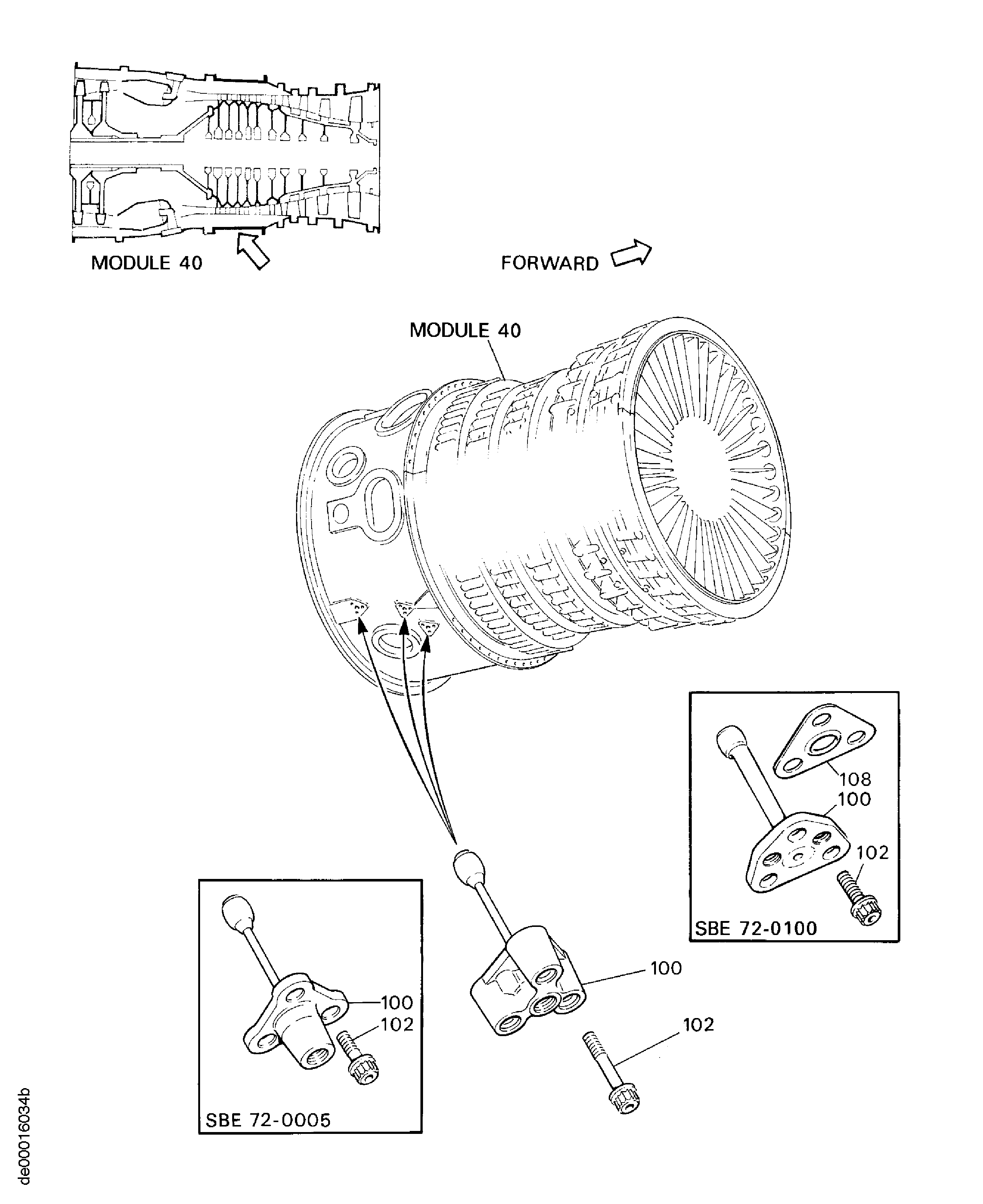

Figure: ENGINE-SECURING FEATURES-HP COMPRESSOR CASES
SECURING FEATURES - HP COMPRESSOR CASES
