DMC:V2500-A1-72-41-00-03A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| B72410003 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES, PRE SBE70-0019 | aa | ||
| SBE0019-01 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES, PRE SBE72-0029 | ab | ||
| SBE0029-01 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES, PRE SBE72-0078 | ac | ||
| SBE0078-01 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES, PRE SBE72-0080 | ad | ||
| SBE0080-01 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES, PRE SBE72-0074 | ae | ||
| SBE0074-01 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES, PRE SBE70-0158 | af | ||
| SBE0158-01 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES, PRE SBE70-0144 | ag | ||
| SBE0144-01 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES, PRE SBE72-0132 | ah | ||
| SBE0132-01 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES, PRE SBE72-0119 | ai | ||
| SBE0119-01 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES, PRE SBE72-0176 | aj | ||
| SBE0176-01 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES, PRE SBE70-0568 | ak | ||
| SBE0568-01 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES, PRE SBE79-0087 | al | ||
| SBE0087-01 | ENGINE-SECURING FEATURES-HP COMPRESSOR CASES | am | ||
| 010 | 6A4128 | • PLATE - IDENTIFICATION POST SBE72-0176 | ak-am | 1 |
| 012 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE72-0176 | ak-am | 2 |
| 013 | 4W2621 | • WASHER Optional Part 4W2621 POST SBE72-0176 | ak-am | 2 |
| 014 | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE72-0176 | ak-am | 2 |
| 020 | 6A4129 | • BRACKET POST SBE72-0176 | ak-am | 1 |
| 240 | 5W2077 | • BRACKET - A/O CLAMP LOOP | aa-am | 1 |
| 260 | 6A2167 | • BRACKET POST SBE72-0132 | ai-am | 1 |
| 280 | 5T8169 | • BRACKET - UPPER REAR PRE SBE70-0019 | aa-am | 1 |
| 280A | 5T8169 | • BRACKET - UPPER REAR ALT 5T0053 POST SBE70-0019 | aa-am | 1 |
| -280B | 5T0053 | • BRACKET ALT 5T8169 POST SBE70-0019 | aa-am | REF |
| 310 | 5T8171 | • BRACKET - LOWER REAR PRE SBE70-0019 | aa-am | 1 |
| 310A | 5T8171 | • BRACKET - LOWER REAR ALT 5T0054 POST SBE70-0019 | aa-am | 1 |
| -310B | 5T0054 | • BRACKET ALT 5T8171 POST SBE70-0019 | aa-am | REF |
| 320 | 5W1997 | • BRACKET PRE SBE72-0080 | aa-al | 1 |
| 320A | 5W8396 | • BRACKET POST SBE72-0080 PRE SBE79-0087 | aa-al | 1 |
| 320B | 6A5749 | • BRACKET - CLIPPING POST SBE79-0087 | am | 1 |
| 350 | 5W8302 | • BRACKET - A/O PRE SBE79-0087 | aa-al | 1 |
| 360 | 5W8304 | • BRACKET | aa-am | 1 |
| 380 | 5W2143 | • BRACKET - A/O ACTUATOR REAR PRE SBE72-0074 | aa-ae | 1 |
| 380A | 5W2168 | • BRACKET - A/O ACTUATOR REAR POST SBE72-0074 | af-am | 1 |
| 400 | 2A1696-01 | • BRACKET - FUEL FLOW DVDR,A/O 77445 PRE SBE72-0078 | aa-ai | 1 |
| 400A | 2A1729-01 | • BRACKET - FUEL FLOW DVDR,A/O POST SBE72-0078 PRE SBE72-0119 | aa-ai | 1 |
| 400B | 2A2542-01 | • BRACKET - LOOP CLAMP, ASSY OF POST SBE72-0119 | aj-am | 1 |
| 415 | 594412 | • • NUT 77445 ALT 4W0038 PRE SBE72-0119 | aa-ai | 1 |
| -415A | 4W0038 | • • NUT - .190 DIA PRE SBE72-0119 | aa-ai | REF |
| 420 | AN123452 | • • RIVET - SOLID 81352 PRE SBE72-0029 | aa-ab | 2 |
| 420A | AN123469 | • • RIVET - SOLID 100 DEG FLUSH HD, .094 DIA X .250 81352 POST SBE72-0029 PRE SBE72-0119 | aa-ai | 2 |
| 425 | 728665 | • • NUT - OPTION 77445 PRE SBE72-0029 | aa-ai | 1 |
| 425A | 728665 | • • NUT - OPTION 77445 POST SBE72-0029 PRE SBE72-0119 | aa-ai | 1 |
| 430 | AN123487 | • • RIVET - SOLID 81352 PRE SBE72-0029 | aa-ai | 2 |
| 430A | AN123487 | • • RIVET - SOLID 100 DEG FL HEAD 81352 POST SBE72-0029 PRE SBE72-0119 | aa-ai | 2 |
| 510 | 6A2802 | • BRACKET - A/O | aa-am | 1 |
| 530 | 5W1969 | • BRACKET | aa-am | 1 |
| 550 | 5W1999 | • BRACKET - A/O PRE SBE70-0158 | aa-am | 1 |
| 550A | 6A4670 | • BRACKET - ASSY OF POST SBE70-0158 PRE SBE70-0568 | aa-am | 1 |
| 550B | 6A4670 | • BRACKET - ASSY OF ALT 5W1999 POST SBE70-0568 | aa-am | 1 |
| 550C | 5W1999 | • BRACKET - A/O ALT 6A4670 POST SBE70-0568 | al-am | 1 |
| 575 | 6A5748 | • BRACKET - CLIPPING POST SBE79-0087 | am | 1 |
| 720 | 5W1996 | • BRACKET | aa-am | 1 |
| 730 | 740-5077-505 | • BRACKET 51563 PRE SBE70-0144 | aa-am | 1 |
| 730A | 740-5077-507 | • BRACKET 51563 POST SBE70-0144 | aa-am | 1 |
| 760 | 740-5456-507 | • BRACKET - EARTH STUD (715241)(05 020) 51563 | aa-am | 1 |
| 760A | 740-5456-509 | • BRACKET 51563 Optional Part 740-5456-509 PRE SBE70-0144 | aa-am | 1 |
| 760B | 740-5456-511 | • BRACKET 51563 POST SBE70-0144 | aa-am | 1 |
| 770 | 740-5068-501 | • BRACKET - SUPPORT 51563 | aa-am | 1 |
| 780 | 740-5457-505 | • BRACKET 51563 | aa-am | 1 |
| 790 | 5W8357 | • BRACKET PRE SBE70-0158 | aa-am | 1 |
| 790A | 6A4671 | • BRACKET POST SBE70-0158 PRE SBE70-0568 | aa-am | 1 |
| 790B | 6A4671 | • BRACKET ALT 5W8357 POST SBE70-0568 | aa-am | 1 |
| 790C | 5W8357 | • BRACKET ALT 6A4671 POST SBE70-0568 | al-am | 1 |
| 800 | 5W0074 | • BRACKET | aa-am | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

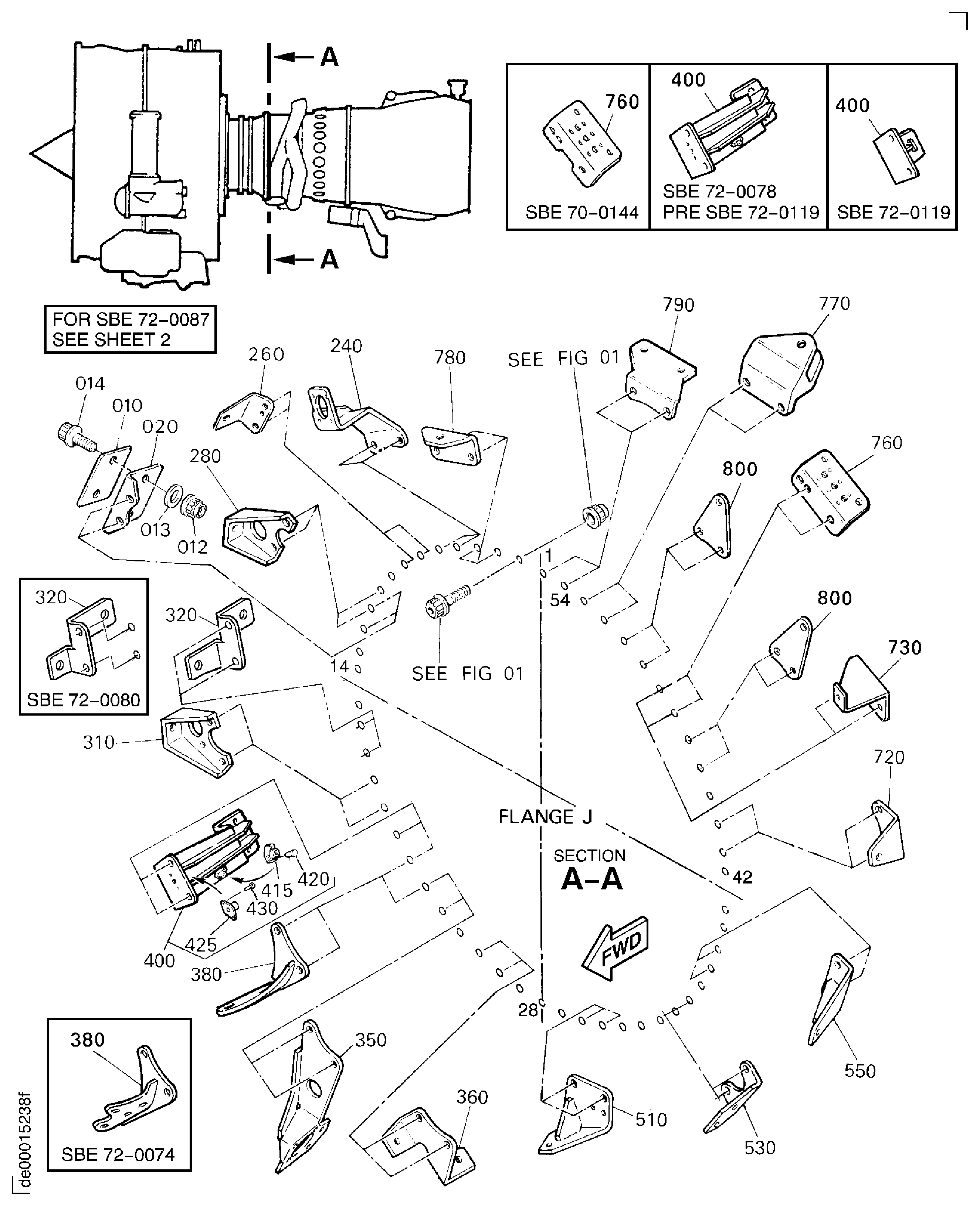

Figure: ENGINE-SECURING FEATURES-HP COMPRESSOR CASES

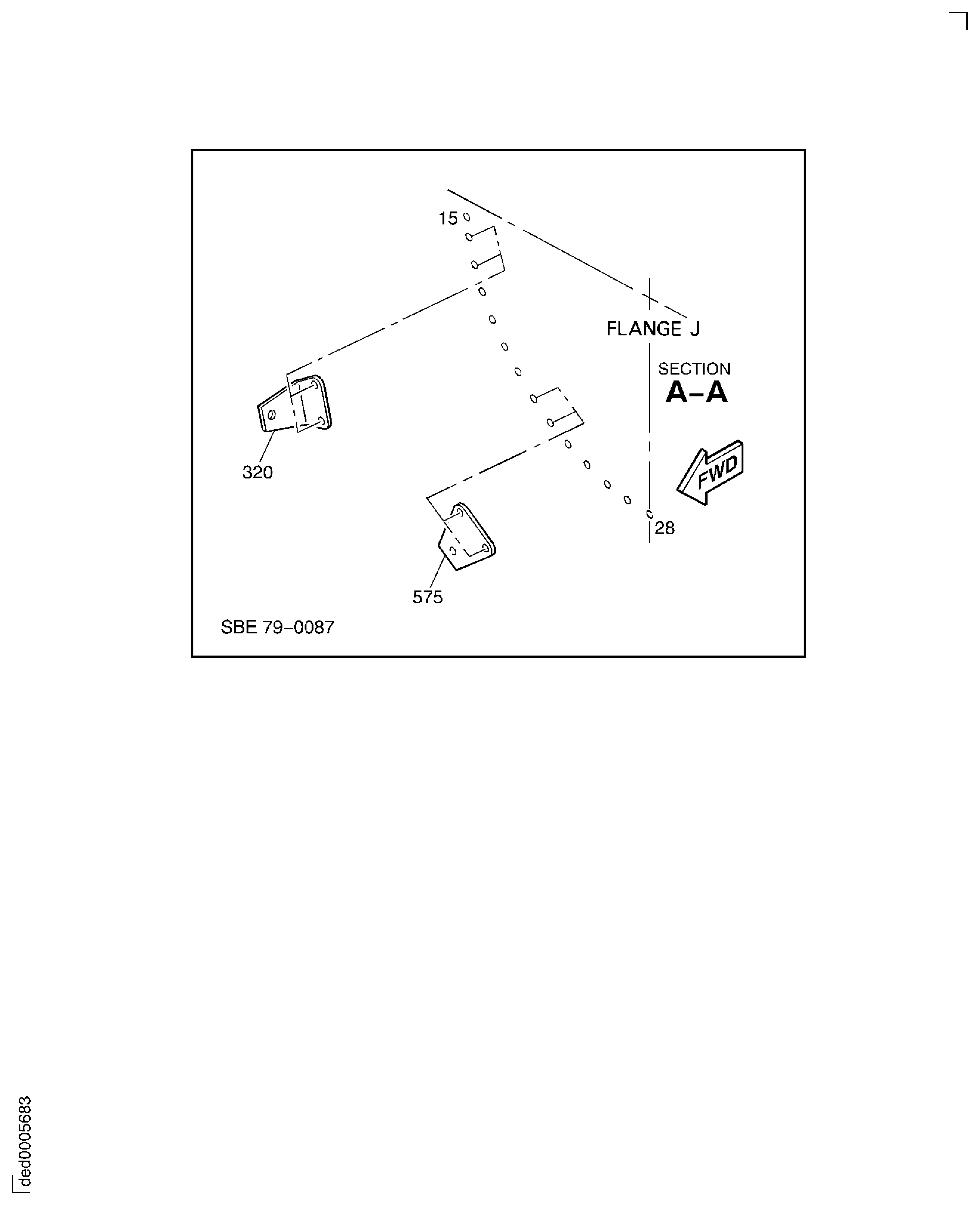

SECURING FEATURES - HP COMPRESSOR CASES
SECURING FEATURES - HP COMPRESSOR CASES
