DMC:V2500-A1-72-41-11-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72411101 | ENGINE-HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0035 | aa | ||
| SBE0035-01 | ENGINE-HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0130 | ab | ||
| SBE0130-01 | ENGINE-HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0161 | ac | ||
| SBE0161-01 | ENGINE-HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0178 | ad | ||
| SBE0178-01 | ENGINE-HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0254 | ae | ||
| SBE0254-01 | ENGINE-HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0289 | af | ||
| SBE0289-01 | ENGINE-HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0304 | ag | ||
| SBE0304-01 | ENGINE-HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0300 | ah | ||
| SBE0300-01 | ENGINE-HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0450 | ai | ||
| SBE0450-01 | ENGINE-HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0472 | aj | ||
| SBE0472-01 | ENGINE-HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0470 | ak | ||
| SBE0470-01 | ENGINE-HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0476 | al | ||
| SBE0476-01 | ENGINE-HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0589 | am | ||
| SBE0589-01 | ENGINE-HP COMPRESSOR DISCS (STAGES 3-8), PRE SBE72-0606 | an | ||
| SBE0606-01 | ENGINE-HP COMPRESSOR DISCS (STAGES 3-8) | ao | ||
| 200 | 6A3648 | • DISC - ASSY STG 3 TO 8-HPC ALT 6A3508 PRE SBE72-0035 | aa-ab | 1 |
| -200A | 6A3508 | • DISC - ASSY STG 3 TO 8-HPC ALT 6A5594 PRE SBE72-0035 | aa-ab | REF |
| 200B | 6A3936 | • DISC - ASSY ALT 6A3934 POST SBE72-0035 PRE SBE72-0130 | aa-ac | 1 |
| -200C | 6A3934 | • DISC - ASSY ALT 6A3936 POST SBE72-0035 PRE SBE72-0130 | aa-ab | REF |
| 200D | 6A4189 | • SHAFT - ASSY,3TO8 ROTOR DRUM POST SBE72-0130 PRE SBE72-0161 | aa-ac | 1 |
| 200E | 6A5594 | • SHAFT - ASSY,3TO8 ROTOR DRUM ALT 6A5592 POST SBE72-0161 PRE SBE72-0178 | aa | 1 |
| -200F | 6A5592 | • DISC - ASSY ALT 6A5659 POST SBE72-0161 PRE SBE72-0178 | aa | REF |
| -200G | 6A5659 | • SHAFT - ASSY,3TO8 ROTOR DRUM ALT 6A5467 POST SBE72-0161 PRE SBE72-0178 | aa | REF |
| 200H | 6A5467 | • DISC - ASSY POST SBE72-0178 PRE SBE72-0254 | aa | 1 |
| 200J | 6A6473 | • DRUM - 3 TO 8 FITTING POST SBE72-0254 PRE SBE72-0300 | af-ah | 1 |
| 200K | 6A7379 | • DISC - ASSY OF-STAGE 3 TO 8 ALT 6A7380 POST SBE72-0304 | ah-ao | 1 |
| -200L | 6A7380 | • DISC - ASSY OF-STAGE 3 TO 8 ALT 6A7382 POST SBE72-0304 | ah-ao | REF |
| -200M | 6A7382 | • DISC - ASSY OF-STAGE 3 TO 8 ALT 6A7379 POST SBE72-0304 | ah-ao | REF |
| 200N | 6A7384 | • DISC - ASSY OF-STAGE 3 TO 8 POST SBE72-0304 | ah-ao | 1 |
| 200P | 6A7385 | • DISC - ASSY OF-STAGE 3 TO 8 POST SBE72-0304 | ah-ao | 1 |
| 200Q | 6A7401 | • DISC - ASSY OF-STAGE 3 TO 8 POST SBE72-0300 PRE SBE72-0450 | ai-an | 1 |
| 200R | 6A8236 | • DISC - ASSY 0F-STAGE 3 TO 8 POST SBE72-0450 PRE SBE72-0470 | ai-an | 1 |
| 200S | 6A8318 | • DISC - ASSY OF STAGE 3-8 HP COMPRESSOR POST SBE72-0470 PRE SBE72-0476 | ai-an | 1 |
| 200T | 6A8350 | • DRUM - ASSEMBLY, STAGE 3 TO 8 POST SBE72-0476 PRE SBE72-0606 | ai-an | 1 |
| 200U | 6B1406 | • DRUM - ASSY OF,STAGE 3 TO 8 POST SBE72-0606 | ao | 1 |
| 200V | 6B1402 | • DRUM - ASSY OF,STAGE 3 TO 8 POST SBE72-0606 | ai-ao | 1 |
| 200W | 6B1381 | • DRUM - ASSY OF,STAGE 3 TO 8 POST SBE72-0606 | ao | 1 |
| 200X | 6B1382 | • DRUM - ASSY OF,STAGE 3 TO 8 POST SBE72-0606 | ao | 1 |
| 200Y | 6B1383 | • DRUM - ASSY OF,STAGE 3 TO 8 POST SBE72-0606 | ao | 1 |
| 200Z | 6B1403 | • DRUM - ASSY OF,STAGE 3 TO 8 ALT 6B1384 POST SBE72-0606 | ao | 1 |
| 200AA | 6B1384 | • DRUM - ASSY OF,STAGE 3 TO 8 POST SBE72-0606 | ao | 1 |
| 200AB | 6B1380 | • DRUM - ASSY OF,STAGE 3 TO 8 POST SBE72-0606 | ao | 1 |
| 200AC | 6B1401 | • DRUM - ASSY OF,STAGE 3 TO 8 POST SBE72-0606 | ao | 1 |
| 200AD | 6B1379 | • DRUM - ASSY OF,STAGE 3 TO 8 POST SBE72-0606 | ao | 1 |
| 225 | 6A1124 | • • SLEEVE - SEALING | aa-ao | 1 |
| 238 | AS27862 | • • NUT - SELF LOCKING SHANK, .250 DIA U1653 | aa-ao | 20 |
| 238A | AS27862 | • • NUT - SELF LOCKING SHANK,(VRS6220), .250 DIA U1653 | ***** | 1 |
| 238B | AS63492 | • • NUT - SELF LOCKING,SHANK, .250 THD DIA U1653 POST SBE72-0606 | ao | 20 |
| 240 | 6A1130 | • • PLATE - ANTI FRETTAGE | aa-ao | 4 |
| 240A | 6A1130 | • • PLATE - ANTI FRETTAGE,(VRS6220) | ***** | 1 |
| -245 | 6A5468 | • • DISC - A/O POST SBE72-0178 PRE SBE72-0254 | ae-ah | REF |
| -245A | 6A6474 | • • DRUM - 3 TO 8 POST SBE72-0254 PRE SBE72-0300 | ae-ah | REF |
| -245B | 6A7402 | • • DISC - ASSY - STAGE 3 TO 8 POST SBE72-0300 PRE SBE72-0450 | ai | REF |
| -245C | 6A7706 | • • DISC - ASSY OF-STAGE 3-8 POST SBE72-0450 PRE SBE72-0470 | aj-ak | REF |
| -245D | 6A8317 | • • DISC - ASSY OF STAGE 3-8 HP COMPRESSOR POST SBE72-0470 PRE SBE72-0476 | al | REF |
| -245E | 6A8351 | • • DISC - ASSY OF STAGE 3-8 POST SBE72-0476 | am-ao | REF |
| 386 | 6A1146 | • WIRE - SEAL STAGE 6,FRONT PRE SBE72-0472 | aa-ao | 1 |
| 386A | 6A8339 | • WIRE - SEAL-STAGE 6 POST SBE72-0472 PRE SBE72-0589 | aa-ao | 1 |
| 386B | 6A1146 | • WIRE - SEAL STG 6 FRONT POST SBE72-0589 | aa-ao | 1 |
| 388 | 6A1147 | • WIRE - SEAL STAGE 6,REAR PRE SBE72-0472 | aa-ao | 1 |
| 388A | 6A8340 | • WIRE - SEAL-STAGE 6 POST SBE72-0472 PRE SBE72-0589 | aa-ao | 1 |
| 388B | 6A1147 | • WIRE - SEAL STG 6 REAR POST SBE72-0589 | aa-ao | 1 |
| 390 | 6A4915 | • WIRE - SEAL STG 7,FRONT POST SBE72-0161 PRE SBE72-0289 | ad-ao | 1 |
| 390A | 6A7358 | • WIRE - SEAL-STAGE 7 FRONT POST SBE72-0289 PRE SBE72-0300 | ad-ao | 1 |
| 390B | 6A7386 | • WIRE - SEAL-STAGE 7 POST SBE72-0300 PRE SBE72-0472 | ad-ao | 1 |
| 390C | 6A8341 | • WIRE - SEAL-STAGE 7 POST SBE72-0472 PRE SBE72-0589 | ad-ao | 1 |
| 390D | 6A7386 | • WIRE - SEAL-STAGE 7 FRONT POST SBE72-0589 | ad-ao | 1 |
| 392 | 6A4916 | • WIRE - SEAL STG 7,REAR POST SBE72-0161 PRE SBE72-0289 | ad-aj | 1 |
| 392A | 6A7359 | • WIRE - SEAL-STAGE 7 REAR POST SBE72-0289 PRE SBE72-0300 | ad-aj | 1 |
| 392B | 6A7381 | • WIRE - SEAL-STAGE 7 POST SBE72-0304 | ah-ao | 1 |
| 392C | 6A7387 | • WIRE - SEAL-STAGE 7 POST SBE72-0300 PRE SBE72-0472 | ad-ao | 1 |
| 392D | 6A8342 | • WIRE - SEAL-STAGE 7 POST SBE72-0472 PRE SBE72-0589 | ad-ao | 1 |
| 392E | 6A7387 | • WIRE - SEAL-STAGE 7 REAR POST SBE72-0589 | ad-ao | 1 |
| 394 | 6A4917 | • WIRE - SEAL STG 8,FRONT POST SBE72-0161 PRE SBE72-0289 | ad-aj | 1 |
| 394A | 6A7360 | • WIRE - SEAL-STAGE 8 FRONT POST SBE72-0289 PRE SBE72-0300 | ad-aj | 1 |
| 394B | 6A7393 | • WIRE - SEAL-STAGE 8 FRONT POST SBE72-0304 | ah-ao | 1 |
| 394C | 6A7388 | • WIRE - SEAL-STAGE 8 FRONT POST SBE72-0300 PRE SBE72-0472 | ad-ao | 1 |
| 394D | 6A8343 | • WIRE - SEAL-STAGE 8 POST SBE72-0472 PRE SBE72-0589 | ad-ao | 1 |
| 394E | 6A7388 | • WIRE - SEAL-STAGE 8 FRONT POST SBE72-0589 | ad-ao | 1 |
| 396 | 6A4918 | • WIRE - SEAL STG 8,REAR POST SBE72-0161 PRE SBE72-0289 | ad-ao | 1 |
| 396A | 6A7361 | • WIRE - SEAL-STAGE 8 REAR POST SBE72-0289 PRE SBE72-0300 | ad-ao | 1 |
| 396B | 6A7389 | • WIRE - SEAL-STAGE 8 REAR POST SBE72-0300 PRE SBE72-0472 | ad-ao | 1 |
| 396C | 6A8344 | • WIRE - SEAL-STAGE 8 POST SBE72-0472 PRE SBE72-0589 | ad-ao | 1 |
| 396D | 6A7389 | • WIRE - SEAL-STAGE 8 REAR POST SBE72-0589 | ad-ao | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

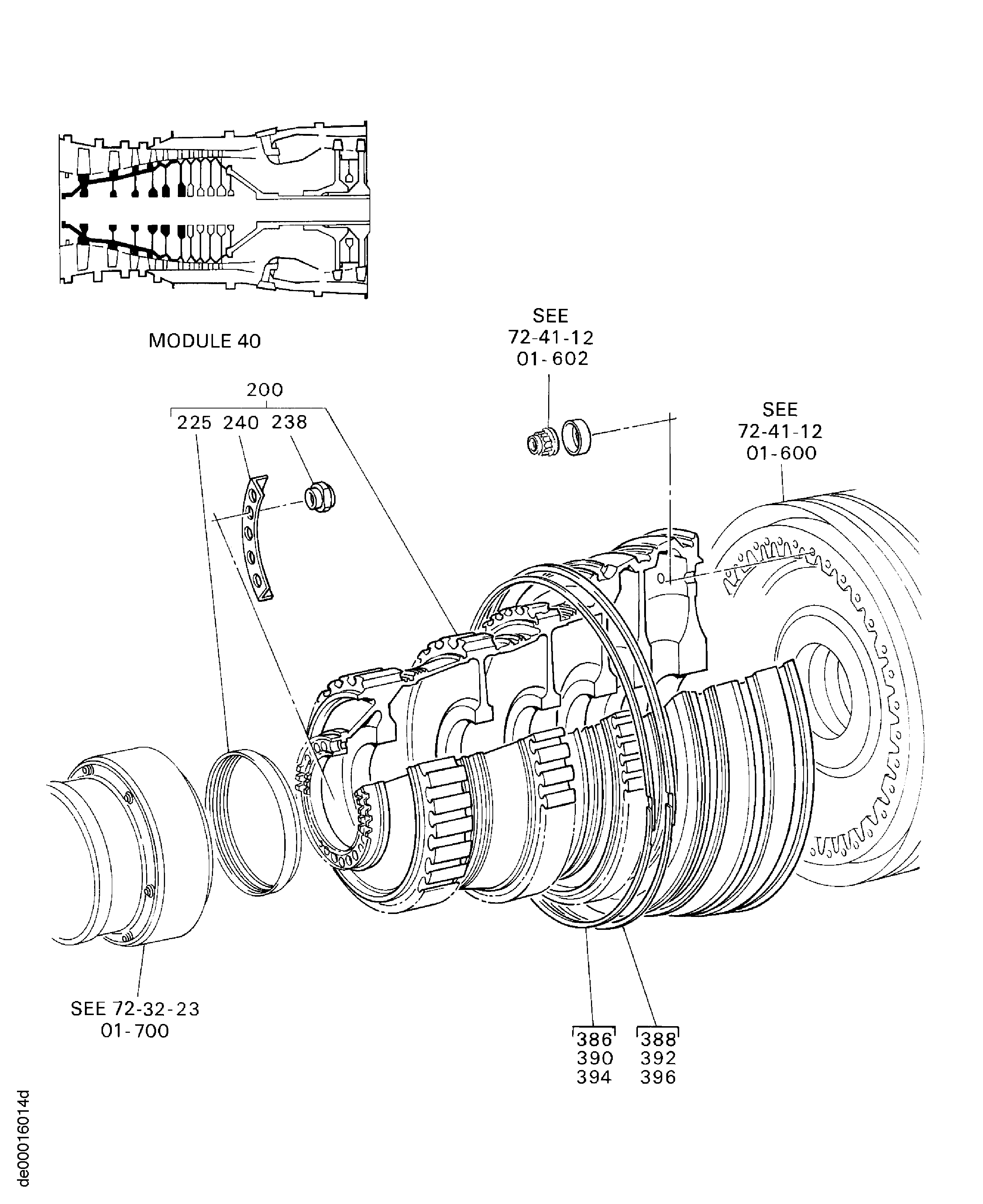

Figure: ENGINE-HP COMPRESSOR DISCS (STAGES 3-8)
STAGES 3-8 HP COMPRESSOR DISKS
