DMC:V2500-A1-72-41-12-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72411201 | ENGINE-HP COMPRESSOR DISCS (STAGES 9-12), PRE SBE72-0069 | aa | ||
| SBE0069-01 | ENGINE-HP COMPRESSOR DISCS (STAGES 9-12), PRE SBE72-0102 | ab | ||
| SBE0102-01 | ENGINE-HP COMPRESSOR DISCS (STAGES 9-12), PRE SBE72-0347 | ac | ||
| SBE0347-01 | ENGINE-HP COMPRESSOR DISCS (STAGES 9-12), PRE SBE72-0377 | ad | ||
| SBE0377-01 | ENGINE-HP COMPRESSOR DISCS (STAGES 9-12), PRE SBE72-0596 | ae | ||
| SBE0596-01 | ENGINE-HP COMPRESSOR DISCS (STAGES 9-12), PRE SBE72-0632 | af | ||
| SBE0632-01 | ENGINE-HP COMPRESSOR DISCS (STAGES 9-12) | ag | ||
| 575 | 6A3097 | • RING - ASSY | aa-ag | 1 |
| 580 | 6A3099 | • • TUBE - VORTEX REDUCER,(VRS6261) POST SBE70-0269 | ***** | 1 |
| 600 | 2A2100 | • DISC - ASSY STG 9 TO 12-HPC ALT 2A2200 PRE SBE72-0069 | aa-ab | 1 |
| -600A | 2A2200 | • DISC - ASSY STG 9 TO 12-HPC ALT 2A2600 PRE SBE72-0069 | aa-ab | REF |
| -600B | 2A2600 | • DISC - ASSY STG 9 TO 12-HPC ALT 2A2100 PRE SBE72-0069 | aa-ab | REF |
| 600C | 2A3200 | • DISC - ASSY STG 9 TO 12-HPC ALT 2A3300 POST SBE72-0069 PRE SBE72-0102 | aa-ab | 1 |
| -600D | 2A3300 | • DISC - ASSY STG 9 TO 12-HPC ALT 2A3500 POST SBE72-0069 PRE SBE72-0102 | aa-ab | REF |
| -600E | 2A3500 | • DISC - ASSY STG 9 TO 12-HPC ALT 2A3400 POST SBE72-0069 PRE SBE72-0102 | aa-ab | REF |
| -600F | 2A3400 | • DISC - ASSY STG 9 TO 12-HPC ALT 6A4131 POST SBE72-0069 PRE SBE72-0102 | aa-ab | REF |
| 600G | 6A4131 | • DISC - A/O STG 9 TO 12-HPC POST SBE72-0102 PRE SBE72-0347 | ab | 1 |
| 600H | 6A7545 | • DISC - ASSY POST SBE72-0347 PRE SBE72-0377 | ad-ag | 1 |
| 600J | 6A7574 | • DISC - ASSY POST SBE72-0377 | ad-ag | 1 |
| 602 | AS44862 | • NUT - .250 DIA U1653 PRE SBE72-0596 | aa-ae | 34 |
| 602A | AS64367 | • NUT - .250-28UNJF-3B U1653 POST SBE72-0596 PRE SBE72-0632 | af | 34 |
| 602B | U755872 | • NUT - 0.250 -28UNJF-3B POST SBE72-0632 | ag | 34 |
| 604 | UP10894 | • PLATE PRE SBE72-0632 | aa-ag | 34 |
| 604A | UP10894 | • PLATE POST SBE72-0632 | aa-ag | 34 |
| 608 | BLT5368 | • BOLT PRE SBE72-0632 | aa-ag | 34 |
| 608A | BLT5368 | • BOLT POST SBE72-0632 | aa-ag | 34 |
| 610 | 6A3795 | • PLATE PRE SBE72-0632 | aa-ag | 17 |
| 610A | 6A3795 | • PLATE POST SBE72-0632 | aa-ag | 17 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

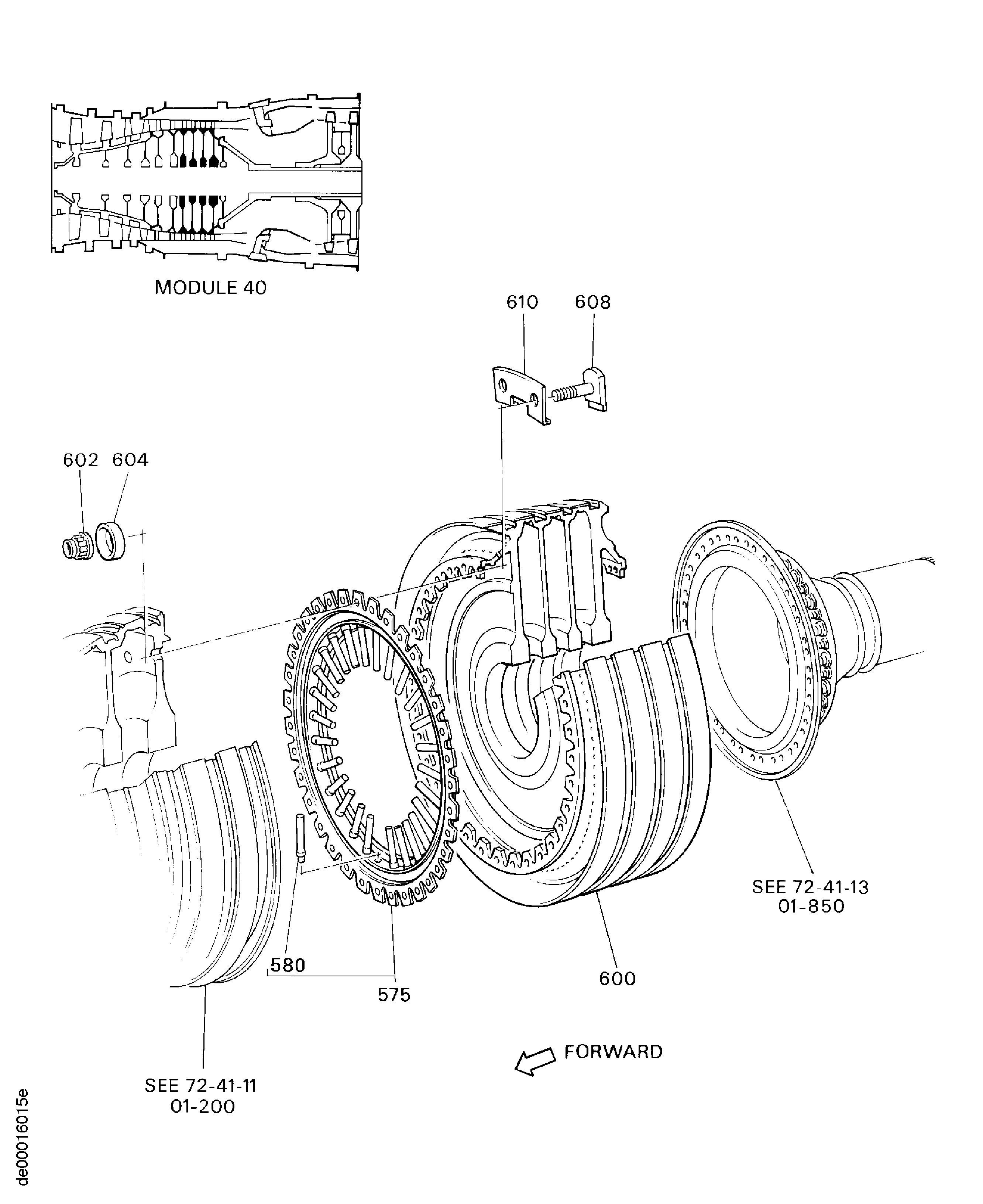

Figure: ENGINE-HP COMPRESSOR DISCS (STAGES 9-12)
STAGES 9-12 HP COMPRESSOR DISCS
