DMC:V2500-A1-72-41-14-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72411401 | ENGINE-HP COMPRESSOR ROTATING AIR SEALS, PRE SBE72-0041 | aa | ||
| SBE0041-01 | ENGINE-HP COMPRESSOR ROTATING AIR SEALS | ab | ||
| 785 | 4W1426 | • BOLT - .190 DIA X .688 | aa-ab | 18 |
| 790 | 6A1760 | • WEIGHT | aa-ab | 1 |
| 792 | UP11018 | • WEIGHT | aa-ab | 1 |
| 800 | 6A3305 | • SEAL PRE SBE72-0041 | aa | 1 |
| 800A | 6A4113 | • SEAL POST SBE72-0041 | ab | 1 |
| 808 | 4W1486 | • BOLT - .250 DIA X .750 | aa-ab | 18 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

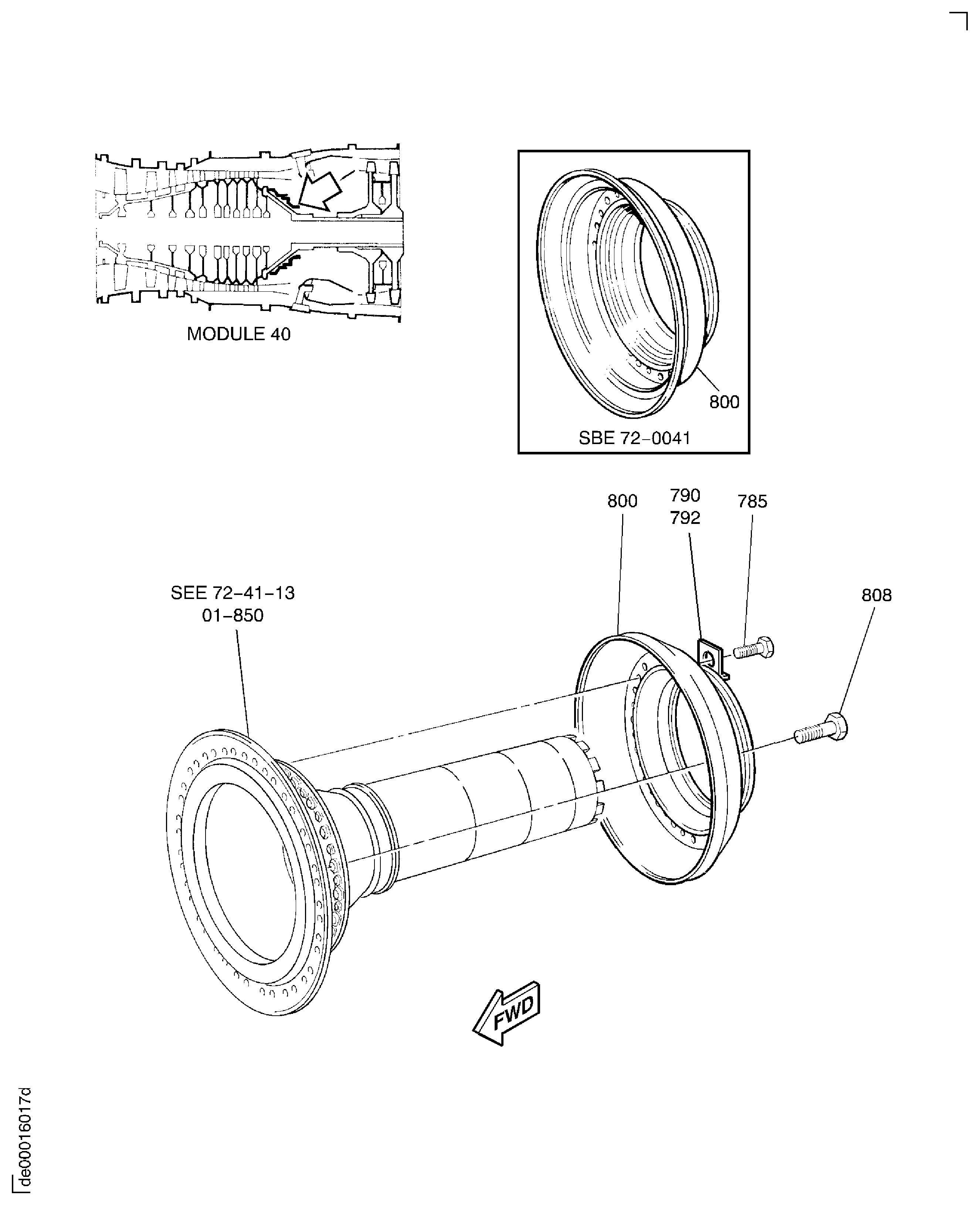

Figure: ENGINE-HP COMPRESSOR ROTATING AIR SEALS
HP COMPRESSOR ROTATING AIR SEALS
