DMC:V2500-A1-72-41-21-03A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| B72412103 | ENGINE-HP COMPRESSOR RING CASES, PRE SBE72-0030 | aa | ||
| SBE0030-01 | ENGINE-HP COMPRESSOR RING CASES, PRE SBE72-0034 | ab | ||
| SBE0034-01 | ENGINE-HP COMPRESSOR RING CASES, PRE SBE72-0033 | ac | ||
| SBE0033-01 | ENGINE-HP COMPRESSOR RING CASES, PRE SBE70-0213 | ad | ||
| SBE0213-01 | ENGINE-HP COMPRESSOR RING CASES, PRE SBE72-0182 | ae | ||
| SBE0182-01 | ENGINE-HP COMPRESSOR RING CASES, PRE SBE72-0235 | af | ||
| SBE0235-01 | ENGINE-HP COMPRESSOR RING CASES, PRE SBE70-0645 | ag | ||
| SBE0645-01 | ENGINE-HP COMPRESSOR RING CASES, PRE SBE72-0369 | ah | ||
| SBE0369-01 | ENGINE-HP COMPRESSOR RING CASES, PRE SBE72-0612 | ai | ||
| SBE0612-01 | ENGINE-HP COMPRESSOR RING CASES | aj | ||
| 094 | 6A3422 | • STRIP - INSULATION PRE SBE72-0612 | aa-aj | 3 |
| 094A | 6B1369 | • STRIP - INSULATION STAGE 9 POST SBE72-0612 | aa-aj | 3 |
| 096 | 6A3420 | • STRIP - INSULATION PRE SBE72-0612 | aa-aj | 1 |
| 096A | 6B1367 | • STRIP - INSULATION STAGE 9 POST SBE72-0612 | aa-aj | 1 |
| 098 | 6A3421 | • STRIP - INSULATION PRE SBE72-0612 | aa-aj | 1 |
| 098A | 6B1368 | • STRIP - INSULATION STAGE 9 POST SBE72-0612 | aa-aj | 1 |
| 154 | 6A3419 | • STRIP - INSULATION PRE SBE72-0612 | aa-aj | 3 |
| 154A | 6B1366 | • STRIP - INSULATION STAGE 8 POST SBE72-0612 | aa-aj | 3 |
| 156 | 6A3417 | • STRIP - INSULATION PRE SBE72-0612 | aa-aj | 1 |
| 156A | 6B1364 | • STRIP - INSULATION STAGE 8 POST SBE72-0612 | aa-aj | 1 |
| 158 | 6A3418 | • STRIP - INSULATION PRE SBE72-0612 | aa-aj | 1 |
| 158A | 6B1365 | • STRIP - INSULATION STAGE 8 POST SBE72-0612 | aa-aj | 1 |
| 180 | 6A3022 | • HEATSHLD - A/0 | aa-aj | 2 |
| 185 | AS16286 | • • RIVET - SOLID UNIVERSAL HD, .126 DIA X .236 U1653 POST SBE70-0645 | ah-aj | 1 |
| 186 | AS16287 | • • RIVET - SOLID UNIVERSAL HD, .126 DIA X .276 U1653 POST SBE70-0645 | ah-aj | 1 |
| 187 | AS16245 | • • RIVET - SOLID UNIVERSAL HD U1653 POST SBE70-0645 | ah-aj | 1 |
| 188 | AS16246 | • • RIVET - SOLID UNIVERSAL HD U1653 POST SBE70-0645 | ah-aj | 1 |
| 190 | 6A6516 | • • PLATE POST SBE70-0645 | ah-aj | 1 |
| 300 | 6A2849 | • CONE - ASSY OF | aa-aj | 1 |
| 350 | 6A2850 | • RING | aa-aj | 1 |
| 440 | 6A3395 | • LINER | aa-aj | 1 |
| 450 | 6A3651 | • RING - ST.7-R/PATH PRE SBE72-0030 | aa-aj | 1 |
| 450A | 6A4101 | • RING - STAGE 7 ROTOR PATH. HP POST SBE72-0030 PRE SBE72-0235 | aa-aj | 1 |
| 450B | 6A5992 | • RING - STAGE 7 POST SBE72-0235 PRE SBE72-0369 | aa-aj | 1 |
| 450C | 6A7626 | • RING - ROTOR PATH POST SBE72-0369 | aa-aj | 1 |
| 478 | 4W0002 | • NUT - .250 DIA Optional Part 4W0002 | aa-aj | 4 |
| 479 | 4W2622 | • WASHER Optional Part 4W2622 | aa-aj | 4 |
| 480 | UP11194 | • STOP | aa-aj | 4 |
| 490 | 6A3396 | • LINER | aa-aj | 1 |
| 500 | 6A3500 | • CASE - ASSY, PRE SBE72-0182 | aa-ae | 1 |
| 500A | 6A4310 | • CASE - ASSY STG7 H.P. COMPRESSOR POST SBE72-0182 | aa-aj | 1 |
| 513 | UP11143 | • • SPACER - FRONT FLANGE,(VRS6266) | ***** | 1 |
| 514 | UP11144 | • • SPACER - REAR FLANGE,(VRS6266) PRE SBE72-0182 | ***** | 1 |
| 514A | UP60487 | • • SPACER POST SBE72-0182 | af-aj | 10 |
| 514B | UP60487 | • • SPACER - ,(VRS6266) POST SBE70-0353 | ***** | 1 |
| 590 | 6A3397 | • LINER | aa-aj | 1 |
| 600 | 6A3652 | • RING - ST.8-R/PATH PRE SBE72-0030 | aa-aj | 1 |
| 600A | 6A4102 | • RING - STAGE 8 ROTOR PATH. HP POST SBE72-0030 PRE SBE72-0235 | aa-aj | 1 |
| 600B | 6A5993 | • RING - STAGE 8 POST SBE72-0235 PRE SBE72-0369 | aa-aj | 1 |
| 600C | 6A7627 | • RING - ROTOR PATH POST SBE72-0369 | aa-aj | 1 |
| 638 | 4W0002 | • NUT - .250 DIA Optional Part 4W0002 | aa-aj | 4 |
| 639 | 4W2622 | • WASHER Optional Part 4W2622 | aa-aj | 4 |
| 640 | UP11194 | • STOP | aa-aj | 4 |
| 650 | 6A3387 | • CASE - ASSY | aa-aj | 1 |
| 666 | AS44750 | • • NUT - SELF LOCKING SHANK,(VRS6218), .190 DIA U1653 | ***** | 1 |
| 692 | AS16688 | • • • RIVET - SOLID CSK HEAD U1653 POST SBE70-0213 | ae-aj | 1 |
| 693 | AS16729 | • • • RIVET - SOLID CSK HEAD U1653 POST SBE70-0213 | ae-aj | 1 |
| 694 | 6A4187 | • • • BOSS POST SBE70-0213 | ae-aj | 1 |
| 730 | 6A3398 | • LINER | aa-aj | 1 |
| 740 | 6A3399 | • LINER | aa-aj | 1 |
| 750 | 6A3653 | • RING - ST.9-R/PATH | aa-aj | 1 |
| 788 | 4W0002 | • NUT - .250 DIA Optional Part 4W0002 | aa-aj | 4 |
| 789 | 4W2622 | • WASHER Optional Part 4W2622 | aa-aj | 4 |
| 790 | UP11194 | • STOP | aa-aj | 4 |
| 800 | 6A3388 | • CASE - ASSY PRE SBE72-0182 | aa-ae | 1 |
| 800A | 6A4311 | • CASE - ASSY STG9 H.P. COMPRES POST SBE72-0182 | aa-aj | 1 |
| 814 | UP11144 | • • SPACER - REAR FLANGE,(VRS6252) | ***** | 1 |
| 814A | UP60487 | • • SPACER - ,(VRS6252) POST SBE70-0222 | ***** | 1 |
| 814B | UP60487 | • • SPACER POST SBE72-0182 | af-aj | 10 |
| 822 | AS16295 | • • • RIVET - SOLID UNIVERSAL HD,(VRS6251) U1653 POST SBE70-0269 | ***** | 1 |
| 824 | EY29248 | • • • WASHER - ,(VRS6251) POST SBE70-0269 | ***** | 1 |
| 825 | UP10743 | • • • DOWEL - ,(VRS6251) POST SBE70-0269 | ***** | 1 |
| 842 | AS16688 | • • • RIVET - SOLID CSK HEAD,(VRS6162) U1653 POST SBE70-0269 | ***** | 1 |
| 843 | AS16729 | • • • RIVET - SOLID CSK HEAD,(VRS6162) U1653 POST SBE70-0269 | ***** | 1 |
| 844 | 6A5451 | • • • BOSS - INTRASCOPE ACCESS POR,(VRS6162) POST SBE70-0269 | ***** | 1 |
| 880 | 6A3028 | • HEATSHLD - RETAINER ASSY OF PRE SBE72-0033 | aa-aj | 2 |
| 880A | 6A3993 | • RETAINER - A/O,H/SHIELD ST.7 POST SBE72-0033 | aa-aj | 2 |
| 888 | AS16246 | • • RIVET - SOLID UNIVERSAL HD,(VRS6308) U1653 POST SBE70-0353 | ***** | 1 |
| 889 | AS16287 | • • RIVET - SOLID UNIVERSAL HD,(VRS6308), .126 DIA X .276 U1653 POST SBE70-0353 | ***** | 1 |
| 891 | 6A5664 | • • PLATE - ,(VRS6308) POST SBE70-0353 | ***** | 1 |
| 900 | 6A3020 | • HEATSHLD - ASSY OF PRE SBE72-0034 | aa-aj | 1 |
| 900A | 6A3978 | • HEATSHLD - ASSY OF POST SBE72-0034 | aa-aj | 1 |
| 920 | 6A3029 | • HEATSHLD - RETAINER ASSY OF | aa-aj | 2 |
| 930 | 6A6518 | • • PLATE POST SBE70-0645 | ah-aj | 1 |
| 935 | AS16246 | • • RIVET - SOLID UNIVERSAL HD U1653 POST SBE70-0645 | ah-aj | 1 |
| 936 | AS16287 | • • RIVET - SOLID UNIVERSAL HD, .126 DIA X .276 U1653 POST SBE70-0645 | ah-aj | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

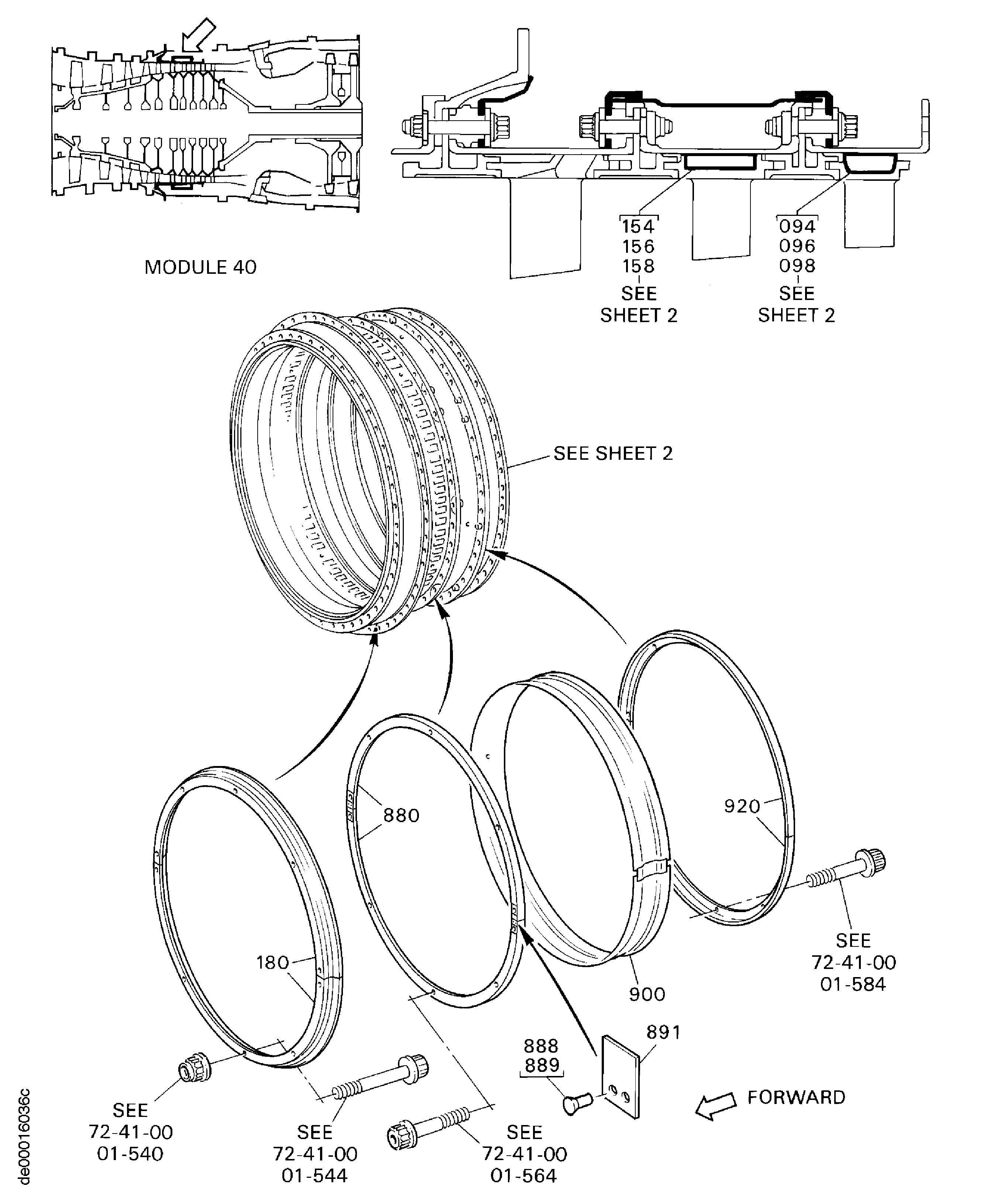

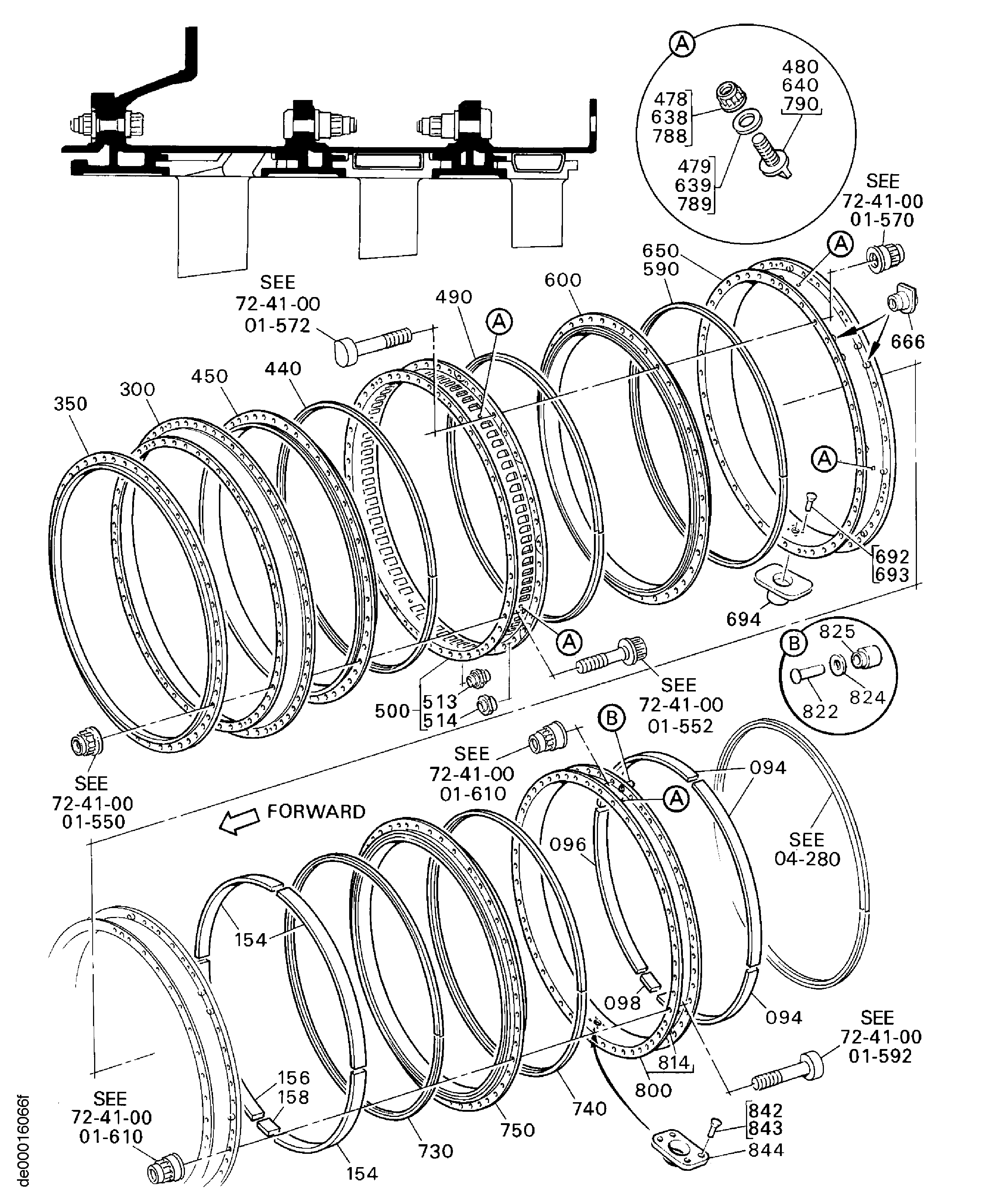

Figure: ENGINE-HP COMPRESSOR RING CASES
