DMC:V2500-A1-72-41-22-02A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B72412202 | ENGINE-HP COMPRESSOR STATOR VANES | aa | ||
| 350 | 6A3266 | • VANE - STOP COMP HP STG 7 | aa | 4 |
| 400 | 6A3265C01 | • VANE - COMP HP STG 7, NOMINAL | aa | 56 |
| 448 | 6A3265C01 | • VANE - COMP HP STG 7, NOMINAL | aa | 16 |
| 450 | 6A3265C02 | • VANE - COMP HP STG 7 U/SIZE, 0.016INS (0.40 MM) | aa | 16 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

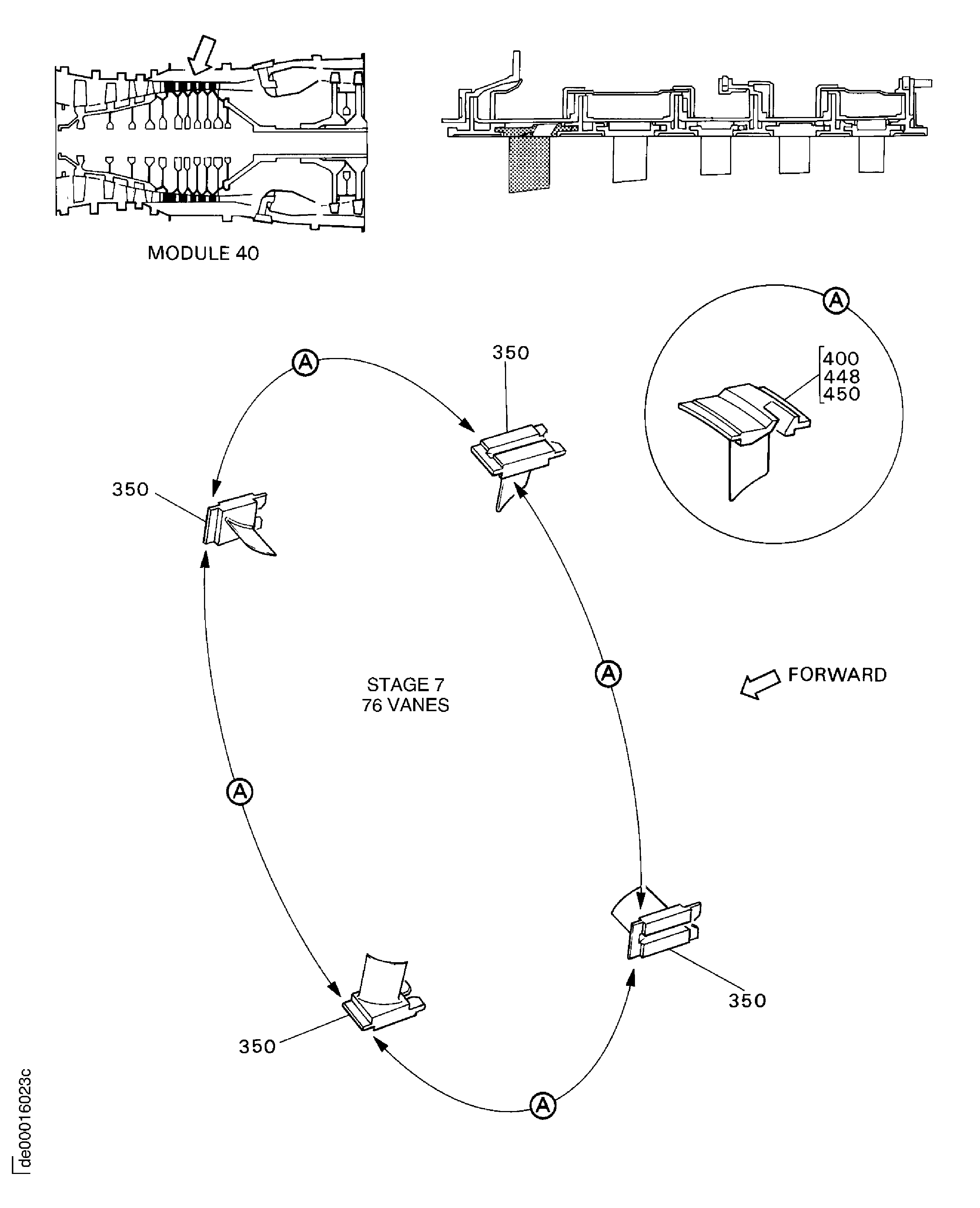

Figure: ENGINE-HP COMPRESSOR STATOR VANES
HP COMPRESSOR FIXED STATOR VANES
