| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| B72412203 | ENGINE-HP COMPRESSOR STATOR VANES | aa | ||
| 150 | 6A3409 | • VANE - INSULATION RETAINING ST.8 HP COMP. | aa | 4 |
| 200 | 6A3407 | • VANE - STAGE 8 LH I/SCOPE | aa | 1 |
| 250 | 6A3408 | • VANE - STAGE 8 RH I/SCOPE | aa | 1 |
| 350 | 6A3410 | • VANE - STAGE 8 STOP | aa | 4 |
| 400 | 6A3267C01 | • VANE - STAGE 8, NOMINAL | aa | 62 |
| 448 | 6A3267C01 | • VANE - STAGE 8, NOMINAL | aa | 20 |
| 450 | 6A3267C02 | • VANE - COMP HP STG 8 U/SIZE, 0.016INS (0.40 MM) | aa | 20 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

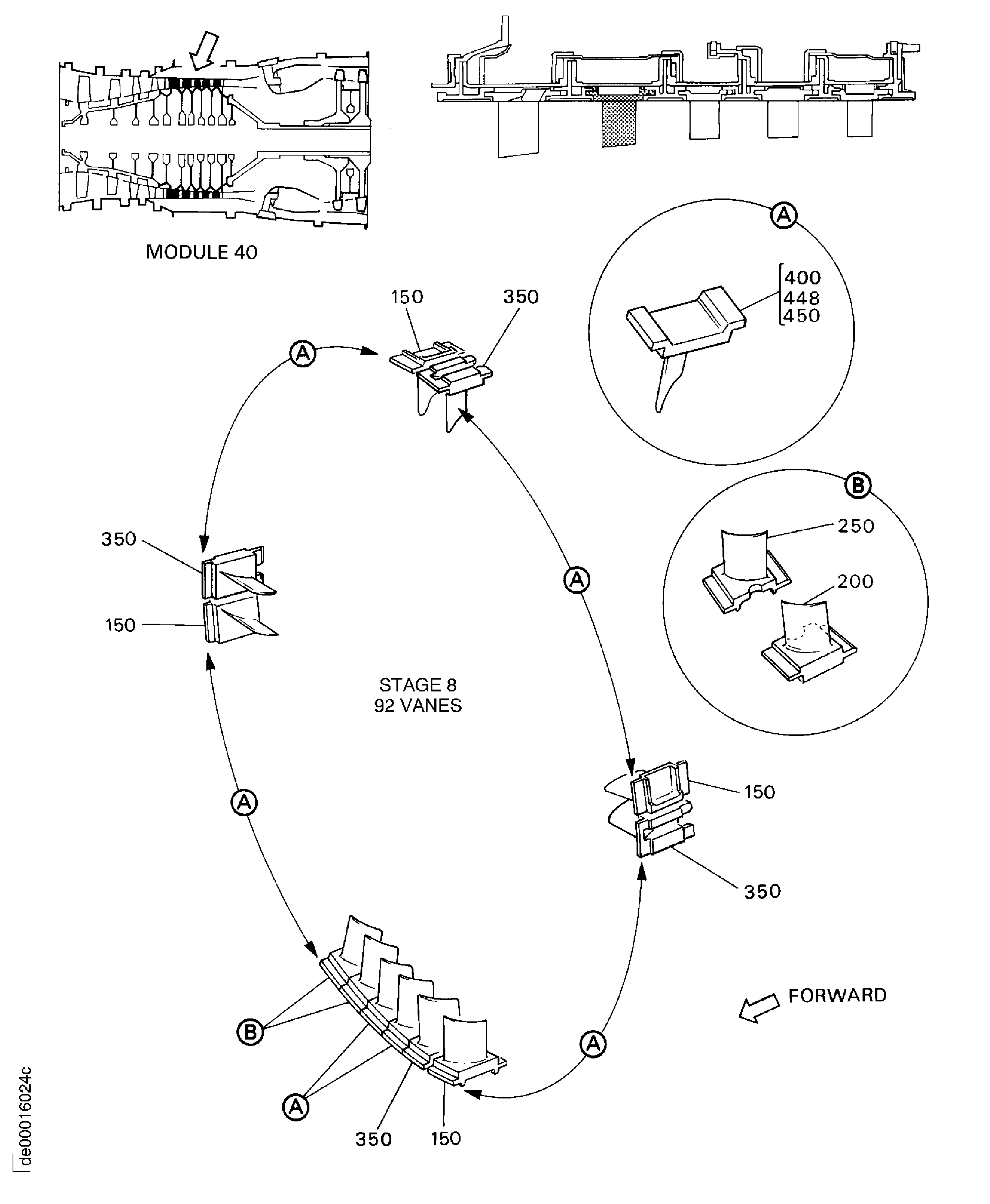

Figure: ENGINE-HP COMPRESSOR STATOR VANES
HP COMPRESSOR FIXED STATOR VANES
