| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 04 | ||||
| B72412204 | ENGINE-HP COMPRESSOR STATOR VANES | aa | ||
| 200 | 6A3411 | • VANE - STAGE 9 LH I/SCOPE | aa | 1 |
| 250 | 6A3412 | • VANE - STAGE 9 RH I/SCOPE | aa | 1 |
| 350 | 6A3475 | • VANE - STOP,STAGE 9 | aa | 8 |
| 400 | 6A3271C01 | • VANE - COMP HP STG 9, NOMINAL | aa | 74 |
| 448 | 6A3271C01 | • VANE - COMP HP STG 9, NOMINAL | aa | 20 |
| 450 | 6A3271C02 | • VANE - COMP HP STG 9 U/SIZE, 0.016INS (0.40 MM) | aa | 20 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

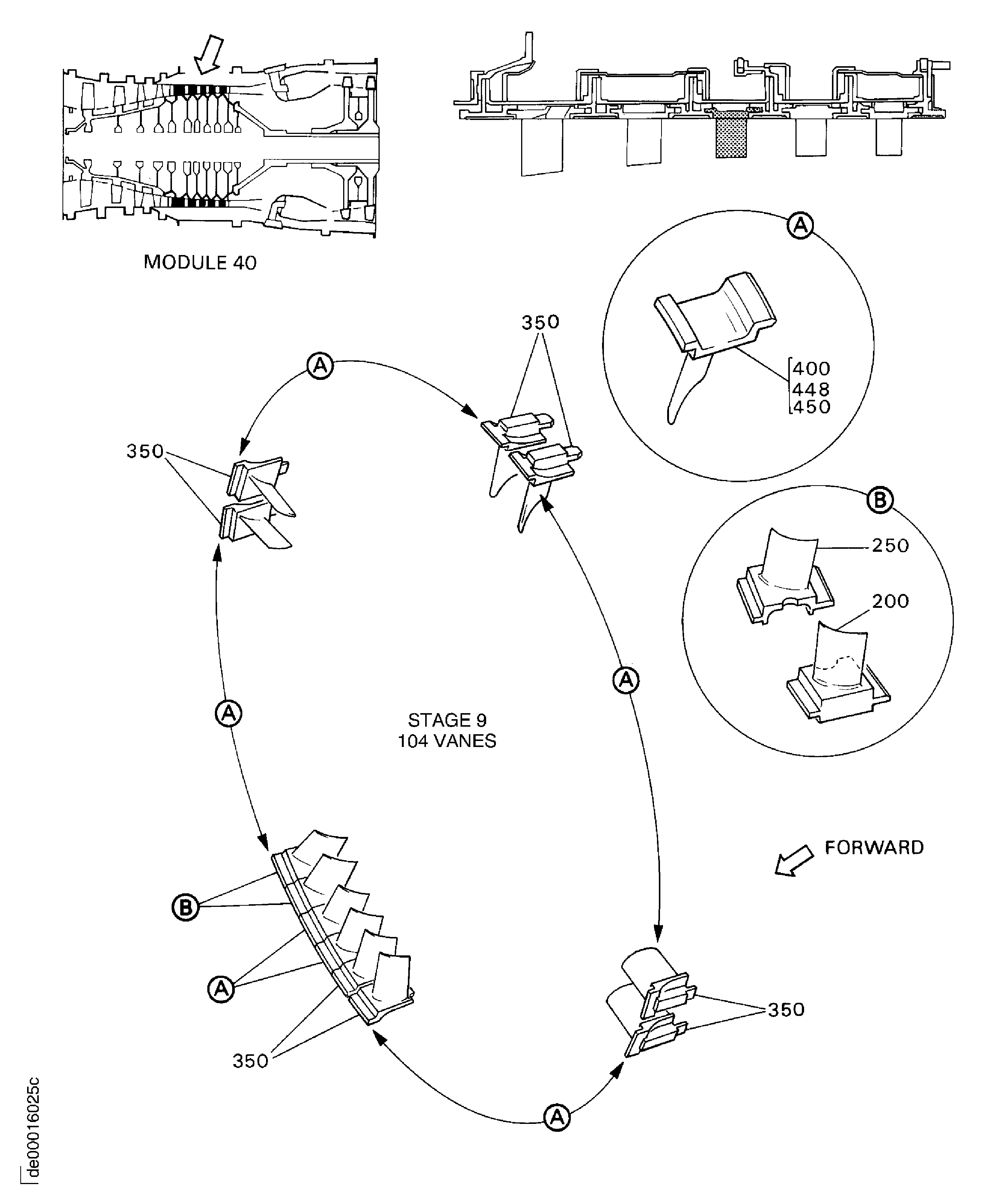

Figure: ENGINE-HP COMPRESSOR STATOR VANES
HP COMPRESSOR FIXED STATOR VANES
