DMC:V2500-A1-72-41-23-02A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B72412302 | ENGINE-HP COMPRESSOR REAR OUTER CASE, PRE SBE72-0005 | aa | ||
| SBE0005-01 | ENGINE-HP COMPRESSOR REAR OUTER CASE, PRE SBE72-0025 | ab | ||
| SBE0025-01 | ENGINE-HP COMPRESSOR REAR OUTER CASE, PRE SBE72-0100 | ac | ||
| SBE0100-01 | ENGINE-HP COMPRESSOR REAR OUTER CASE, PRE SBE70-0368 | ad | ||
| SBE0368-01 | ENGINE-HP COMPRESSOR REAR OUTER CASE, PRE SBE72-0263 | ae | ||
| SBE0263-01 | ENGINE-HP COMPRESSOR REAR OUTER CASE, PRE SBE72-0440 | af | ||
| SBE0440-01 | ENGINE-HP COMPRESSOR REAR OUTER CASE | ag | ||
| 050 | 6A3128 | • PLATE PRE SBE72-0025 | aa-ab | 1 |
| 052 | AS21011 | • BOLT - BIHEX HD, .250 DIA X .6875 U1653 PRE SBE72-0025 | aa-ab | 10 |
| 100 | 6A1414 | • COVER - ASSY,BLANK,B/S-ST 7 PRE SBE72-0005 | aa | 1 |
| 100A | 6A3510 | • COVER - ASSY,BLANK,B/S POST SBE72-0005 PRE SBE70-0368 | ab-ad | 1 |
| 100B | 6A4180 | • COVER - BLANK,B/SCOPE STAGE 7 POST SBE70-0368 | ae-ag | 1 |
| 102 | BLT5297 | • BOLT - .250 DIA X 1.275 PRE SBE72-0005 | aa | 3 |
| 102A | AS21511 | • BOLT - .250 DIA X .688 U1653 POST SBE72-0005 PRE SBE70-0368 | ab-ag | 3 |
| 102B | 4W0165 | • BOLT - .250 DIA X .688 POST SBE70-0368 | ab-ag | 3 |
| 108 | 6A4140 | • GASKET - CORRUJOINT POST SBE72-0100 PRE SBE70-0368 | ad | 1 |
| 108A | 6A4181 | • GASKET - CORRUJOINT POST SBE70-0368 | ae-ag | 1 |
| 110 | AS44800 | • • PIN - SHOULDER,HEADLESS,(VRS6216) U1653 POST SBE70-0269 PRE SBE70-0368 | ***** | 1 |
| 220 | 6A2251 | • SEGMENT - CROSS KEY LOCATION PRE SBE72-0263 | aa-ae | 12 |
| 220A | 6A5685 | • SEGMENT POST SBE72-0263 | af-ag | 6 |
| 250 | 6A1861 | • HOUSING - REAR SEAL,COMPRESSOR PRE SBE72-0263 | aa-ae | 1 |
| 400 | 6A2949 | • CASE - ASSY PRE SBE72-0025 | aa-ab | 1 |
| 400A | 6A3557 | • CASE - ASSY REAR,OUTER-HP COM POST SBE72-0025 PRE SBE70-0368 | ac-ad | 1 |
| 400B | 6A5495 | • CASE - ASSY REAR OUTER-HP COM POST SBE70-0368 PRE SBE72-0263 | ae | 1 |
| 400C | 6A5682 | • CASE - ASSY POST SBE72-0263 PRE SBE72-0440 | af-ag | 1 |
| 400D | 6A8162 | • CASE - ASSY, REAR OUTER POST SBE72-0440 | af-ag | 1 |
| 432 | AGS3732 | • • INSERT - SCREW THREAD,(VRS6306), .250 DIA X 1.5D U1653 PRE SBE70-0368 | ***** | 1 |
| 432A | AS52761 | • • INSERT - SCREW THREAD, .250 DIA U1653 POST SBE70-0368 | ae-ag | 80 |
| 433 | AGS3733 | • • INSERT - SCREW THREAD,(VRS6306) U1653 | ***** | 1 |
| 433A | AS52762 | • • INSERT - SCREW THREAD, .3125 DIA U1653 POST SBE70-0368 | ae-ag | 20 |
| 455 | AS20763 | • • RING - RETAINING,(VRS6278) U1653 POST SBE70-0222 | ***** | 1 |
| 456 | LK54570 | • • PIN - ,(VRS6278) POST SBE70-0222 | ***** | 1 |
| 510 | AS27857 | • • NUT - SELF LOCKING SHANK,(VRS6279), .250 DIA U1653 POST SBE70-0222 | ***** | 132 |
| -550 | 6A5683 | • • CASE POST SBE72-0263 PRE SBE72-0440 | af | REF |
| -550A | 6A8163 | • • CASE - REAR OUTER POST SBE72-0440 | ag | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

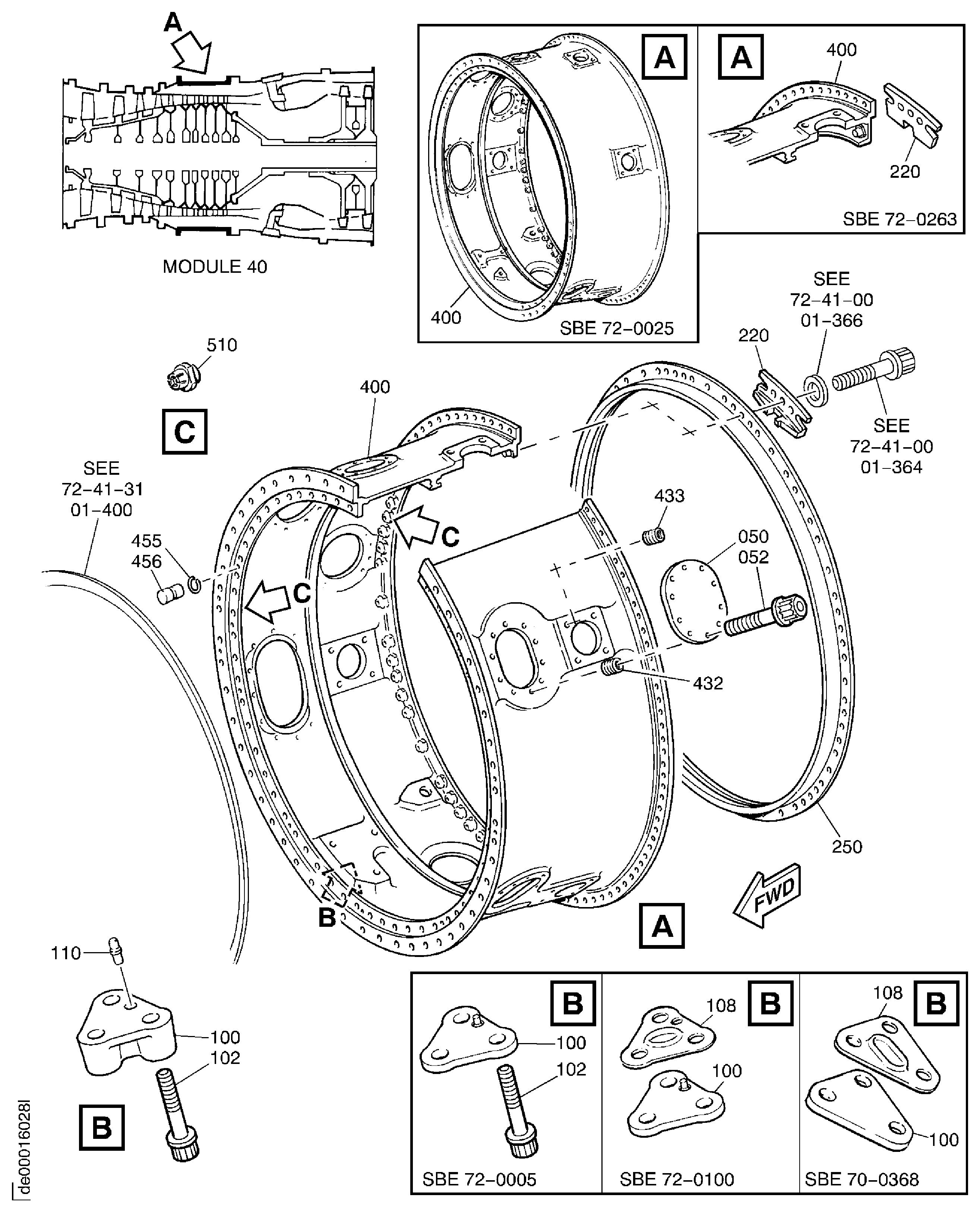

Figure: ENGINE-HP COMPRESSOR REAR OUTER CASE
HP COMPRESSOR REAR OUTER CASE
