| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B72413202 | ENGINE-HP COMPRESSOR VARIABLE VANES, PRE SBE70-0092 | aa | ||
| SBE0092-01 | ENGINE-HP COMPRESSOR VARIABLE VANES, PRE SBE72-0422 | ab | ||
| SBE0422-01 | ENGINE-HP COMPRESSOR VARIABLE VANES | ac | ||
| 495 | AS43013-013 | • RING - SEALING TOROIDAL U1653 | aa-ac | 30 |
| 500 | 6A3813 | • VANE - VARIABLE STAGE 3 PRE SBE70-0092 | aa-ab | 30 |
| 500A | 6A3883 | • VANE - VARIABLE STAGE 3 POST SBE70-0092 PRE SBE72-0422 | aa-ab | 30 |
| 500B | 6A8068 | • VANE - STG.3LONG SPINDLE POST SBE72-0422 | ac | 30 |
| 500C | 6A8063 | • VANE - STG.3LONG SPINDLE POST SBE72-0422 | ac | 30 |
| 600 | 6A3815 | • VANE - VARIABLE STAGE 3 PRE SBE70-0092 | aa-ab | 2 |
| 600A | 6A3884 | • VANE - VARIABLE STAGE 3 POST SBE70-0092 PRE SBE72-0422 | aa-ab | 2 |
| 600B | 6A8067 | • VANE - STG.3SHORT SPINDLE POST SBE72-0422 | ac | 2 |
| 600C | 6A8062 | • VANE - STG.3SHORT SPINDLE POST SBE72-0422 | ac | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

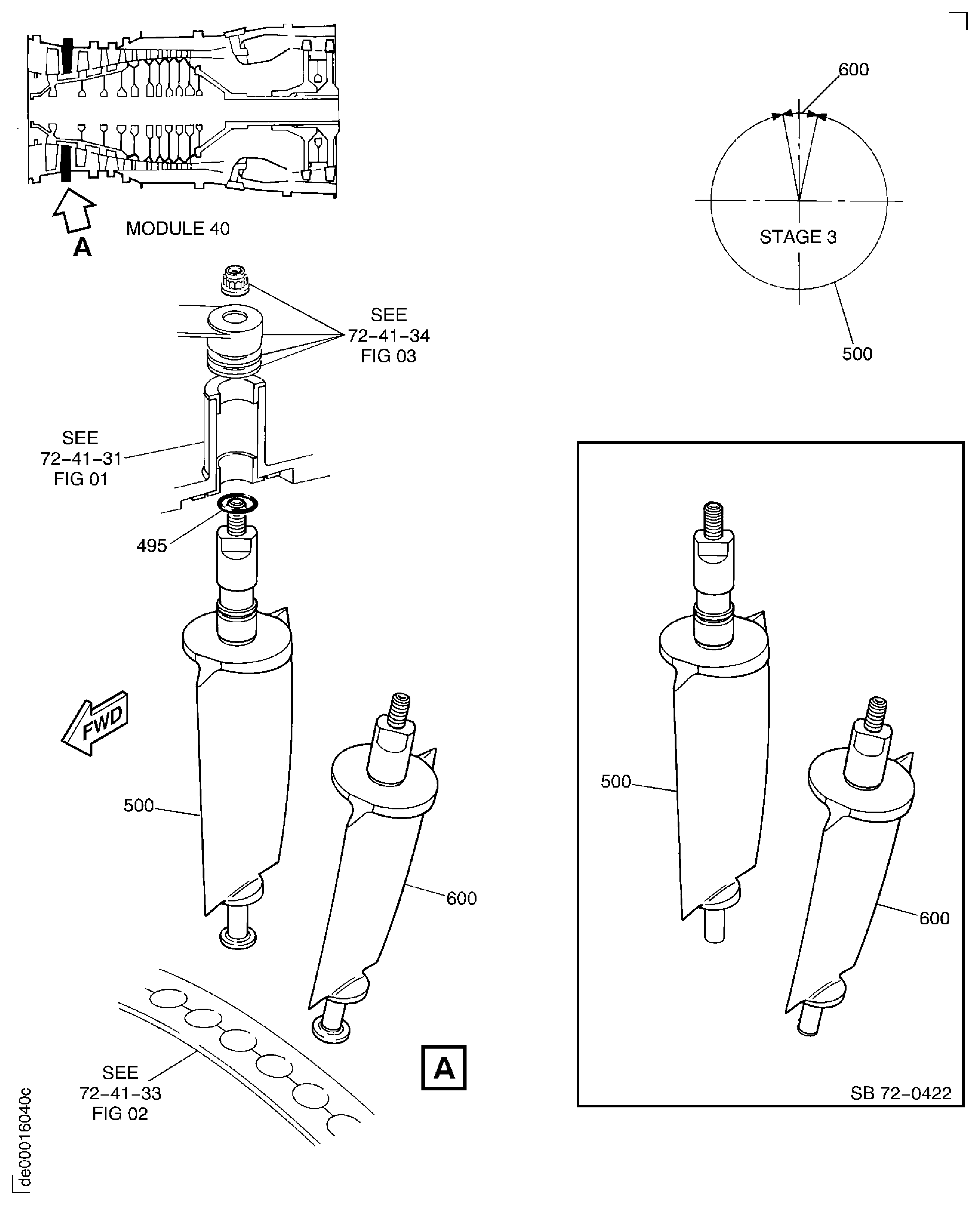

Figure: ENGINE-HP COMPRESSOR VARIABLE VANES
HP COMPRESSOR VARIABLE VANES
