| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| B72413203 | ENGINE-HP COMPRESSOR VARIABLE VANES, PRE SBE70-0092 | aa | ||
| SBE0092-01 | ENGINE-HP COMPRESSOR VARIABLE VANES, PRE SBE72-0422 | ab | ||
| SBE0422-01 | ENGINE-HP COMPRESSOR VARIABLE VANES | ac | ||
| 495 | AS43013-011 | • RING - SEALING TOROIDAL U1653 | aa-ac | 50 |
| 500 | 6A3816 | • VANE - VARIABLE STAGE 4 PRE SBE70-0092 | aa-ab | 50 |
| 500A | 6A3880 | • VANE - VARIABLE STAGE 4 POST SBE70-0092 PRE SBE72-0422 | aa-ab | 50 |
| 500B | 6A8069 | • VANE - STG.4 POST SBE72-0422 | ac | 50 |
| 500C | 6A8064 | • VANE - STG.4 POST SBE72-0422 | ac | 50 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

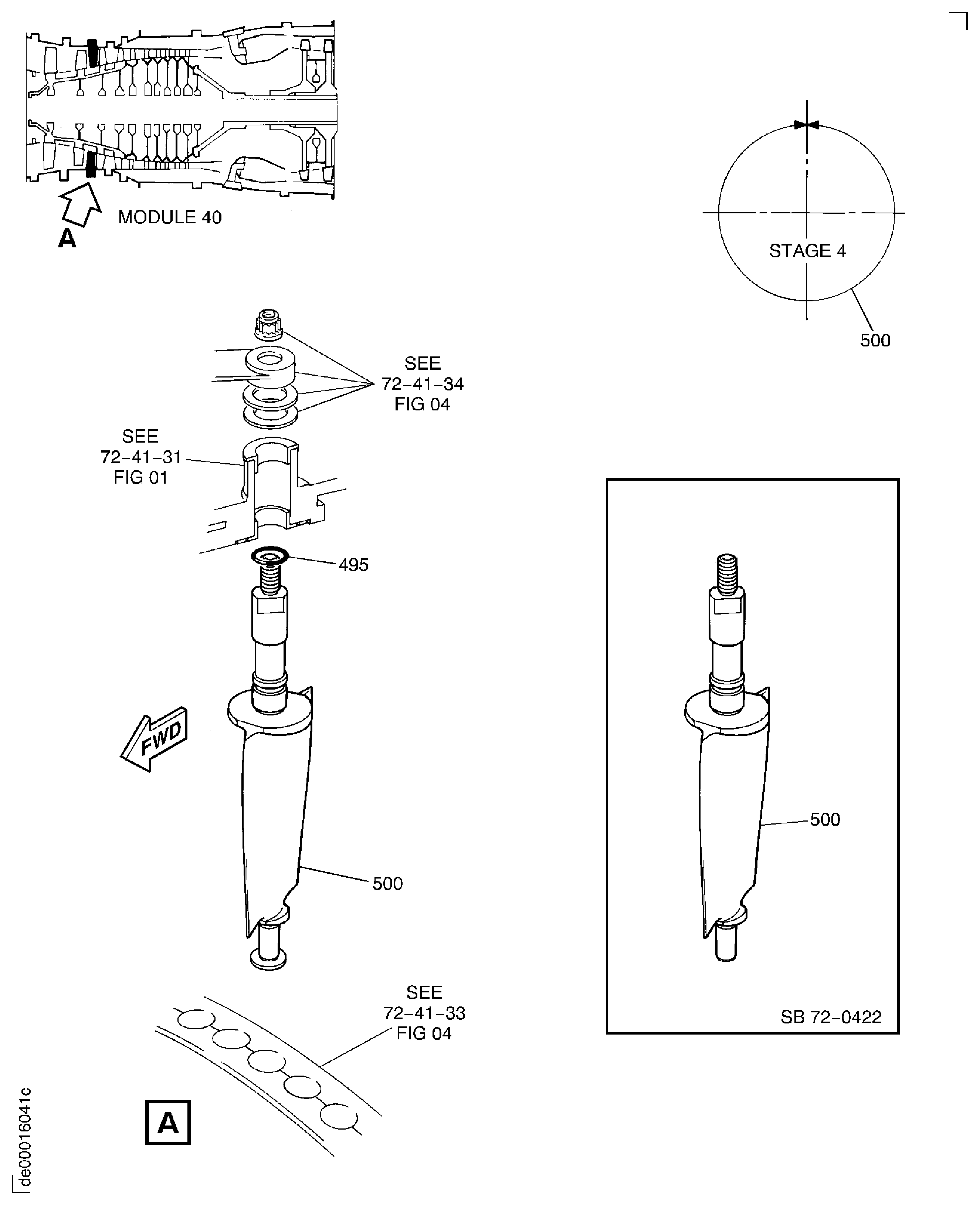

Figure: ENGINE-HP COMPRESSOR VARIABLE VANES
HP COMPRESSOR VARIABLE VANES
