DMC:V2500-A1-72-41-32-04A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 04 | ||||
| B72413204 | ENGINE-HP COMPRESSOR VARIABLE VANES, PRE SBE70-0092 | aa | ||
| SBE0092-01 | ENGINE-HP COMPRESSOR VARIABLE VANES, PRE SBE72-0422 | ab | ||
| SBE0422-01 | ENGINE-HP COMPRESSOR VARIABLE VANES | ac | ||
| 495 | AS43013-011 | • RING - SEALING TOROIDAL U1653 | aa-ac | 64 |
| 500 | 6A3697 | • VANE - STAGE 5 VARIABLE PRE SBE70-0092 | aa-ab | 60 |
| 500A | 6A3881 | • VANE - VARIABLE STAGE 5. POST SBE70-0092 PRE SBE72-0422 | aa-ab | 60 |
| 500B | 6A8070 | • VANE - STG.5SHORT SPINDLE POST SBE72-0422 | ac | 60 |
| 500C | 6A8065 | • VANE - STG.5SHORT SPINDLE POST SBE72-0422 | ac | 60 |
| 600 | 6A3698 | • VANE - STAGE 5 VARIABLE PRE SBE70-0092 | aa-ab | 4 |
| 600A | 6A3882 | • VANE - VARIABLE STAGE 5 POST SBE70-0092 PRE SBE72-0422 | aa-ab | 4 |
| 600B | 6A8071 | • VANE - STG.5LONG SPINDLE POST SBE72-0422 | ac | 4 |
| 600C | 6A8066 | • VANE - STG.5LONG SPINDLE POST SBE72-0422 | ac | 4 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

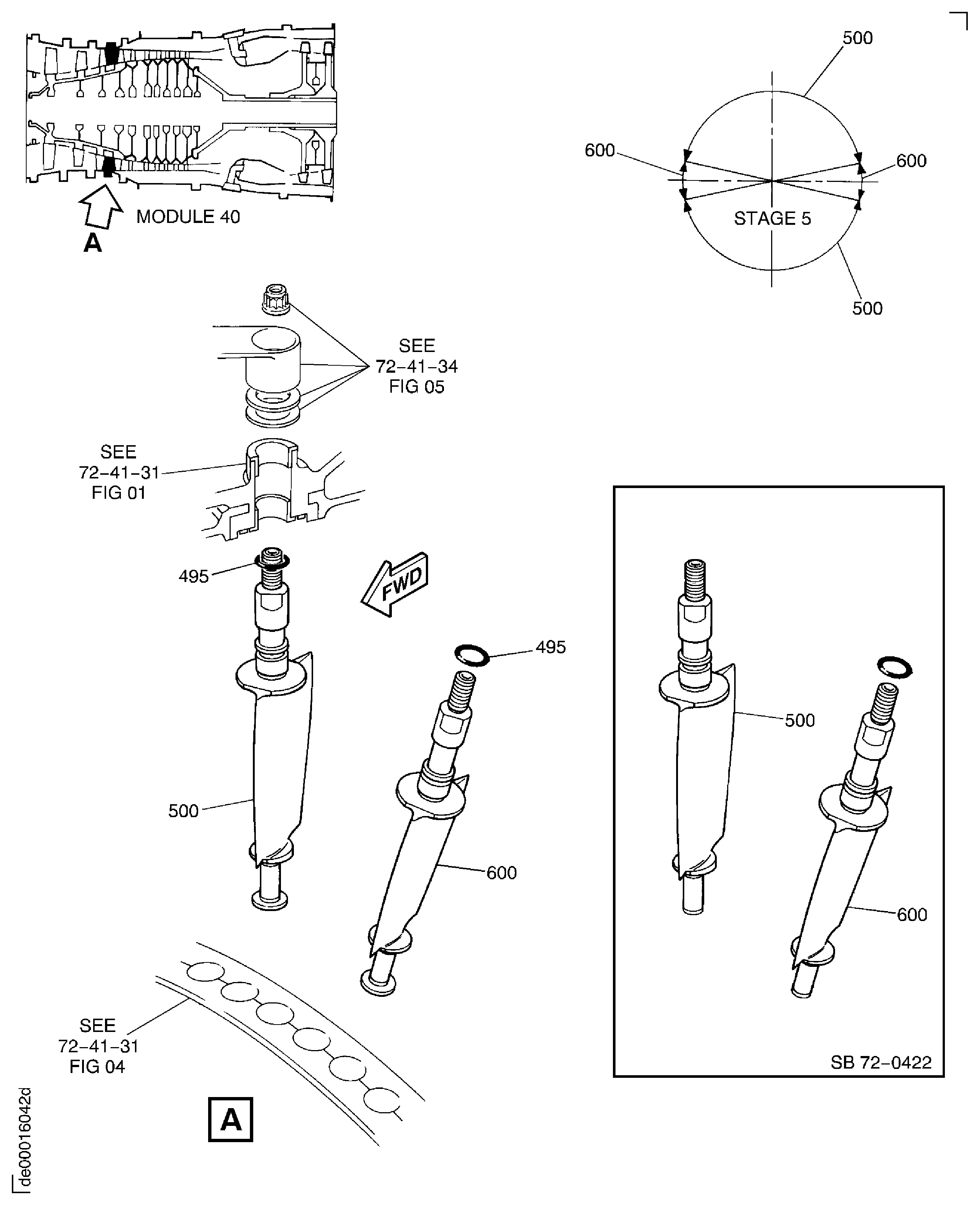

Figure: ENGINE-HP COMPRESSOR VARIABLE VANES
HP COMPRESSOR VARIABLE VANES
