| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B72413302 | ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE70-0722 | aa | ||
| SBE0722-01 | ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE72-0422 | ab | ||
| SBE0422-01 | ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE70-0980 | ac | ||
| SBE0980-01 | ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE72-0613 | ad | ||
| SBE0613-01 | ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS | ae | ||
| 130 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 PRE SBE72-0613 | aa-ad | 16 |
| 130A | AS63451 | • NUT - SELF LOCKING, .190 DIA U1653 POST SBE72-0613 | ae | 16 |
| 134 | AS26094 | • WASHER - DEE U1653 | aa-ae | 32 |
| 138 | 4W0116 | • BOLT - .190 DIA X 1.312 Optional Part 4W0116 PRE SBE72-0422 | aa-ab | 16 |
| 138A | 4W0114 | • BOLT - .190 DIA X 1.188 Optional Part 4W0114 POST SBE72-0422 | ac-ae | 16 |
| 150 | 6A1093 | • SEAL - HALF RING-ST 3-SHROUD PRE SBE72-0422 | aa-ab | 2 |
| 190 | 6A3497 | • BUSH - HALF PRE SBE72-0422 | aa-ab | 64 |
| 190A | 6A7728 | • BUSH - STG.3INNER SHROUD POST SBE72-0422 PRE SBE70-0980 | ac | 32 |
| 190B | 6B1137 | • BUSH - VSV INNER SHROUD POST SBE70-0980 | ad-ae | 32 |
| 191 | 6A7541 | • BUSH - HALF-O/SIZE, 0.010IN (0.254 MM) POST SBE70-0722 | ab-ae | 1 |
| 192 | 6A7542 | • BUSH - HALF-O/SIZE, 0.020IN (0.508 MM) POST SBE70-0722 | ab-ae | 1 |
| 200 | 6A3467 | • SHROUD - ASSY,STG 3 PRE SBE72-0422 | aa-ab | 2 |
| 200A | 6A7719 | • SHROUD - ASSY STG.3HALF POST SBE72-0422 | ac-ae | 2 |
| 220 | AS20762 | • • RING - RETAINING,(VRS6085) U1653 POST SBE70-0269 PRE SBE72-0422 | ***** | 1 |
| 220A | AS20763 | • • RING - RETAINING U1653 POST SBE72-0422 | ac-ae | 3 |
| 222 | LK41751 | • • PIN - LOCATING,(VRS6085) POST SBE70-0269 PRE SBE72-0422 | ***** | 1 |
| 222A | AS20745 | • • PIN - GROOVED HEADLESS U1653 POST SBE72-0422 | ac-ae | 3 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

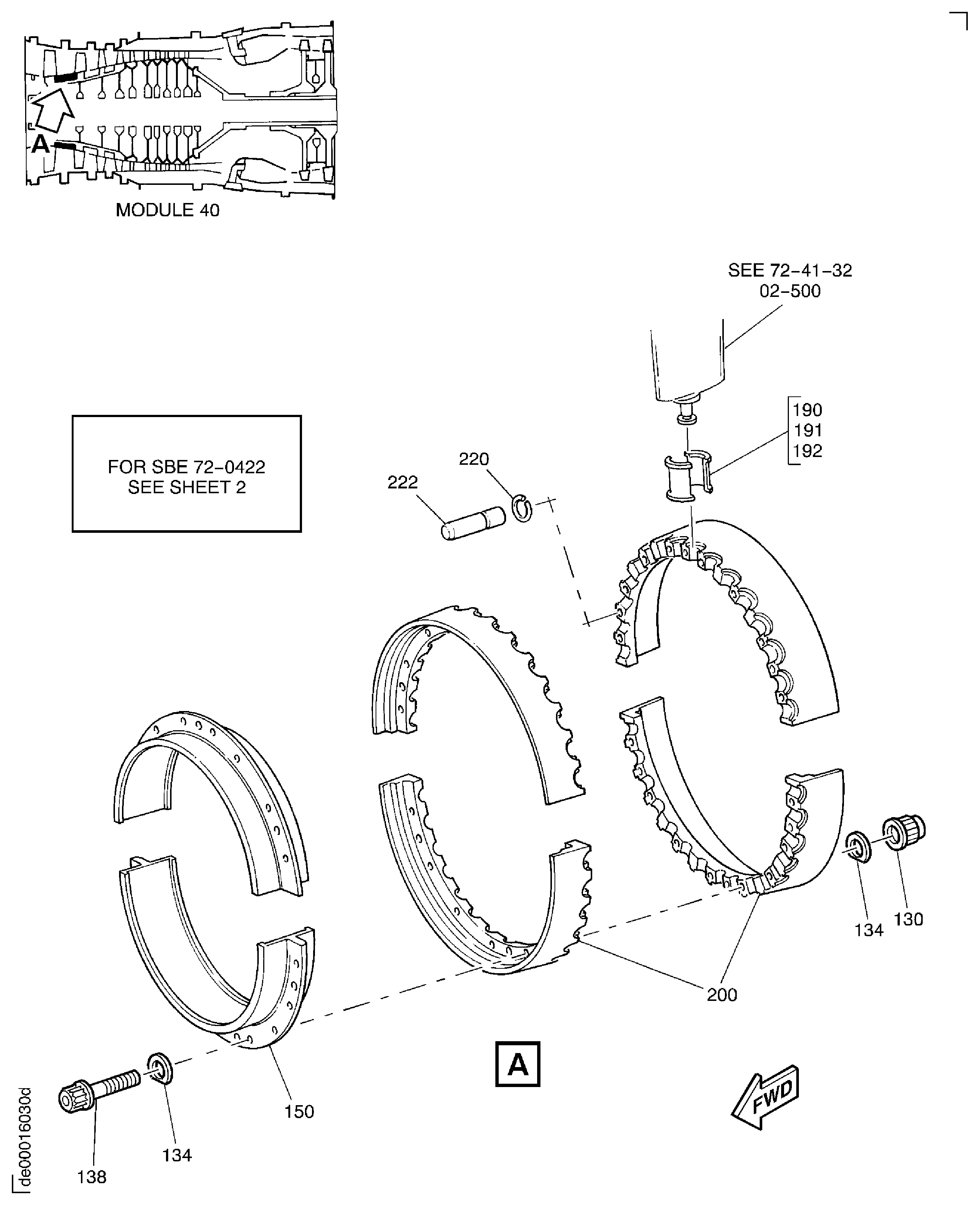

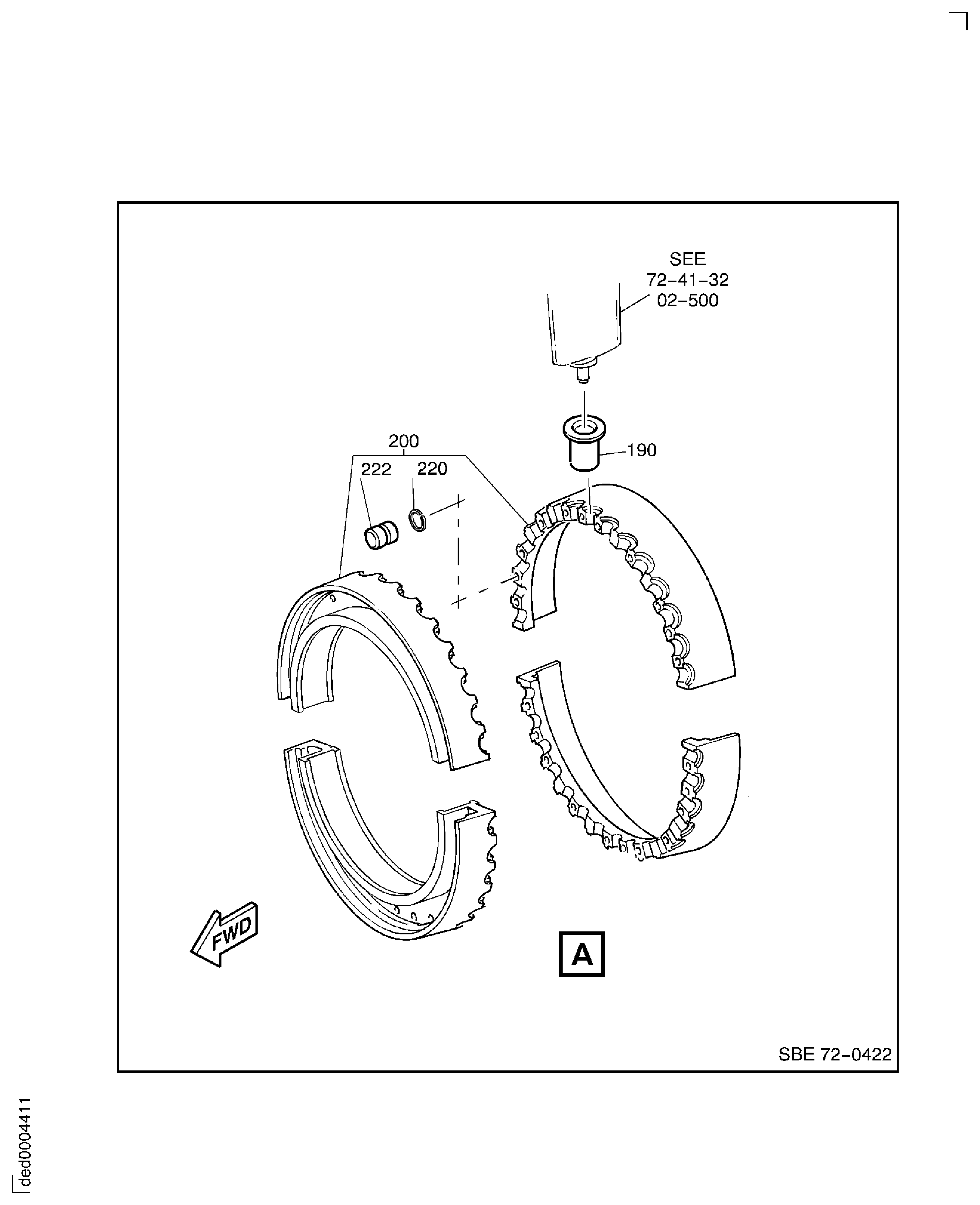

Figure: ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS
VARIABLE VANE INNER SHROUD
VARIABLE VANE INNER SHROUD
