DMC:V2500-A1-72-41-33-03A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| B72413303 | ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE70-0722 | aa | ||
| SBE0722-01 | ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE72-0422 | ab | ||
| SBE0422-01 | ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE70-0980 | ac | ||
| SBE0980-01 | ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE72-0613 | ad | ||
| SBE0613-01 | ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS | ae | ||
| 130 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 PRE SBE72-0613 | aa-ad | 24 |
| 130A | AS63451 | • NUT - SELF LOCKING, .190 DIA U1653 POST SBE72-0613 | ae | 24 |
| 134 | AS26094 | • WASHER - DEE U1653 | aa-ae | 48 |
| 138 | 4W0116 | • BOLT - .190 DIA X 1.312 Optional Part 4W0116 PRE SBE72-0422 | aa-ab | 24 |
| 138A | 4W0114 | • BOLT - .190 DIA X 1.188 Optional Part 4W0114 POST SBE72-0422 | ac-ae | 24 |
| 150 | 6A1427 | • SEAL - HALF RING-STAGE 4 PRE SBE72-0422 | aa-ab | 2 |
| 190 | 6A3497 | • BUSH - HALF PRE SBE72-0422 | aa-ab | 100 |
| 190A | 6A7728 | • BUSH - STG.4INNER SHROUD POST SBE72-0422 PRE SBE70-0980 | ac | 50 |
| 190B | 6B1137 | • BUSH - VSV INNER SHROUD POST SBE70-0980 | ad-ae | 50 |
| 191 | 6A7541 | • BUSH - HALF-O/SIZE, 0.010IN (0.254 MM) POST SBE70-0722 | ab-ae | 1 |
| 192 | 6A7542 | • BUSH - HALF-O/SIZE, 0.020IN (0.508 MM) POST SBE70-0722 | ab-ae | 1 |
| 200 | 6A3469 | • SHROUD - ASSY,HALF STG 4 PRE SBE72-0422 | aa-ab | 2 |
| 200A | 6A7561 | • SHROUD - ASSY STG.4HALF POST SBE72-0422 | ac-ae | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

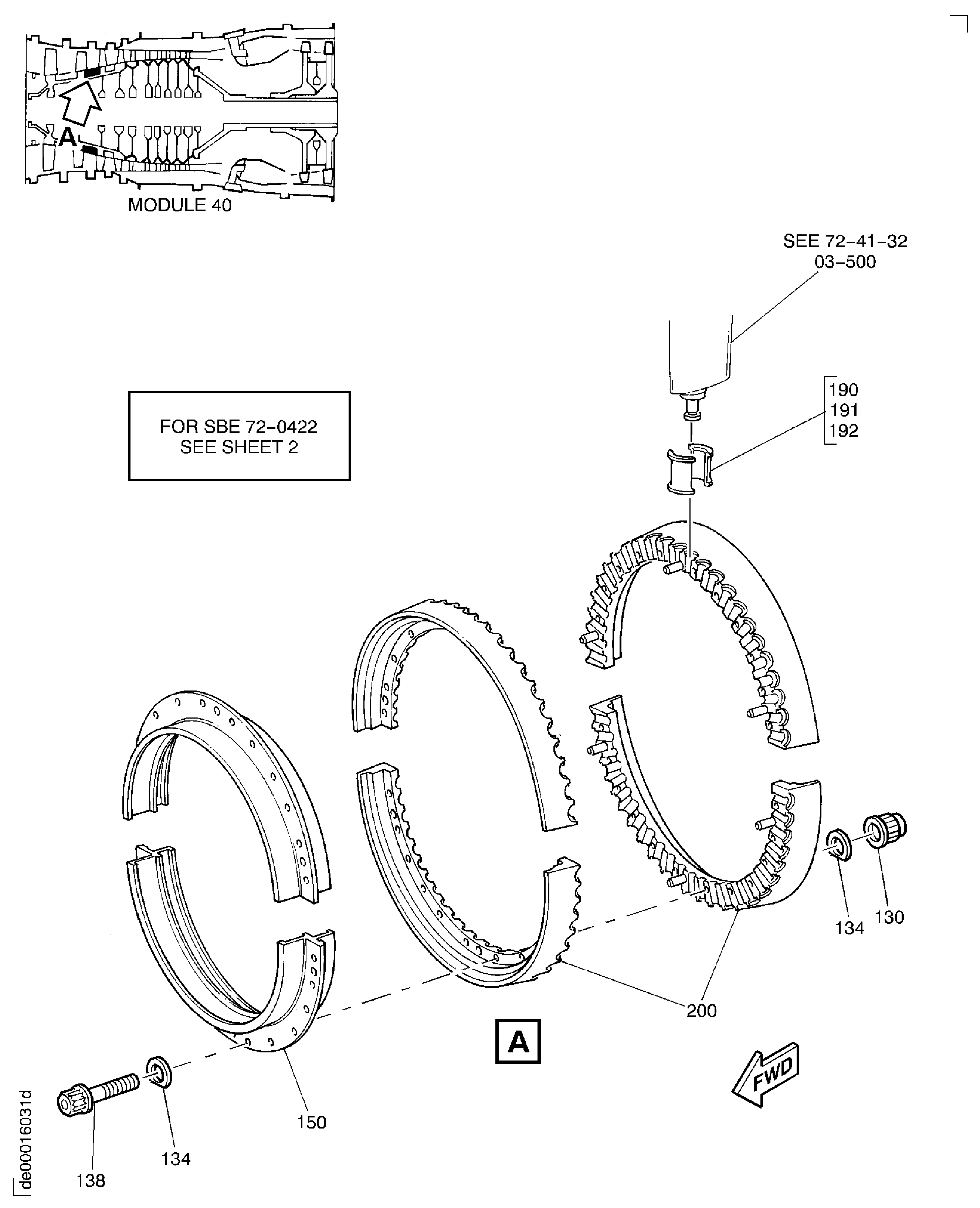

Figure: ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS

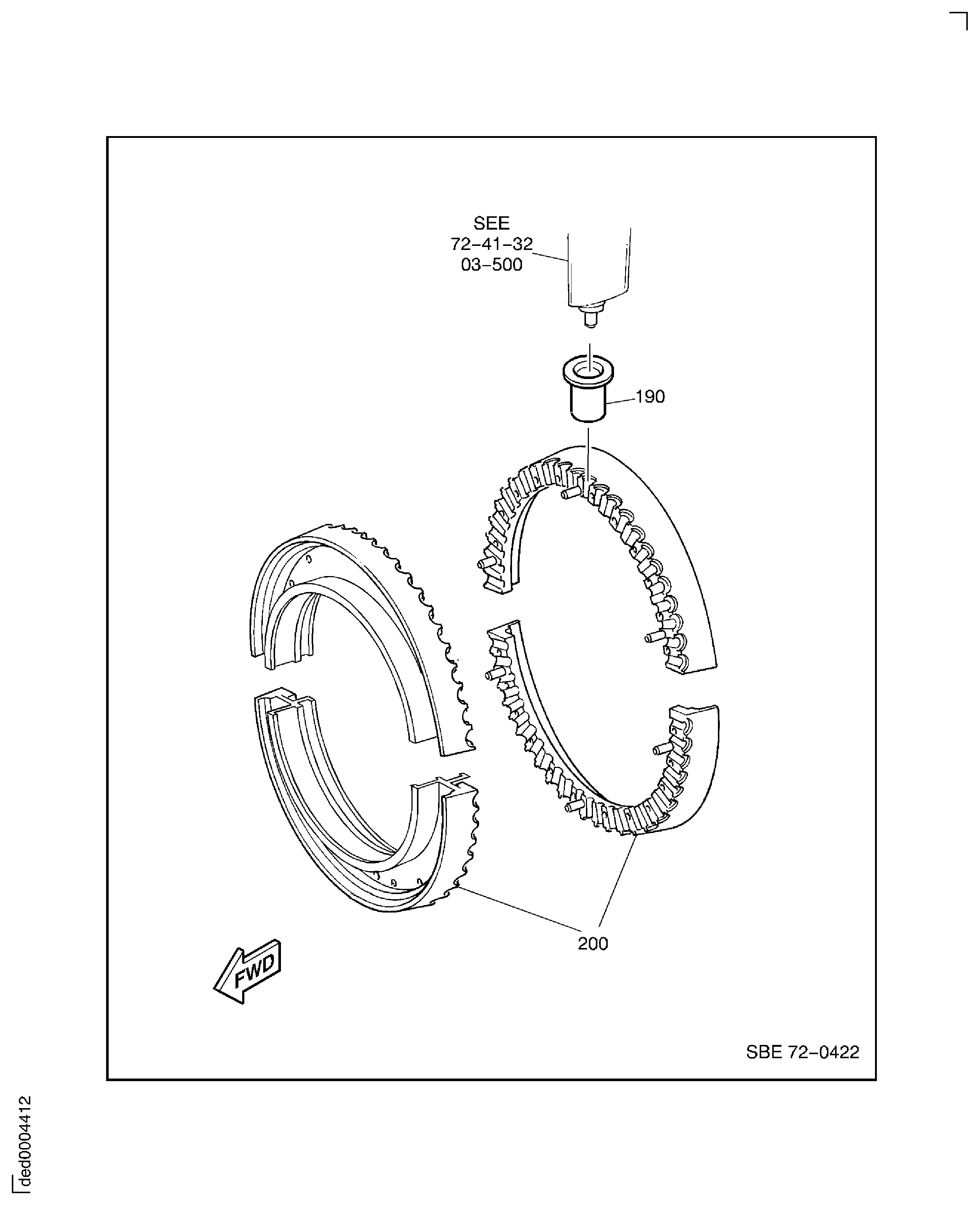

VARIABLE VANE INNER SHROUD
VARIABLE VANE INNER SHROUD
