DMC:V2500-A1-72-41-33-04A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 04 | ||||
| B72413304 | ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE70-0722 | aa | ||
| SBE0722-01 | ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE72-0422 | ab | ||
| SBE0422-01 | ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE70-0980 | ac | ||
| SBE0980-01 | ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS, PRE SBE72-0613 | ad | ||
| SBE0613-01 | ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS | ae | ||
| 130 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 PRE SBE72-0613 | aa-ad | 32 |
| 130A | AS63451 | • NUT - SELF LOCKING, .190 DIA U1653 POST SBE72-0613 | ae | 32 |
| 138 | AS26113 | • BOLT - CLOSE TOL DEE HEAD, .190 DIA X .812 U1653 PRE SBE72-0422 | aa-ab | 32 |
| 138A | AS26114 | • BOLT - CLOSE TOL DEE HEAD STG.5INNER SHROUD, .190 DIA X.875 U1653 POST SBE72-0422 | ac-ae | 32 |
| 190 | 6A3497 | • BUSH - HALF PRE SBE72-0422 | aa-ab | 128 |
| 190A | 6A7728 | • BUSH - STG.5INNER SHROUD POST SBE72-0422 PRE SBE70-0980 | ac | 64 |
| 190B | 6B1137 | • BUSH - VSV INNER SHROUD POST SBE70-0980 | ad-ae | 64 |
| 191 | 6A7541 | • BUSH - HALF-O/SIZE, 0.010IN (0.254 MM) POST SBE70-0722 | ab-ae | 1 |
| 192 | 6A7542 | • BUSH - HALF-O/SIZE, 0.020IN (0.508 MM) POST SBE70-0722 | ab-ae | 1 |
| 200 | 6A3471 | • SHROUD - ASSY,HALF STG 5 PRE SBE72-0422 | aa-ab | 2 |
| 200A | 6A7563 | • SHROUD - ASSY STG.5HALF POST SBE72-0422 | ac-ae | 2 |
| 220 | AS20762 | • • RING - RETAINING U1653 | aa-ae | 3 |
| 222 | AS20742 | • • PIN - GROOVED HEADLESS U1653 | aa-ae | 3 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

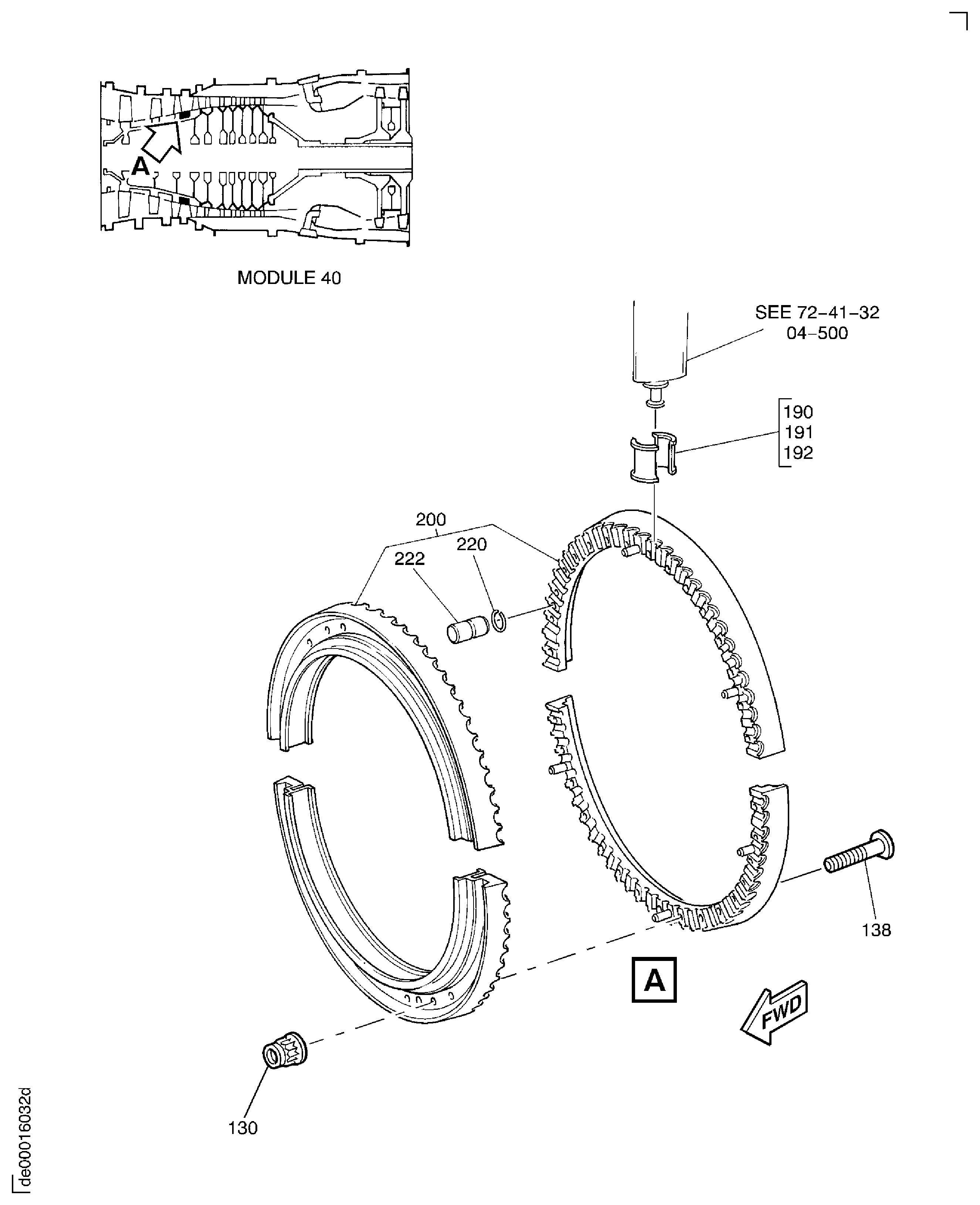

Figure: ENGINE-HP COMPRESSOR VARIABLE VANE INNER SHROUDS
VARIABLE VANE INNER SHROUD
