| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B72413402 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0027 | aa | ||
| SBE0027-01 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0336 | ab | ||
| SBE0336-01 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0385 | ac | ||
| SBE0385-01 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0416 | ad | ||
| SBE0416-01 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0418 | ae | ||
| SBE0418-01 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0591 | af | ||
| SBE0591-01 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES | ag | ||
| 060 | 6A2272C01 | • SPACER | aa-ag | 80 |
| 062 | 6A2272C02 | • SPACER | aa-ag | 80 |
| 064 | 6A2272C03 | • SPACER | aa-ag | 80 |
| 066 | 6A2272C04 | • SPACER | aa-ag | 80 |
| 068 | 6A2272C05 | • SPACER | aa-ag | 80 |
| 070 | 6A2272C06 | • SPACER | aa-ag | 80 |
| 072 | 6A2272C07 | • SPACER | aa-ag | 80 |
| 074 | 6A2272C08 | • SPACER | aa-ag | 80 |
| 076 | 6A2272C09 | • SPACER | aa-ag | 80 |
| 078 | 6A2272C10 | • SPACER | aa-ag | 80 |
| 100 | 6A3130 | • LEVER - A/O,VIGV PRE SBE72-0336 | aa-ag | 30 |
| 100A | 6A7467 | • LEVER - ASSY,VIGV POST SBE72-0336 | aa-ag | 30 |
| 103 | 4W0002 | • NUT - .250 DIA | aa-ag | 30 |
| 110 | 6A2434 | • • PIN - SHOULDER,(VRS6190) POST SBE70-0269 | ***** | 1 |
| 120 | 6A3132 | • LEVER - A/O,VIGV-CONN PRE SBE72-0336 | aa-ag | 8 |
| 120A | 6A7469 | • LEVER - ASSY,VIGV BRIDGE POST SBE72-0336 | aa-ag | 8 |
| 123 | 4W0002 | • NUT - .250 DIA | aa-ag | 8 |
| 130 | 6A2438 | • • PIN - SHOULDER,(VRS6192) POST SBE70-0222 | ***** | 1 |
| 140 | 6A3131 | • LEVER - A/O,VIGV PRE SBE72-0336 | aa-ag | 2 |
| 140A | 6A7468 | • LEVER - ASSY,VIGV POST SBE72-0336 | aa-ag | 2 |
| 143 | 4W0002 | • NUT - .250 DIA | aa-ag | 2 |
| 150 | 6A2434 | • • PIN - SHOULDER,(VRS6190) POST SBE70-0269 | ***** | 1 |
| 200 | 6A2510 | • CONN - ASSY,VIGV ACT.RING PRE SBE72-0385 | aa-ac | 2 |
| 200A | 6A7586 | • BRIDGE - PIECE ASSY VIGV POST SBE72-0385 | ad-ag | 2 |
| 200B | 6A7847 | • BRIDGE - PIECE ASSY VIGV POST SBE72-0416 | ae-ag | 2 |
| 202 | AS21020 | • BOLT - .250 DIA X 1.250 U1653 PRE SBE72-0385 | aa-ac | 6 |
| 202A | AS21013 | • BOLT - .250 DIA X .812 U1653 POST SBE72-0385 | ad-ag | 6 |
| 202B | AS21013 | • BOLT - .250 DIA X .812 U1653 POST SBE72-0416 | ae-ag | 6 |
| 203 | AS43418 | • BOLT U1653 PRE SBE72-0385 | aa-ac | 2 |
| 203A | AS43411 | • BOLT U1653 POST SBE72-0385 | ad-ag | 2 |
| 203B | AS43411 | • BOLT U1653 POST SBE72-0416 | ae-ag | 2 |
| 205 | UP12204 | • WASHER POST SBE72-0416 | ae-ag | 6 |
| 206 | 6A2520 | • DOWEL PRE SBE72-0385 | aa-ac | 6 |
| 207 | UP12203 | • WASHER POST SBE72-0416 | ae-ag | 2 |
| 208 | 6A2519 | • DOWEL PRE SBE72-0385 | aa-ac | 2 |
| 220 | 6A2512 | • • BUSH - ,(VRS6262) POST SBE70-0222 | ***** | 1 |
| 440 | 6A3535 | • RING - ASSY,VIGV-ACT.RING PRE SBE72-0385 | aa-ac | 1 |
| 440A | 6A7580 | • RING - ASSY VIGV,UPPER UNISON POST SBE72-0385 PRE SBE72-0418 | ad-ag | 1 |
| 440B | 6A7849 | • RING - ASSY VIGV UPPER UNISON POST SBE72-0416 | ae-ag | 1 |
| 440C | 6A7899 | • RING - ASSY POST SBE72-0418 | ad-ag | 1 |
| 440D | 6A8075 | • RING - ASSY POST SBE72-0418 | af-ag | 1 |
| 460 | UP11069 | • • BUSH - ,(VRS6265) PRE SBE72-0418 | ***** | 1 |
| 460A | BRR12496 | • • BUSHING - SLEEVE POST SBE72-0418 | af-ag | 16 |
| 462 | 6A2860 | • • SPACER - ,(VRS6265) | ***** | 1 |
| 470 | 6A2861 | • • BRACKET - ASSY IGV ACT RING,(VRS6265) PRE SBE72-0385 | ***** | 1 |
| 473 | AGS3732 | • • • INSERT - SCREW THREAD,(VRS6156), .250 DIA X 1.5D U1653 POST SBE70-0269 | ***** | 1 |
| 490 | 6A2863 | • • BRACKET - ASSY IGV ACT RING,(VRS6265) PRE SBE72-0385 | ***** | 1 |
| 493 | AGS3732 | • • • INSERT - SCREW THREAD,(VRS6156), .250 DIA X 1.5D U1653 POST SBE70-0269 | ***** | 1 |
| 502 | UP11019 | • • PIN - HEADED,BAULKING POST SBE72-0416 | ae-ag | 4 |
| 515 | 6A7871 | • • DOWEL POST SBE72-0416 | ae-ag | 1 |
| 520 | 6A7583 | • • DOWEL - ASSY POST SBE72-0416 | ae-ag | 3 |
| 540 | 6A3537 | • RING - ASSY,ACT.VIGV PRE SBE72-0385 | aa-ac | 1 |
| 540A | 6A7584 | • RING - ASSY VIGV,LOWER UNISON POST SBE72-0385 PRE SBE72-0418 | ad-ag | 1 |
| 540B | 6A7851 | • RING - ASSY VIGV LOWER UNISON POST SBE72-0416 PRE SBE72-0418 | ae-ag | 1 |
| 540C | 6A7901 | • RING - ASSY POST SBE72-0418 | ad-ag | 1 |
| 540D | 6A8077 | • RING - ASSY POST SBE72-0418 | ae-ag | 1 |
| 560 | UP11069 | • • BUSH - ,(VRS6265) PRE SBE72-0418 | ***** | 1 |
| 560A | BRR12496 | • • BUSHING - SLEEVE POST SBE72-0418 | af-ag | 32 |
| 562 | 6A2860 | • • SPACER - ,(VRS6265) | ***** | 1 |
| 570 | 6A2863 | • • BRACKET - ASSY IGV ACT RING PRE SBE72-0385 | aa-ac | 1 |
| 570A | 6A2863 | • • BRACKET - ASSY IGV ACT RING,(VRS6265) | ***** | 1 |
| 573 | AGS3732 | • • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-ag | 2 |
| 573A | AGS3732 | • • • INSERT - SCREW THREAD,(VRS6156), .250 DIA X 1.5D U1653 POST SBE70-0269 | ***** | 1 |
| 590 | 6A2861 | • • BRACKET - ASSY IGV ACT RING,(VRS6265) PRE SBE72-0385 | ***** | 1 |
| 593 | AGS3732 | • • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-ag | 1 |
| 593A | AGS3732 | • • • INSERT - SCREW THREAD,(VRS6156), .250 DIA X 1.5D U1653 POST SBE70-0269 | ***** | 1 |
| 602 | UP11019 | • • PIN - HEADED,BAULKING POST SBE72-0416 | ae-ag | 4 |
| 615 | 6A7871 | • • DOWEL POST SBE72-0416 | ae-ag | 1 |
| 620 | 6A7583 | • • DOWEL - ASSY POST SBE72-0416 | ae-ag | 3 |
| 654 | 6A2629C01 | • WASHER - ADJUSTING, 0.004INS (0.102 MM) | aa-ag | 1 |
| 655 | 6A2629C02 | • WASHER - ADJ, 0.005INS (0.127 MM) | aa-ag | 1 |
| 656 | 6A2629C03 | • WASHER - ADJ, 0.006INS (0.152 MM) | aa-ag | 1 |
| 657 | 6A2629C04 | • WASHER - ADJ, 0.007INS (0.178 MM) | aa-ag | 1 |
| 658 | 6A2629C05 | • WASHER - ADJ, 0.010INS (0,254) | aa-ag | 1 |
| 659 | 6A2629C06 | • WASHER - ADJ, 0.014INS (0.356 MM) | aa-ag | 1 |
| 660 | 6A2629C07 | • WASHER - ADJ, 0.018INS (0.447 MM) | aa-ag | 1 |
| 661 | 6A2629C08 | • WASHER - ADJ, 0.022INS (0.547 MM) | aa-ag | 1 |
| 662 | 6A2629C09 | • WASHER - ADJ, 0.025INS (0.647 MM) | aa-ag | 1 |
| 663 | 6A2629C10 | • WASHER - ADJ, 0.029INS (0.747 MM) | aa-ag | 1 |
| 664 | 6A2629C11 | • WASHER - ADJ, 0.033INS (0.847 MM) | aa-ag | 1 |
| 665 | 6A2629C12 | • WASHER - ADJ, 0.037INS (0.947 MM) | aa-ag | 1 |
| 666 | 6A2629C13 | • WASHER - ADJ, 0.041INS (1.047 MM) | aa-ag | 1 |
| 667 | 6A2629C14 | • WASHER - ADJ, 0.042INS (1.072 MM) | aa-ag | 1 |
| 668 | 6A2629C15 | • WASHER - ADJ, 0.043INS (1.097 MM) | aa-ag | 1 |
| 669 | 6A2629C16 | • WASHER - ADJ, 0.044INS (1.122 MM) | aa-ag | 1 |
| 670 | 6A2629C17 | • WASHER - ADJ, 0.045INS (1.147 MM) | aa-ag | 1 |
| 680 | 6A2917 | • HSG - ASSY CENTRALISING ACT R PRE SBE72-0027 | aa | 4 |
| 680A | 6A3943 | • HSG - ASSY CENTRALISING,ACT.R POST SBE72-0027 | ab-ag | 4 |
| 680B | 6A3943 | • HSG - ASSY POST SBE72-0591 | ag | 4 |
| 682 | AS20922 | • BOLT - .190 DIA X 1.375 U1653 PRE SBE72-0027 | aa | 8 |
| 682A | BLT5410 | • BOLT POST SBE72-0027 | ab-ag | 8 |
| 682B | BLT5410 | • BOLT POST SBE72-0591 | ag | 8 |
| 684 | 4W2621 | • WASHER | aa-ag | 8 |
| 688 | AGS3781 | • • INSERT - SCREW THREAD U1653 POST SBE72-0591 | ag | 2 |
| -692 | 6A2929 | • • • PAD - RUBBING POST SBE72-0027 | ab-ag | REF |
| 704 | 6A2624C01 | • WASHER - ADJUSTING, 0.031INS (0.787MM) | aa-ag | 1 |
| 705 | 6A2624C02 | • WASHER - ADJ, 0.030INS (0.763MM) | aa-ag | 1 |
| 706 | 6A2624C03 | • WASHER - ADJ, 0.029INS (0.737MM) | aa-ag | 1 |
| 707 | 6A2624C04 | • WASHER - ADJ, 0.027INS (0.687MM) | aa-ag | 1 |
| 708 | 6A2624C05 | • WASHER - ADJ, 0.025INS (0.637MM) | aa-ag | 1 |
| 709 | 6A2624C06 | • WASHER - ADJ, 0.023INS (0.587MM) | aa-ag | 1 |
| 710 | 6A2624C07 | • WASHER - ADJ, 0.021INS (0.537MM) | aa-ag | 1 |
| 711 | 6A2624C08 | • WASHER - ADJ, 0.019INS (0.487MM) | aa-ag | 1 |
| 712 | 6A2624C09 | • WASHER - ADJ, 0.017INS (0.437MM) | aa-ag | 1 |
| 713 | 6A2624C10 | • WASHER - ADJ, 0.015INS (0.387MM) | aa-ag | 1 |
| 714 | 6A2624C11 | • WASHER - ADJ, 0.014INS (0.345MM) | aa-ag | 1 |
| 715 | 6A2624C12 | • WASHER - ADJ, 0.012INS (0.305MM) | aa-ag | 1 |
| 716 | 6A2624C13 | • WASHER - ADJ, 0.010INS (0.254MM) | aa-ag | 1 |
| 717 | 6A2624C14 | • WASHER - ADJ, 0.007INS (0.178MM) | aa-ag | 1 |
| 718 | 6A2624C15 | • WASHER - ADJ, 0.006INS (0.152MM) | aa-ag | 1 |
| 719 | 6A2624C16 | • WASHER - ADJ, 0.005INS (0.127MM) | aa-ag | 1 |
| 720 | 6A2624C17 | • WASHER - ADJ, 0.004INS (0.102MM) | aa-ag | 1 |
| 730 | 6A2920 | • HSG - ASSY,LH-VIGV CONN PRE SBE72-0027 | aa | 2 |
| 730A | 6A3946 | • HSG - ASSY,LH-VIGV CONN POST SBE72-0027 | ab-ag | 2 |
| 730B | 6A3946 | • HSG - ASSY,LH-VIGV CONN POST SBE72-0591 | ag | 2 |
| 732 | AS21017 | • BOLT - .250 DIA X 1.062 U1653 PRE SBE72-0027 | aa | 2 |
| 732A | BLT5412 | • BOLT POST SBE72-0027 | ab-ag | 2 |
| 732B | BLT5412 | • BOLT POST SBE72-0591 | ag | 2 |
| 733 | AS21022 | • BOLT - .250 DIA X 1.375 U1653 PRE SBE72-0027 | aa | 2 |
| 733A | BLT5411 | • BOLT POST SBE72-0027 | ab-ag | 2 |
| 733B | BLT5411 | • BOLT POST SBE72-0591 | ag | 2 |
| 736 | AGS3732 | • • INSERT - SCREW THREAD,(VRS6156), .250 DIA X 1.5D U1653 POST SBE70-0269 | ***** | 1 |
| 736A | AGS3782 | • • INSERT - SCREW THREAD, .250-28 X 2.5D U1653 POST SBE72-0591 | ag | 1 |
| 740 | 6A3947 | • HSG - A/O,LH-VIGV CONN POST SBE72-0591 | ag | 1 |
| 750 | 6A2923 | • HSG - ASSY,RH-VIGV CONN PRE SBE72-0027 | aa | 2 |
| 750A | 6A3949 | • HSG - ASSY,RH-VIGV CONN POST SBE72-0027 | ab-ag | 2 |
| 750B | 6A3949 | • HSG - ASSY,RH-VIGV CONN POST SBE72-0591 | ag | 2 |
| 752 | AS21017 | • BOLT - .250 DIA X 1.062 U1653 PRE SBE72-0027 | aa | 2 |
| 752A | BLT5412 | • BOLT POST SBE72-0027 | ab-ag | 2 |
| 753 | AS21022 | • BOLT - .250 DIA X 1.375 U1653 PRE SBE72-0027 | aa | 2 |
| 753A | BLT5411 | • BOLT POST SBE72-0027 | ab-ag | 2 |
| 753B | BLT5411 | • BOLT POST SBE72-0591 | ag | 2 |
| 756 | AGS3732 | • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-ag | 1 |
| 756A | AGS3732 | • • INSERT - SCREW THREAD,(VRS6156), .250 DIA X 1.5D U1653 POST SBE70-0269 PRE SBE72-0591 | ***** | 1 |
| 756B | AGS3732 | • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 POST SBE72-0591 | ag | 1 |
| 760 | 6A3950 | • • HSG - A/O,RH-VIGV CONN POST SBE72-0591 | ag | 1 |
| 780 | 6A3869 | • BRACKET - VIGV-RIG PIN LOC. PRE SBE72-0084 | ***** | 2 |
| 782 | 4W0001 | • NUT - .190 DIA PRE SBE72-0084 | ***** | 4 |
| 784 | AS28121 | • BOLT U1653 PRE SBE72-0084 | ***** | 4 |
| 786 | 6A3677 | • SPACER PRE SBE72-0084 | ***** | 4 |
| 790 | 6A3870 | • BRACKET - VIGV-RIG PIN LOC. | aa-ag | 1 |
| 792 | 4W0001 | • NUT - .190 DIA | aa-ag | 2 |
| 794 | AS28121 | • BOLT U1653 | aa-ag | 2 |
| 796 | 6A3677 | • SPACER | aa-ag | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

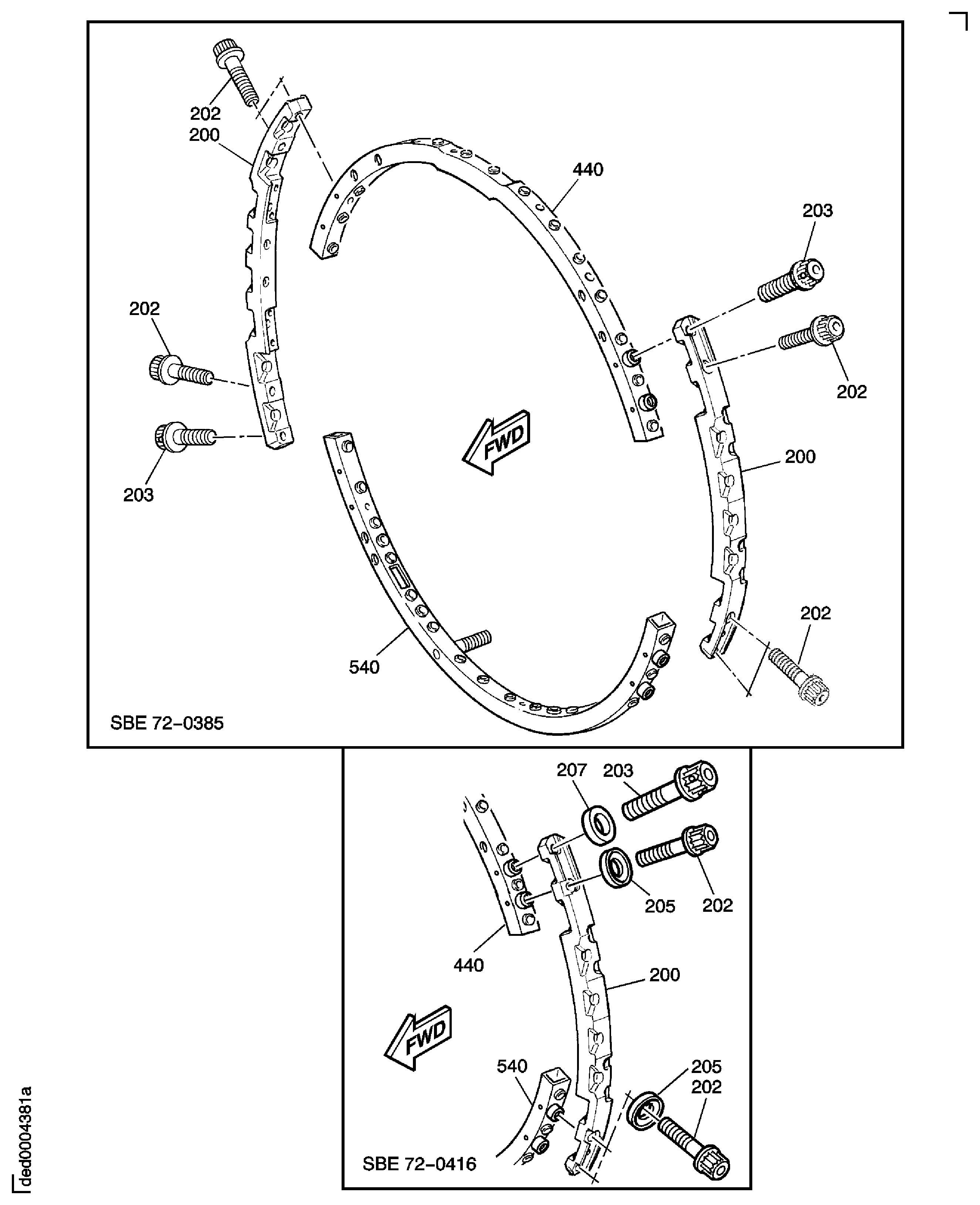

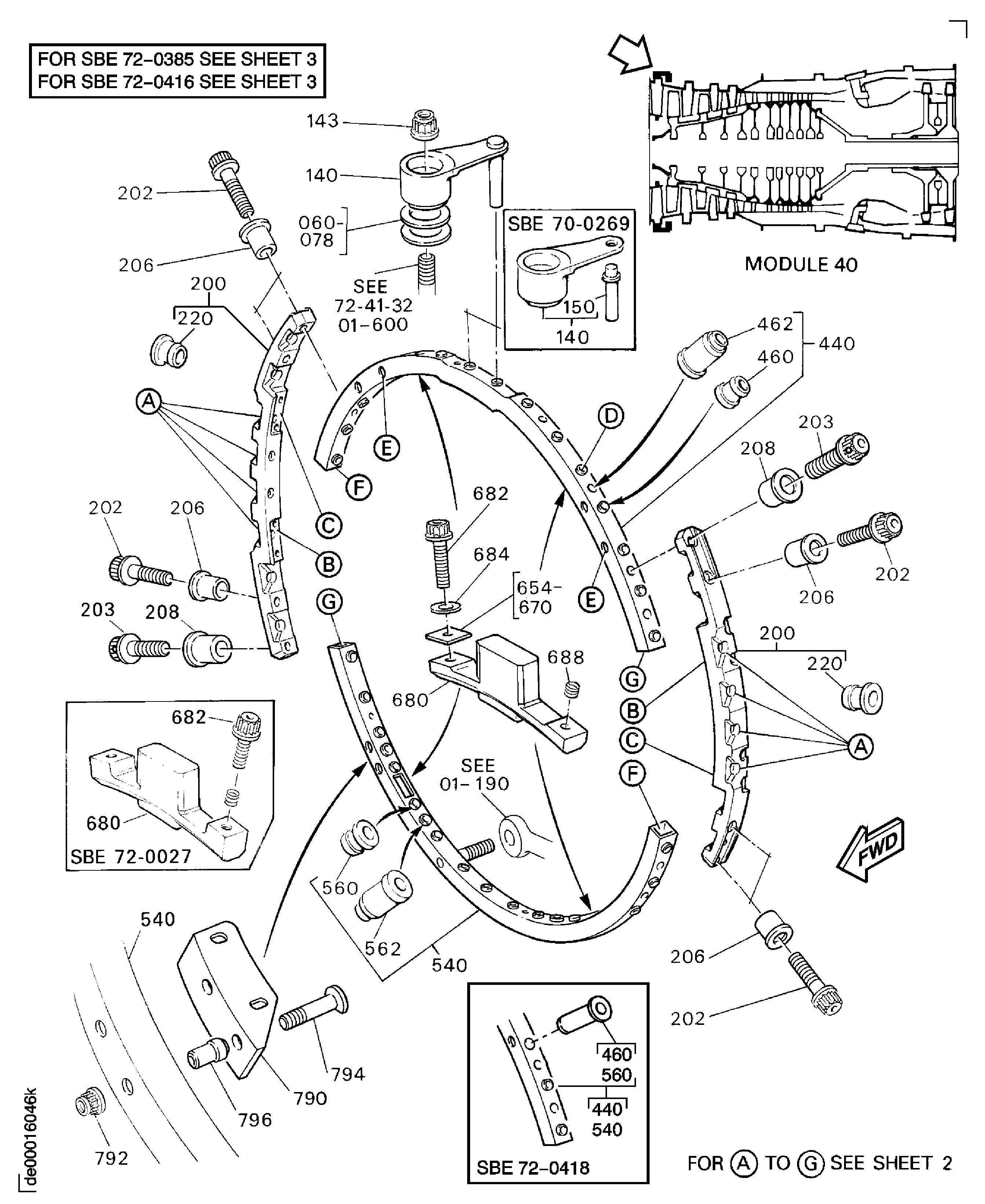

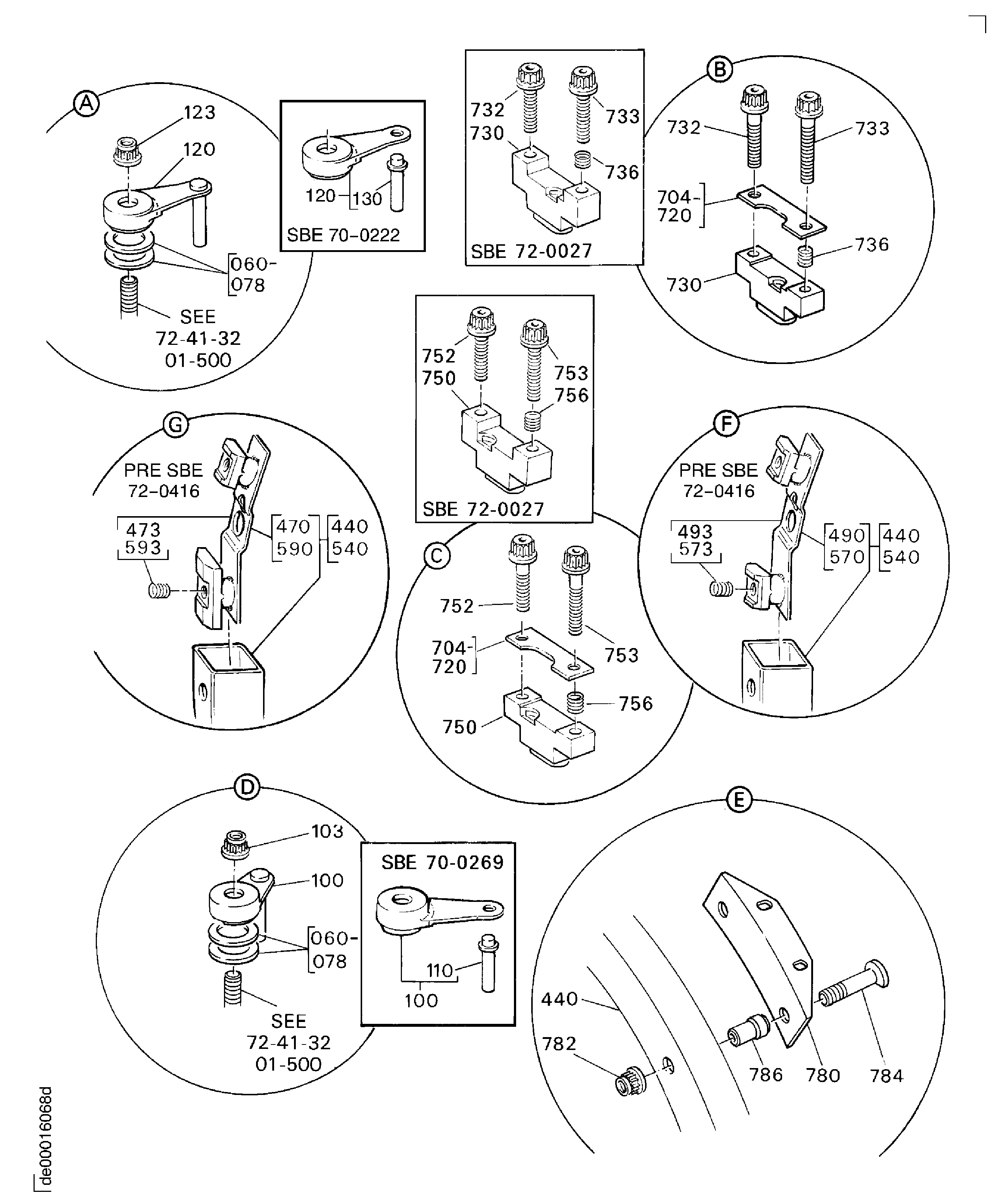

Figure: ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES
