ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES

DMC:V2500-A1-72-41-34-04A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
04
000B72413404ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0084aa
000SBE0084-01ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0027ab
000SBE0027-01ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0181ac
000SBE0181-01ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE70-0708ad
000SBE0708-01ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0334ae
000SBE0334-01ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0348af
000SBE0348-01ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0385ag
000SBE0385-01ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0416ah
000SBE0416-01ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0418ai
000SBE0418-01ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES, PRE SBE72-0591aj
000SBE0591-01ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANESak
0600606A2035C01• SPACERaa-ak100
0620626A2035C02• SPACERaa-ak100
0640646A2035C03• SPACERaa-ak100
0660666A2035C04• SPACERaa-ak100
0680686A2035C05• SPACERaa-ak100
0700706A2035C06• SPACERaa-ak100
0720726A2035C07• SPACERaa-ak100
0740746A2035C08• SPACERaa-ak100
0760766A2035C09• SPACERaa-ak100
0780786A2035C10• SPACERaa-ak100
1001006A3330• LEVER - A/O,ST.4-V/VANE
PRE SBE72-0334		aa-ak42
100100A6A7462• LEVER - ASSY,VSV
POST SBE72-0334		aa-ak42
1031034W0002• NUT - .250 DIAaa-ak42
1101106A2442• • PIN - SHOULDER,(VRS6194)
POST SBE70-0222		*****1
1201206A3331• LEVER - A/O,ST.4-V/VANE-CONN
PRE SBE72-0027		aa-ab8
120120A6A4345• LEVER - HP CLAMP
POST SBE72-0027
PRE SBE72-0334		ac-ak8
120120B6A7463• LEVER - ASSY,VSV BRIDGE
POST SBE72-0334		ac-ak8
120120C6A4345• LEVER
POST SBE72-0591		ak8
1231234W0002• NUT - .250 DIAaa-ak8
1301306A2444• • PIN - SHOULDER,(VRS6196)
POST SBE70-0269
PRE SBE72-0027		*****1
130130A6A4338• • PIN
POST SBE72-0027		ac-ak1
130130B6A4338• • PIN
POST SBE72-0591		ak1
2002006A2528• CONN - ASSY,ST.4 ACT.RING
PRE SBE72-0027		aa-ab2
200200A6A4340• CONN
POST SBE72-0027
PRE SBE72-0348		ac-af2
200200B6A7540• BRIDGE - PIECE ASSY
POST SBE72-0348
PRE SBE72-0385		ag2
200200C6A7603• BRIDGE - PIECE ASSY STG.4
POST SBE72-0385		ah-ak2
200200D6A7866• BRIDGE - PIECE ASSY STG.4
POST SBE72-0416		ai-ak2
200200E6A7603• BRIDGE - PIECE ASSY STG.4
POST SBE72-0416
PRE SBE72-0416		*****2
200200F6A7858• BRIDGE - PIECE STG.4
POST SBE72-0416
PRE SBE72-0416		*****2
200200G6A8123• BRIDGE - PIECE ASSY
POST SBE72-0418		aj-ak2
200200H6A8079• BRIDGE - PIECE ASSY
POST SBE72-0418		aj-ak2
200200J6A4340• CONN
POST SBE72-0591		ak2
202202AS21014• BOLT - .250 DIA X .875
U1653
PRE SBE72-0348		aa-af8
202202AAS21018• BOLT - .250 DIA X 1.125
U1653
POST SBE72-0348
PRE SBE72-0385		ag8
202202BAS21013• BOLT - .250 DIA X .812
U1653
POST SBE72-0385		ah-ak8
202202CAS21011• BOLT - .250 DIA X .6875
U1653
POST SBE72-0416		ai-ak8
202202DAS21011• BOLT - .250 DIA X .6875
U1653
POST SBE72-0416		ai-ak8
2042046A7414• WASHER - TUBE
POST SBE72-0348
PRE SBE72-0385		ag8
204204A6A7604• WASHER - STRIP
POST SBE72-0385		ah-ak4
204204B6A7859• WASHER - STRIP STG.4BRIDGE PIECE
POST SBE72-0416		ai-ak4
205205UP12204• WASHER
POST SBE72-0416		ai-ak8
2062066A2527• DOWEL
PRE SBE72-0348		aa-af8
220220UP10815• • BUSH - ,(VRS6264)
POST SBE70-0222		*****1
220220AUP12206• • BUSHING - SLEEVE
POST SBE72-0418		aj-ak4
2252256A7621• • SPACER
POST SBE72-0416		ai-ak4
3603606A2611• CONNECTR - ASSY
PRE SBE70-0708		aa-ak1
360360A6A7434• CONNECTR - ASSY
ALT 6A2611
POST SBE70-0708		aa-ak1
360360B6A2611• CONNECTR - ASSY
ALT 6A7434
POST SBE70-0708		aa-ak1
362362AS20911• BOLT - .190 DIA X .688
U1653		aa-ak2
366366UP10817• DOWELaa-ak2
3703706A4361• • BUSH - ,(VRS6238)*****1
3723726A4362• • BUSH - ,(VRS6238), 0.005 O/S*****1
3743746A4363• • BUSH - ,(VRS6238), 0.010 O/S*****1
4404406A3543• RING - ASSY,ST.4,ACT.UPPER
PRE SBE72-0084		aa1
440440A6A3983• RING - ASSY,ST.4,ACT.UPPER
POST SBE72-0084
PRE SBE72-0385		ab-ag1
440440B6A7596• RING - ASSY STG.4,UPPER UNISON
POST SBE72-0385		ah-ak1
440440C6A7596• RING - ASSY STG.4UPPER UNISON
POST SBE72-0416		ai-ak1
440440D6A7868• RING - ASSY STG.4,UPPER UNISON
POST SBE72-0416
PRE SBE72-0416		*****1
440440E6A8121• RING - ASSY
POST SBE72-0418		aj-ak1
440440F6A7888• RING - ASSY
POST SBE72-0418		aj-ak1
460460UP10815• • BUSH - ,(VRS6247)
POST SBE70-0269
PRE SBE72-0418		*****1
460460AUP12206• • BUSHING - SLEEVE
POST SBE72-0418		aj-ak21
4704706A2881• • BRACKET - ASSY STG 4 ACT RING,(VRS6247)
POST SBE70-0269		*****1
4904906A2883• • BRACKET - ASSY STG 4 ACT RING,(VRS6247)
POST SBE70-0269
PRE SBE72-0385		*****1
493493AGS3732• • • INSERT - SCREW THREAD,(VRS6156), .250 DIA X 1.5D
U1653
POST SBE70-0269
PRE SBE72-0385		*****1
502502UP11019• • PIN - HEADED,BAULKING
POST SBE72-0416		ai-ak4
5205206A7598• • DOWEL - ASSY
POST SBE72-0416		ai-ak4
5405406A3545• RING - ASSY,ST.4,ACT.LOWER
PRE SBE72-0385		aa-ag1
540540A6A7599• RING - ASSY STG.4,LOWER UNISON
POST SBE72-0385		ah-ak1
540540B6A7599• RING - ASSY STG.4LOWER UNISON
POST SBE72-0416		ai-ak1
540540C6A7890• RING - ASSY
POST SBE72-0418		aj-ak1
560560UP10815• • BUSH - ,(VRS6247)
POST SBE70-0269
PRE SBE72-0418		*****1
560560AUP12206• • BUSHING - SLEEVE
POST SBE72-0418		aj-ak21
5705706A2881• • BRACKET - ASSY STG 4 ACT RING,(VRS6247)
POST SBE70-0269
PRE SBE72-0385		*****1
570570A6A2881• • BRACKET - ASSY STG 4 ACT RING
POST SBE72-0385		ah-ak2
570570B6A2881• • BRACKET - ASSY STG.4,ACT RING
POST SBE72-0416		ai-ak2
5805806A3685• • BRACKET - ASSY STG 4 LOWER,(VRS6247)
POST SBE70-0269
PRE SBE72-0418		*****1
580580A6A7892• • BRACKET - ASSY
POST SBE72-0418		aj-ak1
583583AGS3731• • • INSERT - SCREW THREAD, .190 DIA X 1.5D
U1653		aa-ak2
5905906A2883• • BRACKET - ASSY STG 4 ACT RING,(VRS6247)
POST SBE70-0269
PRE SBE72-0385		*****1
593593AGS3732• • • INSERT - SCREW THREAD, .250 DIA X 1.5D
U1653		aa-ak2
593593AAGS3732• • • INSERT - SCREW THREAD,(VRS6156), .250 DIA X 1.5D
U1653
POST SBE70-0269		*****1
602602UP11019• • PIN - HEADED,BAULKING
POST SBE72-0416		ai-ak4
6206206A7598• • DOWEL - ASSY
POST SBE72-0416		ai-ak4
6306306A7601• • BRACKET - ASSY STG.4,LOWER UNISON
POST SBE72-0385		ah-ak1
6546546A2631C01• WASHER - ADJUSTING, 0.0050INS (0.127 MM)aa-ak1
6556556A2631C02• WASHER - ADJ, 0.0070INS (0.178 MM)aa-ak1
6566566A2631C03• WASHER - ADJ, 0.0080INS (0.203 MM)aa-ak1
6576576A2631C04• WASHER - ADJ, 0.0100INS (0.254 MM)aa-ak1
6586586A2631C05• WASHER - ADJ, 0.0140INS (0.356 MM)aa-ak1
6596596A2631C06• WASHER - ADJ, 0.0177INS (0.450 MM)aa-ak1
6606606A2631C07• WASHER - ADJ, 0.0217INS (0.550 MM)aa-ak1
6616616A2631C08• WASHER - ADJ, 0.0256INS (0.650 MM)aa-ak1
6626626A2631C09• WASHER - ADJ, 0.0295INS (0.750 MM)aa-ak1
6636636A2631C10• WASHER - ADJ, 0.0305INS (0.775 MM)aa-ak1
6646646A2631C11• WASHER - ADJ, 0.0315INS (0.800 MM)aa-ak1
6656656A2631C12• WASHER - ADJ, 0.0325INS (0.825 MM)aa-ak1
6666666A2631C13• WASHER - ADJ, 0.0335INS (0.850 MM)aa-ak1
6806806A2468• PAD - A/O,CENTRALIZING-ST.4
PRE SBE72-0027		aa-ab4
680680A6A3958• PAD - A/O,CENTRALIZING-ST.4
POST SBE72-0027		ac-ak4
680680B6A3958• PAD - A/O,CENTRALIZING-ST.4
POST SBE72-0591		ak4
682682AS20911• BOLT - .190 DIA X .688
U1653		aa-ak8
7047046A2626C01• WASHER - ADJUSTING, 0.031INS (0.787MM)
PRE SBE72-0027		aa-ab1
704704A6A4342C01• SPACER - 0.031INS (0.787MM)
POST SBE72-0027		ac-ak1
704704B6A4342C01• SPACER - 0.031INS (0.787MM)
POST SBE72-0591		ak1
7057056A2626C02• WASHER - ADJ, 0.030INS (0.763MM)
PRE SBE72-0027		aa-ab1
705705A6A4342C02• SPACER - 0.030INS (0.763MM)
POST SBE72-0027		ac-ak1
705705B6A4342C02• SPACER - 0.030INS (0.763MM)
POST SBE72-0591		ak1
7067066A2626C03• WASHER - ADJ, 0.029INS (0.737MM)
PRE SBE72-0027		aa-ab1
706706A6A4342C03• SPACER - 0.029INS (0.737MM)
POST SBE72-0027		ac-ak1
706706B6A4342C03• SPACER - 0.029INS (0.737MM)
POST SBE72-0591		ak1
7077076A2626C04• WASHER - ADJ, 0.027INS (0.687MM)
PRE SBE72-0027		aa-ab1
707707A6A4342C04• SPACER - 0.027INS (0.687MM)
POST SBE72-0027		ac-ak1
707707B6A4342C04• SPACER - 0.027INS (0.687MM)
POST SBE72-0591		ak1
7087086A2626C05• WASHER - ADJ, 0.025INS (0.637MM)
PRE SBE72-0027		aa-ab1
708708A6A4342C05• SPACER - 0.025INS (0.637MM)
POST SBE72-0027		ac-ak1
708708B6A4342C05• SPACER - 0.025INS (0.637MM)
POST SBE72-0591		ak1
7097096A2626C06• WASHER - ADJ, 0.023INS (0.587MM)
PRE SBE72-0027		aa-ab1
709709A6A4342C06• SPACER - 0.023INS (0.587MM)
POST SBE72-0027		ac-ak1
709709B6A4342C06• SPACER - 0.023INS (0.587MM)
POST SBE72-0591		ak1
7107106A2626C07• WASHER - ADJ, 0.021INS (0.537MM)
PRE SBE72-0027		aa-ab1
710710A6A4342C07• SPACER - 0.021INS (0.537MM)
POST SBE72-0027		ac-ak1
710710B6A4342C07• SPACER - 0.021INS (0.537MM)
POST SBE72-0591		ak1
7117116A2626C08• WASHER - ADJ, 0.019INS (0.487MM)
PRE SBE72-0027		aa-ab1
711711A6A4342C08• SPACER - 0.019INS (0.487MM)
POST SBE72-0027		ac-ak1
711711B6A4342C08• SPACER - 0.019INS (0.487MM)
POST SBE72-0591		ak1
7127126A2626C09• WASHER - ADJ, 0.017INS (0.437MM)
PRE SBE72-0027		aa-ab1
712712A6A4342C09• SPACER - 0.017INS (0.437MM)
POST SBE72-0027		ac-ak1
712712B6A4342C09• SPACER - 0.017INS (0.437MM)
POST SBE72-0591		ak1
7137136A2626C10• WASHER - ADJ, 0.015INS (0.387MM)
PRE SBE72-0027		aa-ab1
713713A6A4342C10• SPACER - 0.015INS (0.387MM)
POST SBE72-0027		ac-ak1
713713B6A4342C10• SPACER - 0.015INS (0.387MM)
POST SBE72-0591		ak1
7147146A2626C11• WASHER - ADJ, 0.014INS (0.345MM)
PRE SBE72-0027		aa-ab1
714714A6A4342C11• SPACER - 0.014INS (0.345MM)
POST SBE72-0027		ac-ak1
714714B6A4342C11• SPACER - 0.014INS (0.345MM)
POST SBE72-0591		ak1
7157156A2626C12• WASHER - ADJ, 0.012INS (0.305MM)
PRE SBE72-0027		aa-ab1
715715A6A4342C12• SPACER - 0.012INS (0.305MM)
POST SBE72-0027		ac-ak1
715715B6A4342C12• SPACER - 0.012INS (0.305MM)
POST SBE72-0591		ak1
7167166A2626C13• WASHER - ADJ, 0.010INS (0.254MM)
PRE SBE72-0027		aa-ab1
716716A6A4342C13• SPACER - 0.010INS (0.254MM)
POST SBE72-0027		ac-ak1
716716B6A4342C13• SPACER - 0.010INS (0.254MM)
POST SBE72-0591		ak1
7177176A2626C14• WASHER - ADJ, 0.007INS (0.178MM)
PRE SBE72-0027		aa-ab1
717717A6A4342C14• SPACER - 0.007INS (0.178MM)
POST SBE72-0027		ac-ak1
717717B6A4342C14• SPACER - 0.007INS (0.178MM)
POST SBE72-0591		ak1
7187186A2626C15• WASHER - ADJ, 0.006INS (0.152MM)
PRE SBE72-0027		aa-ab1
718718A6A4342C15• SPACER - 0.006INS (0.152MM)
POST SBE72-0027		ac-ak1
718718B6A4342C15• SPACER - 0.006INS (0.152MM)
POST SBE72-0591		ak1
7197196A2626C16• WASHER - ADJ, 0.005INS (0.127MM)
PRE SBE72-0027		aa-ab1
719719A6A4342C16• SPACER - 0.005INS (0.127MM)
POST SBE72-0027		ac-ak1
719719B6A4342C16• SPACER - 0.005INS (0.127MM)
POST SBE72-0591		ak1
7207206A2626C17• WASHER - ADJ, 0.004INS (0.102MM)
PRE SBE72-0027		aa-ab1
720720A6A4342C17• SPACER - 0.004INS (0.102MM)
POST SBE72-0027		ac-ak1
720720B6A4342C17• SPACER - 0.004INS (0.102MM)
POST SBE72-0591		ak1
7307306A2927• HSG - ASSY,ST.4 CONN
PRE SBE72-0027		aa-ab4
730730A6A4810• HOUSING - ASSY, COMP. BLOCK
POST SBE72-0027		ac-ak4
730730B6A4810• HOUSING - ASSY,
POST SBE72-0591		ak4
732732AS20912• BOLT - .190 DIA X .750
U1653
PRE SBE72-0027		aa-ab8
732732AAS20927• BOLT - .190 DIA X 1.688
U1653
POST SBE72-0027		ac-ak8
732732BAS20927• BOLT - .190 DIA X 1.688
U1653
POST SBE72-0591		ak8
7337334W2621• WASHER
Optional Part
4W2621
POST SBE72-0027		ac-ak8
733733A4W2621• WASHER
Optional Part
4W2621
POST SBE72-0591		ak8
-736736AGS3731• • INSERT - SCREW THREAD, .190 DIA X 1.5D
U1653
POST SBE72-0027		ac-akREF
736736AAGS3731• • INSERT - SCREW THREAD, .190 DIA X 1.5D
U1653
POST SBE72-0591		ak2
7447446A2929• • • PAD - RUBBINGaa-ak1
744744A6A4811• • • PAD - RUBBING,(VRS6314)
POST SBE72-0027		*****1
744744B6A4811• • • PAD - RUBBING
POST SBE72-0591		ak1
7607606A3874• BRACKET - STG 4-RIG PIN LOC.
PRE SBE72-0084		aa2
762762AS20911• BOLT - .190 DIA X .688
U1653
PRE SBE72-0084		aa4
7667666A3680• DOWEL
PRE SBE72-0084		aa4
7707706A3875• BRACKET - STG 4-RIG PIN LOC.
PRE SBE72-0181		aa-ac1
770770A6A5459• BRACKET - STAGE 4 RIG PIN
POST SBE72-0181		ad-ak1
772772AS20911• BOLT - .190 DIA X .688
U1653		aa-ak2
7767766A3680• DOWELaa-ak2
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

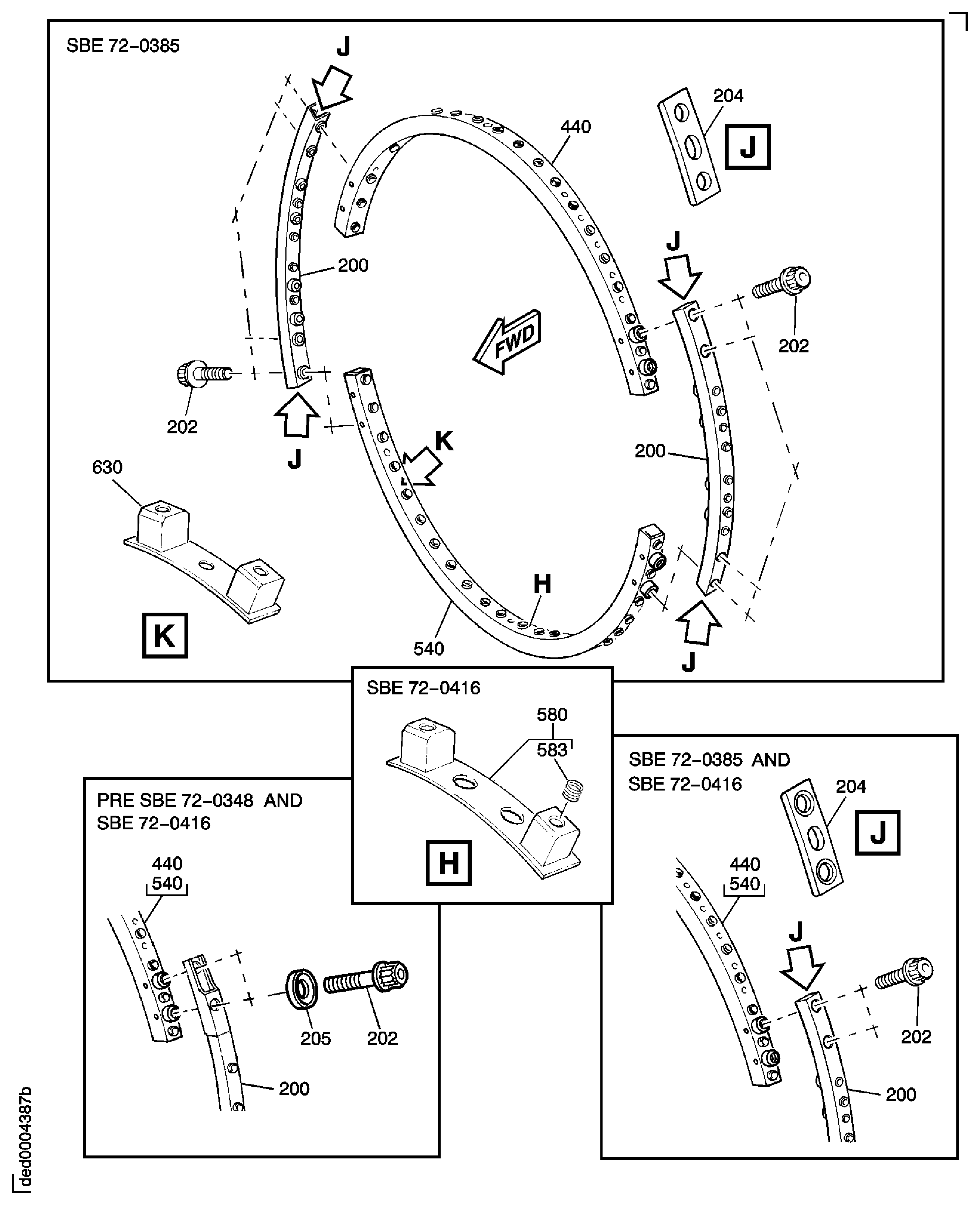

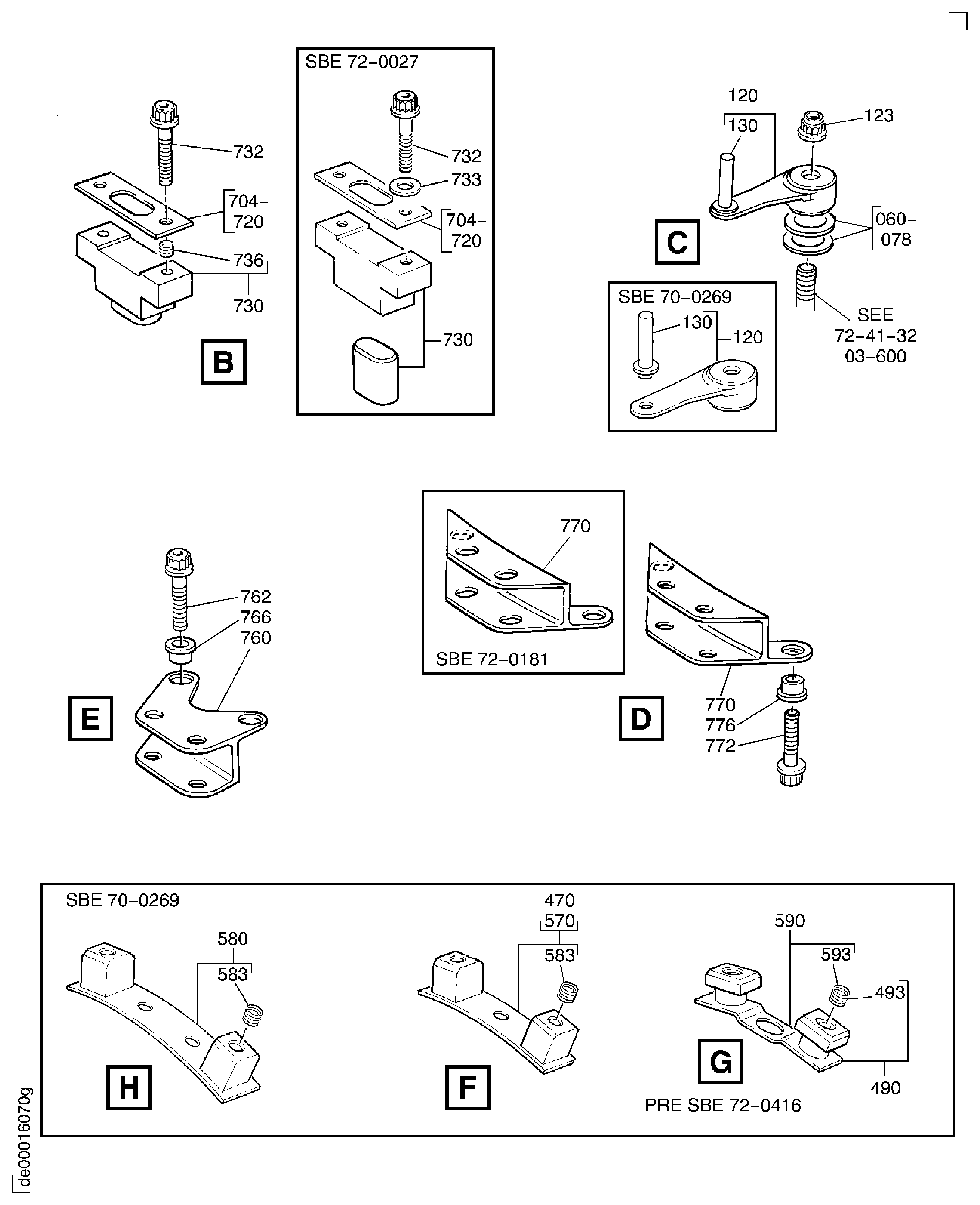

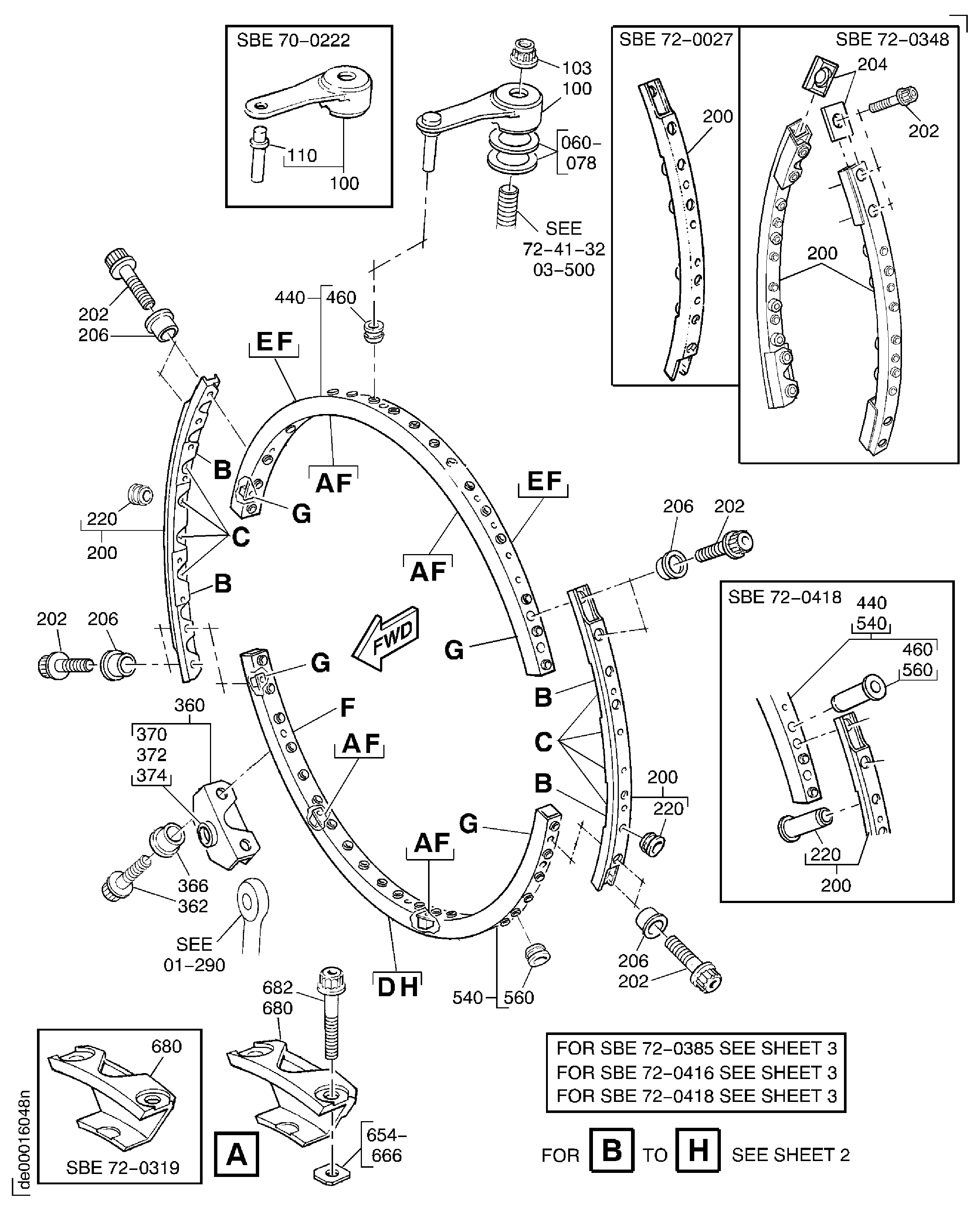

Figure: ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES

VARIABLE INLET GUIDE VANE AND VARIABLE

VARIABLE INLET GUIDE VANE AND VARIABLE

VARIABLE INLET GUIDE VANE AND VARIABLE

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:4W0002
Part Name:NUT, SELF LOCKING DBL HEX - .250 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20625NUT, SELF LOCKING, BIHEX, .250 DIAU1653
Part Number:4W2621
Part Name:WASHER
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS12943WASHER - FLAT U1653
Part Number:6A2035C01
Part Name:SPACER - ADJUSTING
Manufacturer Code:0AM53
Part Number:6A2035C02
Part Name:SPACER - ADJUSTING
Manufacturer Code:0AM53
Part Number:6A2035C03
Part Name:SPACER - ADJUSTING
Manufacturer Code:0AM53
Part Number:6A2035C04
Part Name:SPACER - ADJUSTING
Manufacturer Code:0AM53
Part Number:6A2035C05
Part Name:SPACER - ADJUSTING
Manufacturer Code:0AM53
Part Number:6A2035C06
Part Name:SPACER
Manufacturer Code:0AM53
Part Number:6A2035C07
Part Name:SPACER - ADJUSTING
Manufacturer Code:0AM53
Part Number:6A2035C08
Part Name:SPACER
Manufacturer Code:0AM53
Part Number:6A2035C09
Part Name:SPACER - ADJUSTING
Manufacturer Code:0AM53
Part Number:6A2035C10
Part Name:SPACER - ADJUSTING
Manufacturer Code:0AM53
Part Number:6A2442
Part Name:PIN - SHOULDER
Manufacturer Code:0AM53
Part Number:6A2444
Part Name:PIN - SHOULDER
Manufacturer Code:0AM53
Part Number:6A2468
Part Name:PAD - CENTRALIZING, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A2527
Part Name:DOWEL
Manufacturer Code:0AM53
Part Number:6A2528
Part Name:CONNECTOR - ACTUATOR RING, 4TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A2611
Part Name:CONNECTOR - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A2626C01
Part Name:WASHER - ADJUSTING
Manufacturer Code:0AM53
Part Number:6A2626C02
Part Name:WASHER - ADJUSTING, 0.030
Manufacturer Code:0AM53
Part Number:6A2626C03
Part Name:WASHER - ADJUSTING, 0.029
Manufacturer Code:0AM53
Part Number:6A2626C04
Part Name:WASHER - ADJUSTING, 0.027
Manufacturer Code:0AM53
Part Number:6A2626C05
Part Name:WASHER - ADJUSTING, 0.025
Manufacturer Code:0AM53
Part Number:6A2626C06
Part Name:WASHER - ADJUSTING, 0.023
Manufacturer Code:0AM53
Part Number:6A2626C07
Part Name:WASHER - ADJUSTING, 0.021
Manufacturer Code:0AM53
Part Number:6A2626C08
Part Name:WASHER - ADJUSTING, 0.019
Manufacturer Code:0AM53
Part Number:6A2626C09
Part Name:WASHER - ADJUSTING, 0.017
Manufacturer Code:0AM53
Part Number:6A2626C10
Part Name:WASHER - ADJUSTING, 0.015
Manufacturer Code:0AM53
Part Number:6A2626C11
Part Name:WASHER - ADJUSTING, 0.014
Manufacturer Code:0AM53
Part Number:6A2626C12
Part Name:WASHER - ADJUSTING, 0.012
Manufacturer Code:0AM53
Part Number:6A2626C13
Part Name:WASHER - ADJUSTING, 0.010
Manufacturer Code:0AM53
Part Number:6A2626C14
Part Name:WASHER - ADJUSTING, 0.007
Manufacturer Code:0AM53
Part Number:6A2626C15
Part Name:WASHER - ADJUSTING, 0.006
Manufacturer Code:0AM53
Part Number:6A2626C16
Part Name:WASHER - ADJUSTING, 0.005
Manufacturer Code:0AM53
Part Number:6A2626C17
Part Name:WASHER - ADJUSTING, 0.004
Manufacturer Code:0AM53
Part Number:6A2631C01
Part Name:WASHER - ADJUSTING
Manufacturer Code:0AM53
Part Number:6A2631C02
Part Name:WASHER - ADJUSTING, 0.007
Manufacturer Code:0AM53
Part Number:6A2631C03
Part Name:WASHER - ADJUSTING, 0.008
Manufacturer Code:0AM53
Part Number:6A2631C04
Part Name:WASHER - ADJUSTING, 0.010
Manufacturer Code:0AM53
Part Number:6A2631C05
Part Name:WASHER - ADJUSTING, 0.014
Manufacturer Code:0AM53
Part Number:6A2631C06
Part Name:WASHER - ADJUSTING, 0.018
Manufacturer Code:0AM53
Part Number:6A2631C07
Part Name:WASHER - ADJUSTING, 0.022
Manufacturer Code:0AM53
Part Number:6A2631C08
Part Name:WASHER - ADJUSTING, 0.026
Manufacturer Code:0AM53
Part Number:6A2631C09
Part Name:WASHER - ADJUSTING, 0.030
Manufacturer Code:0AM53
Part Number:6A2631C10
Part Name:WASHER - ADJUSTING, 0.031
Manufacturer Code:0AM53
Part Number:6A2631C11
Part Name:WASHER - ADJUSTING, 0.032
Manufacturer Code:0AM53
Part Number:6A2631C12
Part Name:WASHER - ADJUSTING, 0.033
Manufacturer Code:0AM53
Part Number:6A2631C13
Part Name:WASHER - ADJUSTING, 0.034
Manufacturer Code:0AM53
Part Number:6A2881
Part Name:BRACKET - 4TH STAGE, ACTUATING RING, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A2883
Part Name:BRACKET - 4TH STAGE, ACTUATING RING, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A2927
Part Name:HOUSING - 4TH STAGE
Manufacturer Code:0AM53
Part Number:6A2929
Part Name:PAD - RUBBING
Manufacturer Code:0AM53
Part Number:6A3330
Part Name:LEVER - VARIABLE VANE, 4TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A3331
Part Name:LEVER - VARIABLE VANE, 4TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A3543
Part Name:RING - ACTUATOR, 4TH STAGE, UPPER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A3545
Part Name:RING - ACTUATOR, 4TH STAGE, LOWER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A3680
Part Name:DOWEL
Manufacturer Code:0AM53
Part Number:6A3685
Part Name:BRACKET - 4TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A3874
Part Name:BRACKET - 4TH STAGE, RIG PIN, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A3875
Part Name:BRACKET - 4TH STAGE, RIG PIN, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A3958
Part Name:PAD - CENTRALIZING, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A3983
Part Name:RING - ACTUATOR, 4TH STAGE, UPPER, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A4338
Part Name:PIN
Manufacturer Code:0AM53
Part Number:6A4340
Part Name:CONNECTOR
Manufacturer Code:0AM53
Part Number:6A4342C01
Part Name:SPACER - 0.031 INS
Manufacturer Code:0AM53
Part Number:6A4342C02
Part Name:SPACER - 0.030 INS
Manufacturer Code:0AM53
Part Number:6A4342C03
Part Name:SPACER - 0.029 INS
Manufacturer Code:0AM53
Part Number:6A4342C04
Part Name:SPACER - 0.027 INS
Manufacturer Code:0AM53
Part Number:6A4342C05
Part Name:SPACER - 0.025 INS
Manufacturer Code:0AM53
Part Number:6A4342C06
Part Name:SPACER - 0.023 INS
Manufacturer Code:0AM53
Part Number:6A4342C07
Part Name:SPACER - 0.021 INS
Manufacturer Code:0AM53
Part Number:6A4342C08
Part Name:SPACER - 0.019 INS
Manufacturer Code:0AM53
Part Number:6A4342C09
Part Name:SPACER - 0.017 INS
Manufacturer Code:0AM53
Part Number:6A4342C10
Part Name:SPACER - 0.015 INS
Manufacturer Code:0AM53
Part Number:6A4342C11
Part Name:SPACER - 0.014 INS
Manufacturer Code:0AM53
Part Number:6A4342C12
Part Name:SPACER - 0.012 INS
Manufacturer Code:0AM53
Part Number:6A4342C13
Part Name:SPACER - 0.010 INS
Manufacturer Code:0AM53
Part Number:6A4342C14
Part Name:SPACER - 0.007 INS
Manufacturer Code:0AM53
Part Number:6A4342C15
Part Name:SPACER - 0.006 INS
Manufacturer Code:0AM53
Part Number:6A4342C16
Part Name:SPACER - 0.005 INS
Manufacturer Code:0AM53
Part Number:6A4342C17
Part Name:SPACER - 0.004 INS
Manufacturer Code:0AM53
Part Number:6A4345
Part Name:LEVER
Manufacturer Code:0AM53
Part Number:6A4361
Part Name:BUSHING
Manufacturer Code:0AM53
Part Number:6A4362
Part Name:BUSHING
Manufacturer Code:0AM53
Part Number:6A4363
Part Name:BUSHING
Manufacturer Code:0AM53
Part Number:6A4810
Part Name:HOUSING - COMPENSATING BLOCK, 4TH STAGE ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A4811
Part Name:PAD - RUBBING
Manufacturer Code:0AM53
Part Number:6A5459
Part Name:BRACKET - 4TH STAGE, RIG PIN
Manufacturer Code:0AM53
Part Number:6A7414
Part Name:WASHER - TUBE
Manufacturer Code:0AM53
Part Number:6A7434
Part Name:CONNECTOR - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A7462
Part Name:LEVER - HPC, VSV, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A7463
Part Name:LEVER - HPC, BRIDGE, VSV, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A7540
Part Name:BRIDGE - PIECE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A7596
Part Name:RING - 4TH STAGE, UPPER UNISON, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A7598
Part Name:DOWEL - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A7599
Part Name:RING - 4TH STAGE, LOWER UNISON, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A7601
Part Name:BRACKET - 4TH STAGE, LOWER UNISON, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A7603
Part Name:BRIDGE - PIECE, 4TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A7604
Part Name:WASHER - STRIP
Manufacturer Code:0AM53
Part Number:6A7621
Part Name:SPACER
Manufacturer Code:0AM53
Part Number:6A7858
Part Name:BRIDGE - PIECE, 4TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A7859
Part Name:WASHER - STRIP, 4TH STAGE, BRIDGE
Manufacturer Code:0AM53
Part Number:6A7866
Part Name:BRIDGE - PIECE, 4TH STAGE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A7868
Part Name:RING - 4TH STAGE, UPPER UNISON, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A7888
Part Name:RING - UNISON, UPPER, 4TH STAGE STAGE
Manufacturer Code:0AM53
Part Number:6A7890
Part Name:RING - UNISON, LOWER, 4TH STAGE
Manufacturer Code:0AM53
Part Number:6A7892
Part Name:BRACKET - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A8079
Part Name:BRIDGE - PIECE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A8121
Part Name:RING - 4TH STAGE, UPPER UNISON, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A8123
Part Name:BRIDGE - PIECE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:AGS3731
Part Name:INSERT - SCREW THREAD, .190 DIA X 1.5D
Manufacturer Code:U1653
Part Number:AGS3732
Part Name:INSERT - SCREW THREAD, .250 DIA X 1.5D
Manufacturer Code:U1653
Part Number:AS12943
Part Name:WASHER - FLAT
Manufacturer Code:U1653
Part Number:AS20625
Part Name:NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS20911
Part Name:BOLT, MACHINE DOUBLE HEX, .190 DIA X .688
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS20912
Part Name:BOLT - 0.190 DIA X 0.750
Manufacturer Code:U1653
Part Number:AS20927
Part Name:BOLT - 0.19 DIA X 1.688
Manufacturer Code:U1653
Part Number:AS21011
Part Name:BOLT,MACHINE DOUBLE HEX
Manufacturer Code:U1653
Part Number:AS21013
Part Name:BOLT - 0.25 DIA X 0.812
Manufacturer Code:U1653
Part Number:AS21014
Part Name:CLAMP - LOOP, DOUBLE HEX, .250 DIA X .875
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS21018
Part Name:BOLT - 0.25 DIA X 1.125
Manufacturer Code:U1653
Part Number:UP10815
Part Name:BUSHING
Manufacturer Code:0AM53
Part Number:UP10817
Part Name:DOWEL - SLEEVE
Manufacturer Code:0AM53
Part Number:UP11019
Part Name:PIN - BAULKING, HEADED
Manufacturer Code:0AM53
Part Number:UP12204
Part Name:WASHER
Manufacturer Code:0AM53
Part Number:UP12206
Part Name:BUSHING - SLEEVE
Manufacturer Code:0AM53
