| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 07 | ||||
| B72413407 | ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES | aa | ||
| 080 | UP70038 | • WASHER - FLAT RECESSED | aa | 1 |
| 081 | AS26424 | • BOLT - CLOSE TOL DEE HEAD U1653 | aa | 1 |
| 082 | 4W0004 | • NUT - .375 DIA Optional Part 4W0004 | aa | 1 |
| 089 | A234-6LW | • NUT - LOCK THIN K7766 | aa | 1 |
| 090 | 12-412-06E001 | • BEARING - LH CONTROL ROD 09455 | aa | 1 |
| 094 | A234-6RW | • NUT - THIN WIRE LOCKING K7766 | aa | 1 |
| 095 | 02-412-06E001 | • BEARING - RH CONTROL ROD 09455 | aa | 1 |
| 100 | UP11073 | • ROD - CONTROL VANE ACT MECH | aa | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

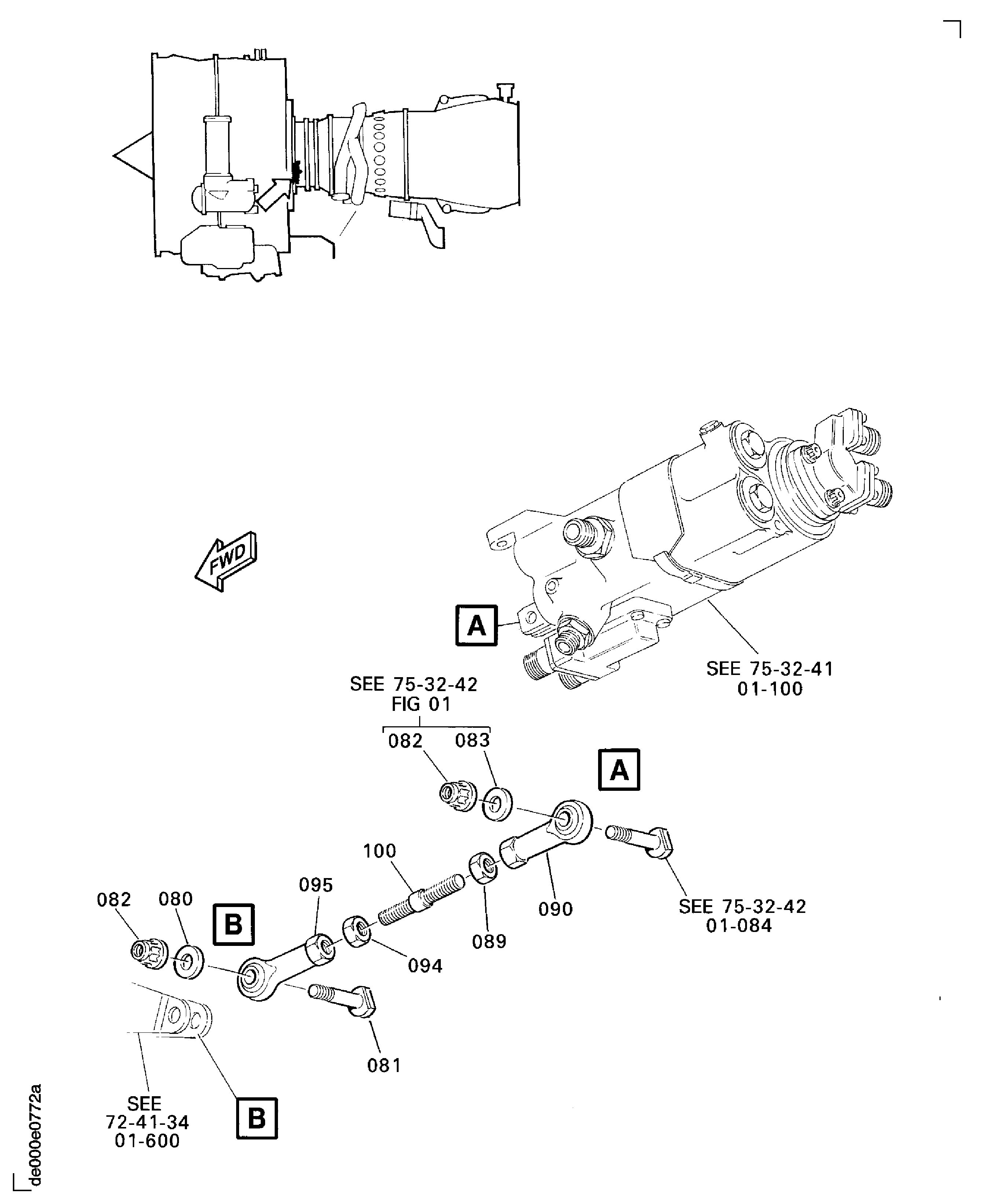

Figure: ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES
ACTUATING MECHANISM HP COMPRESSOR VARIABLE VANES
