| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72423001 | ENGINE-NO.4 BEARING FRONT COMPARTMENT, PRE SBE72-0065 | aa | ||
| SBE0065-01 | ENGINE-NO.4 BEARING FRONT COMPARTMENT, PRE SBE70-0857 | ab | ||
| SBE0857-01 | ENGINE-NO.4 BEARING FRONT COMPARTMENT, PRE SBE72-0629 | ac | ||
| SBE0629-01 | ENGINE-NO.4 BEARING FRONT COMPARTMENT, PRE SBE72-0675 | ad | ||
| SBE0675-01 | ENGINE-NO.4 BEARING FRONT COMPARTMENT | ae | ||
| 010 | AS3209-027 | • PACKING - PREFORMED U1653 PRE SBE70-0857 PRE SBE72-0629 | aa-ab | 1 |
| 010A | ST1946-027 | • PACKING - PREFORMED 77445 POST SBE70-0857 POST SBE72-0629 | ac-ad | 1 |
| 020 | MS9581-11 | • WASHER - KEY-90 DEGREE 96906 PRE SBE72-0629 | aa-ac | 1 |
| 020A | ST5141-11 | • WASHER - FLAT, 0.312 X 0.625 X 0.062 77445 POST SBE72-0629 | ad | 2 |
| 040 | ST1513-05 | • BOLT - MACHINE 77445 PRE SBE72-0629 | aa-ac | 1 |
| 040A | ST5027-08 | • BOLT 77445 POST SBE72-0629 | ad | 2 |
| 060 | MS9581-10 | • WASHER - KEY-90 DEGREE 96906 PRE SBE72-0629 | aa-ac | 1 |
| 060A | ST5141-11 | • WASHER - FLAT, 0.312 X 0.625 X 0.062 77445 POST SBE72-0629 | ad | 1 |
| 080 | ST1514-06 | • BOLT - MACHINE 77445 PRE SBE72-0629 | aa-ac | 1 |
| 080A | ST5027-08 | • BOLT 77445 POST SBE72-0629 | ad | 1 |
| 100 | 2A0114 | • GASKET PRE SBE72-0065 | aa-ad | 1 |
| 100A | 2A0558 | • GASKET - A/O, 10.914 X 11.244 POST SBE72-0065 PRE SBE72-0675 | aa-ad | 1 |
| 100B | 2A4525-01 | • GASKET - A/O, 10.914 X 11.244 POST SBE72-0675 | ae | 1 |
| 160 | 2A0104 | • WASHER - KEY | aa-ad | 15 |
| 180 | 2A1199 | • NUT - PLAIN HEXAGON | aa-ad | 15 |
| 200 | 2A0971 | • SPACER - NO4BRG, .250-28 & .190-32 | aa-ad | 4 |
| 240 | 361367 | • NUT - PLAIN HEX, .190-32 X .125 77445 | aa-ad | 4 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

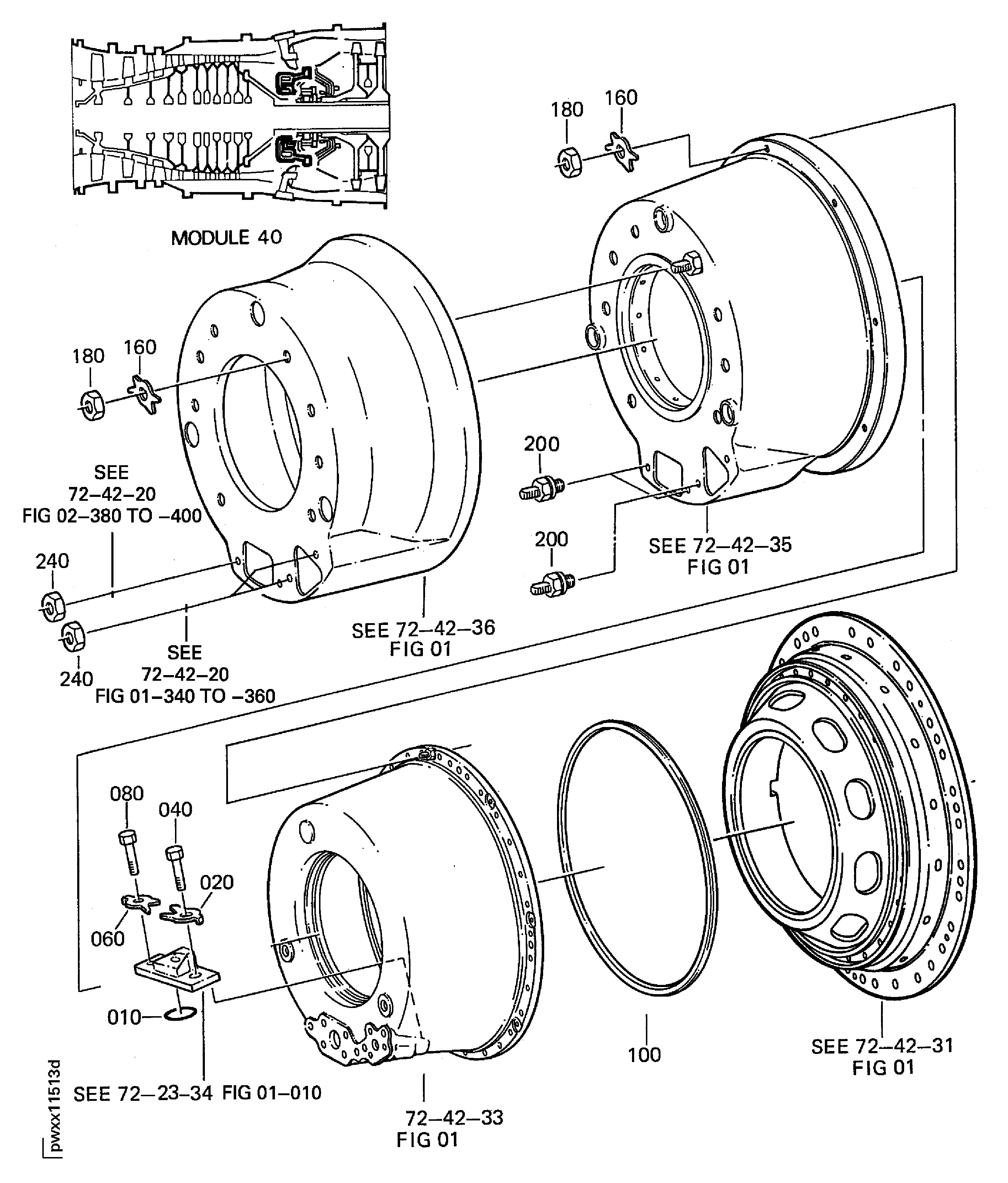

Figure: ENGINE-NO.4 BEARING FRONT COMPARTMENT
NO.4 BEARING FRONT COMPARTMENT
