| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B72423401 | ENGINE-NO.4 BEARING OIL NOZZLE ASSEMBLY, PRE SBE72-0497 | aa | ||
| SBE0497-01 | ENGINE-NO.4 BEARING OIL NOZZLE ASSEMBLY, PRE SBE72-0629 | ab | ||
| SBE0629-01 | ENGINE-NO.4 BEARING OIL NOZZLE ASSEMBLY | ac | ||
| 010 | 2A0896 | • HOUSING - NO4BRG NOZZLE,ASSY PRE SBE72-0497 PRE SBE72-0629 | aa | 1 |
| 010A | 2A3966-01 | • HOUSING - NO4BRG NOZZLE,ASSY 77445 POST SBE72-0497 PRE SBE72-0629 | aa-ac | 1 |
| 010B | 2A0896-001 | • HOUSING - NO4BRG NOZZLE,ASSY 77445 POST SBE72-0497 PRE SBE72-0629 | ab | 1 |
| 010C | 2A4327-01 | • HOUSING - A/O NO.4 BRG NOZZLE 77445 POST SBE72-0629 | ac | 1 |
| 015 | 1030355 | • • PIN MFR Part No MS9390-080 POST SBE72-0629 | ac | 1 |
| 020 | 2A4326 | • • HOUSING, NOZZLE 77445 POST SBE72-0629 | ac | 1 |
| 020A | 2A3965 | • • HOUSING, NOZZLE PRE SBE72-0629 | aa-ab | 1 |
| 020B | 4W2627 | • • WIRE, LOCKING PRE SBE72-0629 | aa-ab | AR |
| 020C | MS9390-080 | • • PIN 96906 POST SBE72-0629 | ac | 1 |
| 020D | 2A0895 | • • HOUSING,NOZZLE PRE SBE72-0629 | aa-ab | 1 |
| 040 | 2A0120 | • • NOZZLE - NO4BRG | aa-ac | 1 |
| 060 | 2A0121 | • • NOZZLE - NO.4 BRG, ASSEMBLY OF PRE SBE72-0497 PRE SBE72-0629 | aa | 1 |
| 060A | 2A3968-01 | • HOUSING - NO4BRG NOZZLE,ASSY 77445 POST SBE72-0497 POST SBE72-0629 | ab-ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

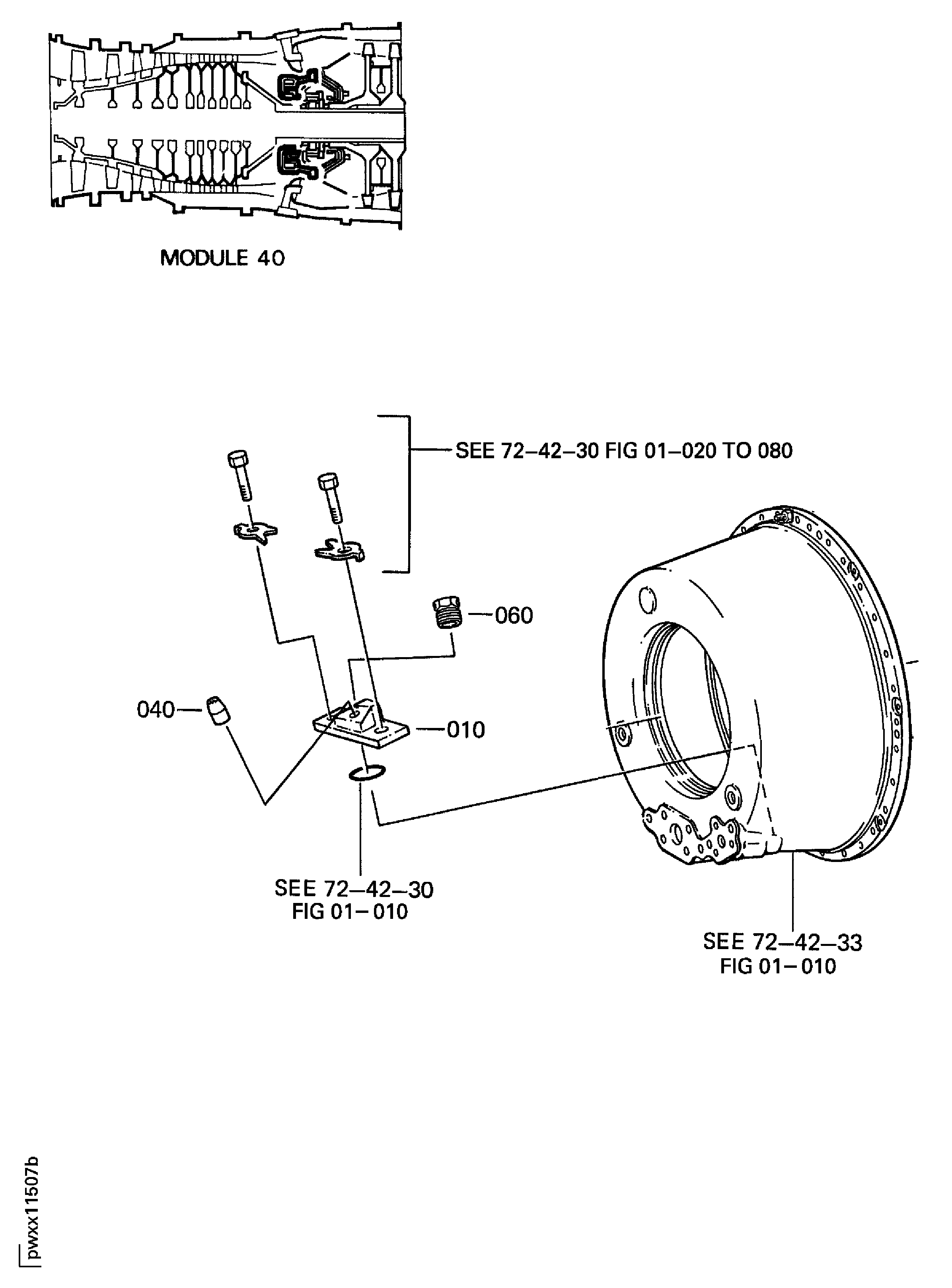

Figure: ENGINE-NO.4 BEARING OIL NOZZLE ASSEMBLY
NO.4 BEARING OIL NOZZLE ASSEMBLY
