ENGINE-NO.4 BEARING FRONT HEATSHIELD

DMC:V2500-A1-72-42-36-01A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B72423601ENGINE-NO.4 BEARING FRONT HEATSHIELDaa
0100102A1330• SHIELD - HEAT NO.4 BRG.ASSY OFaa1
0600602A0976• • BRACKET - ANGLEaa1
080080AN123315• • RIVET - SOLID UNIVERSAL HD
81352		aa2
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

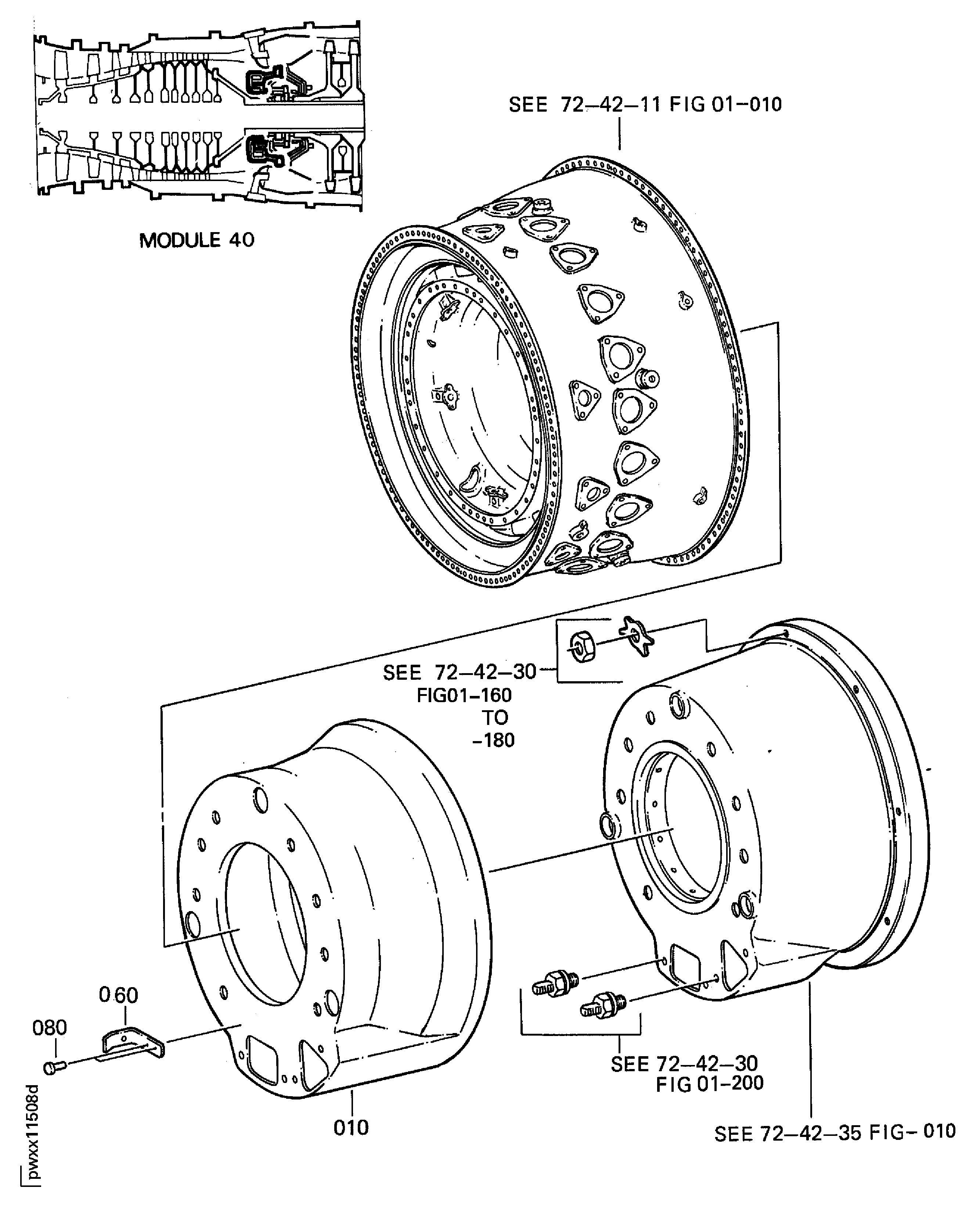

Figure: ENGINE-NO.4 BEARING FRONT HEATSHIELD

NO.4 BEARING FRONT HEATSHIELD

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Part Number:2A0976
Part Name:BRACKET - ANGLE
Manufacturer Code:0AM53
Part Number:2A1330
Part Name:HEATSHIELD - NO. 4 BEARING, ASSEMBLY OF
Manufacturer Code:0AM53
